Advance Tabco DTS-K70-72L Korner Compartment Sinks
Description

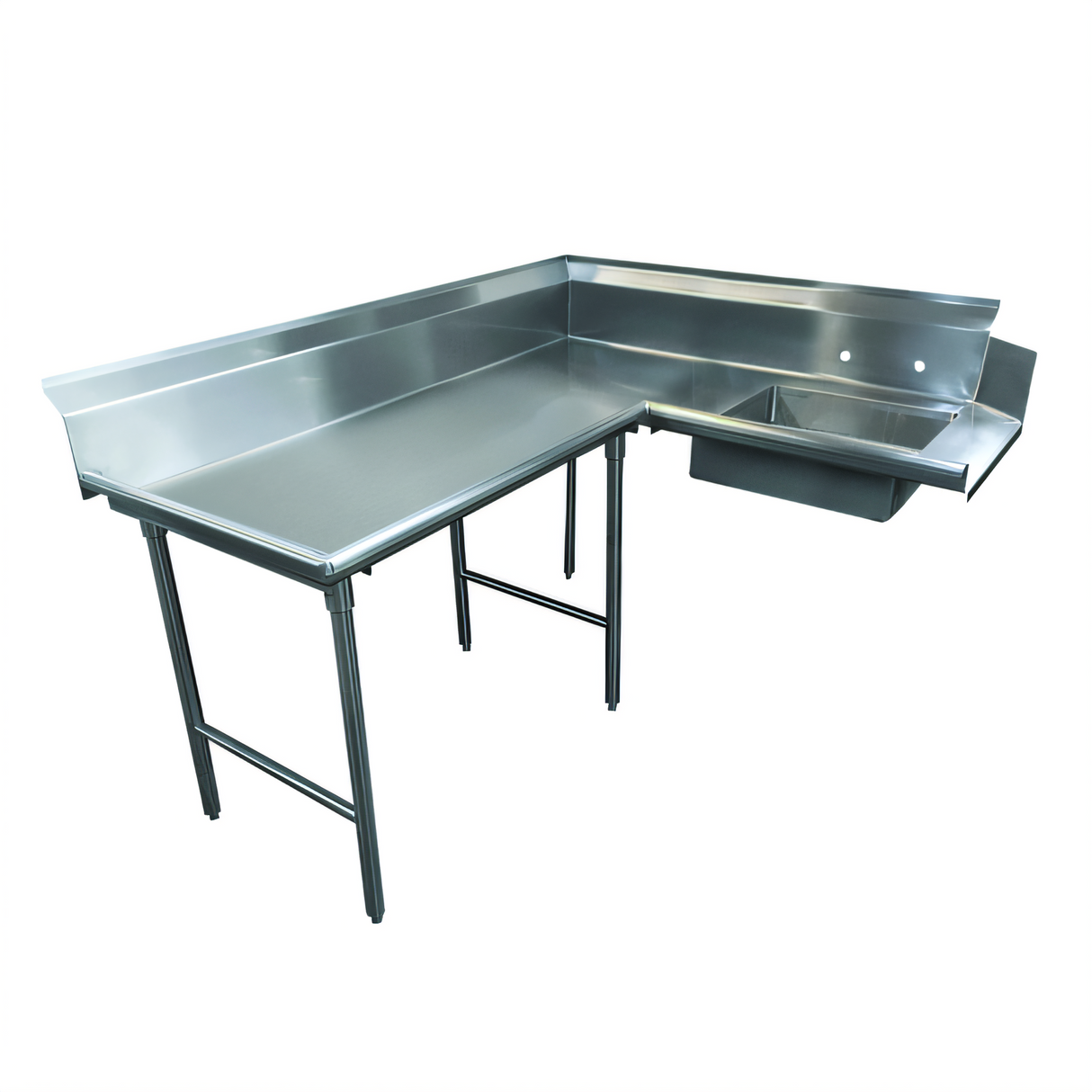

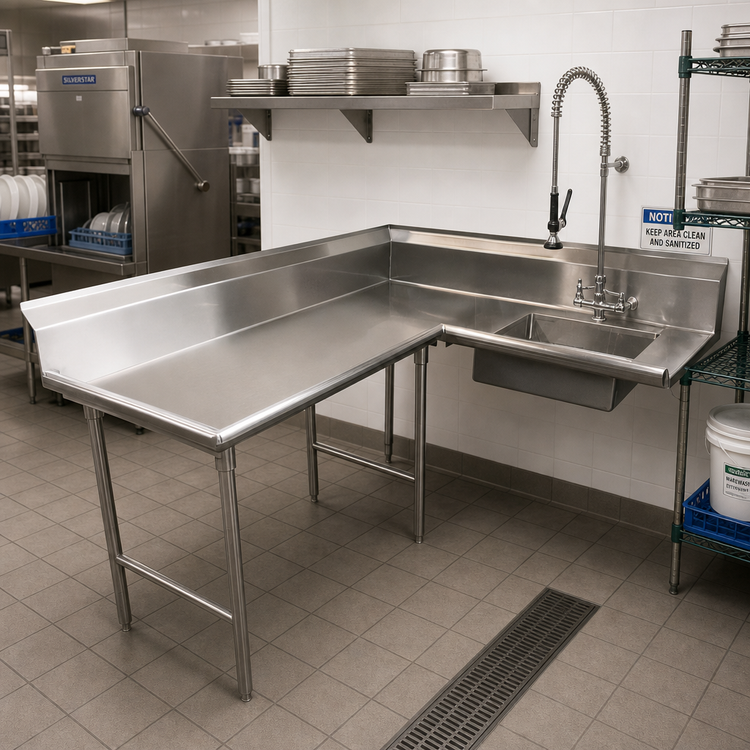

Advance Tabco Korner Soil Dishtable – 71" L-Shape (Left Side)
Standard Series • Model DTS-K70-72LTransform your ware-washing corner into a smooth, high-capacity work zone. The Advance Tabco Korner Soil Dishtable mounts directly to the left of your dish machine, giving staff a generous pre-rinse sink, extra-tall backsplash and rugged 16 gauge stainless-steel surface that keeps racks moving and water contained.
Key Features
- 71" nominal length – ideal for 6 ft corner installations.
- 16 ga, 304 series stainless-steel top with sanitary tile-edge for flush wall mounting.
- 1 5/8" Ø 304 stainless-steel legs with welded cross rails & adjustable stainless bullet feet (1" range).
- Integrated 20" × 20" × 5" pre-rinse sink bowl; 1-1/2" IPS basket-type waste drain included.
- Extra-large 10-1/2" backsplash with 2" return prevents water overspray.
- 8" O.C. faucet holes punched in splash—ready for most commercial pre-rinse faucets (faucet not included).
- All TIG-welded seams blended to a satin finish for a clean, snag-free surface.
- NSF listed & proudly made in the USA.
At-a-Glance Specifications
| Manufacturer | Advance Tabco |
|---|---|
| Series | Korner Soil – Standard |
| Model | DTS-K70-72L |
| Overall length | 71" (nominal 6 ft) |
| Depth (each leg) | 30" |
| Backsplash height | 10-1/2" with 2" return |
| Sink bowl size | 20" × 20" × 5" deep |
| Top material | 16 ga 304 stainless steel |
| Leg material | 304 stainless steel, 16 ga |
| Bracing | Welded stainless cross rails |
| Feet | Adjustable stainless bullet feet (1") |
| Orientation | Left of dish-machine operator |
| Approx. shipping weight | 215 lb |
Installation Notes

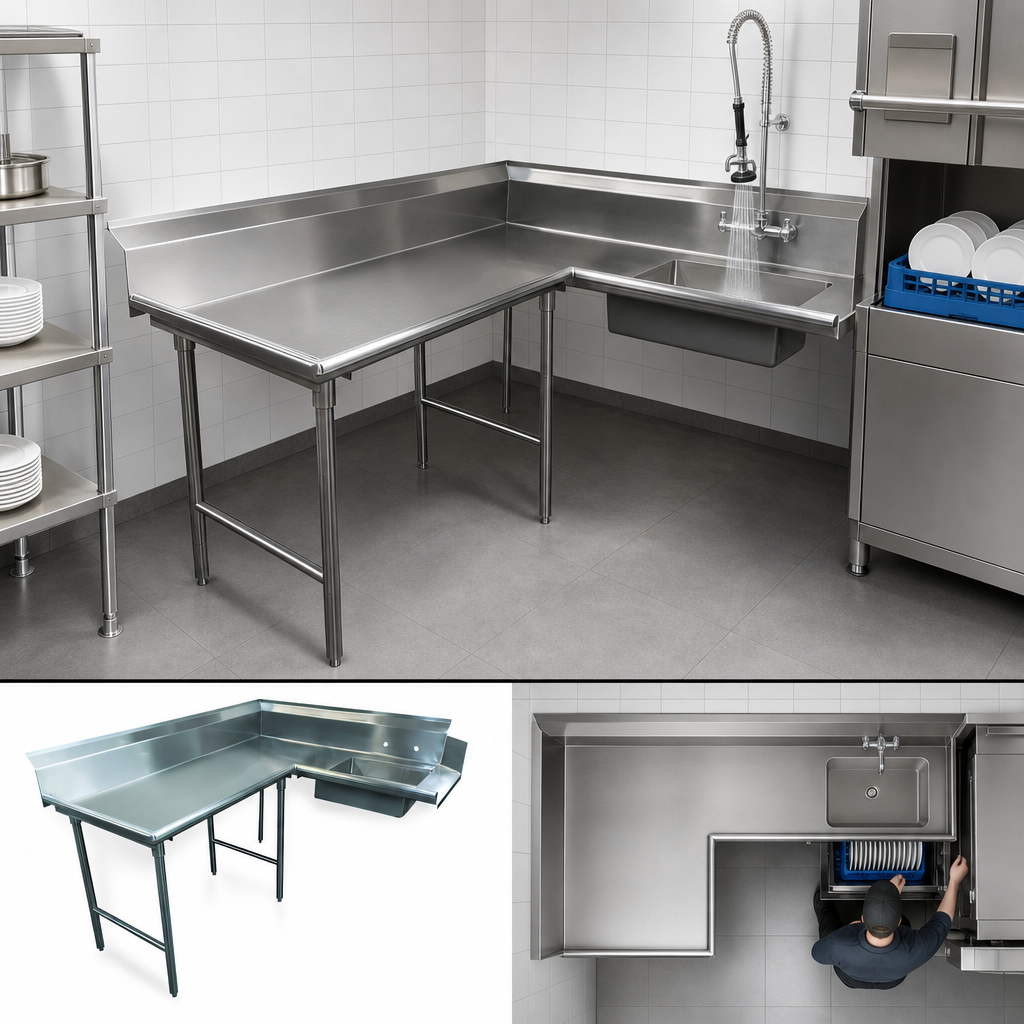

- Designed for corner applications where the soil table sits on the operator’s left.
- Verify required clearances with your specific dish-machine model; see Advance Tabco compatibility chart.
- Mounting hardware & faucet sold separately.
Need a different size or right-hand layout? Ask us about additional Korner Soil models in 4 – 12 ft lengths.
