Advance Tabco DTS-K70-60R Korner Compartment Sinks
Description

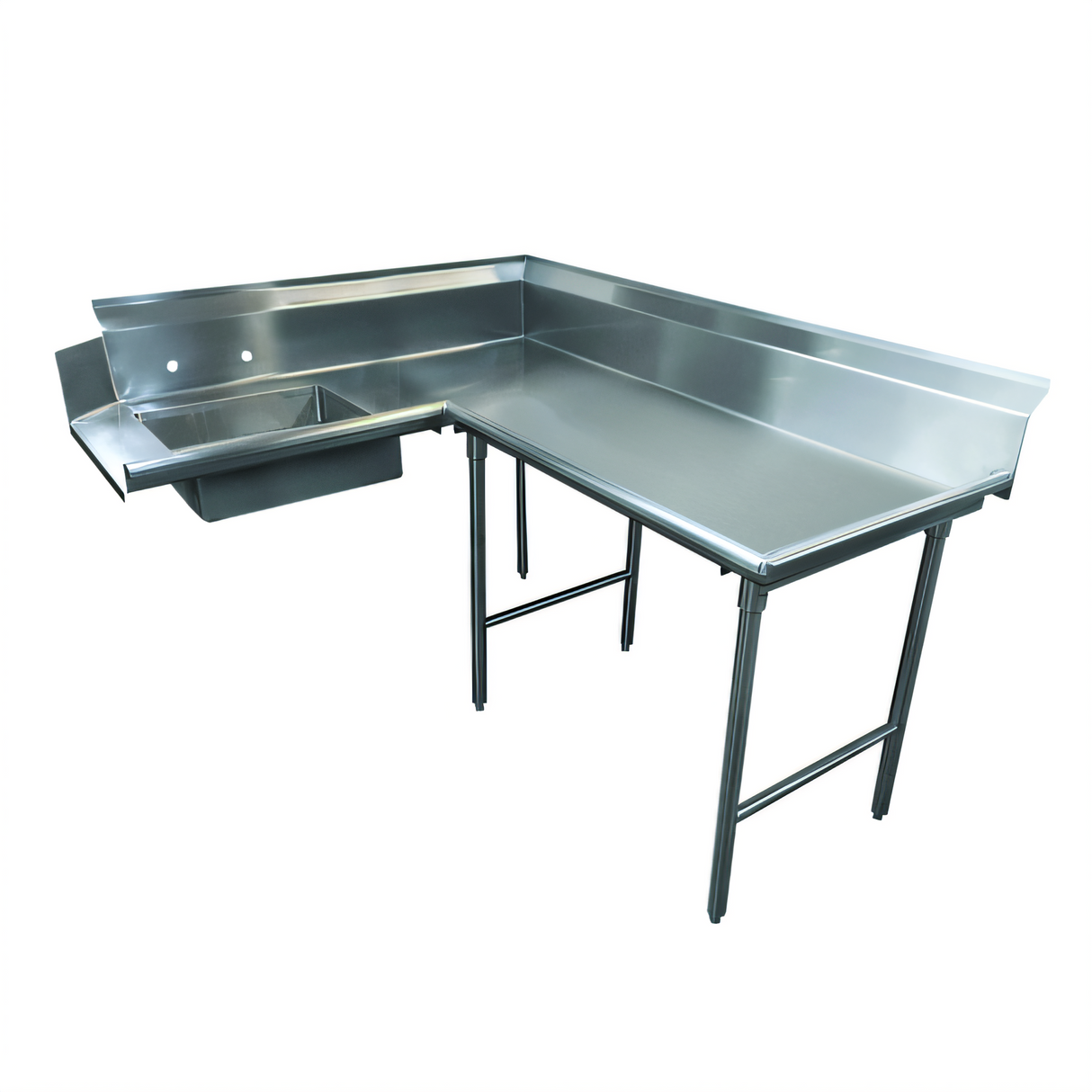

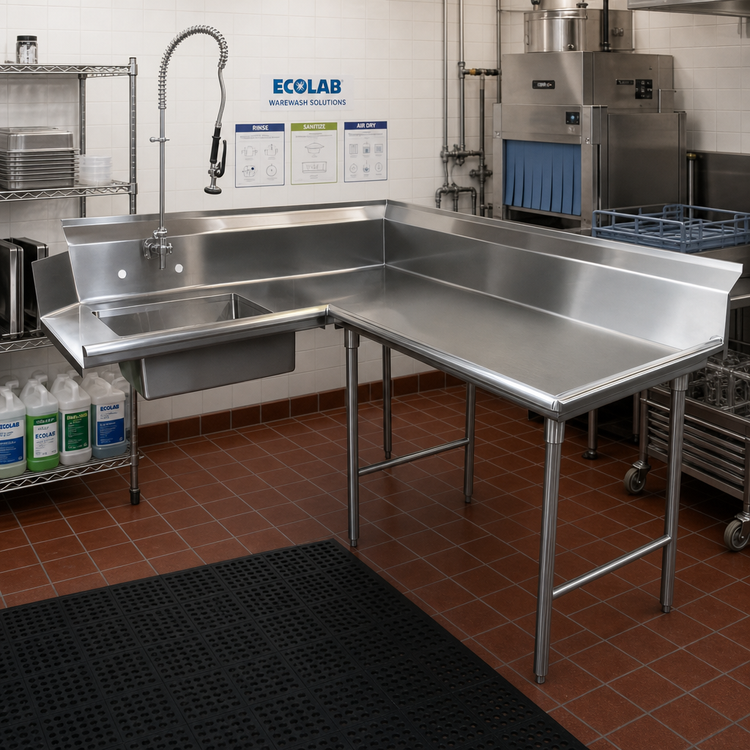

Advance Tabco “Korner” Soil Dishtable – 59" Right-Hand L-Shape
Model DTS-K70-60R | Standard Series | 16-Gauge 304 Stainless SteelTurn an unused corner into a high-efficiency soil side with the Advance Tabco Korner Dishtable. Built from rugged 16-ga 304 stainless steel and engineered to attach directly to the right of your dish machine operator, it provides an extra-large 10 ½" backsplash, integrated pre-rinse sink and rock-solid leg bracing—everything you need for faster, cleaner ware handling in a tight footprint.
Key Advantages
- Space-saving L-shape keeps dirty ware flow in the corner and out of traffic lanes.
- 16-ga 304 stainless steel top stands up to chemicals, heat and dents.
- Bold 10 ½" backsplash with 2" return and tile-edge for sanitary, code-compliant wall installation.
- 20" × 20" pre-rinse sink bowl (5" deep) speeds scrap-off before the dish machine.
- 8" on-center faucet holes pre-punched in splash (faucet sold separately).
- 1 ½" IPS basket-type waste drain supplied—no add-on kit required.
- 1 5⁄8" Ø all-stainless legs with welded crossrails & adjustable bullet feet for unmatched rigidity.
- All TIG-welded construction; welds blended to a smooth satin finish.
Pre-Rinse Sink Details
| Sink Bowl | 20" W × 20" L × 5" D |
|---|---|
| Faucet Mounting | (2) holes, 8" O.C., punched in backsplash |
| Drain | 1 ½" IPS basket-type (included) |
Dimensions & Construction
| Nominal Length | 59" |
|---|---|
| Wing Depth | 30" |
| Working Height | 34" to tabletop |
| Backsplash Height | 10 ½" (with 2" return) |
| Material / Gauge | 304 stainless steel, 16-ga top & legs |
| Legs & Feet | 1 5⁄8" Ø stainless, welded crossrails, 1" adj. bullet feet |

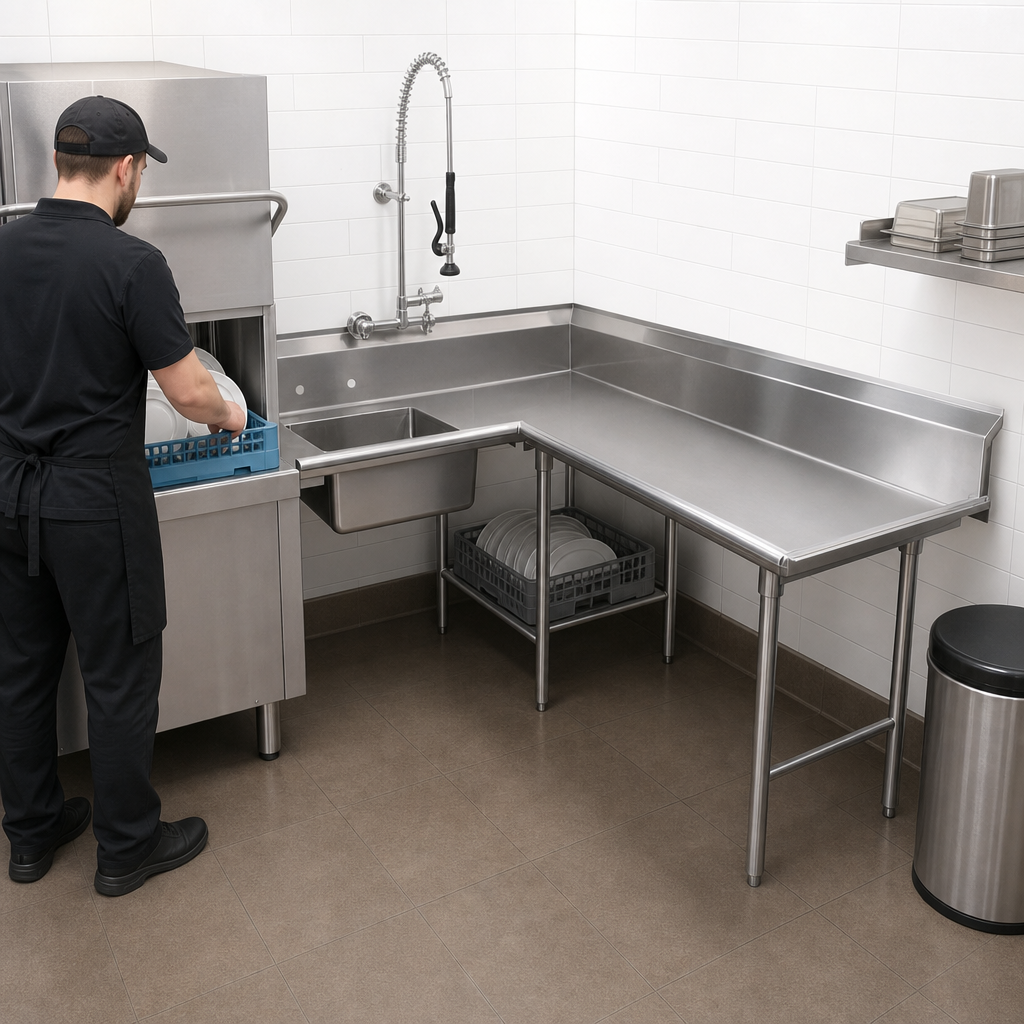

| Orientation | Right-hand (mounts on operator’s right) |
| Approx. Ship Weight | 190 lb |
Popular Accessories (sold separately)
- Pre-rinse faucet or spray valve assembly
- Wall-mount or countertop overshelf
- Stainless steel undershelf for extra storage
Specifications subject to change without notice.
