Advance Tabco  |  Korner  |  SKU: DTS-K70-60L  |  UPC: 747545121936

Advance Tabco DTS-K70-60L Korner Compartment Sinks

$4,003.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

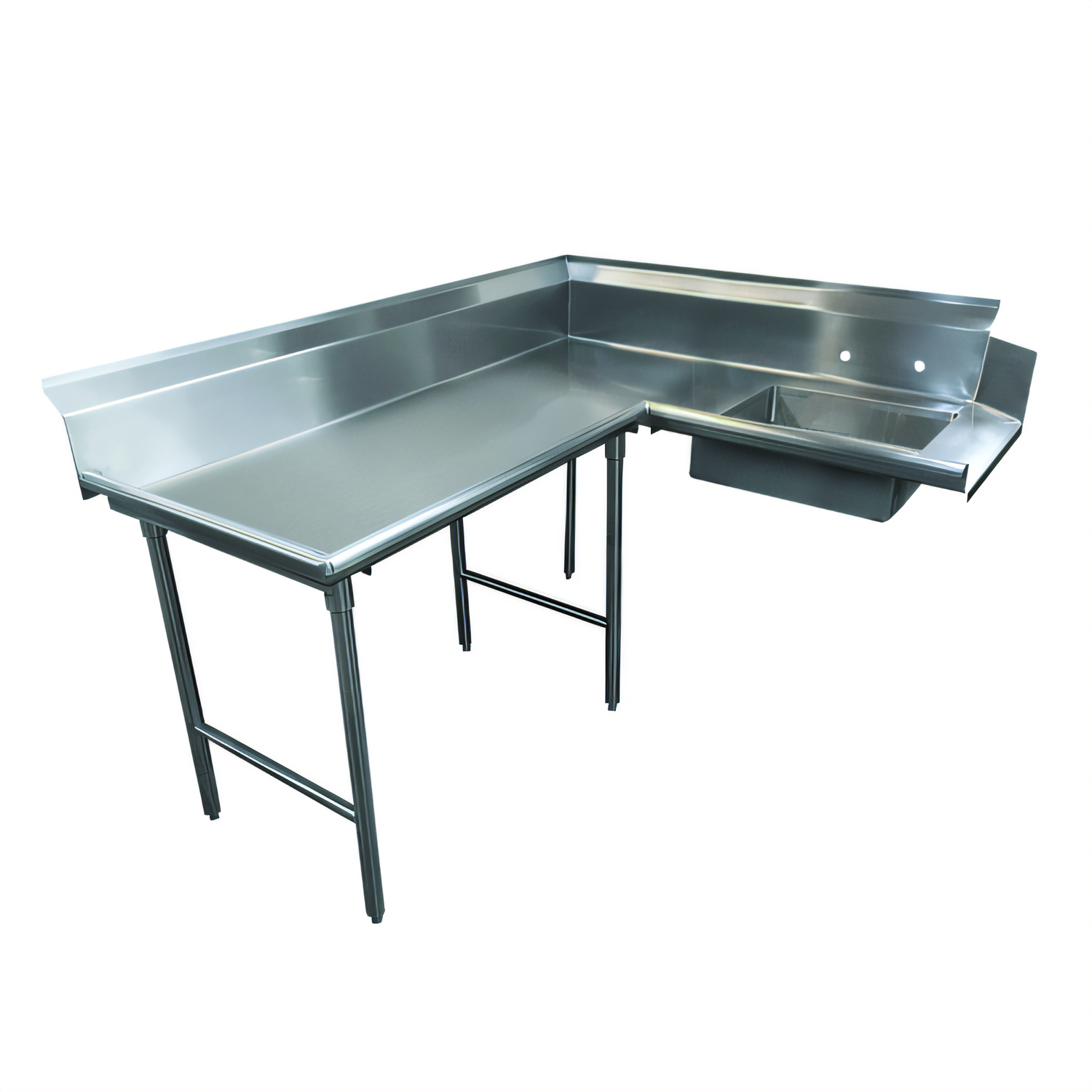

Advance Tabco “Korner” Soil Dishtable – 59" (Left Hand)

Model DTS-K70-60L • 16 ga. Type 304 Stainless Steel

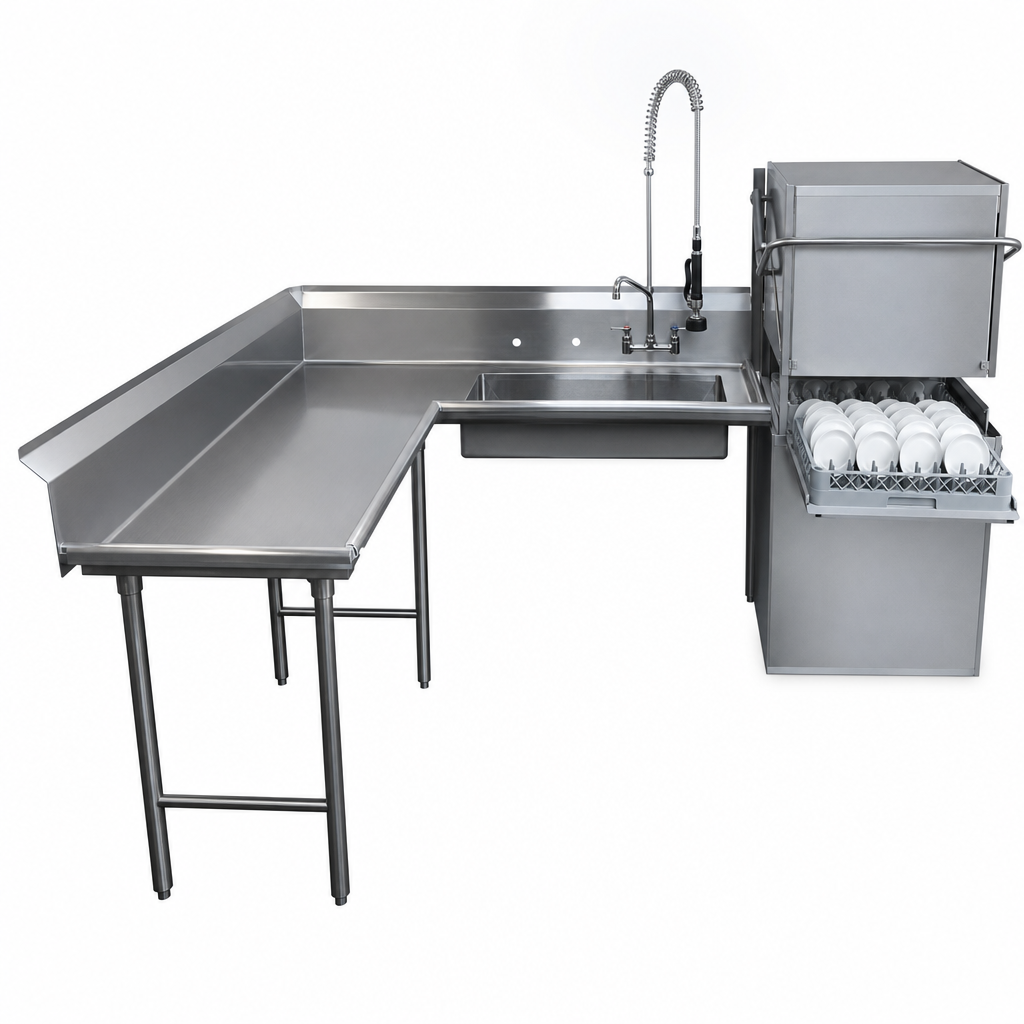

Turn an unused corner into a high-output dishroom work station. The Advance Tabco Korner Soil Dishtable mounts to the left side of a door-type dish machine, giving staff a single point for scraping, pre-rinsing and staging wares while keeping traffic lanes clear.

Key Features

  • Space-saving L-shaped design, 59" on each leg.
  • Heavy-duty 16 ga. 304 SS top resists chemicals & dents.
  • 20 × 20 × 5" pre-rinse sink welded into top; 1 ½" IPS basket drain included.
  • 10 ½" extra-high backsplash with 2" tile edge keeps water contained and speeds installation.
  • 1 ⅝" Ø 16 ga. 304 SS legs with welded cross-rails and adjustable stainless bullet feet (1" level range).
  • TIG-welded construction; welds are satin-blended for a smooth, sanitary finish.
  • Faucet holes pre-punched on 8" centers (faucet/prerinse assembly sold separately).
  • NSF Listed.

Technical Specifications

Overall length (each side) 59" nominal
Table depth 30"
Working height 34" (adjustable)
Backsplash height 10 ½" with 2" return
Sink bowl size 20" × 20" × 5" deep
Top material / gauge 16 ga. type 304 stainless steel
Legs / bracing 16 ga. 304 SS legs with welded SS cross-rails
Drain 1 ½" IPS basket-type (included)
Faucet holes (2) – 8" on center
Orientation Left – soil table is on operator’s left when facing machine
Approx. weight 190 lbs

Perfect For

  • Restaurants & cafés optimizing tight dishrooms
  • School, healthcare & corporate cafeterias
  • Caterers upgrading to a corner dish machine layout
Important: Verify clearances and required offsets for your specific dish machine before ordering. Refer to the Advance Tabco Dish Machine Compatibility Chart or contact Smart Fabrication™ for assistance.

Faucet, pre-rinse spray and other accessories are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

215.0lbs

Splash Height

10"H splash

Width (end - corner) OA

49" - 60"

Width (machine - corner) OA

61" - 72"

Shape

corner

Stainless Gauge

16 gauge

Leg Type

stainless steel legs

Direction

left to right

Stainless Series

300 series

Specifications

Korner-Soil Dishtable, L-shaped, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 59" long, 16/304 stainless steel
