Advance Tabco  |  Korner  |  SKU: DTS-K70-144R  |  UPC: 747545121905

Advance Tabco DTS-K70-144R Korner Compartment Sinks

$5,189.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

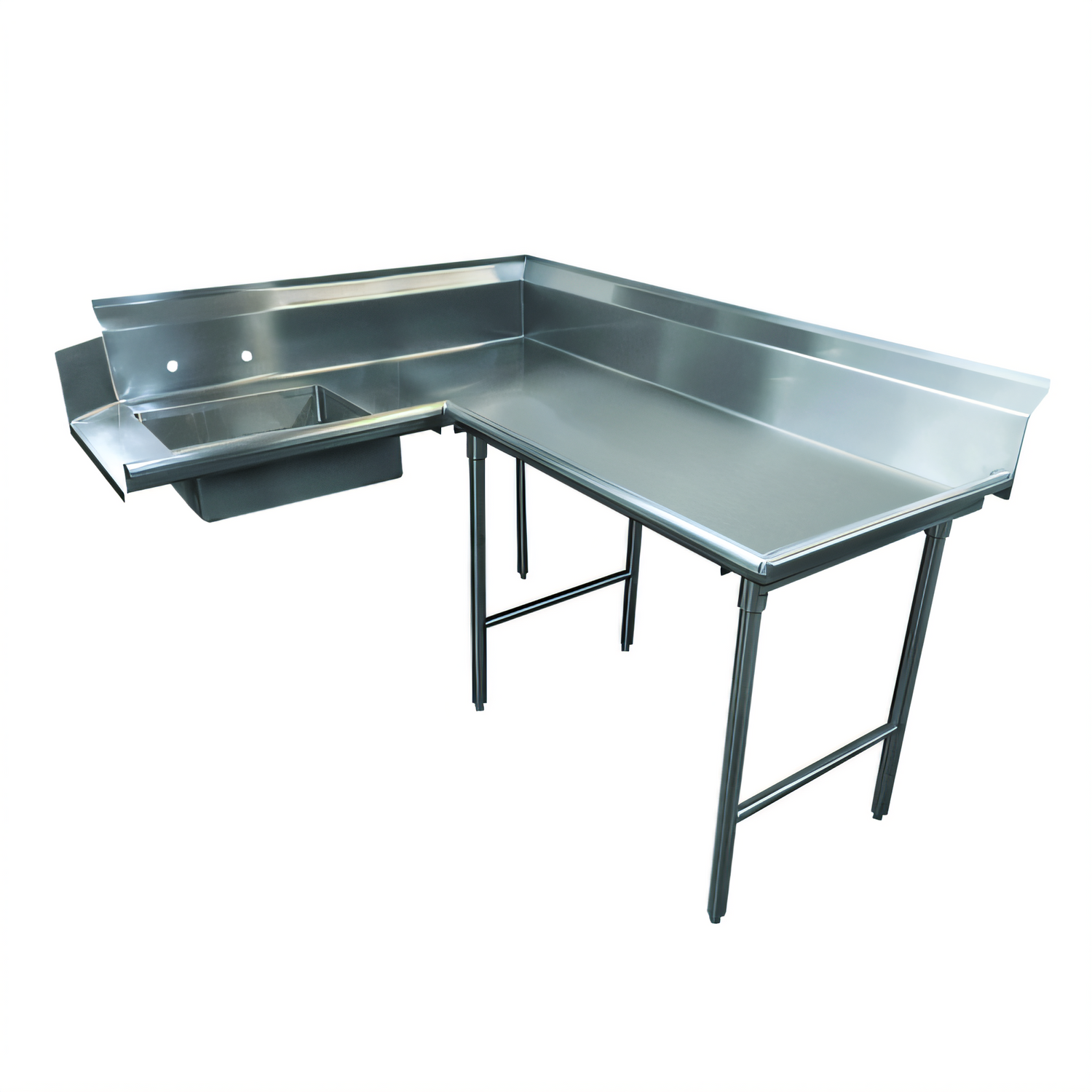

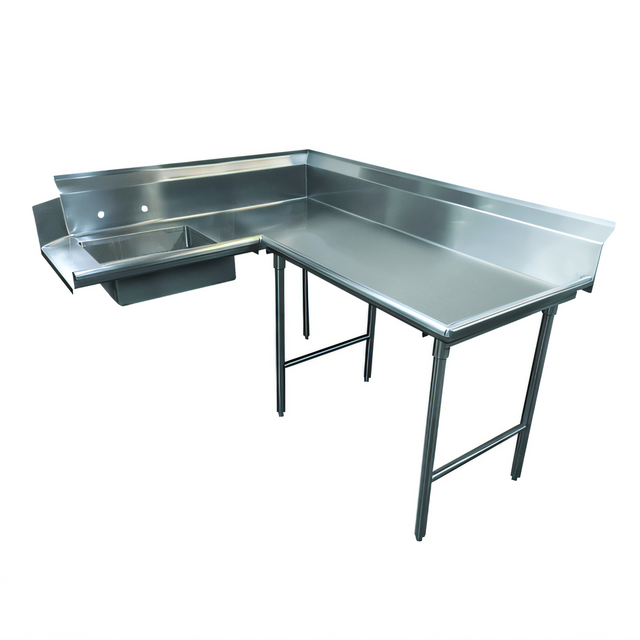

Advance Tabco “Korner” Soil Dishtable – 143" Standard Series (Right Side)

Model #: DTS-K70-144R | 16 ga 304 SS Top & Legs

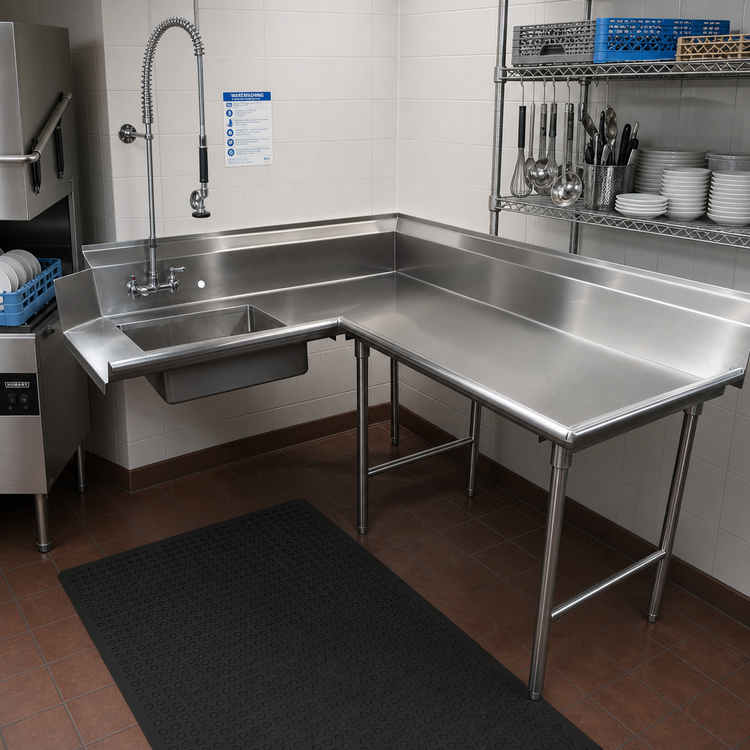

Maximize corner space and streamline your ware-washing flow with this heavy-duty, L-shaped soil dishtable. Purpose-built to mount on the right-hand side of your dish machine operator, the “Korner” keeps dirty wares moving efficiently while withstanding years of high-volume service.

Key Features

  • 143" overall length (nominal 12 ft) for large-capacity operations.
  • Space-saving L-shape positions sink and landing area exactly where you need them.
  • Rugged 16 ga, type 304 stainless steel top with easy-to-clean satin finish.
  • 16 ga, type 304 stainless steel legs with welded cross-bracing and adjustable stainless bullet feet.
  • 10-1/2" extra-large backsplash with 2" return & tile edge for quick, watertight installation.
  • Integrated 20" × 20" × 5" pre-rinse sink bowl (1-1/2" IPS basket drain included).
  • Faucet holes punched on 8" centers—ready for the pre-rinse faucet of your choice (sold separately).
  • All TIG-welded construction; welds blended to match adjacent surfaces.
  • NSF listed for open kitchen and back-of-house use.

Specifications

Overall Length 143" (nominal 12 ft)

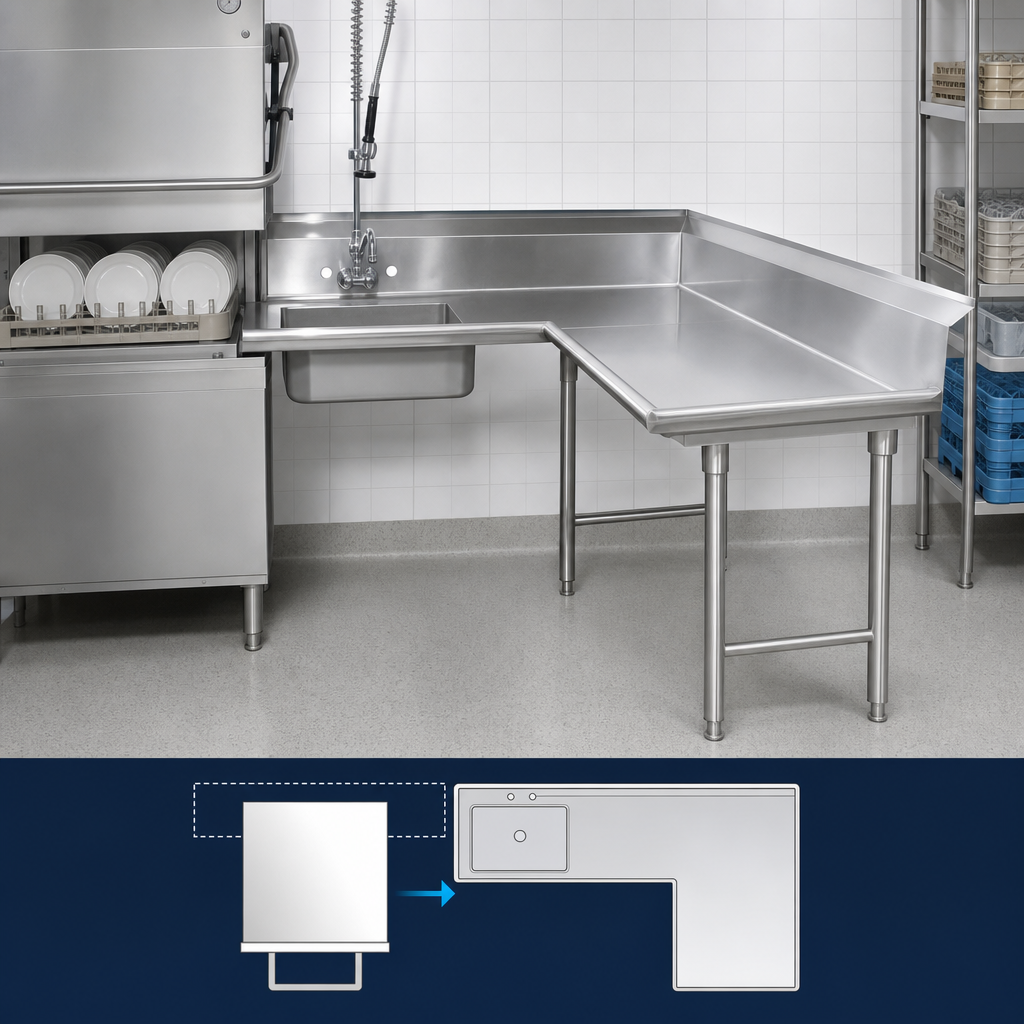

Configuration Right-hand soil section, L-shape (attaches to right side of dish machine operator)
Work Surface Height 34"
Backsplash Height 10-1/2" (44-1/2" to top of splash)
Top Material / Gauge 304 stainless steel, 16 ga
Legs & Cross-bracing 304 stainless steel, 16 ga  |  Welded cross-rails
Sink Bowl Size 20" × 20" × 5" deep
Drain 1-1/2" IPS basket-type (included)
Faucet Mounting 2 holes on 8" centers (faucet not included)
Approx. Shipping Weight 390 lb
Dish Machine Compatibility: Maintain required clearances between the sink bowl and your dish machine. Consult Advance Tabco’s compatibility chart or contact our team before ordering if you have any questions.

Faucet, wall shelf, undershelf and other accessories are available separately to create a fully customized dishroom setup.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

345.0lbs

Splash Height

10"H splash

Leg Type

stainless steel legs

Width (machine - corner) OA

61" - 72"

Shape

corner

Direction

right to left

Stainless Series

300 series

Stainless Gauge

16 gauge

Width (end - corner) OA

133" - 144"

Specifications

Korner-Soil Dishtable, L-shaped, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 143" long, 16/304 stainless steel
