Advance Tabco DTS-K70-144L Korner Compartment Sinks
Description
Advance Tabco “Korner” Soil Dishtable – 143" L-Shape (Left)
Model DTS-K70-144L · Standard SeriesFeed your warewasher like a pro while keeping the corner of your dish room clear. This 12 ft Korner Soil Dishtable attaches to the operator’s left side of virtually any commercial door-type or conveyor dish machine and delivers rugged 16 ga 304 SS construction, an extra-large backsplash, and an integrated pre-rinse sink—all in one space-saving L-shape.
Key benefits
- Space-saving L-shape keeps the dish room aisle open while providing a full 143" of landing space.
- Heavy-duty 16 ga 304 stainless steel top resists corrosion, dents, and chemicals.
- 10-1/2" bold backsplash with 2" tile-edge return contains splashes and drops neatly into wall tile.
- Pre-rinse sink (20" × 20" × 5") with 8" O.C. faucet holes—ideal for a traditional pre-rinse assembly (faucet not included).
- 1-1/2" IPS basket-type waste drain shipped installed.
- 1-5/8" Ø 16 ga 304 SS legs with welded cross bracing for rock-solid stability.
- Stainless steel, 1"-adjustable bullet feet allow easy, level installation on uneven floors.
- All TIG-welded seams are blended to a sanitary satin finish.
- Tile-edge design speeds installation—no special field fabrication required.
At-a-glance specs
| Overall length (nominal) | 143" (12 ft) |
|---|---|
| Table depth | 30" |
| Work height | 34" |
| Backsplash height | 10-1/2" with 2" return & tile edge |
| Sink bowl | 20" × 20" × 5" (pre-rinse) |
| Material / gauge | 16 ga 304 SS top & legs |
| Leg construction | 1-5/8" Ø tube, welded crossrails, stainless bullet feet |
| Drain connection | 1-1/2" IPS basket-type (included) |
| Faucet holes | Punched 8" on-center (faucet sold separately) |
| Approx. shipping weight | 390 lb |
Popular add-ons (sold separately)
- Pre-rinse faucet assemblies
- Wall-mounted overshelves for racks & chemicals
- Lower undershelf for extra storage

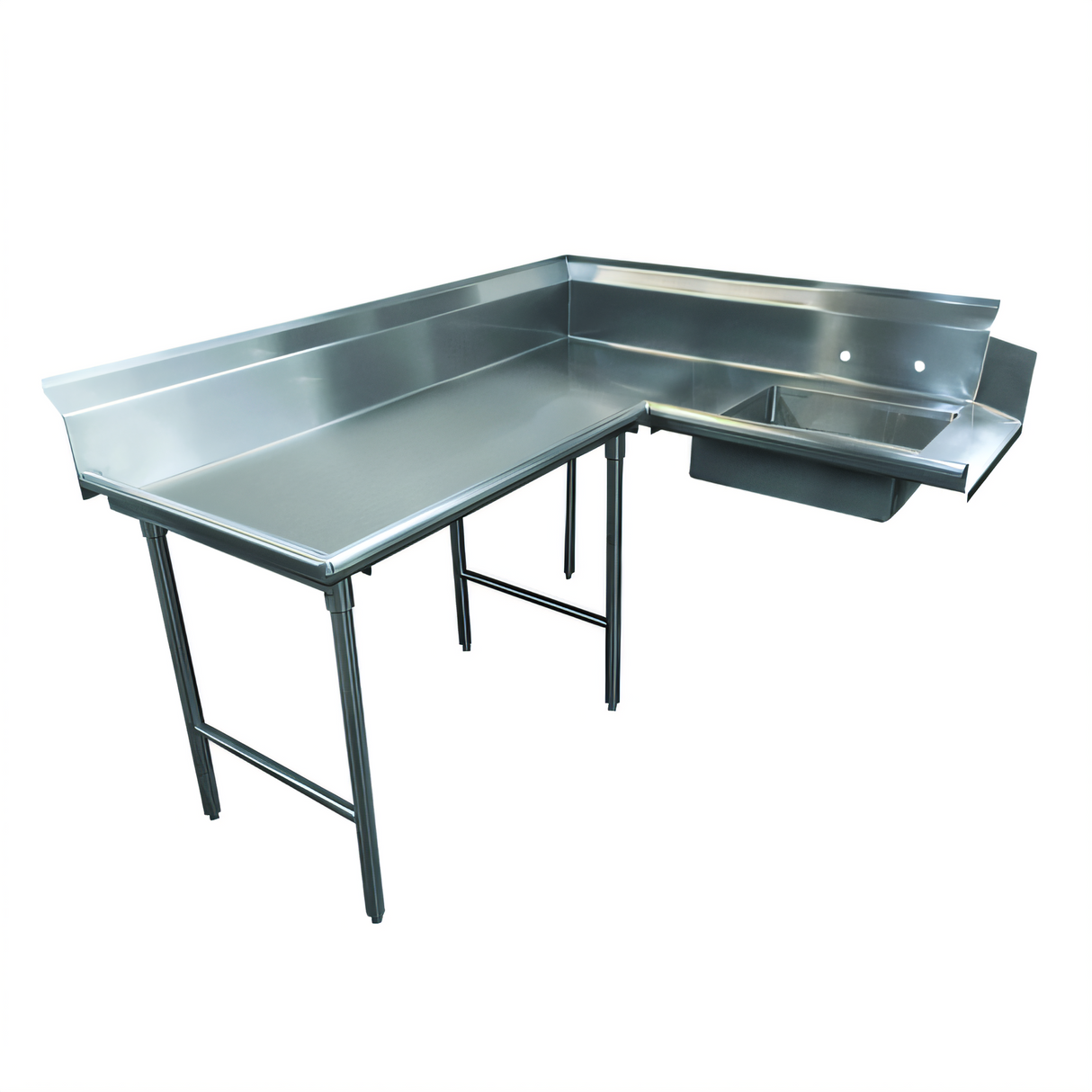

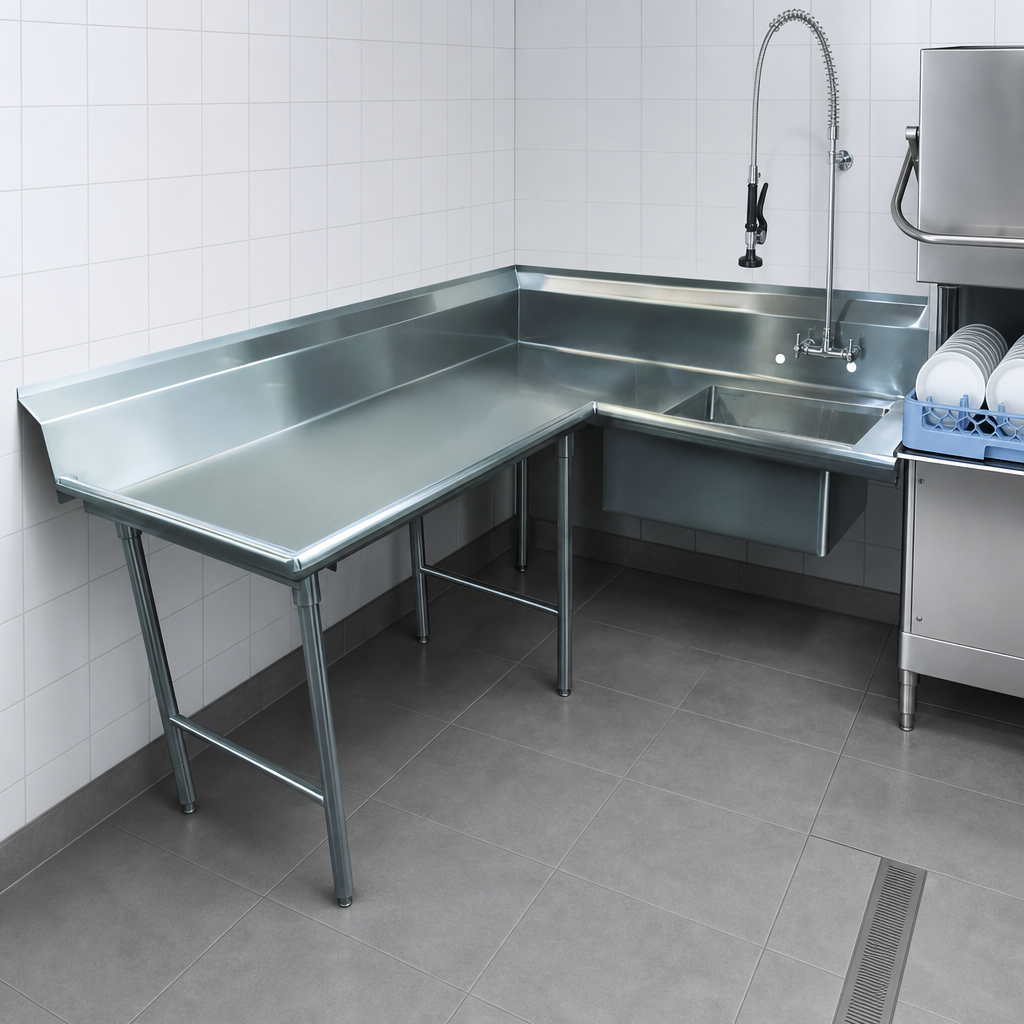

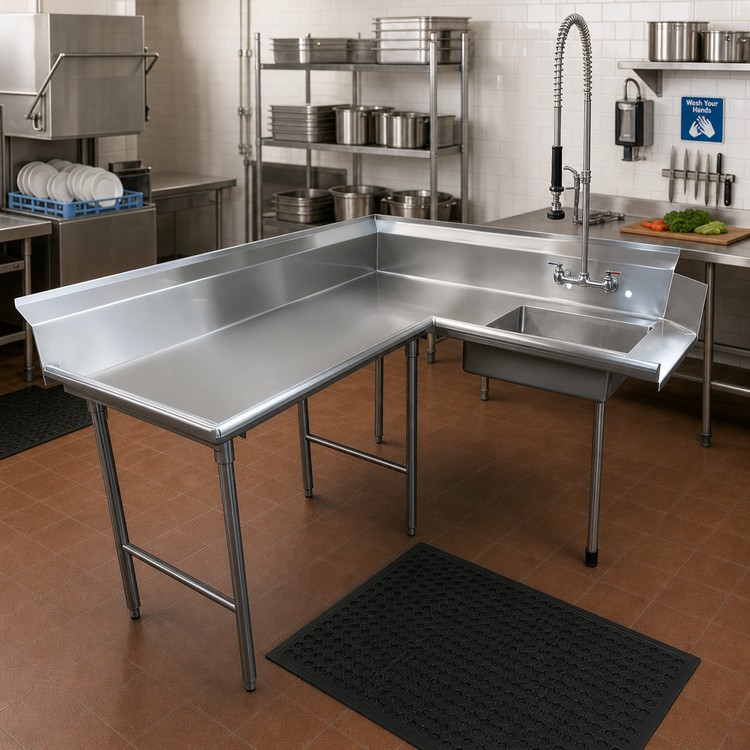

Image shows typical Korner Soil configuration with faucet for reference only; faucet and racks are not included.
