Advance Tabco  |  SKU: DTS-K70-120R

Advance Tabco DTS-K70-120R Korner Compartment Sinks

$4,908.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

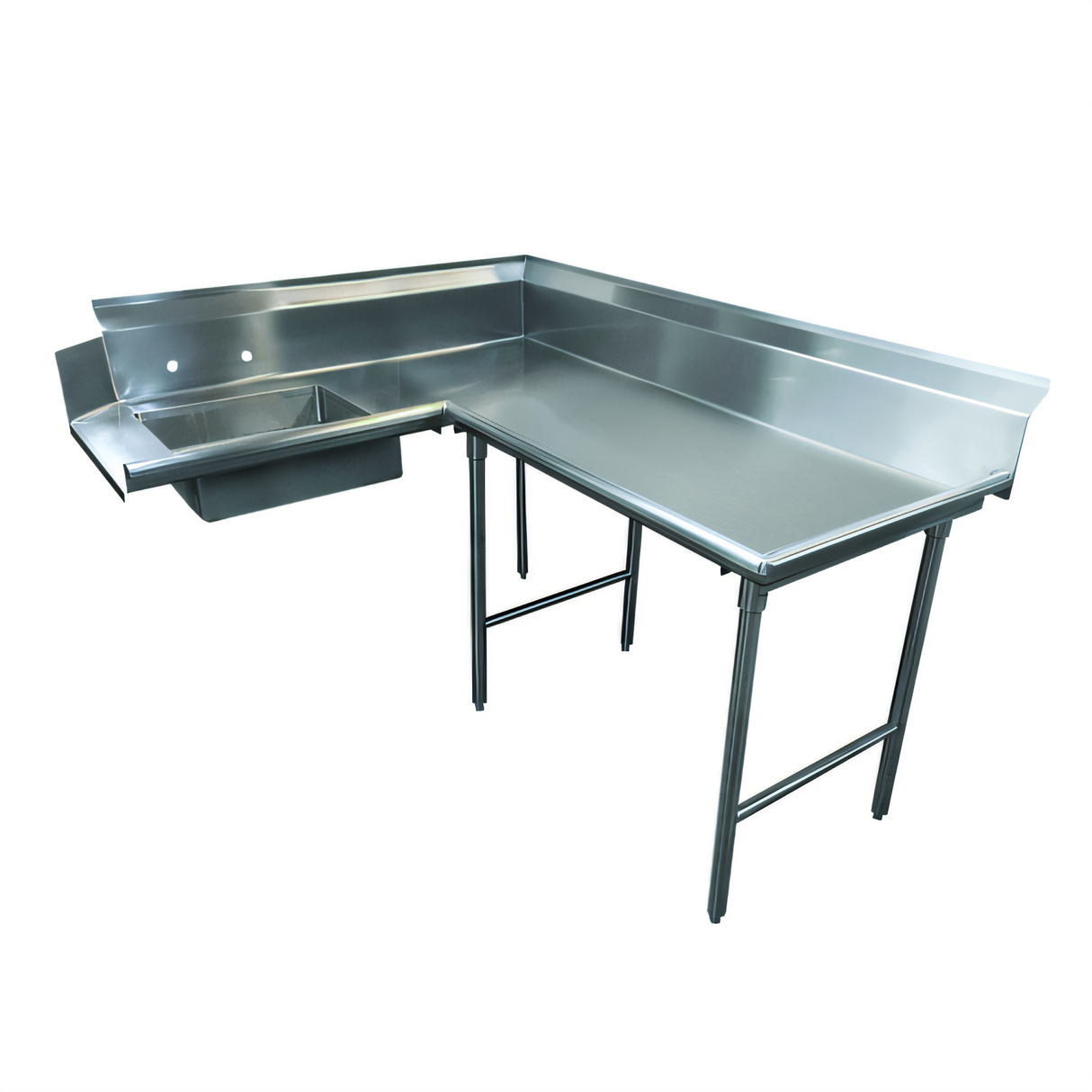

Advance Tabco “Korner” Soil Dishtable – DTS-K70-120R

Right-Hand, 119 in. L-Shape • 16 ga 304 Stainless Steel • Pre-Rinse Sink

Purpose-built for tight dish room corners, the Advance Tabco Korner soil dishtable directs soiled racks straight into your warewasher while keeping floors dry and traffic flowing. A rugged one-piece stainless worktop, generous backsplash and integrated pre-rinse sink give operators everything they need for fast, hygienic dish handling.

Key Features
  • L-shaped design mounts on the right side of the dish machine operator for left-to-right workflow.
  • Durable 16 ga 304 stainless steel top with 2 in. tile edge installs flush against tiled walls.
  • Extra-large 10-1/2 in. backsplash contains overspray and meets health-code requirements.
  • 20 × 20 × 5 in. pre-rinse sink speeds food-soil removal; 8 in. O.C. faucet holes pre-punched (faucet not included).
  • TIG-welded 16 ga 304 stainless legs with welded crossrails resist wobble and heavy loads.
  • Adjustable stainless bullet feet level the table on uneven floors.
  • 1-1/2 in. IPS basket-type waste drain shipped ready to plumb.
  • NSF listed; built in the USA.
Specifications
Model # DTS-K70-120R
Overall length 119 in.  (10 ft)
Depth (each leg) 30 in.
Work surface height 34 in.
Backsplash height 10-1/2 in.  with 2 in. return
Sink bowl size 20 × 20 × 5 in.
Top material 16 ga 304 stainless steel
Legs 1-5/8 in. Ø 16 ga 304 stainless steel
Crossbracing Welded stainless steel
Feet Adjustable stainless bullet feet
Drain 1-1/2 in. IPS basket type (included)
Orientation Right-hand soil entry
Approx. shipping weight 380 lb
Popular Add-Ons  (sold separately)
  • Deck-mount pre-rinse faucet
  • Over-shelf for utensil or rack storage
  • Undershelf for bus tubs or chemicals
Confirm clearance requirements with the latest Advance Tabco Dish Machine Compatibility Chart or contact our team for a SMART FABRICATION™ quote on custom notches and openings.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

305.0lbs

Splash Height

10"H splash

Shape

corner

Width (machine - corner) OA

61" - 72"

Leg Type

stainless steel legs

Direction

right to left

Stainless Series

300 series

Stainless Gauge

16 gauge

Width (end - corner) OA

109" - 120"

Specifications

Korner-Soil Dishtable, L-shaped, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 119" long, 16/304 stainless steel
