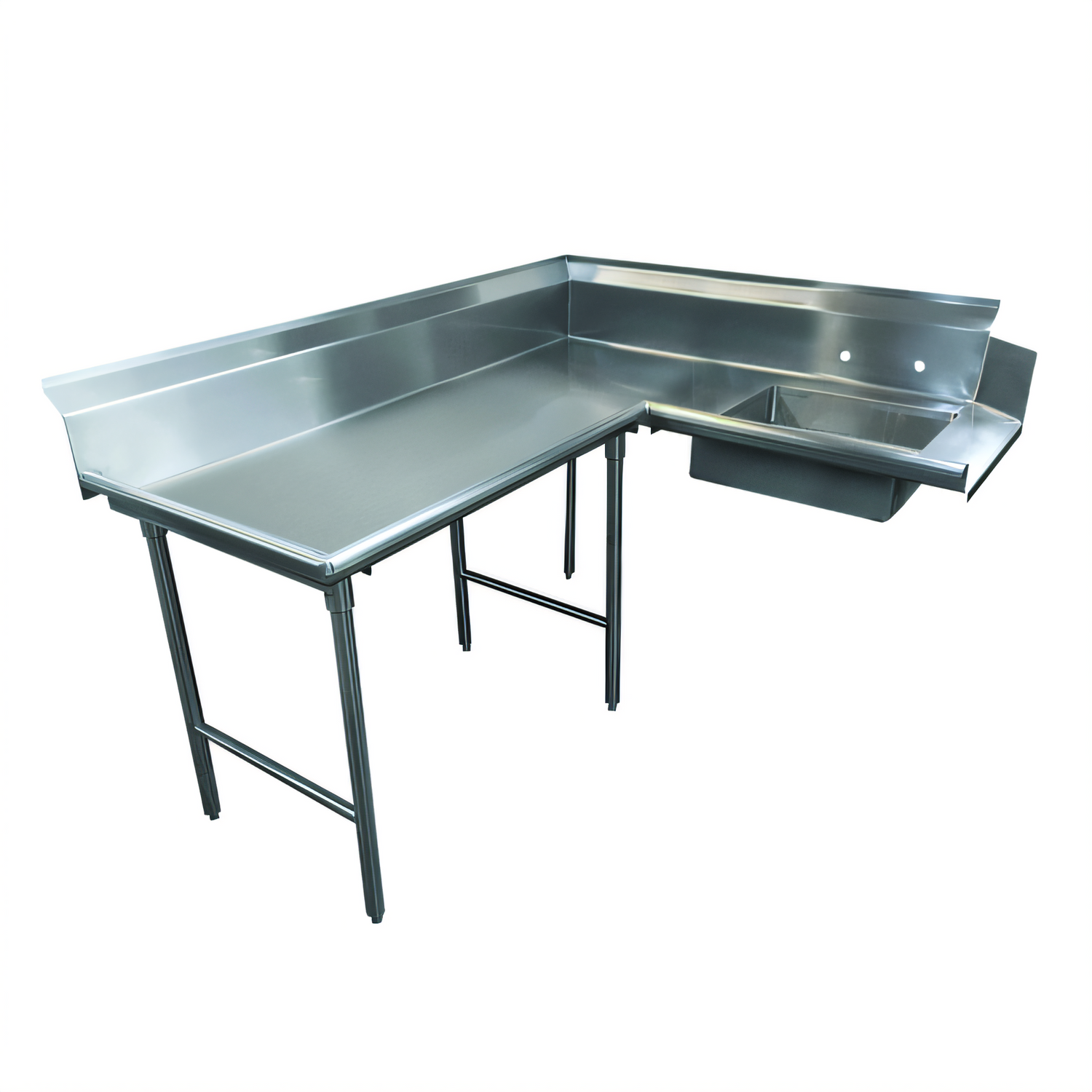

Advance Tabco Korner Soil L-Shaped Left-Hand Dishtable with Pre-Rinse Sink, 119 Inches, 304 Stainless Steel

SKU: DTS-K70-120L
GTIN: 747545121875
$5,153.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Advance Tabco Best Sellers Commercial Work Tables Compartment Sinks Dish Tables New Arrivals Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Advance Tabco Korner Soil L-Shaped Left-Hand Dishtable with Pre-Rinse Sink, 119 Inches, 304 Stainless Steel

10-1/2" Backsplash, Standard Series, Left of Dish Machine Operator

Built for efficient corner dish room layouts, this left-hand korner soil dishtable combines heavy-duty stainless construction with a pre-rinse sink and a tall splash guard to keep workflow moving cleanly.

  • L-shaped corner soil dishtable designed to attach to the left of the dish machine operator.
  • 119-inch overall length with a 10-1/2-inch backsplash, 2-inch return, and tile edge for splash control and easier installation.
  • Standard-series construction with a 16-gauge 304 stainless steel top and 304 stainless steel legs.
  • Includes a 20 x 20 x 5-inch pre-rinse sink bowl and a 1-1/2-inch IPS basket-type waste drain.
  • TIG welded construction with stainless steel gussets, welded cross bracing, and adjustable stainless bullet feet.
  • Faucet holes are punched on 8-inch centers; faucet is sold separately.

Overall Dimensions:

44.0"H

Product Weight:

305.0 lb
Note: Conforms to NSF 61/9 lead free requirements. Notice for use or sale in California: Proposition 65 this faucet may expose you to chemicals, including lead, that are known to the State of California to cause cancer, or birth defects or other reproductive harm. For more information visit www.p65warnings.ca.gov.

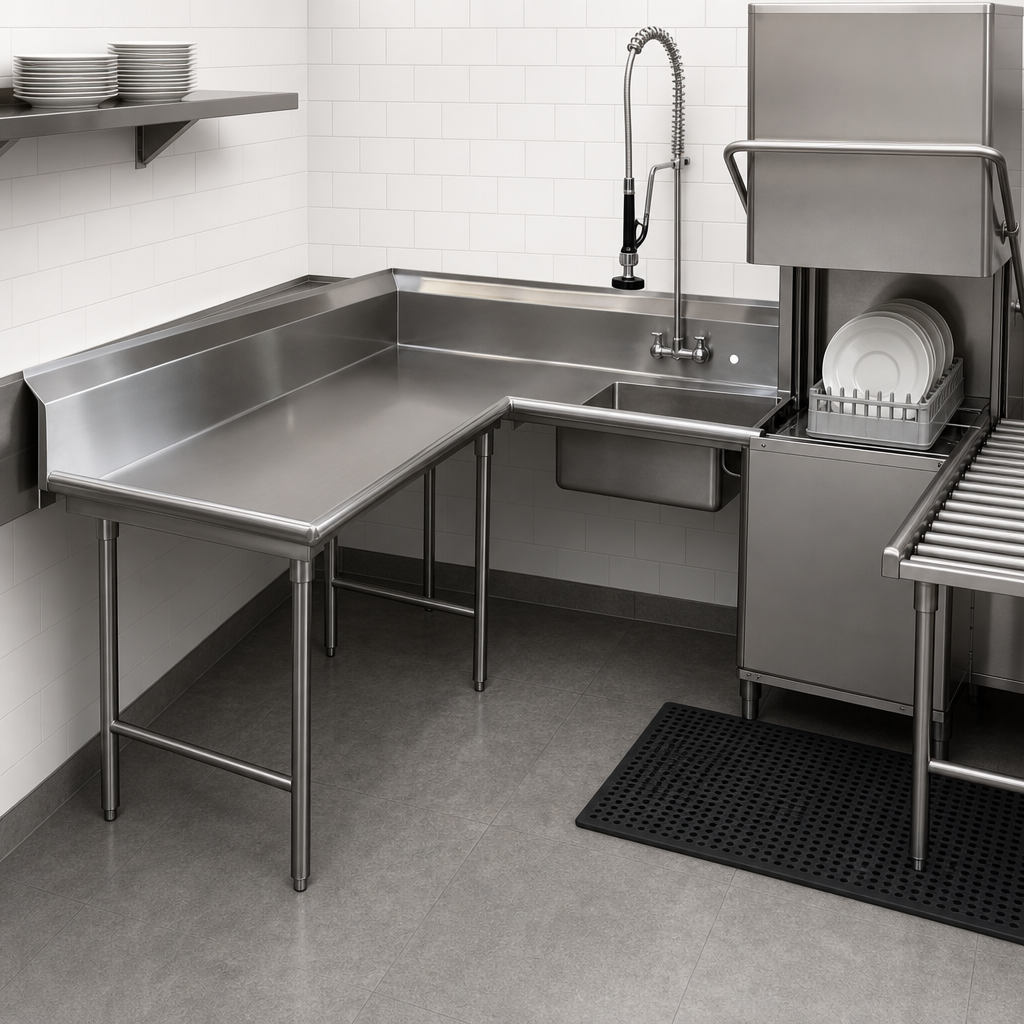

Left-Hand Corner Layout

L-shaped design attaches to the left of the dish machine operator for corner soil-side installations.

304 Stainless Steel Construction

Built with a 16-gauge 304 series stainless steel top and 304 stainless steel legs for durable commercial use.

10-1/2-Inch Backsplash

Extra-tall backsplash includes a 2-inch return and tile edge to help contain splashes and simplify installation.

Standard 5-Inch Deep Sink Bowl

The standard series includes a 20 x 20 x 5-inch pre-rinse sink bowl.

Welded Stability

All TIG welded with stainless steel gussets, welded cross bracing, and stainless bullet feet with 1-inch adjustment.

Drain and Faucet Prep

Furnished with a 1-1/2-inch IPS basket-type waste drain; faucet holes are punched on 8-inch centers and the faucet is not included.

Satin-Finished Weld Areas

Welded areas are blended to match adjacent surfaces and finished to a satin appearance.

Type Dishtable
Style Korner Soil
Installation Type Floor Model
Material 304 Stainless Steel
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download PDF Compatibility chart PDF Download

Frequently Asked Questions

This model is the left-hand version and attaches to the left of the dish machine operator.
No. Faucet holes are punched on 8-inch centers, but the faucet is sold separately.
The table includes a 10-1/2-inch backsplash with a 2-inch return and tile edge.
The standard-series model includes a 20 x 20 x 5-inch sink bowl.
The document lists a faucet, wall shelf, and undershelf as available accessories.
The document lists the 10-foot standard model at approximately 380 lb.
