Advance Tabco DTS-K70-108R Korner Compartment Sinks
Description

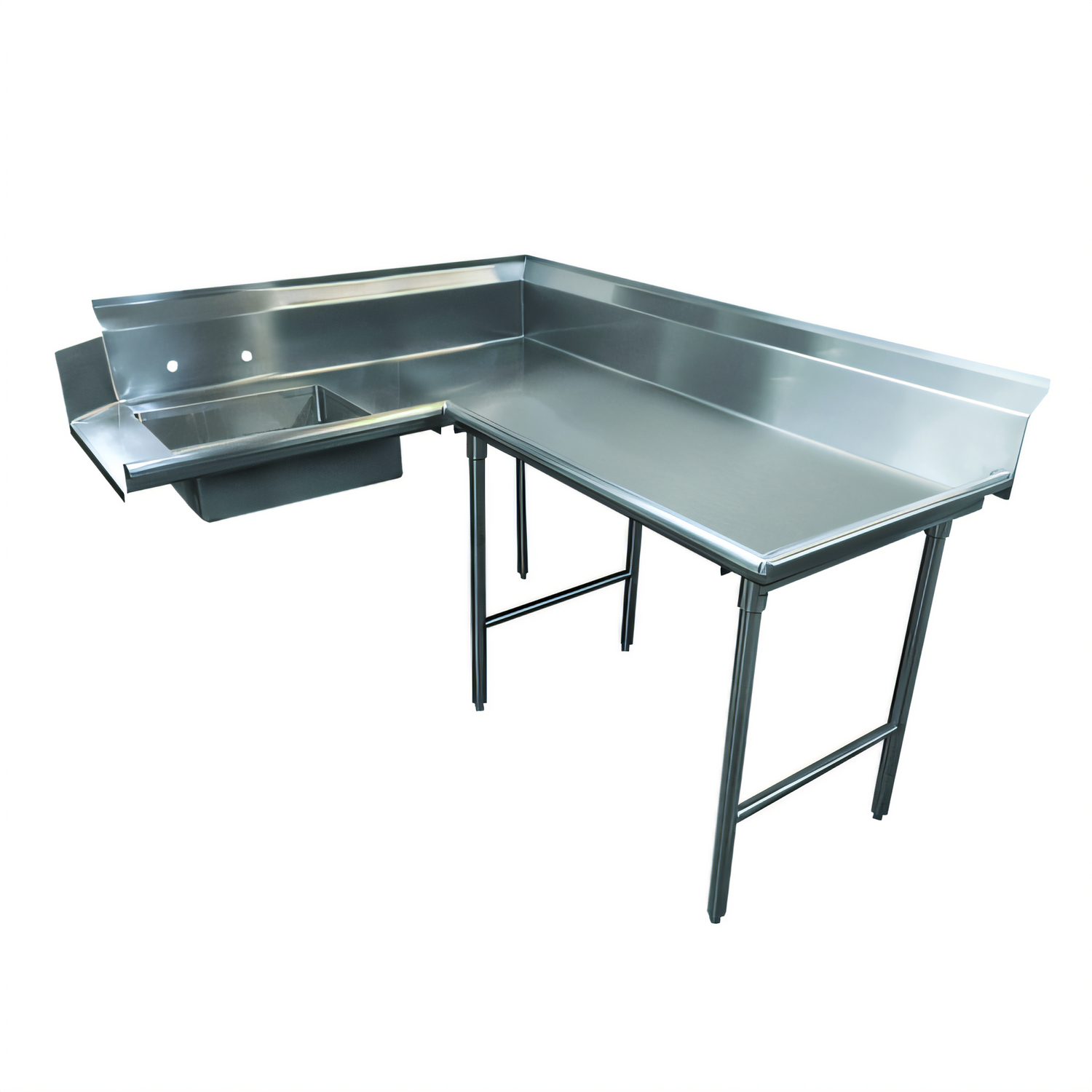

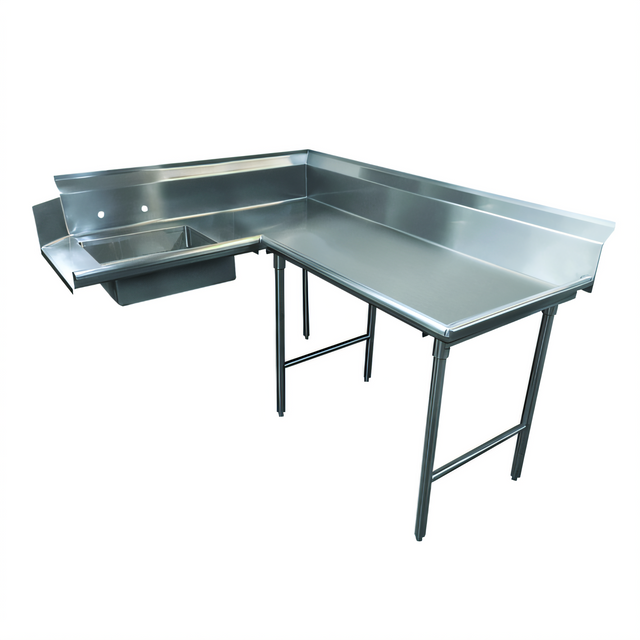

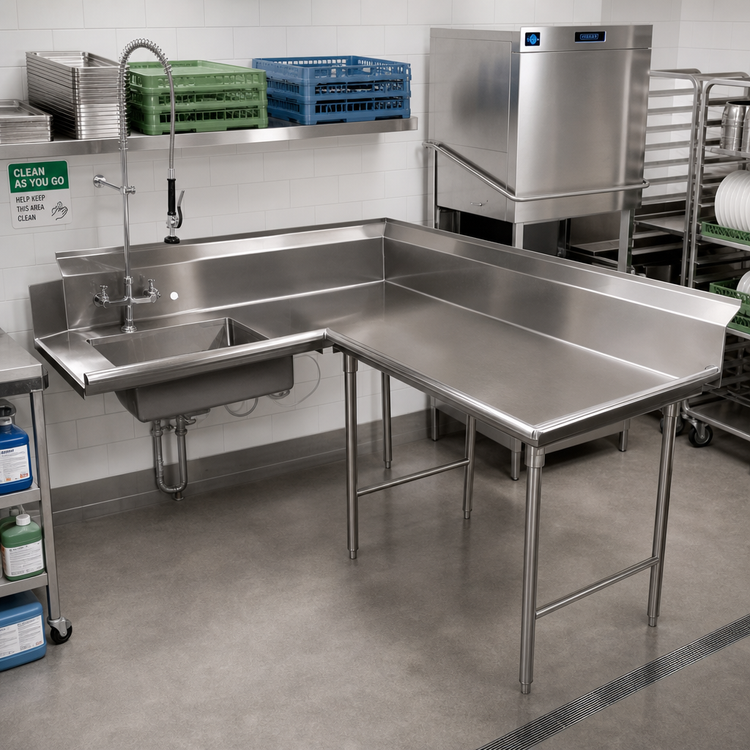

Advance Tabco Korner Soil Dishtable — Right, 107" (DTS-K70-108R)
16 ga 304 Stainless Steel | 20" × 20" × 5" Pre-Rinse Sink | 10-½" BacksplashAdd a rugged, NSF-listed soil table to the right side of your corner dish machine and keep dirty ware moving in the correct direction. The Korner series combines an extra-large 10-½ inch backsplash, welded cross bracing, and a convenient pre-rinse sink into a single, TIG-welded unit that installs fast thanks to its tile-edge design.
Why You’ll Love It

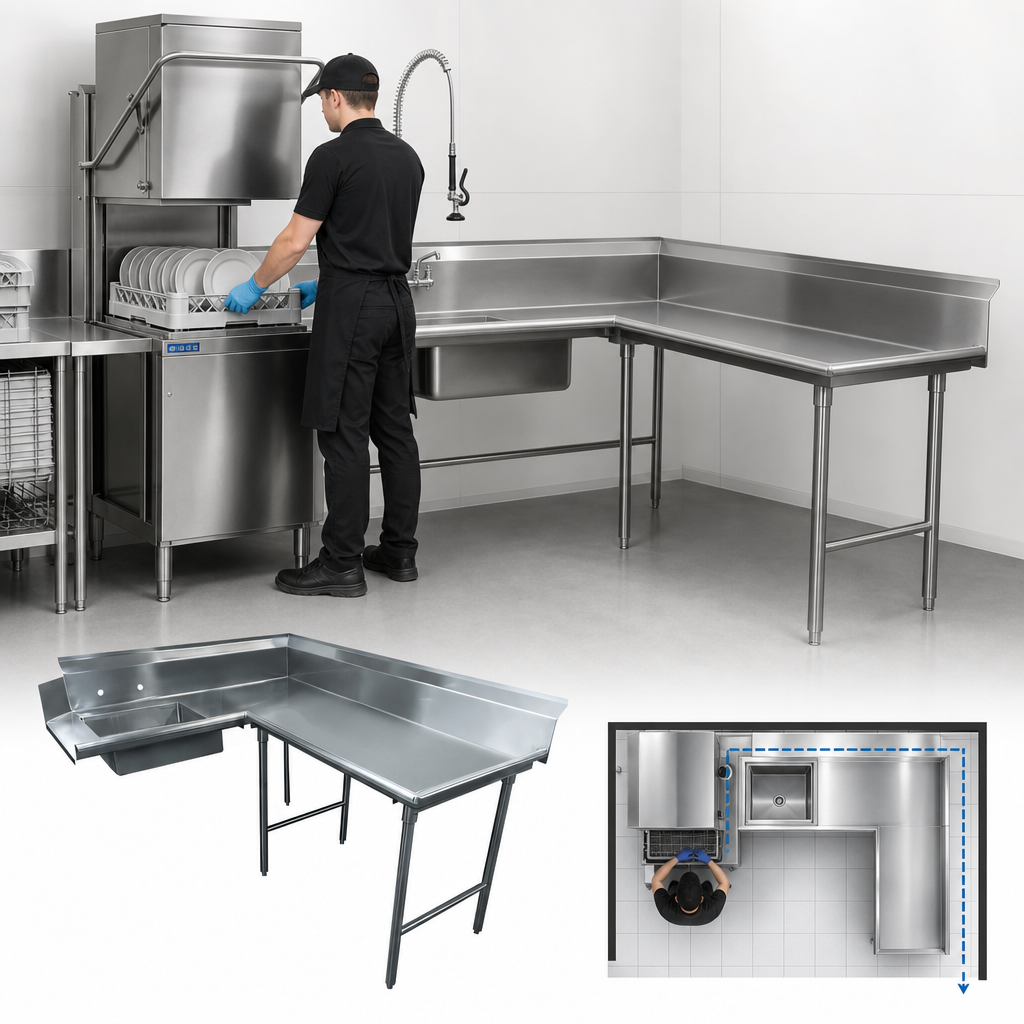

- L-shaped design attaches to the right of the dish-machine operator for efficient corner layouts.
- Durable 16 ga type 304 stainless steel top resists corrosion and stands up to heavy bussing traffic.
- 10-½" high, bold-looking backsplash with 2" return and tile edge keeps water contained and speeds installation.
- 20" × 20" × 5" pre-rinse sink bowl lets staff scrap and rinse before loading racks.
- 1 ½" IPS basket-type waste drain included – no extra kit to buy.
- Factory-punched 8" on-center faucet holes in backsplash (faucet sold separately).
- Stainless steel legs with welded crossrails and 1" adjustable bullet feet provide rock-solid stability.
- All TIG welds are blended to a satin finish for a clean, professional appearance.
- NSF certified and fully compatible with SMART FABRICATION™ modifications if required for your dish machine.
Built to Last
- Top: 16 ga 304 SS with satin finish
- Legs & Crossrails: 16 ga 304 SS, 1 ⅝" Ø
- Gussets: Stainless steel, welded to support channel
- Feet: Stainless, bullet-style, 1" adjustable
- All seams fully TIG welded & polished
Technical Specifications
| Model / SKU | DTS-K70-108R (Standard Series) |
|---|---|
| Orientation | Right – mounts to right side of dish machine |
| Overall Length | 107" (nominal 9 ft) |
| Table Depth (each leg) | 30" |
| Working Height | 34" (37" to top of backsplash) |
| Backsplash Height | 10-½" with 2" return |
| Sink Bowl Size | 20" × 20" × 5" deep |
| Drain | 1 ½" IPS basket-type (included) |
| Faucet Holes | 8" O.C. in backsplash – faucet not included |
| Material & Gauge | 16 ga type 304 stainless steel top & legs |
| Bracing | Welded stainless crossrails |
| Feet | 1" adjustable stainless bullet feet |
| NSF Listing | Yes |
| Approx. Shipping Weight | 355 lb / 161 kg |
To guarantee a perfect fit, always verify clearance requirements with the dish-machine compatibility chart before ordering.
