Advance Tabco DTS-K70-108L Korner Compartment Sinks
Description

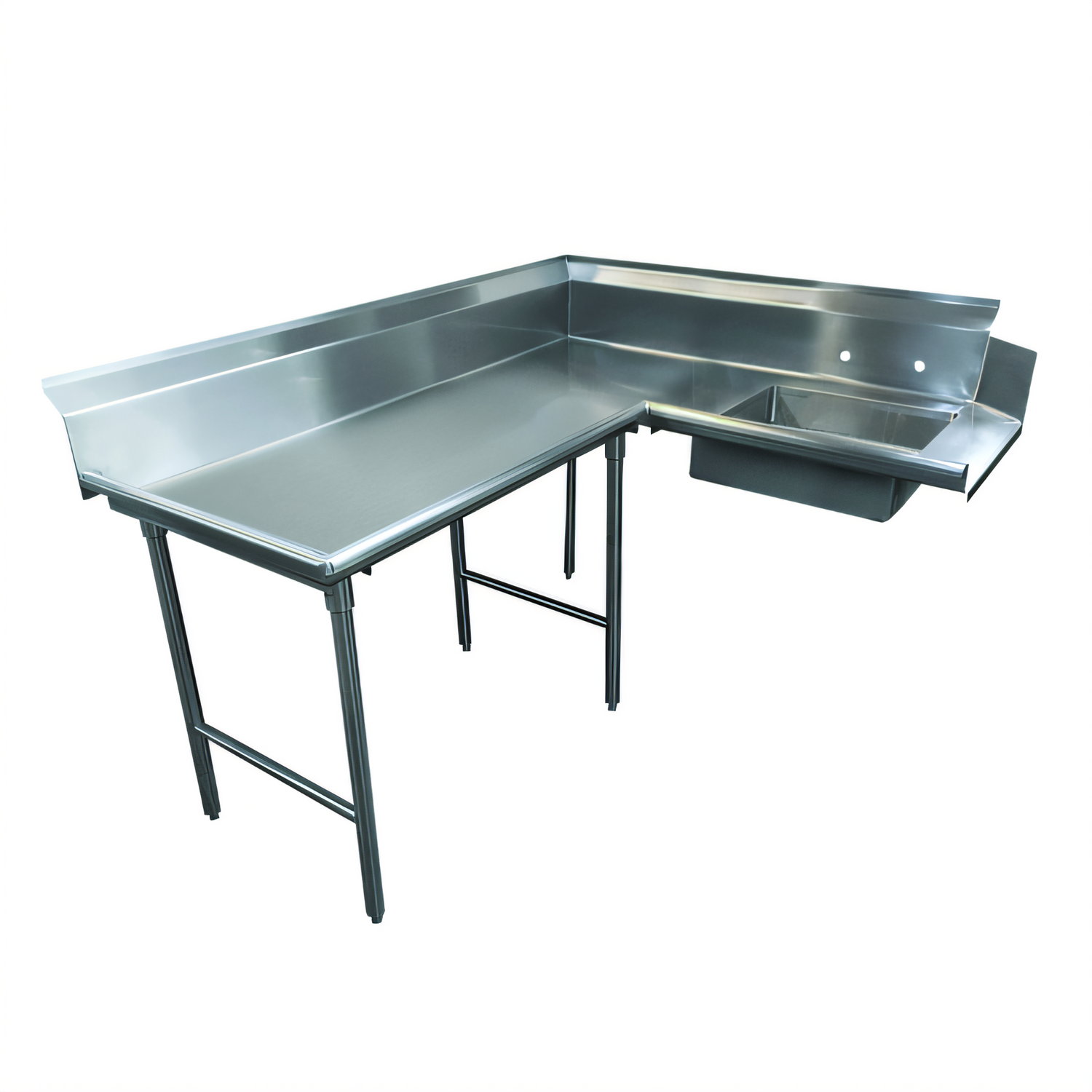

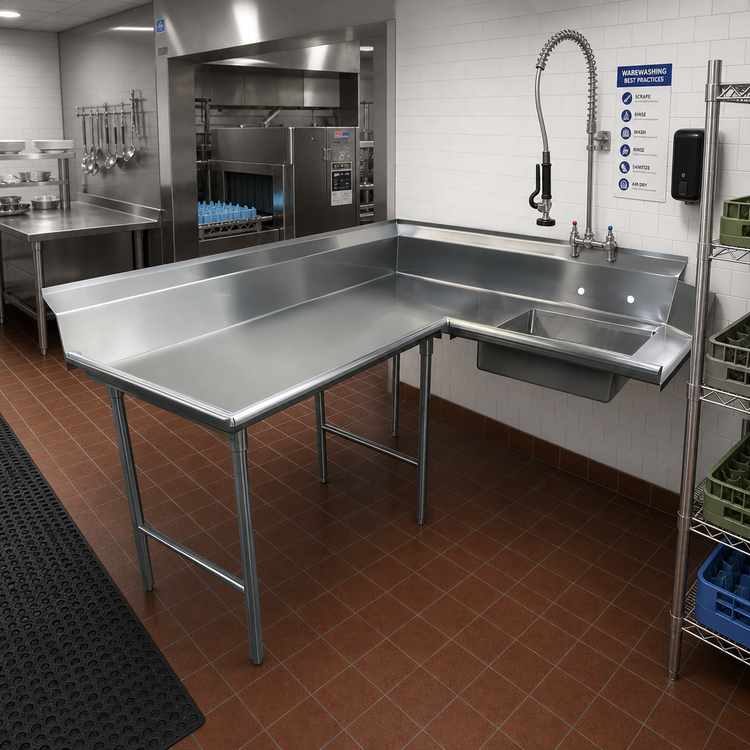

Advance Tabco Korner Soil Dishtable – 107" Left Feed, 16 ga 304 SS

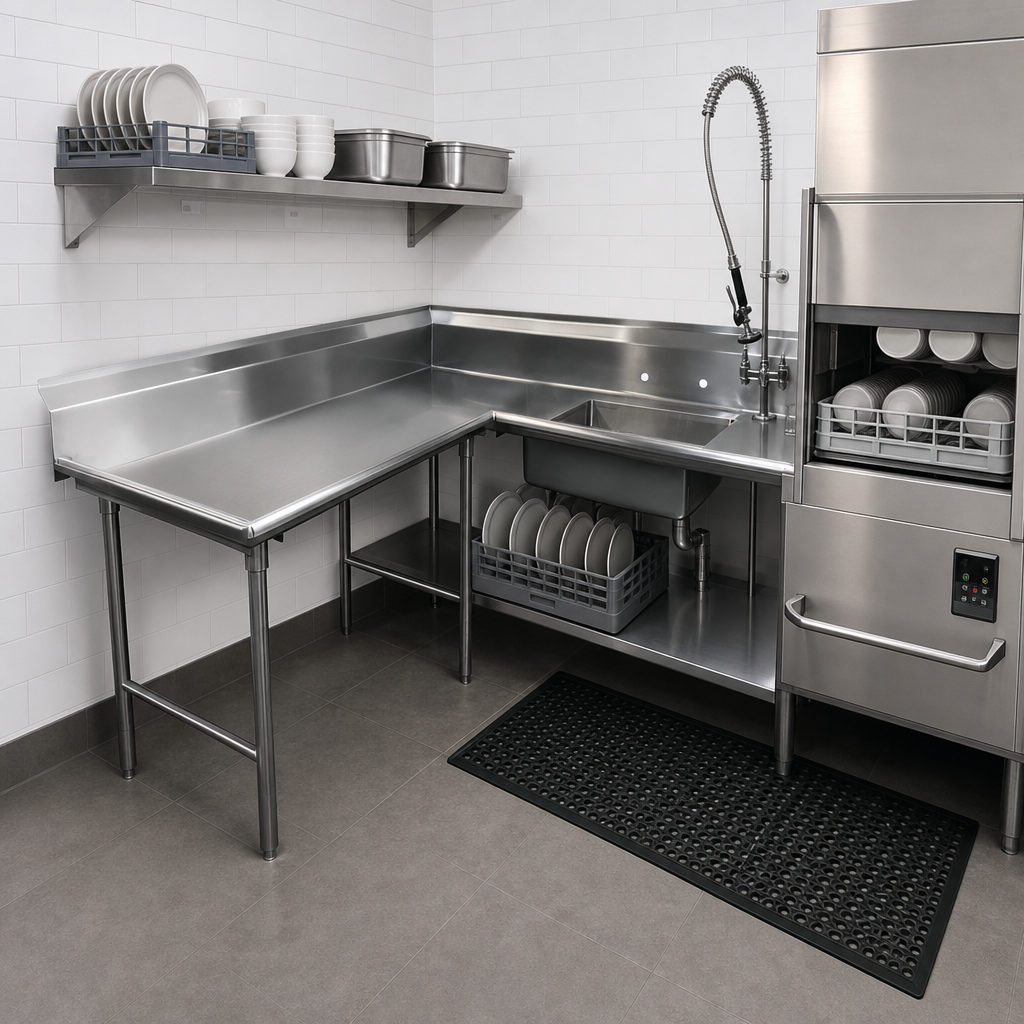

Model DTS-K70-108L | Standard SeriesTurn an unused corner into a high-capacity dish-handling station. The Advance Tabco Korner Soil Dishtable delivers a rugged 16-gauge 304 stainless work surface, an integrated pre-rinse sink, and an extra-tall backsplash—all in a space-saving L-shaped design that attaches to the left side of your dish machine operator.
Key Benefits
- Space-efficient L-shape feeds ware into the machine without extending linear footage.
- Heavy-duty 16 ga type 304 stainless steel top stands up to heat, chemicals, and daily abuse.
- 1-5/8" Ø 16 ga 304 SS legs with welded crossrails and adjustable stainless bullet feet for unbeatable stability.
- 10-1/2" backsplash with 2" return and tile edge for fast, code-compliant wall sealing.
- Integrated pre-rinse sink: 20" × 20" × 5" deep with 1-1/2" IPS basket drain (included).
- Faucet holes punched on 8" centers—ready for your choice of pre-rinse unit (sold separately).
- TIG-welded construction; all welds blended to a smooth, sanitary satin finish.
At-a-Glance Specifications
| Series / Model | DTS-K70-108L (Standard) |
|---|---|
| Overall Length | 107 in. (9 ft nominal) |
| Short & Long Leg Depth | 30 in. |
| Orientation | Left feed – mounts to operator’s left side of dish machine |
| Top Material & Gauge | 16 ga type 304 stainless steel |
| Backsplash Height | 10-1/2 in. with 2 in. return & tile edge |
| Sink Bowl | 20 in. × 20 in. × 5 in. deep (304 SS) |
| Drain Connection | 1-1/2" IPS basket-type strainer (included) |
| Faucet Holes | 8" centers (faucet not included) |
| Legs & Bracing | 1-5/8" Ø 16 ga 304 SS legs with welded crossrails & stainless bullet feet |
| Approx. Shipping Weight | 225 lb |
| Certifications | NSF |
Ideal For
- Restaurants & cafés upgrading to a corner dish machine layout
- Catering and banquet facilities with high-volume ware flow
- Institutional kitchens—schools, healthcare, corrections
Faucet, pre-rinse spray, scrap basket, and other accessories shown are sold separately.
