Advance Tabco  |  Korner  |  SKU: DTS-K30-96L  |  UPC: 747545121677

Advance Tabco DTS-K30-96L Korner Compartment Sinks

$4,691.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

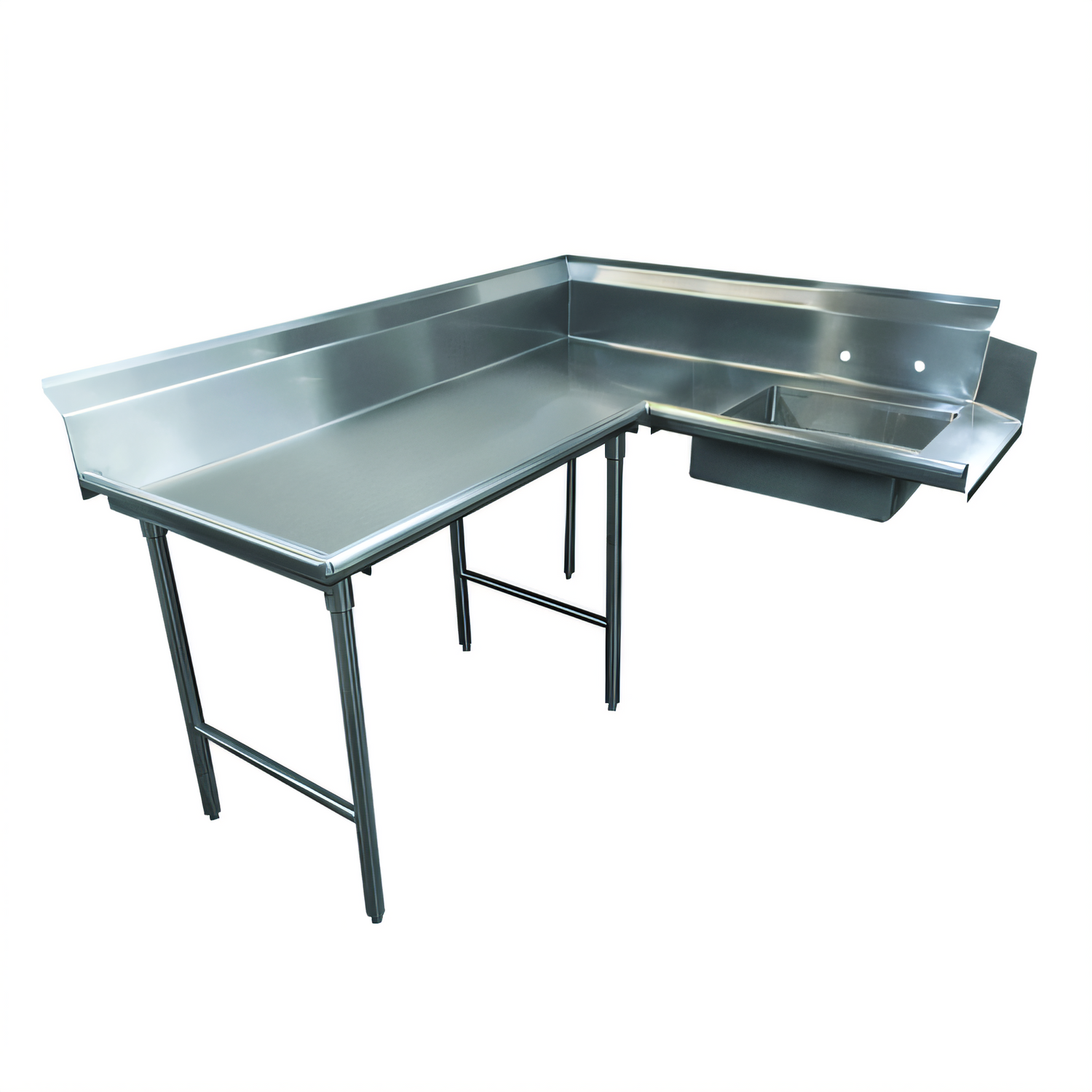

Advance Tabco “Korner” Soil Dishtable – Left Hand, 95" Spec-Line

Model DTS-K30-96L | 14 ga 304 Stainless Steel Top

Transform the corner of your dish room into a fast, sanitary pre-scrap station. The Advance Tabco Korner Soil Dishtable drops directly onto the operator’s left side of any compatible corner dish machine, delivering rugged construction and ergonomic flow in one NSF-listed package.

Why You’ll Love It
  • Space-saving L-shape creates a continuous, back-saving work path.
  • Heavy-duty 14 ga 304 stainless steel work top laughs off dents, impacts and chemicals.
  • 20" × 20" × 8" deep pre-rinse sink with 1 ½" IPS basket drain speeds food soil removal.
  • Extra-large 10 ½" backsplash with 2" return & tile edge keeps water contained and installs flush to tile.
  • 16 ga stainless legs with welded stainless cross-rails & 1" adjustable bullet feet deliver rock-solid stability.
  • 8" on-center faucet holes punched at the factory—just add your favorite pre-rinse faucet (sold separately).
  • Pre-rinse basket included; slide bar automatically supplied when a K-461 or K-461A disposer adapter is ordered.
  • TIG-welded seams are blended to a satin finish for hygiene and easy cleanup.
Quick Specs
Orientation Left – attaches to operator’s left side of corner dish machine
Overall Length 95" (nominal 8 ft)
Secondary Run 59" (see cut sheet for full dimensions)
Work Top 14 ga Type 304 stainless steel, satin finish
Legs & Bracing 16 ga Type 304 stainless steel legs with welded stainless cross-rails
Backsplash 10 ½" H backsplash with 2" return & tile edge
Sink Bowl 20" × 20" × 8" deep, 1 ½" IPS basket drain
Faucet Holes 8" on-center (faucet not included)
Included Items Pre-rinse basket; slide bar when paired with K-461/K-461A disposer adapter
Certifications NSF
Compatibility Tip: Always confirm your dish machine model with Advance Tabco’s Dish Machine Compatibility Chart. Certain machines may require Smart Fabrication™ modifications before this table will mate correctly.

Faucet, disposer adapter and other accessories are sold separately unless expressly stated.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

285.0lbs

Splash Height

10"H splash

Stainless Series

300 series

Width (machine - corner) OA

61" - 72"

Shape

corner

Width (end - corner) OA

85" - 96"

Leg Type

stainless steel legs

Stainless Gauge

14 gauge

Direction

left to right

Specifications

Korner-Soil Dishtable, L-shaped, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with stainless steel crossrails, 95" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
