Description

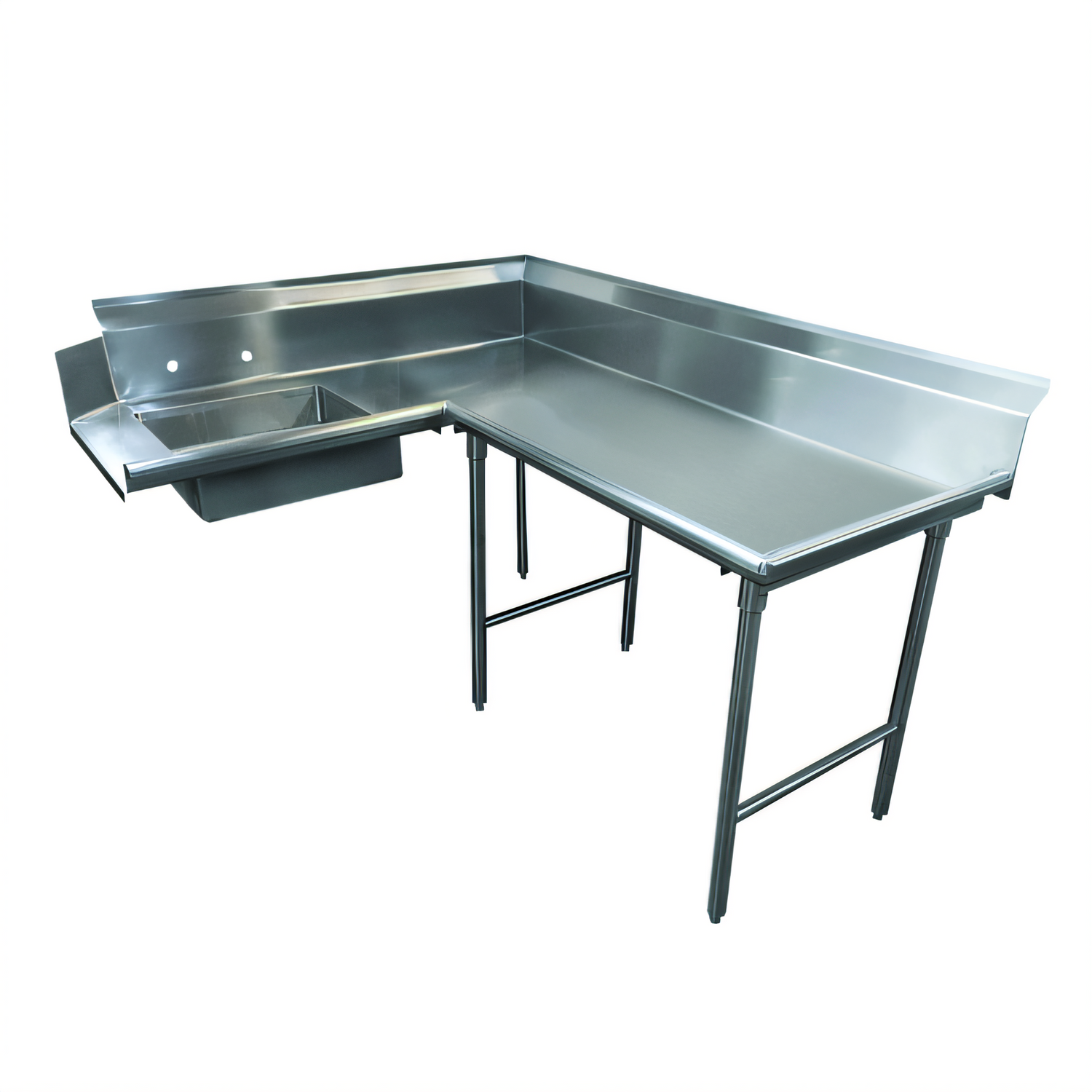

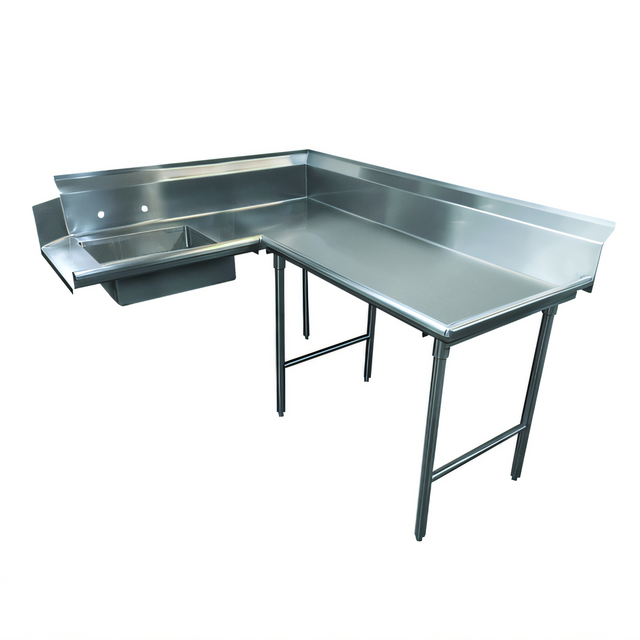

Advance Tabco Korner Soil Dish Table – 83" Right-Hand, Spec-Line

Model DTS-K30-84R | NSF Listed

Maximize dish-room efficiency and keep dirty ware where it belongs with Advance Tabco’s heavy-duty Korner Soil dish table. Built from extra-thick 14 ga. 304 stainless steel, this L-shaped unit attaches to the right of the dish-machine operator, providing a generous landing surface, an 8"-deep pre-rinse sink and an oversized 10 ½" backsplash with sanitary tile edge.

Key Features
  • 14 ga. 304 stainless steel top with satin finish.
  • 8"-deep 20" × 20" pre-rinse sink with 1 ½" IPS basket drain.
  • Includes stainless steel prerinse basket; slide bar ships when a K-461/K-461A disposer adapter is specified.
  • 1 ⅝"-dia. 16 ga. 304 stainless steel legs with welded crossrails & adjustable stainless bullet feet.
  • 10 ½" high backsplash with 2" return and tile-edge for fast, watertight installation.
  • Faucet holes punched on 8" centers (faucet sold separately).
  • TIG-welded construction; welds are blended to a uniform satin finish.
At-a-Glance Specs
Overall length 83" (nominal 7 ft)
Overall width 30" (both legs of the “L”)
Orientation Right-hand (mounts to operator’s right side)
Shape L-shaped corner soil section
Top material / gauge 304 SS / 14 ga.
Legs & bracing 304 SS, 16 ga.; welded crossbracing
Backsplash 10 ½" H × 2" return, tile-edge
Sink bowl size 20" × 20" × 8" deep
Drain connection 1 ½" IPS basket-type (included)
Faucet holes 8" on center (faucet not included)
Net weight Approx. 225 lb.
Perfect For
  • Full-service & quick-service restaurants
  • Hotels, resorts & casinos
  • Institutional kitchens – schools, hospitals & corporate cafés
  • Catering and banquet operations
Important: Always verify dish-machine compatibility before ordering. Certain machines require Smart Fabrication™ modifications (e.g., DTA-76, K-508A or DTA-78). Refer to the Advance Tabco compatibility chart or contact our team for assistance.

Accessories such as faucets, disposers, wall shelves and undershelves are sold separately unless specifically noted.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

265.0lbs

Splash Height

10"H splash

Leg Type

stainless steel legs

Stainless Gauge

14 gauge

Width (end - corner) OA

73" - 84"

Direction

right to left

Stainless Series

300 series

Width (machine - corner) OA

61" - 72"

Shape

corner

Specifications

Korner-Soil Dishtable, L-shaped, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with stainless steel crossrails, 83" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
