Advance Tabco DTS-K30-84L Korner Compartment Sinks
$4,614.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Advance Tabco DTS-K30-84L Korner Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Advance Tabco DTS-K30-84L Korner Compartment Sinks
$4,614.00
Unit price
/
Unavailable
Description

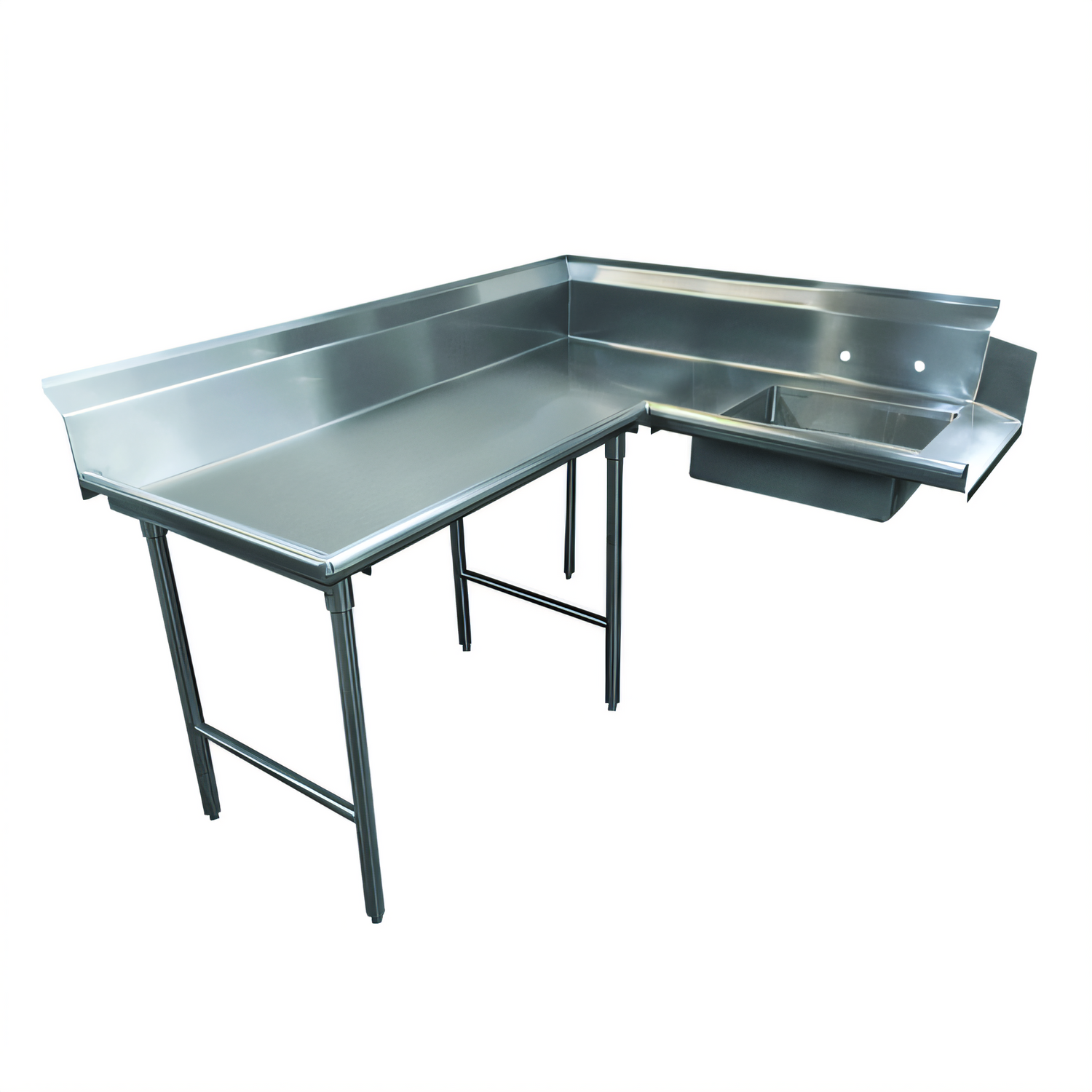

Advance Tabco “Korner” Soil Dishtable – 83" Left-Feed
Spec-Line • Model DTS-K30-84L • 14 GA / 304 Stainless SteelDesigned for busy commercial kitchens that load a corner-style dish machine from the operator’s left side, the Advance Tabco Korner Soil Dishtable combines rugged Spec-Line construction with installation-friendly details such as a full tile edge and an extra-high backsplash.
Key Features
- 83" nominal length (7 ft) L-shaped layout provides efficient corner loading.
- 14 GA 304 stainless steel top for maximum durability and corrosion resistance.
- 10-1/2" extra-large backsplash with 2" return and tile edge for a tight, sanitary wall seal.
- One 20" × 20" × 8" deep pre-rinse sink bowl located 20" from the dish machine opening.
- 1-1/2" IPS basket-type waste drain and pre-rinse basket included.
- 16 GA, 1-5/8" Ø stainless steel legs with welded cross-rails and adjustable stainless steel bullet feet.
- All TIG-welded construction; welds are blended and finished to a uniform satin sheen.
- Faucet holes punched on 8" centers in backsplash (faucet not included).
Technical Specifications
| Orientation / Flow | Left of dish machine operator (soil/entry side) |
|---|---|
| Total Length | 83" (nominal 7 ft) |
| Overall Depth | 59" along dish machine leg |
| Work Height | 34" to top surface | 44-1/2" to backsplash top |
| Backsplash | 10-1/2" H with 2" return, tile edge |
| Sink Bowl | 20" × 20" × 8" deep (integral) |
| Top Material | 14 GA 304 stainless steel |
| Legs / Bracing | 16 GA 304 stainless steel legs with welded stainless cross-rails |
| Included Accessories | Pre-rinse basket, 1-1/2" IPS basket drain |
| Approx. Shipping Weight | 225 lb |
Slide bar ships only when disposer adapter K-461 or K-461A is specified with the table.
Dish machine compatibility:
Always confirm required clearances and any SMART FABRICATION™ modifications
using the current Advance Tabco Dish Machine Compatibility Chart before ordering.
Features & Specs
Features & Specs
Manufacturer
Advance Tabco
Brand_name
Korner
Height
44.0in
Shipping Weight
265.0lbs
Width (end - corner) OA
73" - 84"
Width (machine - corner) OA
61" - 72"
Stainless Series
300 series
Splash Height
10"H splash
Shape
corner
Stainless Gauge
14 gauge
Leg Type
stainless steel legs
Direction
left to right
Specifications
Korner-Soil Dishtable, L-shaped, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with stainless steel crossrails, 83" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
