Advance Tabco DTS-K30-72R Korner Compartment Sinks
Description

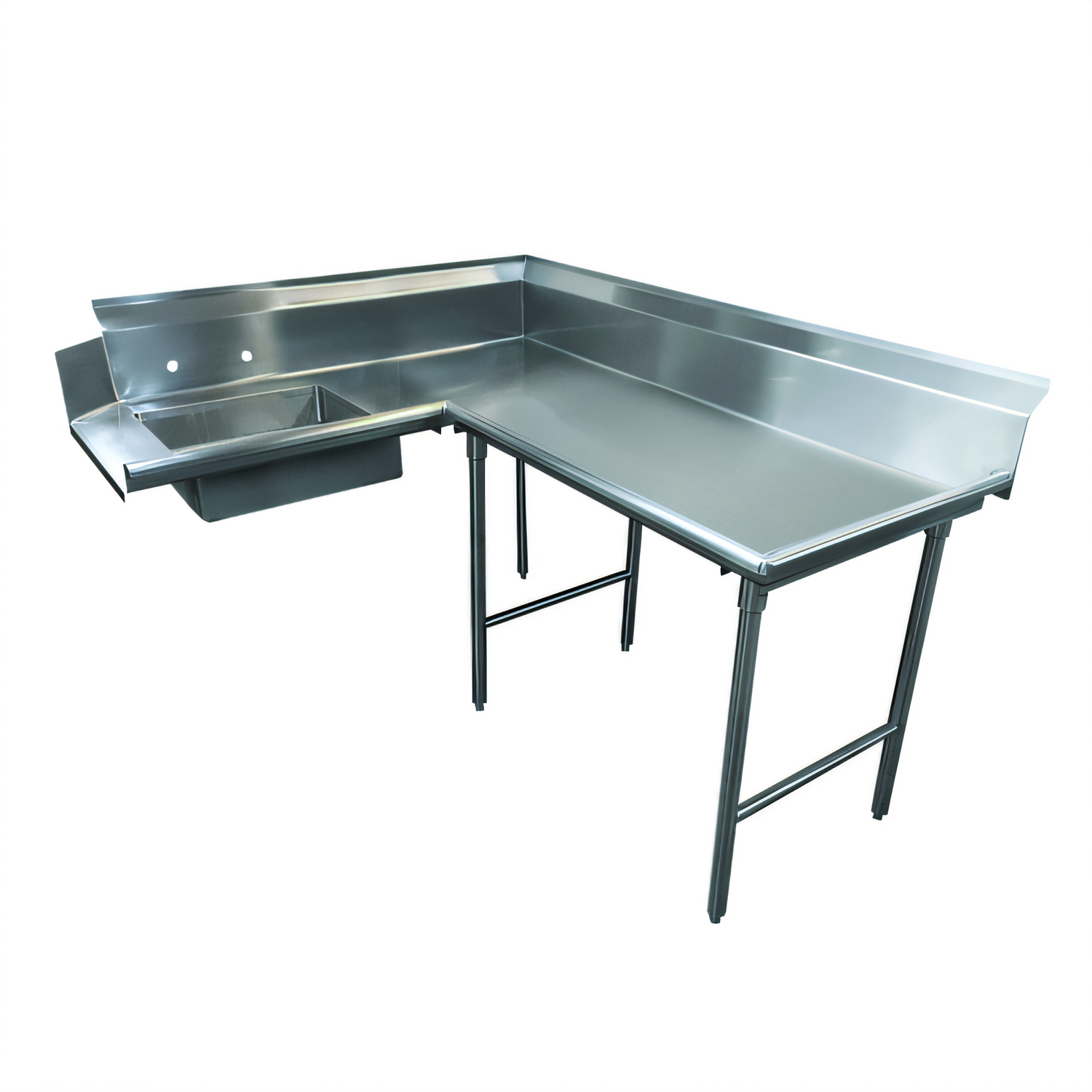

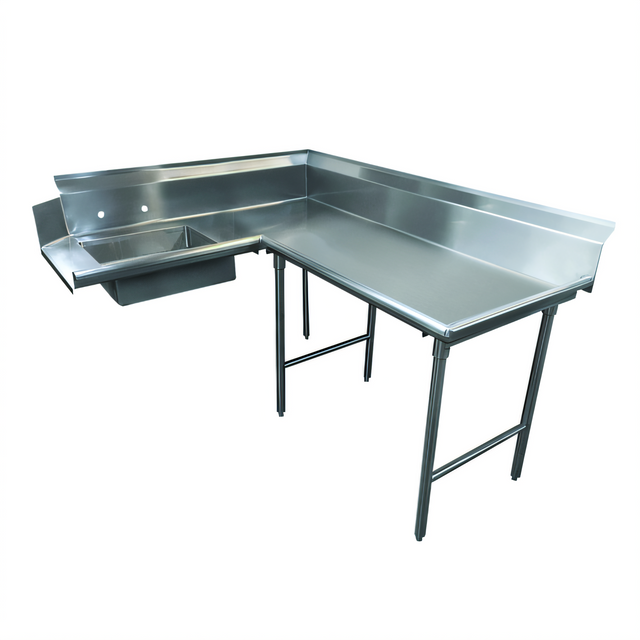

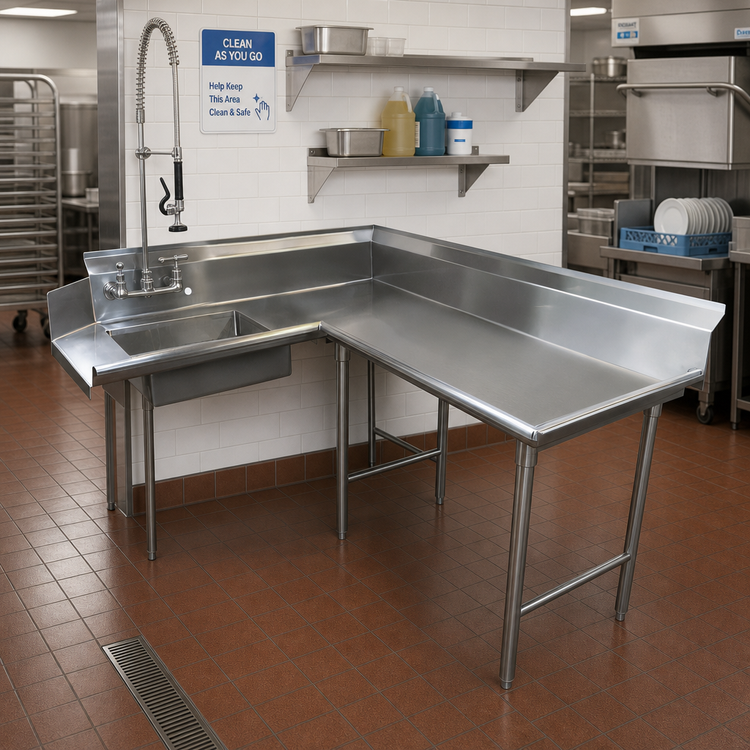

Advance Tabco “Korner” Spec-Line Soil Dishtable – Right-Hand, 71"
L-shaped entry table with pre-rinse sink & basketPerfect for busy warewashing corners, the Advance Tabco Korner Soil Dishtable lets you load racks from two sides while keeping scraps, soil and spray exactly where they belong—inside a rugged 14 ga. 304 stainless steel work zone that’s built for decades of daily punishment.
Why You’ll Love It
- One-piece 14 ga. 304 SS top with TIG-welded seams & satin finish.
- Extra-large 10-½" backsplash with 2" return and tile edge for a fast, sanitary wall seal.
- 20" × 20" × 8" pre-rinse sink (Spec-Line depth) keeps food waste contained right at the entry point.
- Includes stainless prerinse basket; slide bar ships automatically when a K-461/K-461A disposer adapter is ordered.
- Legs, gussets & fully welded crossrails are all 304 stainless steel; bullet feet adjust 1" for perfect leveling.
- Faucet holes punched on 8" centers and 1-½" IPS basket drain supplied (faucet not included).
- NSF listed and engineered to mate with most commercial dish machines—see compatibility chart for details.
Rock-Solid Construction
- Seamlessly TIG-welded corners; welds are blended to match adjacent surfaces.
- Reinforced by stainless gussets welded to a stainless support channel for zero flex.

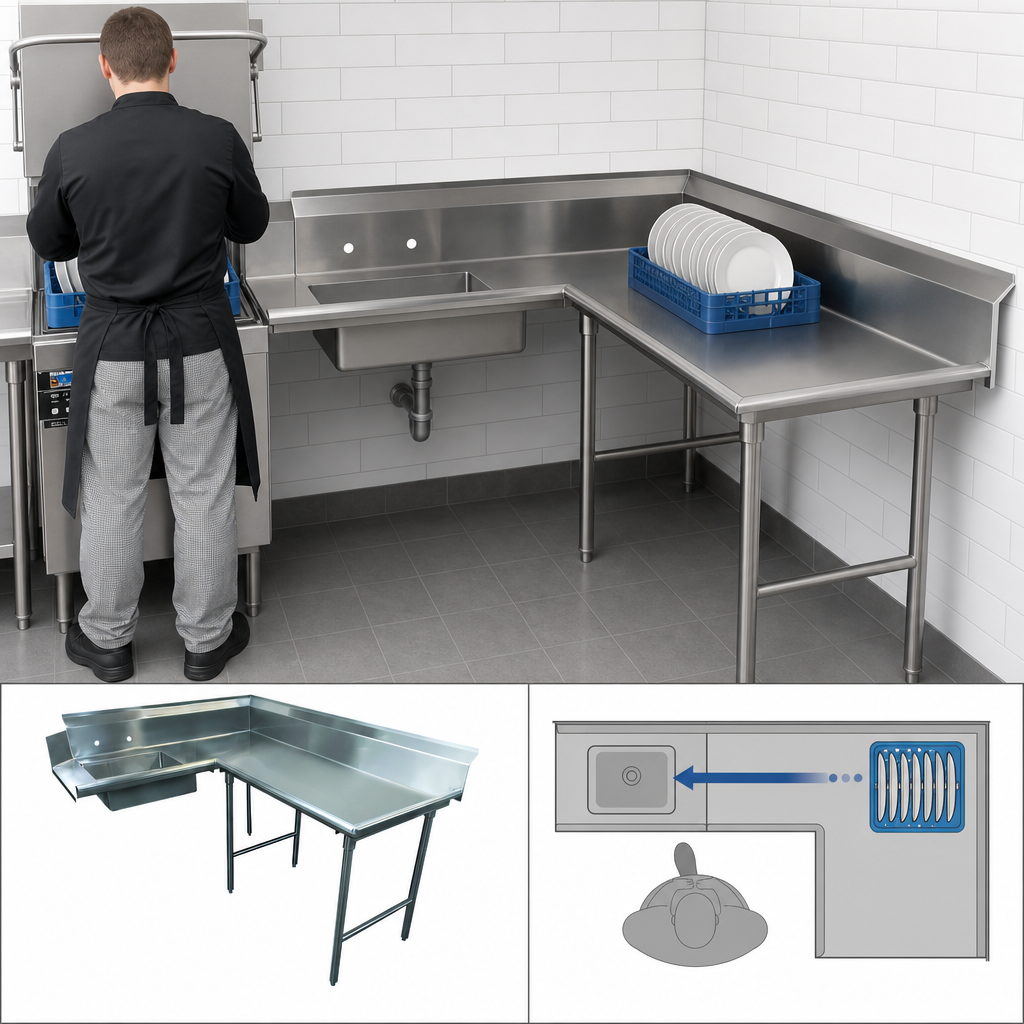

- 71" overall length (6 ft nominal) designed to install to the right side of the dish machine operator.
Quick Specs
| Model | DTS-K30-72R (Spec-Line) |
|---|---|
| Orientation | Right-hand (attaches to operator’s right side) |
| Overall Length | 71" (6 ft nominal) |
| Top Material / Gauge | 304 Stainless Steel / 14 ga. |
| Legs & Bracing | 1 5/8" Ø 304 SS legs with welded 304 SS crossrails & bullet feet |
| Backsplash | 10-½" H with 2" return & tile edge |
| Sink Bowl | 20" × 20" × 8" deep (integral) |
| Drain | 1-½" IPS basket-type (included) |
| Faucet Holes | 8" centers (faucet sold separately) |
| Included Accessories | Prerinse basket; slide bar when paired with K-461 / K-461A disposer adapter |
| Certifications | NSF, Made in USA |
Dish Machine Compatibility
Advance Tabco’s Smart Fabrication™ program allows this table to be factory-modified for virtually any corner-loaded or straight-through dish machine. Refer to the official compatibility chart or contact our team for a no-charge review before ordering.
Need a different length, left-hand orientation, or galvanized leg package? Advance Tabco offers full customization—ask us for a quote!
