Advance Tabco DTS-K30-72L Korner Compartment Sinks
Description

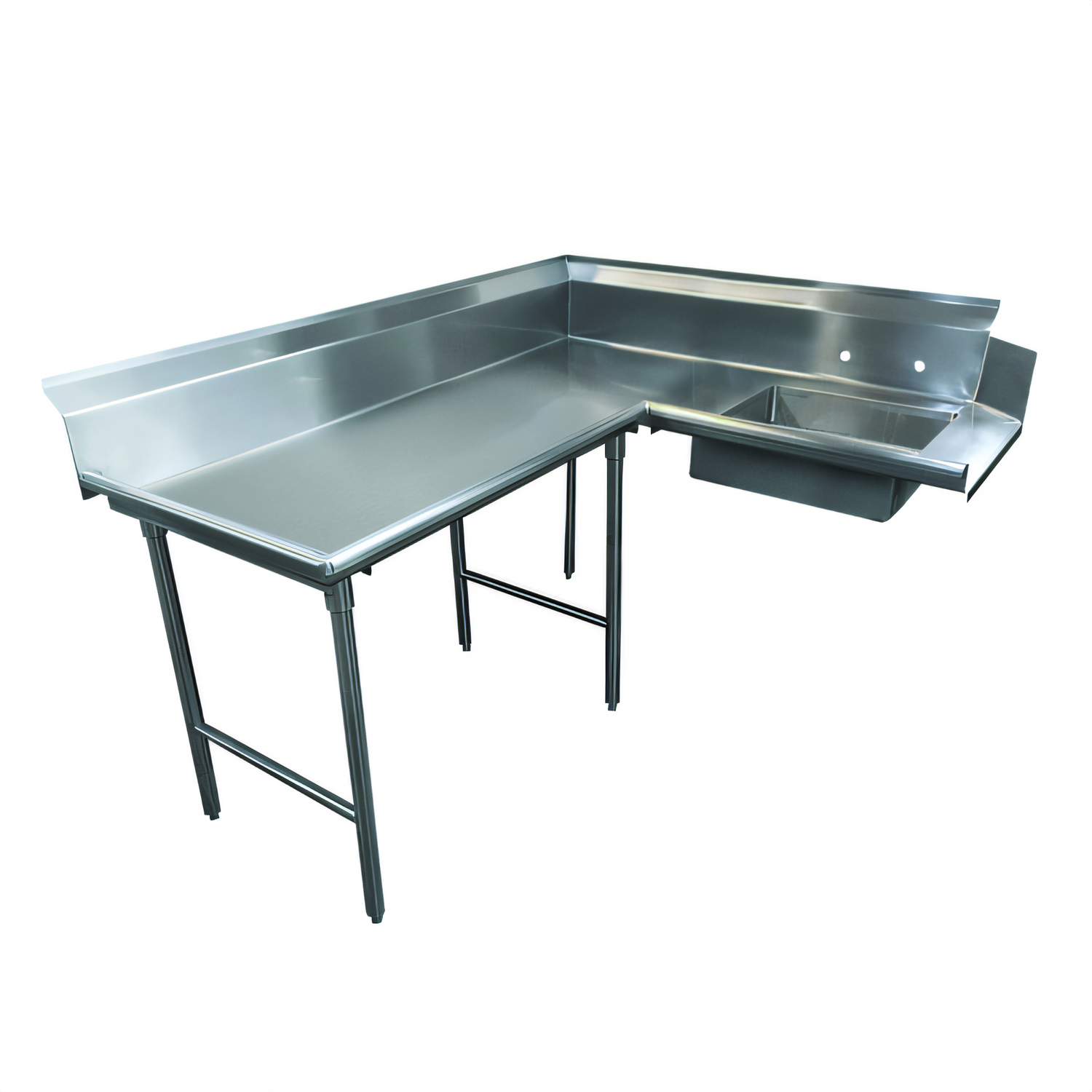

Advance Tabco “Korner” Soil Dishtable – Left-Side, 71" L-Shape
Spec-Line • 14 ga 304 Stainless Steel Top • Model DTS-K30-72L*Designed for high-volume warewashing corners, the Advance Tabco Korner Soil Dishtable keeps soiled racks moving smoothly into your dish machine while containing mess and maximizing workspace efficiency. The heavy-duty Spec-Line build pairs a rugged 14 gauge, 304 stainless top with an extra-tall 10-1/2" backsplash, plus a full pre-rinse sink set-up—everything you need to streamline the dirty side of your dishroom.
Why You’ll Love It

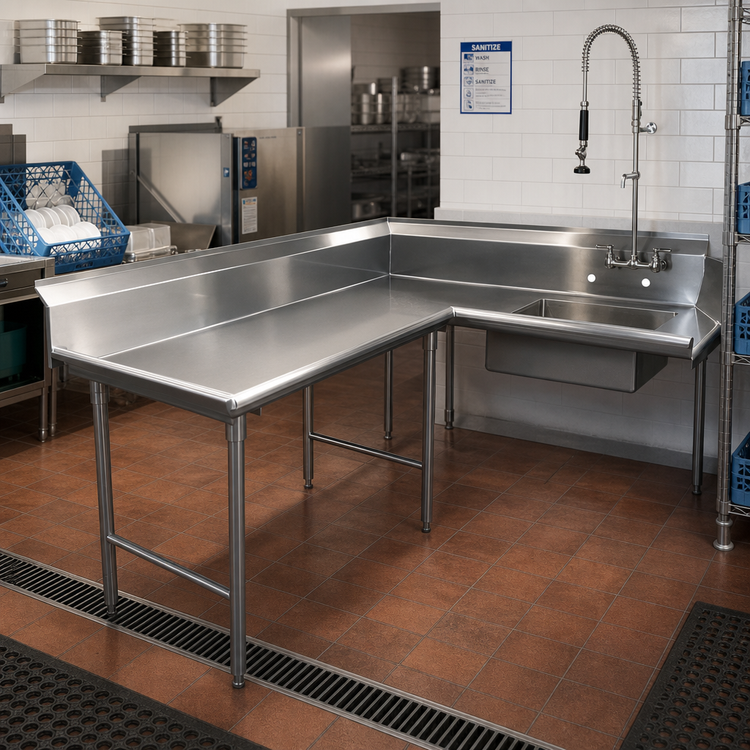

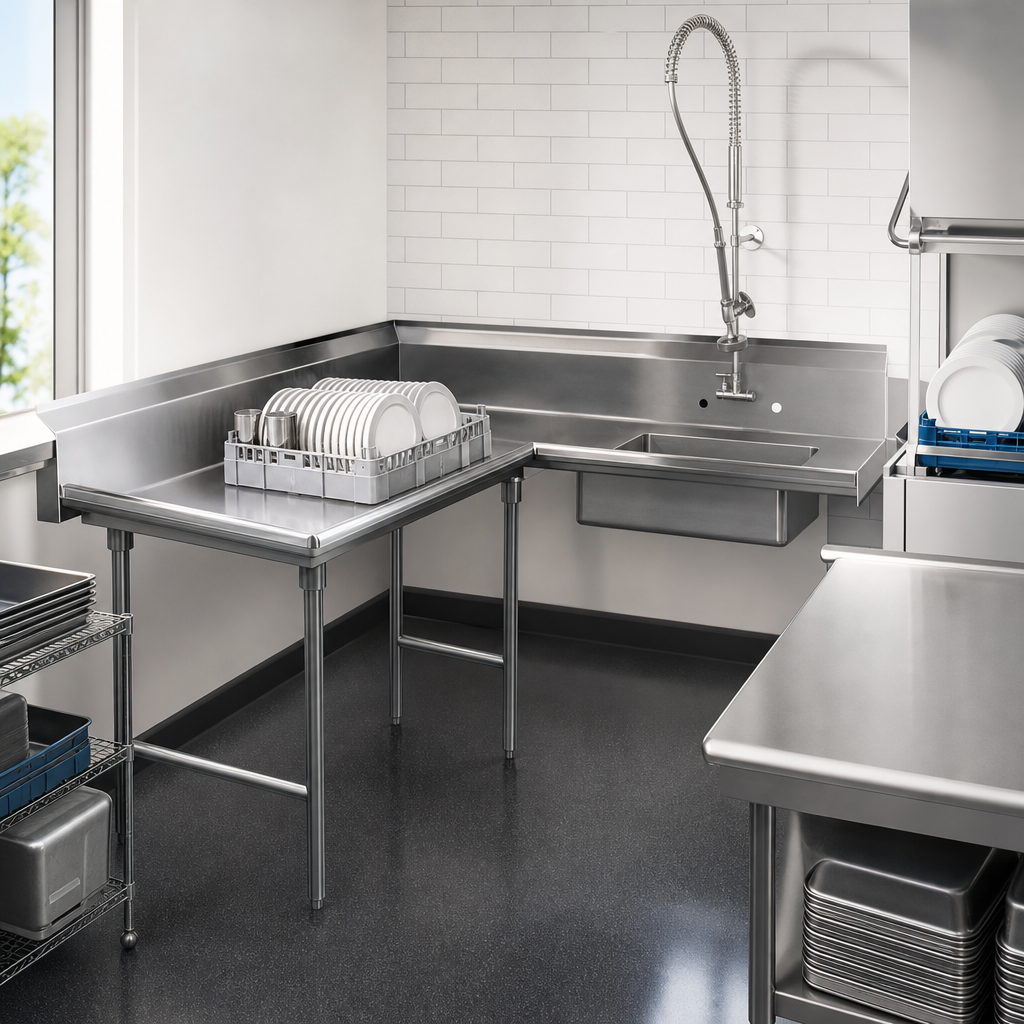

- L-shaped layout attaches to the operator’s left side of the dish machine, turning unused corner space into productive prep.
- 14 ga 304 stainless steel top with sanitary tile-edge design for fast, flush wall installation.
- Oversized 10-1/2" backsplash (2" return) keeps water and debris off surrounding walls and floors.
- Integrated 20" × 20" × 8" deep pre-rinse sink with 1-1/2" IPS basket drain.
- Factory-supplied prerinse basket; slide bar ships automatically when disposer adapter K-461 or K-461A is ordered.
- 1-5/8" Ø, 16 ga 304 stainless steel legs with welded stainless crossrails for rock-solid stability.
- Adjustable stainless bullet feet (1" range) level the table on uneven floors.
- All TIG-welded seams are blended to a satin finish; NSF listed for open food-zone use.
At-a-Glance Specs
| Overall length (L) | 71" (nominal 6 ft) |
|---|---|
| Front-to-back (soil section) | 30" |
| Work height | 34" (to tabletop) / 44-1/2" (to top of backsplash) |
| Top material | 14 ga 304 series stainless steel |
| Backsplash | 10-1/2" H with 2" return, tile edge |
| Sink bowl | 20" × 20" × 8" deep, 304 stainless |
| Legs & bracing | 1-5/8" Ø, 16 ga 304 stainless with welded crossrails |
| Feet | Adjustable stainless steel bullet feet (1") |
| Included items | Pre-rinse sink, basket drain, prerinse rack basket, slide bar* |
| Faucet holes | Punched on 8" centers (faucet sold separately) |
*Slide bar ships only when disposer adapter models K-461 or K-461A are specified.
Dish machine, faucet and disposer sold separately. Check Advance Tabco’s Dish Machine
Compatibility Chart to verify clearance requirements before ordering.
