Advance Tabco DTS-K30-60L Korner Compartment Sinks
Description

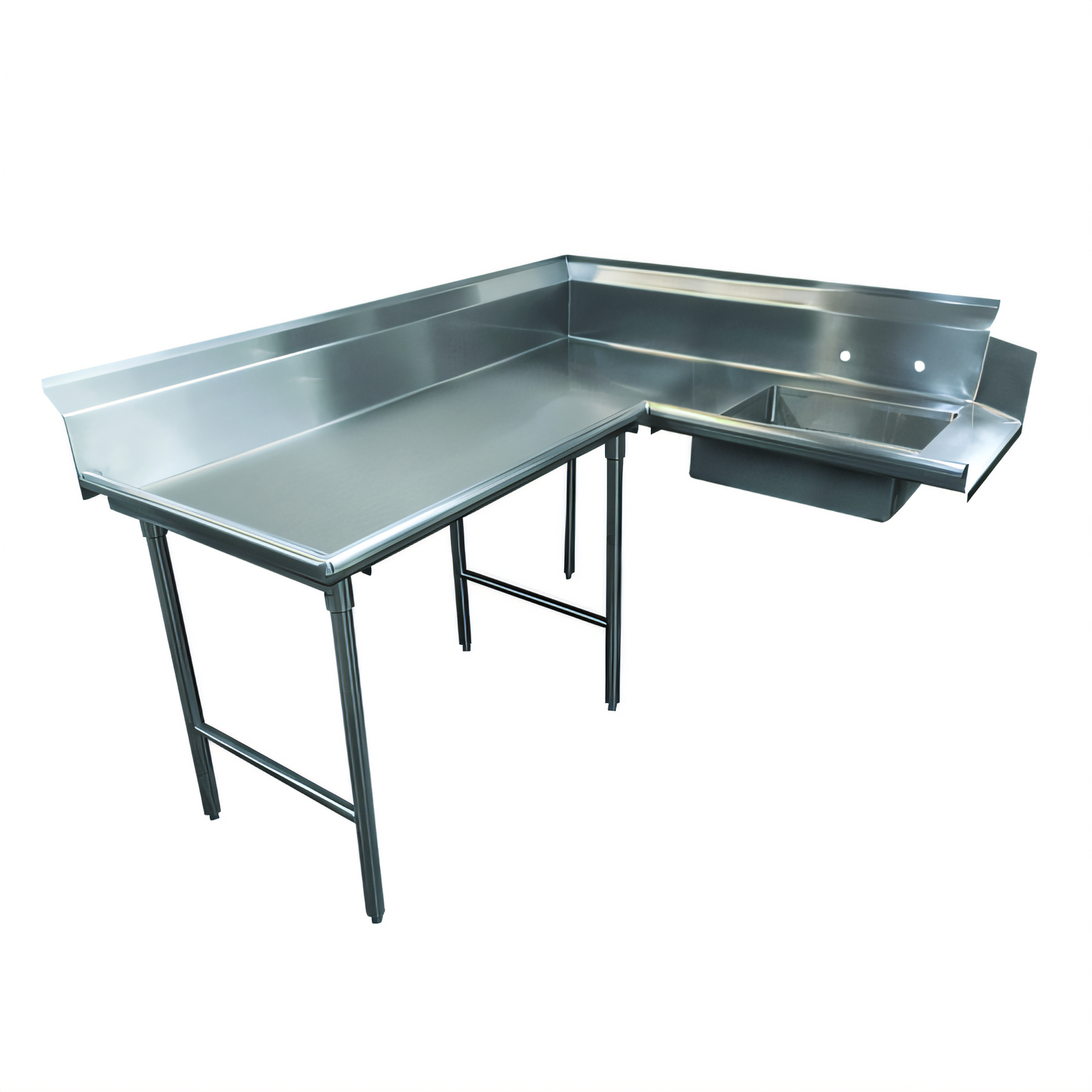

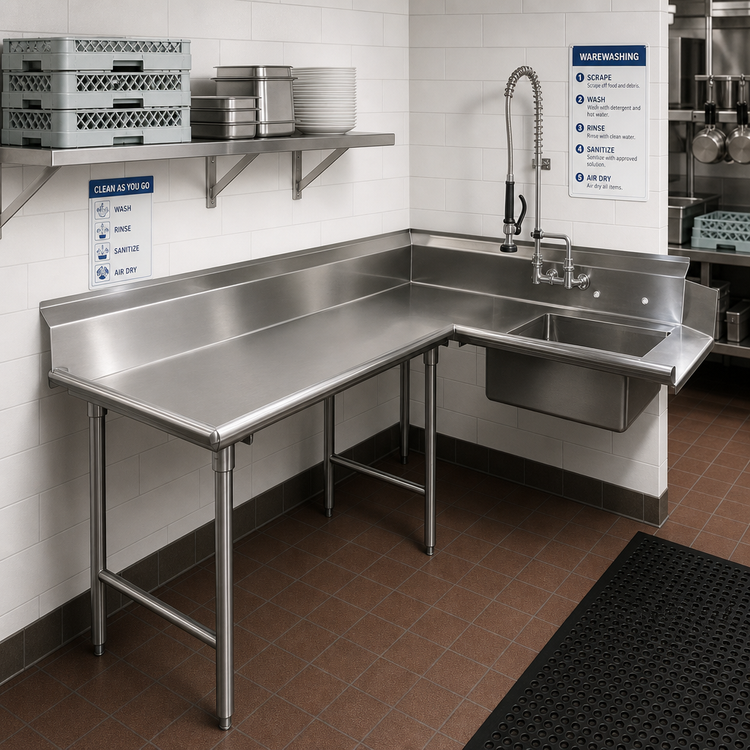

Advance Tabco “Korner” Soil Dishtable – 59" Left-Entry, Spec-Line
Model DTS-K30-60LBuild a compact, high-capacity scrape and rinse station in any corner with Advance Tabco’s heavy-duty Korner Soil Dishtable. Designed to mount on the left side of your dish machine, this L-shaped table brings pre-rinse, scrap-collecting and rack staging within easy reach while keeping water and debris off surrounding countertops.
Key Features

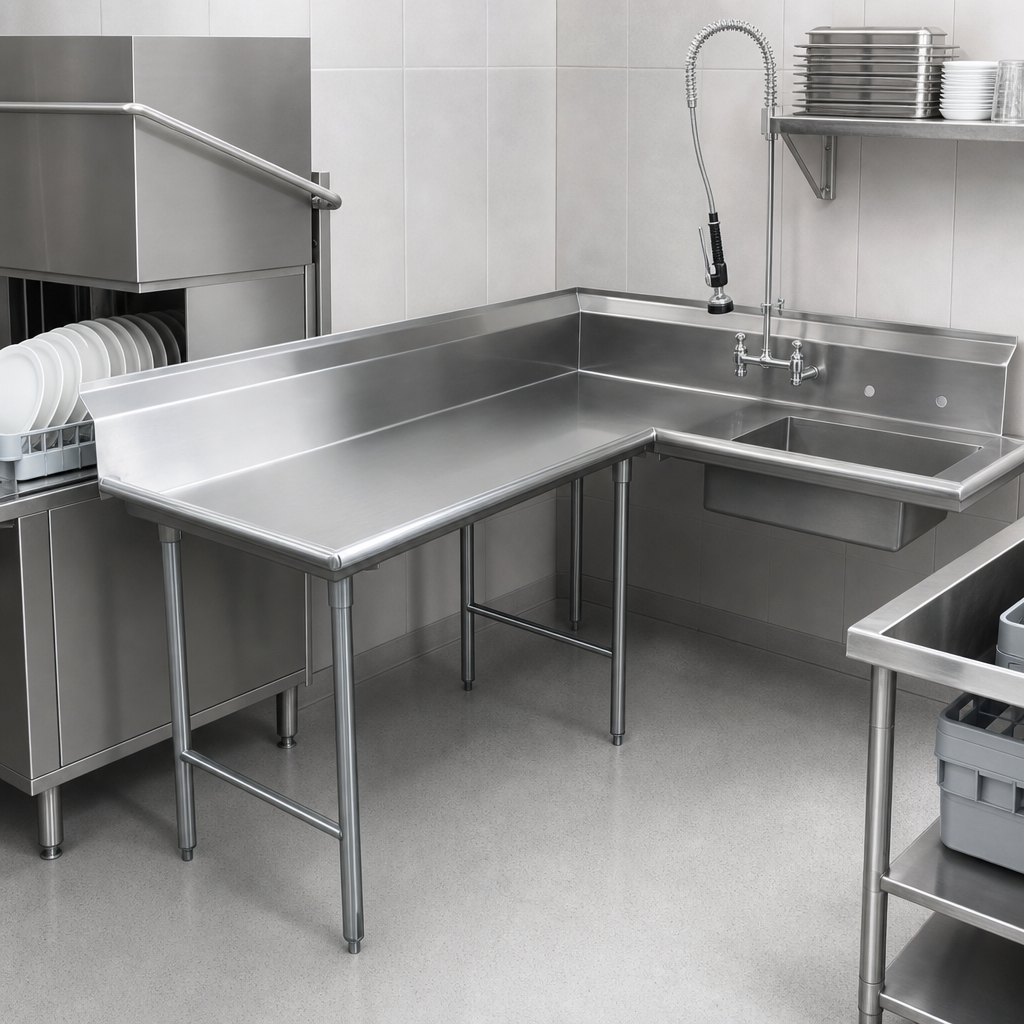

- L-shaped “corner” layout installs to the left of the dish machine operator (entry side).
- Spec-Line construction: 14 ga / 304 series stainless steel top for maximum durability.
- 16 ga 304 SS legs with fully welded stainless cross-rails and adjustable bullet feet.
- 10-1/2" tall bold-looking backsplash with 2" return & tile edge for quick, water-tight wall installation.
- Integrated 20" × 20" × 8" pre-rinse sink bowl, TIG-welded and satin-finished.
- 8" on-center faucet holes pre-punched in the backsplash (faucet sold separately).
- 1-1/2" IPS stainless basket drain included.
- Stainless steel pre-rinse basket included for efficient scrap capture.
- NSF listed; fabricated in an NSF-certified facility.
At-a-Glance Specifications
| Model | DTS-K30-60L |
|---|---|
| Overall length | 59" (5 ft nominal) |
| Orientation | Left-hand soil table – feeds dish machine entry |
| Top material | 14 ga, 304 SS |
| Legs / bracing | 16 ga, 304 SS legs with welded stainless cross-rails |
| Backsplash height | 10-1/2" with 2" return & tile edge |
| Sink bowl size | 20" × 20" × 8" deep |
| Drain connection | 1-1/2" IPS basket type (included) |
| Faucet openings | 8" O.C. (2 holes) |
| Approx. weight | 190 lb |
| NSF Listing | Yes |
Faucet is not included.
Dish Machine Compatibility
Always confirm clearance requirements using the Advance Tabco Dish Machine Compatibility Chart before finalizing your order. Custom SMART FABRICATION™ modifications are available when required.
