Advance Tabco DTS-K30-48R Korner Compartment Sinks
Description

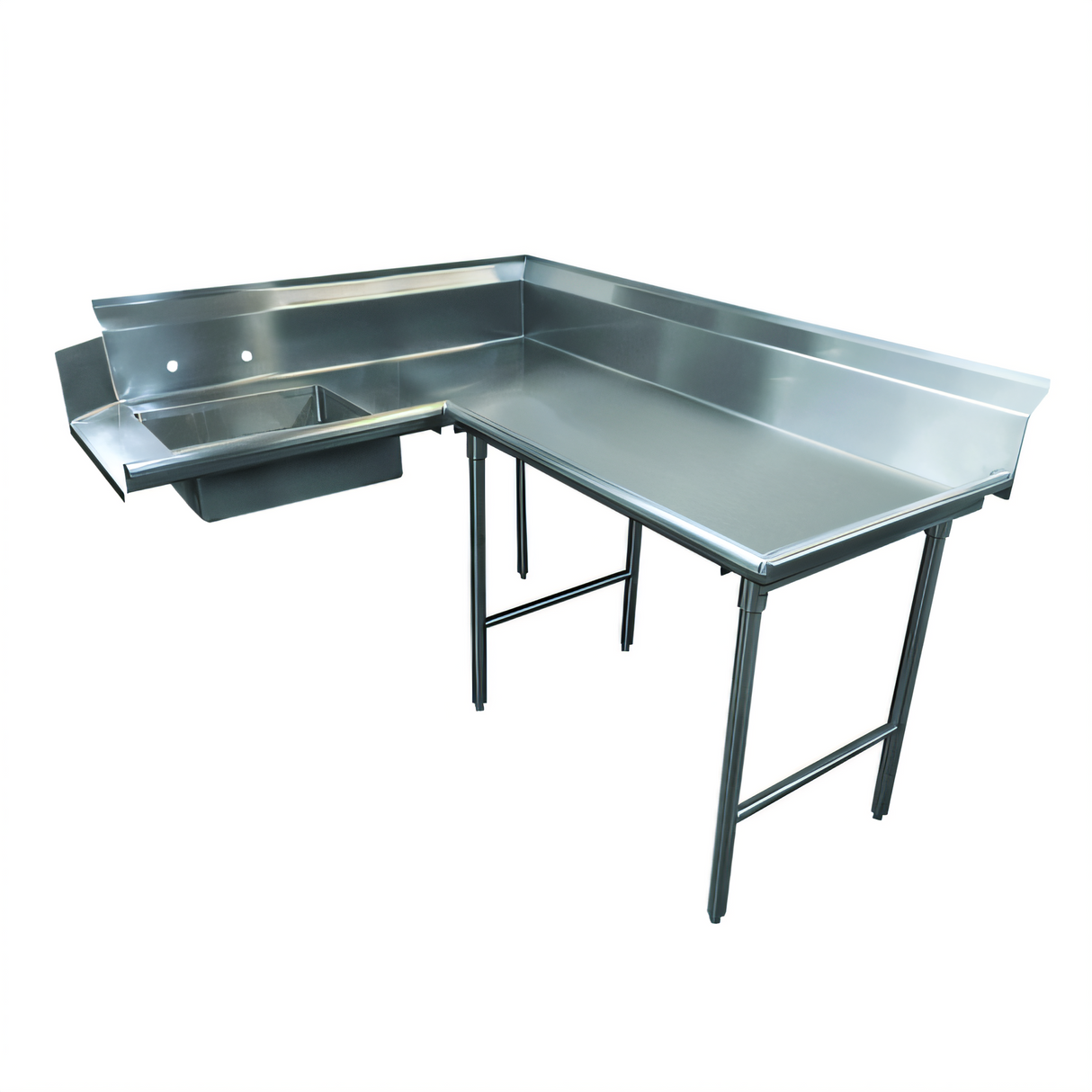

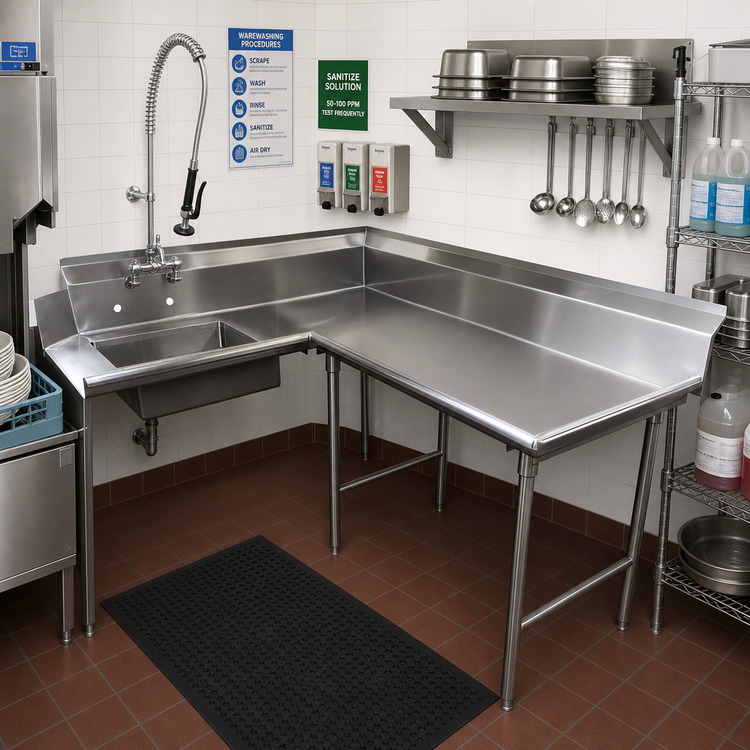

Advance Tabco “Korner” Soil Dishtable – 47" Right-Hand L-Shape
Model DTS-K30-48R • Spec-Line Series • NSFAdd effortless flow to your dish room with Advance Tabco’s right-hand Korner Soil Dishtable. The compact 47" Spec-Line model mounts to the right of the dish machine operator, guiding soiled racks straight into the washer while keeping the pre-rinse sink, scrap basket and landing area within arm’s reach.
Why You’ll Love It
- Heavy-duty 14 ga 304 Stainless Steel top resists dents, rust and harsh chemicals.
- 1 5/8" Ø 16 ga 304 Stainless Steel legs with welded cross-rails for rock-solid stability.
- Integrated 20" × 20" × 8" pre-rinse sink bowl with 1 1/2" IPS basket drain (included).
- 10-1/2" backsplash with 2" return & tile edge keeps water contained and installation simple.
- 8"-on-center faucet holes punched in splash (faucet not included).
- Stainless steel bullet feet provide 1" of leveling adjustment.
- NSF listed and fully TIG-welded with satin-polished seams.
- Prerinse basket supplied; slide bar ships only when K-461 or K-461A disposer adapter is ordered.
At-a-Glance Specs
| Overall length (L-shape) | 47" (nominal 4 ft) |
|---|---|
| Depth (front to backsplash) | 30" |
| Working height | 34" to 35" (adjustable feet) |
| Backsplash height | 10-1/2" with 2" return |
| Sink bowl size | 20" × 20" × 8" deep |
| Top material / thickness | 304 Stainless Steel, 14 ga |
| Legs & bracing | 304 Stainless, 16 ga, welded cross-bracing |

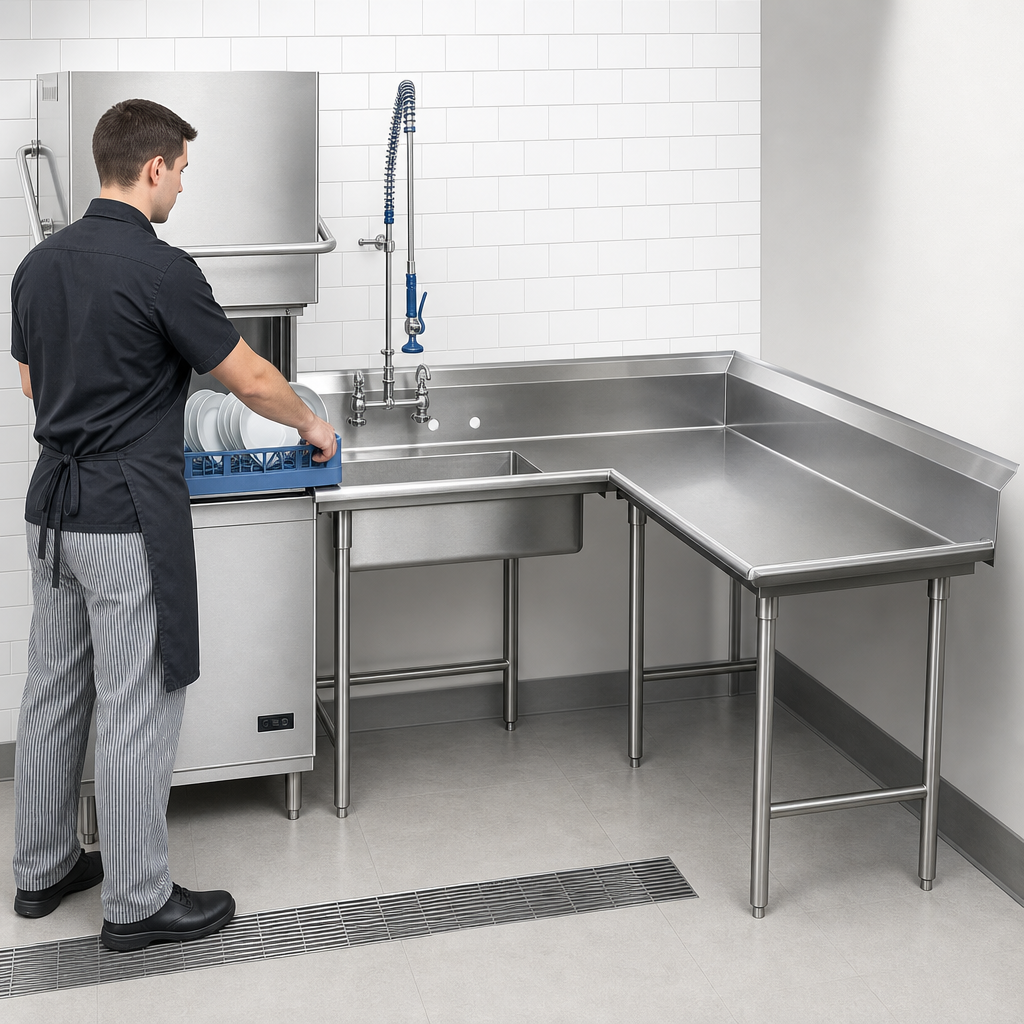

| Orientation | Right – attaches to operator’s right side of dishwasher |
| Drain connection | 1 1/2" IPS basket type (included) |
What’s in the Box
- Advance Tabco DTS-K30-48R Korner Soil Dishtable
- 20" × 20" × 8" sink bowl welded in place
- Stainless basket drain assembly
- Pre-rinse scrap basket (slide bar ships only with K-461 / K-461A adapter)
- Four 16 ga stainless legs with welded cross-rails & adjustable bullet feet
Faucet, disposer adapters and prerinse spray assemblies are sold separately. Specifications subject to change without notice.
