Description

Advance Tabco “KORNER” Soil Dishtable – 143" Right Side, Spec-Line

14 ga 304 Stainless Top • Pre-Rinse Sink • Tile-Edge Design

Engineered for heavy-volume warewashing, the Advance Tabco KORNER soil dishtable creates an L-shaped landing area that feeds a dish machine on the operator’s right. Built with a rugged 14-gauge 304 stainless steel top and 16-gauge stainless legs, it delivers long-term corrosion resistance, fast installation, and rock-solid stability—exactly what demanding commercial kitchens require.

Key Features

  • Spec-Line Construction: 14 ga 304 SS top with tile-edge for a clean, flush wall fit.
  • Extra-large 10 ½" backsplash with 2" return stops water from reaching surrounding surfaces.
  • Pre-rinse sink: 20" × 20" × 8" deep bowl for scraping & soaking racks before the machine.
  • Includes 1 ½" IPS basket drain plus a prerinse rack & slide bar* to keep racks within reach.
  • 1 ⅝" Ø 16 ga 304 SS legs with fully welded cross-bracing and adjustable stainless bullet feet.

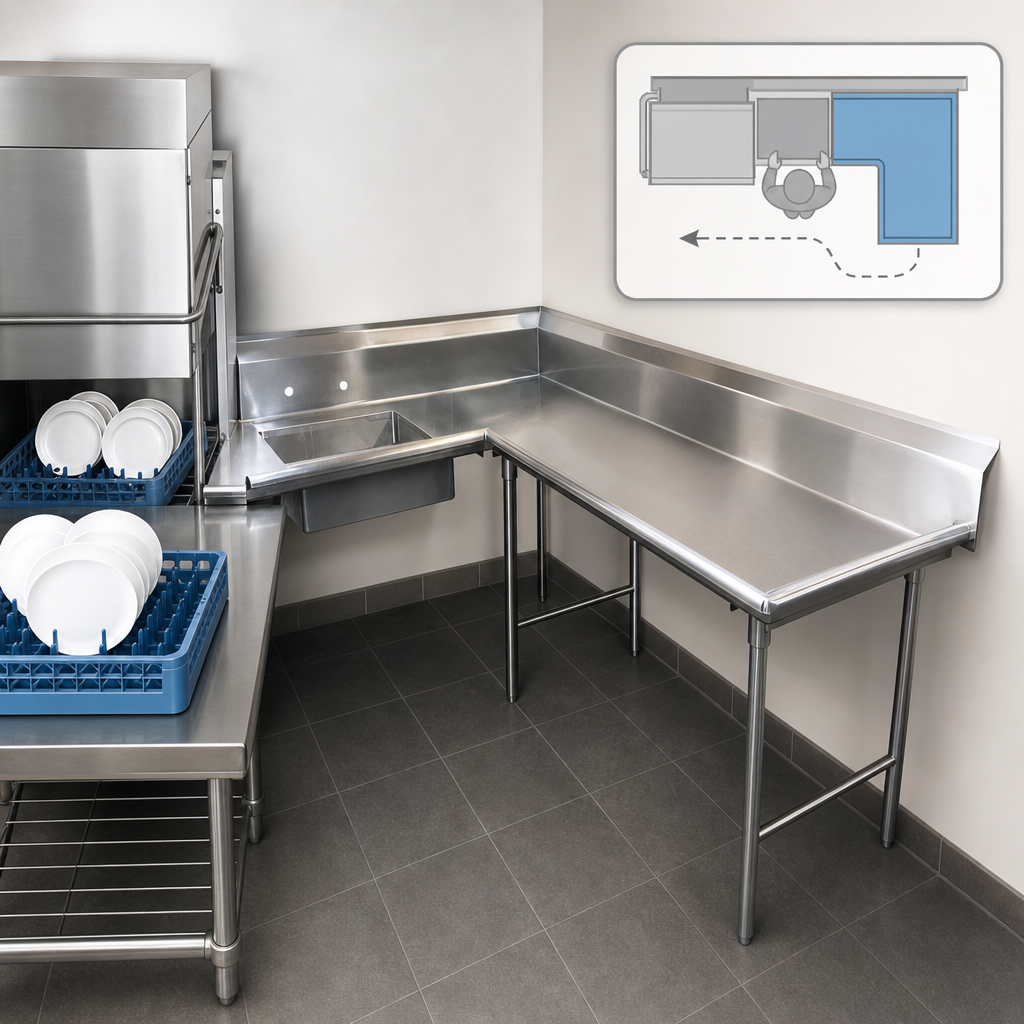

  • L-shaped layout (143" nominal) optimises corner space while maintaining smooth rack flow.
  • All TIG-welded seams polished to a satin finish for easy cleaning and professional appearance.

Specifications

Overall length (long leg) 143" nominal – fits 12 ft Spec-Line size
Orientation Right-side soil table (attaches to dish machine on operator’s right)
Top material / thickness 304 SS, 14 ga
Legs / bracing 304 SS, 1 ⅝" Ø, 16 ga with welded stainless crossrails & bullet feet (1" adj.)
Sink bowl 20" × 20" × 8" deep (integral)
Backsplash height 10 ½" with 2" return & tile edge
Drain 1 ½" IPS basket-type (included)
Prerinse basket Stainless wire rack with slide bar*
Faucet mounting (2) holes on 8" centers punched in backsplash – faucet sold separately
Approx. shipping weight 390 lb

Ideal For

  • High-volume restaurants & cafeterias
  • Hotels, resorts, and banquet kitchens
  • School & university food-service operations
  • Any facility seeking to maximise corner space while maintaining sanitary workflow
Important: Always verify dish-machine compatibility before ordering. Refer to the Advance Tabco Dish Machine Compatibility Chart or contact our support team.

*Slide bar ships only when a K-461 or K-461A disposer adapter is ordered with the table.
Faucet, disposer, wall/undershelves, and other accessories are available separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

365.0lbs

Splash Height

10"H splash

Leg Type

stainless steel legs

Stainless Gauge

14 gauge

Width (end - corner) OA

133" - 144"

Direction

right to left

Stainless Series

300 series

Width (machine - corner) OA

61" - 72"

Shape

corner

Specifications

Korner-Soil Dishtable, L-shaped, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with stainless steel crossrails, 143" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
