Advance Tabco  |  Korner  |  SKU: DTS-K30-144L  |  UPC: 747545121578

Advance Tabco DTS-K30-144L Korner Compartment Sinks

$5,632.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

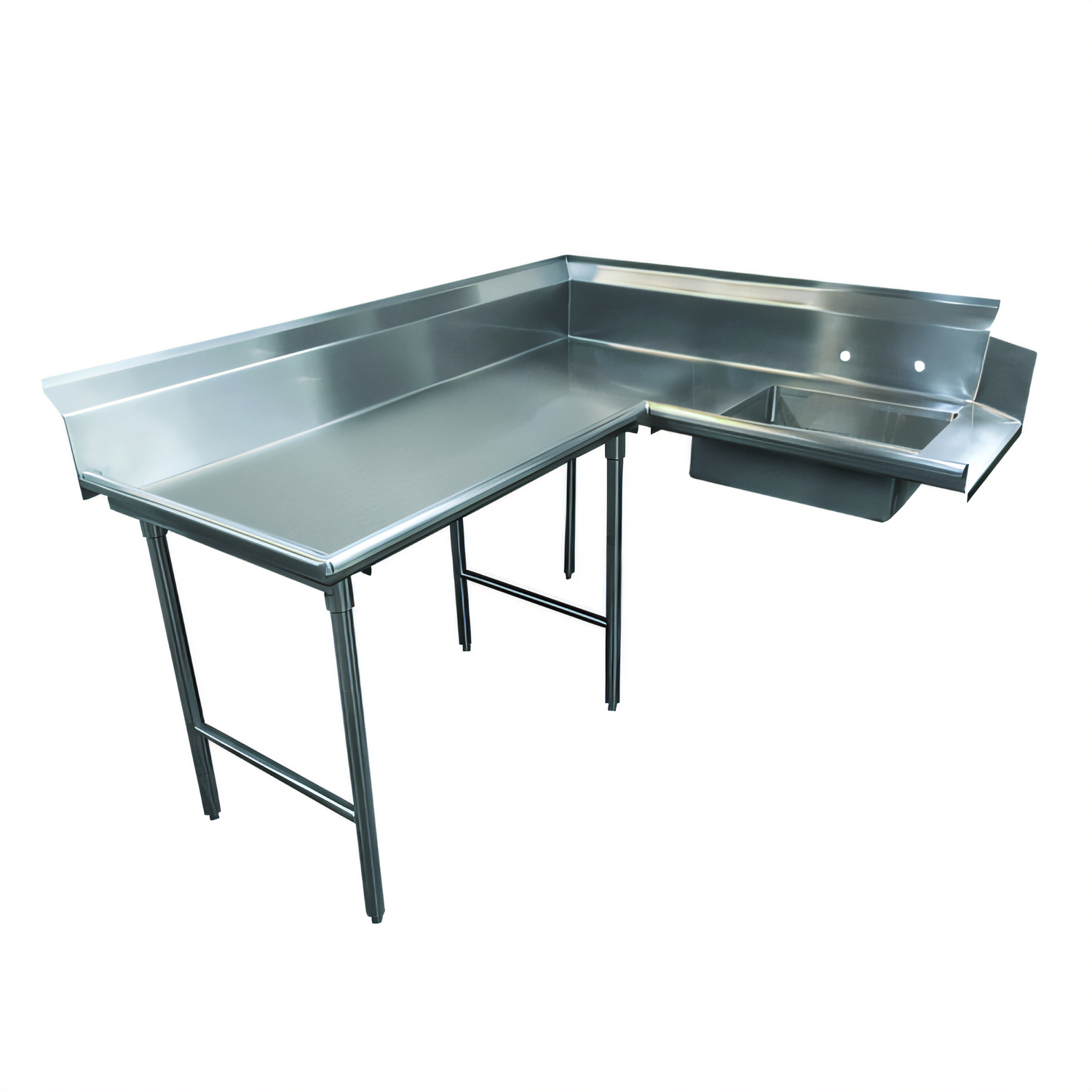

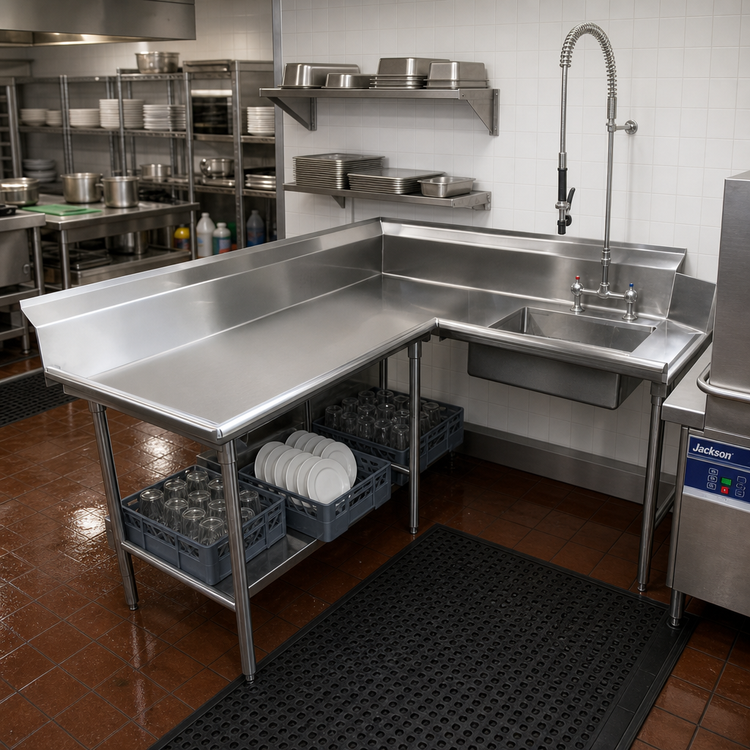

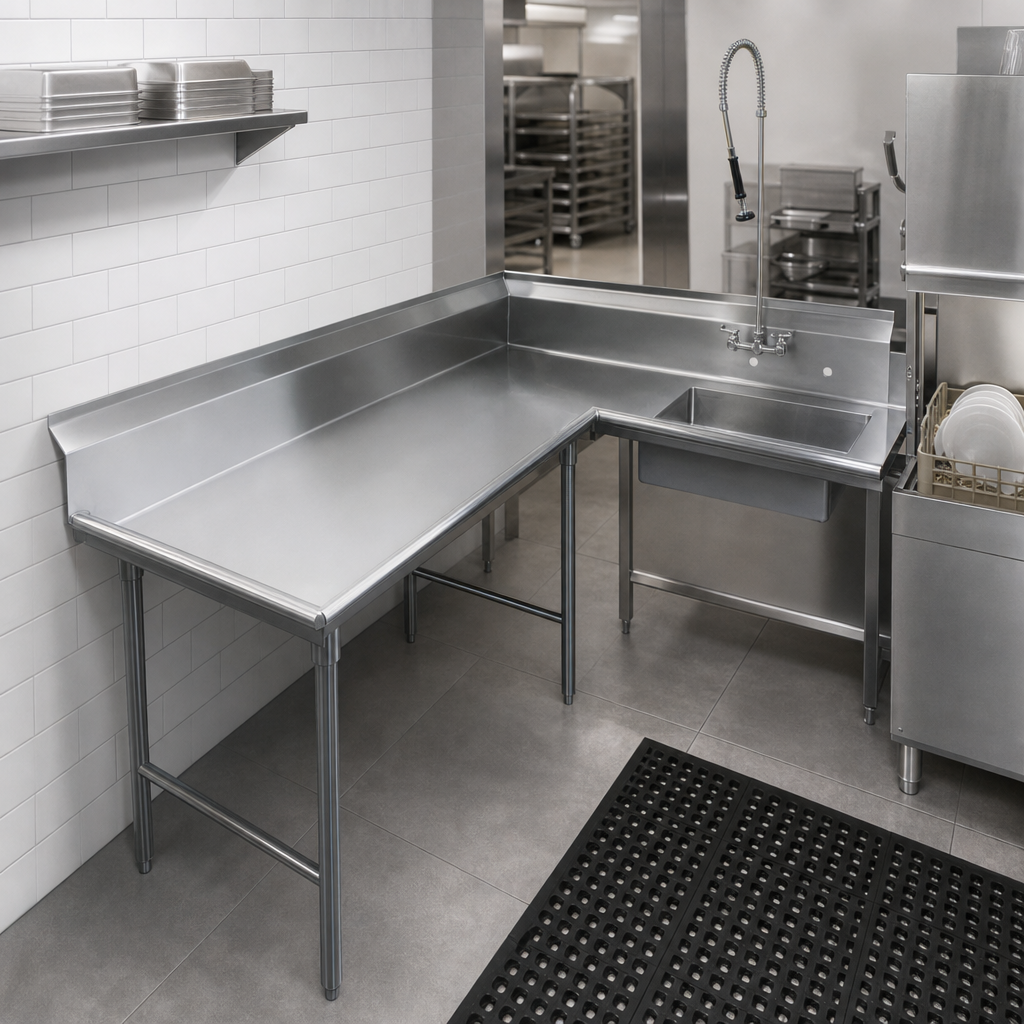

Advance Tabco Korner Soil Dishtable – 143″ L-Shaped, Left Side

Model DTS-K30-144L • Spec-Line Series

Turn an unused corner into a high-capacity scrap and pre-rinse station. This heavy-duty Korner Soil table parks to the left of your dish machine, giving staff a smooth “scrap, rinse, rack, and slide” workflow while keeping aisles clear.

Why You’ll Love It

  • 14 ga. 304 SS top – extra-thick, food-safe and built for years of abuse.
  • L-shaped design maximizes tight footprints and keeps the operator in one ergonomic zone.
  • 10-1/2″ backsplash with 2″ tile edge return for code-compliant, mess-free installs.
  • 20″ × 20″ × 8″ deep pre-rinse sink with 1-1/2″ IPS basket drain; faucet holes punched on 8″ centers.
  • 1-5/8″ Ø 16 ga. stainless legs with welded stainless cross-rails & adjustable stainless bullet feet.
  • TIG-welded seams blended to a satin finish for a smooth, easy-clean surface.
  • Includes stainless pre-rinse basket and slide bar (slide bar ships only when disposer adapter K-461/K-461A is ordered).
  • Ships fully assembled—just set, level, and plumb.

At-a-Glance Specs

Overall length (nominal) 143″ (12 ft)
Configuration L-shaped soil table – mounts to left side of dish machine
Top material / gauge 304 stainless steel, 14 ga.
Sink bowl size 20″ × 20″ × 8″ D with 1-1/2″ IPS basket drain
Backsplash height 10-1/2″ with 2″ return & tile edge
Legs & bracing 1-5/8″ Ø 16 ga. SS legs, welded SS cross-rails, SS adjustable bullet feet
Included accessories Pre-rinse basket, slide bar*
Approx. shipping weight 390 lb

*Slide bar supplied only when disposer adapter K-461 or K-461A is specified on the same order.

Dish Machine Compatibility

Korner series tables are engineered to mate with most leading commercial dish machines. Always verify clearances with the current Advance Tabco Dish Machine Compatibility Chart or consult our Smart Fabrication™ team before ordering.

Important: This is a soil (dirty dish) table. Pair with a matching Korner Clean dishtable and an approved pre-rinse faucet (each sold separately) for a complete corner warewashing system.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

365.0lbs

Splash Height

10"H splash

Shape

corner

Width (machine - corner) OA

61" - 72"

Stainless Series

300 series

Stainless Gauge

14 gauge

Width (end - corner) OA

133" - 144"

Leg Type

stainless steel legs

Direction

left to right

Specifications

Korner-Soil Dishtable, L-shaped, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with stainless steel crossrails, 143" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
