Advance Tabco DTS-K30-108R Korner Compartment Sinks
Description

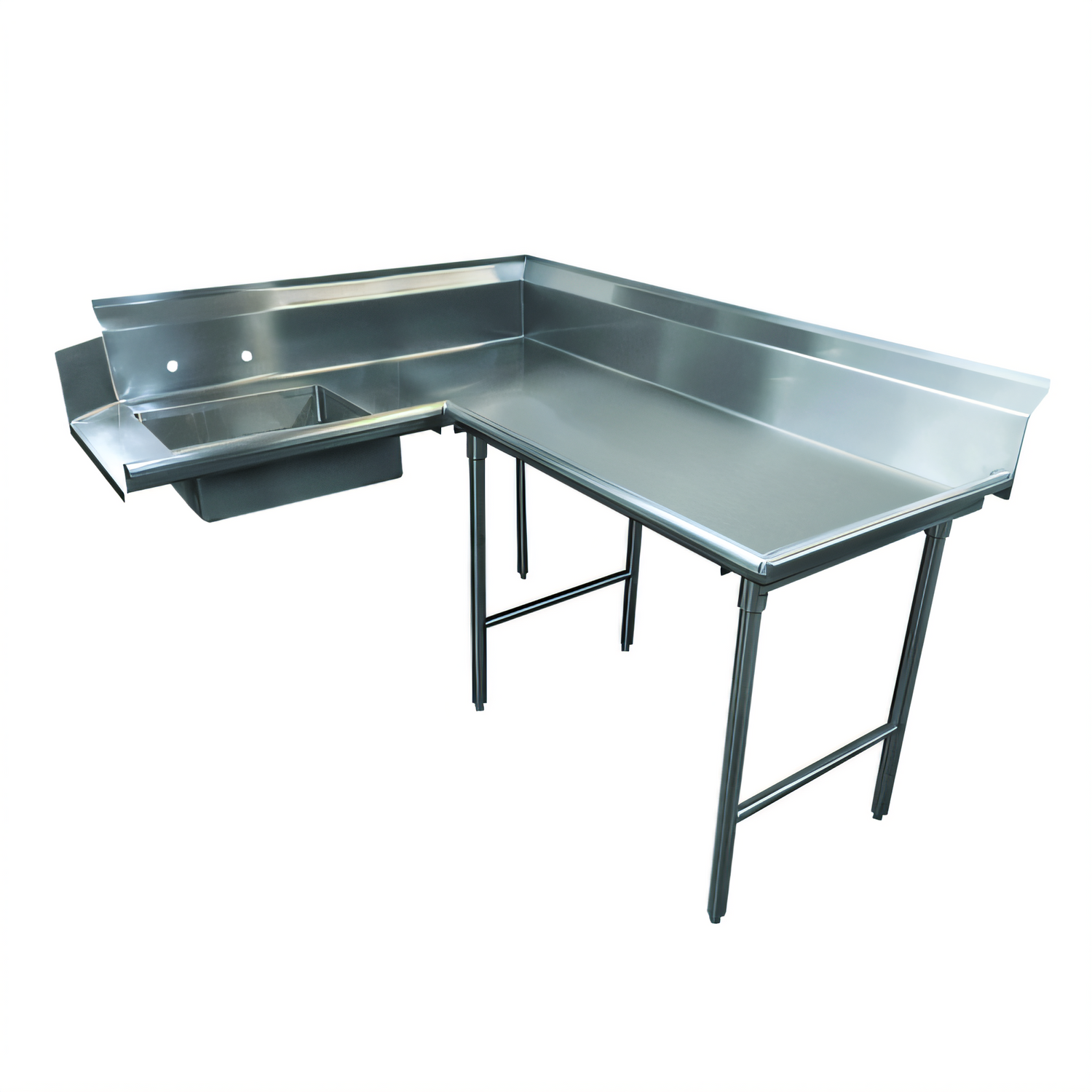

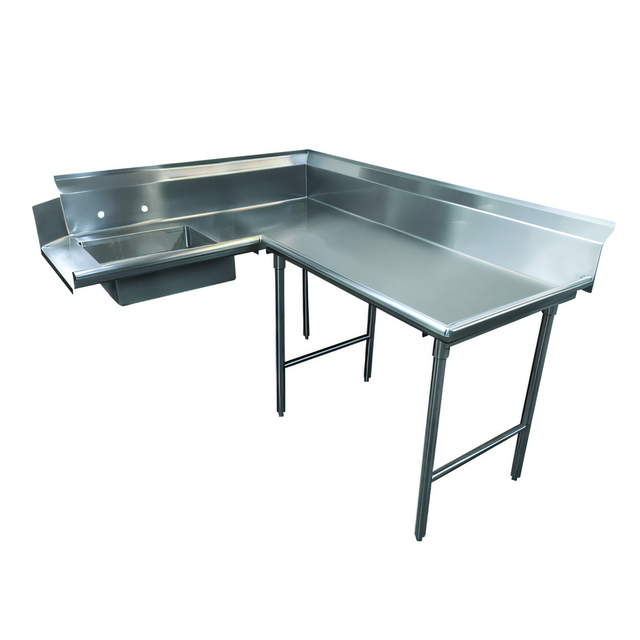

Advance Tabco “Korner” Soil Dishtable – Right-Side, L-Shaped (107 in.)
Spec-Line Series • 14 ga / 304 SS Top • Model DTS-K30-108R*Engineered for tight dish room corners, the Advance Tabco Korner Soil Dishtable brings heavy-duty performance, rapid workflow, and true NSF sanitation to the right side of any commercial dish machine. The 107 inch L-shape delivers a generous landing area and an 8 inch-deep pre-rinse sink while its 14 gauge, type 304 stainless steel top shrugs off daily abuse.
Why It Belongs In Your Dish Room

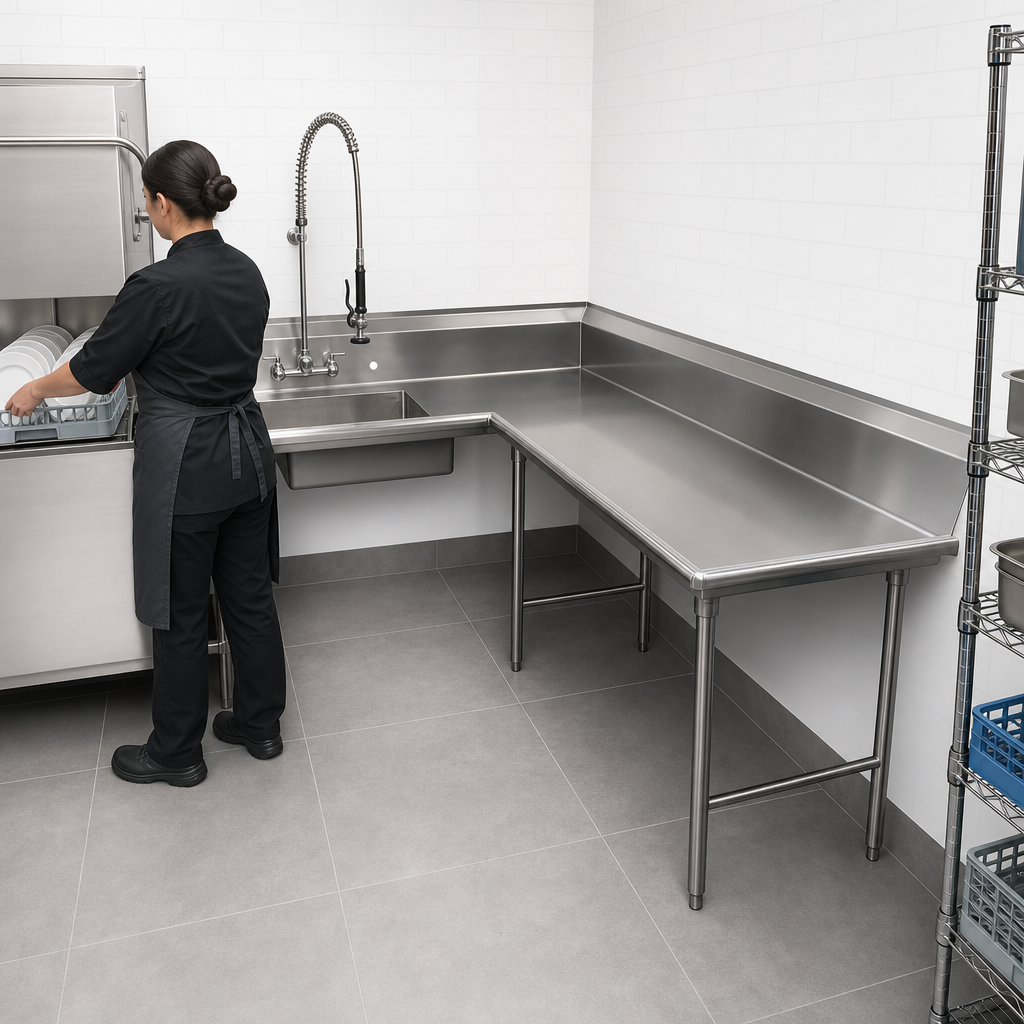

- Space-saving L-shape attaches to the right of the dish machine operator to keep soiled ware flowing in one smooth motion.
- Extra-large 10 ½ in. backsplash with 2 in. tile edge contains splashes and simplifies wall installation.
- Integral 20 × 20 × 8 in. pre-rinse sink bowl with 1 ½ in. IPS basket drain.
- Factory-punched 8 in. O.C. faucet holes (faucet sold separately).
- Includes stainless steel prerinse rack & basket; slide bar ships when a K-461 or K-461A disposer adapter is specified.
- All TIG-welded construction; welds are ground and polished to a satin finish for easy cleaning.
- 1 ⅝ in. Ø, 16 ga. 304 SS legs with welded cross rails and adjustable stainless bullet feet for rock-solid stability.
- NSF certified for open food-zone use.
Key Specifications
| Overall length (long side) | 107 in. (nominal 9 ft) |
|---|---|
| Configuration | L-shaped, right-hand soil table |
| Top material / gauge | 14 ga., Type 304 stainless steel |
| Legs & bracing | 16 ga., Type 304 SS legs with welded SS cross rails |
| Backsplash height | 10 ½ in. with 2 in. return |
| Sink bowl size / depth | 20 × 20 in. / 8 in. deep |
| Drain assembly | 1 ½ in. IPS basket-type (included) |
| Faucet holes | 8 in. on-center (faucet not included) |
| Net weight | Approx. 355 lb |
Dish Machine Compatibility
Advance Tabco’s Korner series is designed to mate with most right-feed commercial dish machines. Always verify required clearances and any SMART FABRICATION™ modifications with the Dish Machine Compatibility Chart or your machine manufacturer before ordering.
Popular Add-Ons (sold separately)
- 8 in. center wall-mount pre-rinse faucet
- Undershelves or overshelves for added storage
- K-461 / K-461A disposer adapters (automatically add slide bar)
- Scrap baskets, racks, & wall-mounted utensil holders
*Model reference based on Advance Tabco engineering drawings. Actual part number may vary by factory order configuration.
