Advance Tabco  |  Korner  |  SKU: DTS-K30-108L  |  UPC: 747545121530

Advance Tabco DTS-K30-108L Korner Compartment Sinks

$4,863.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

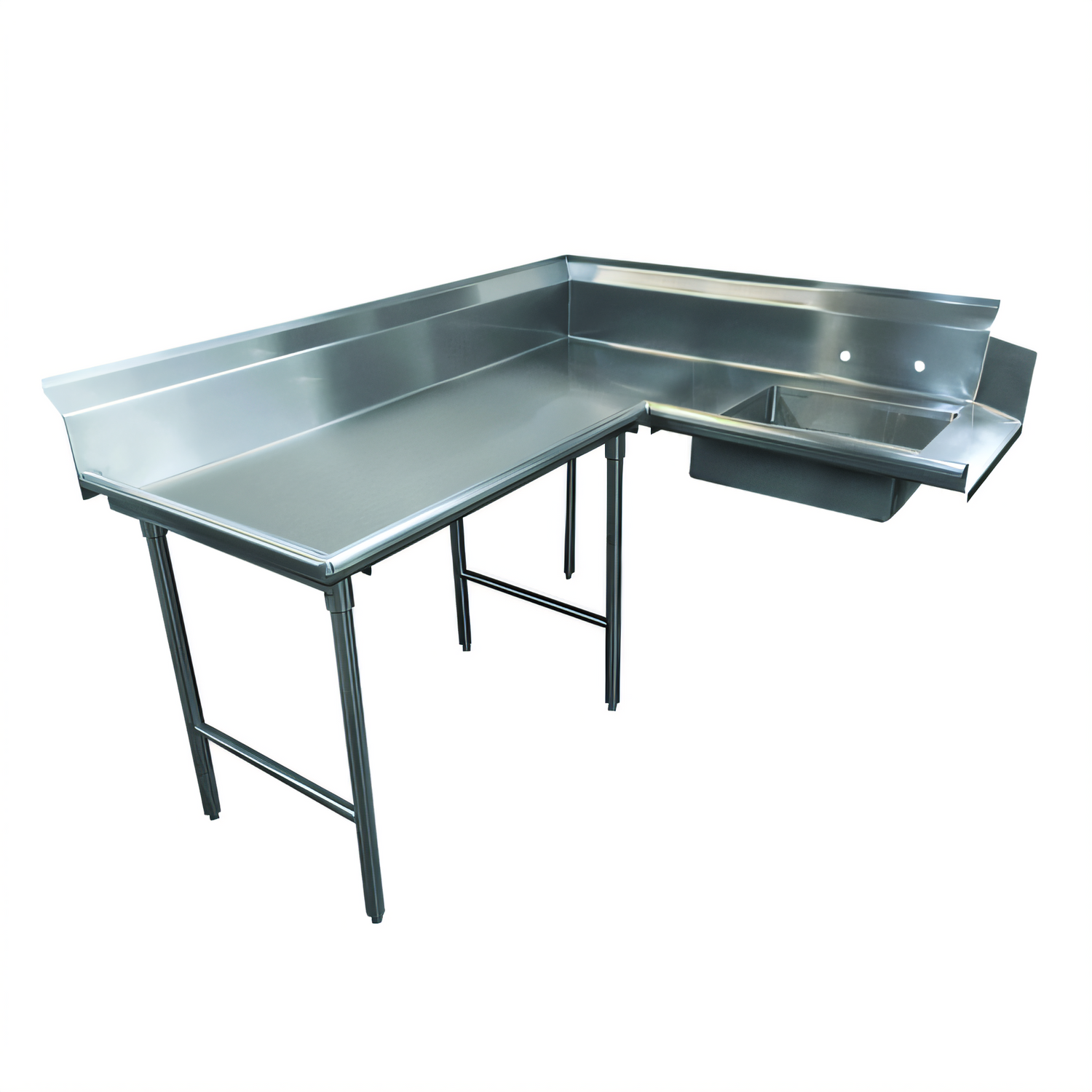

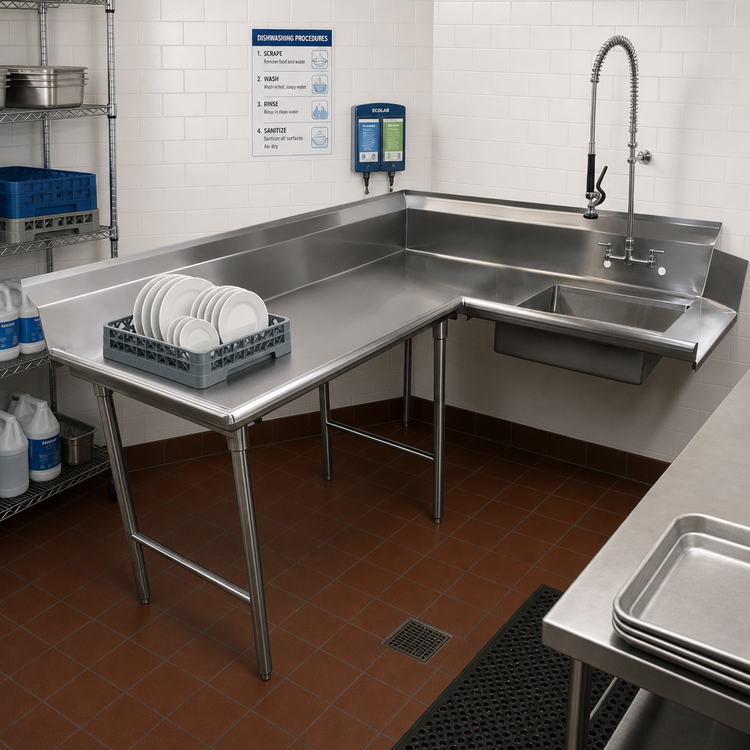

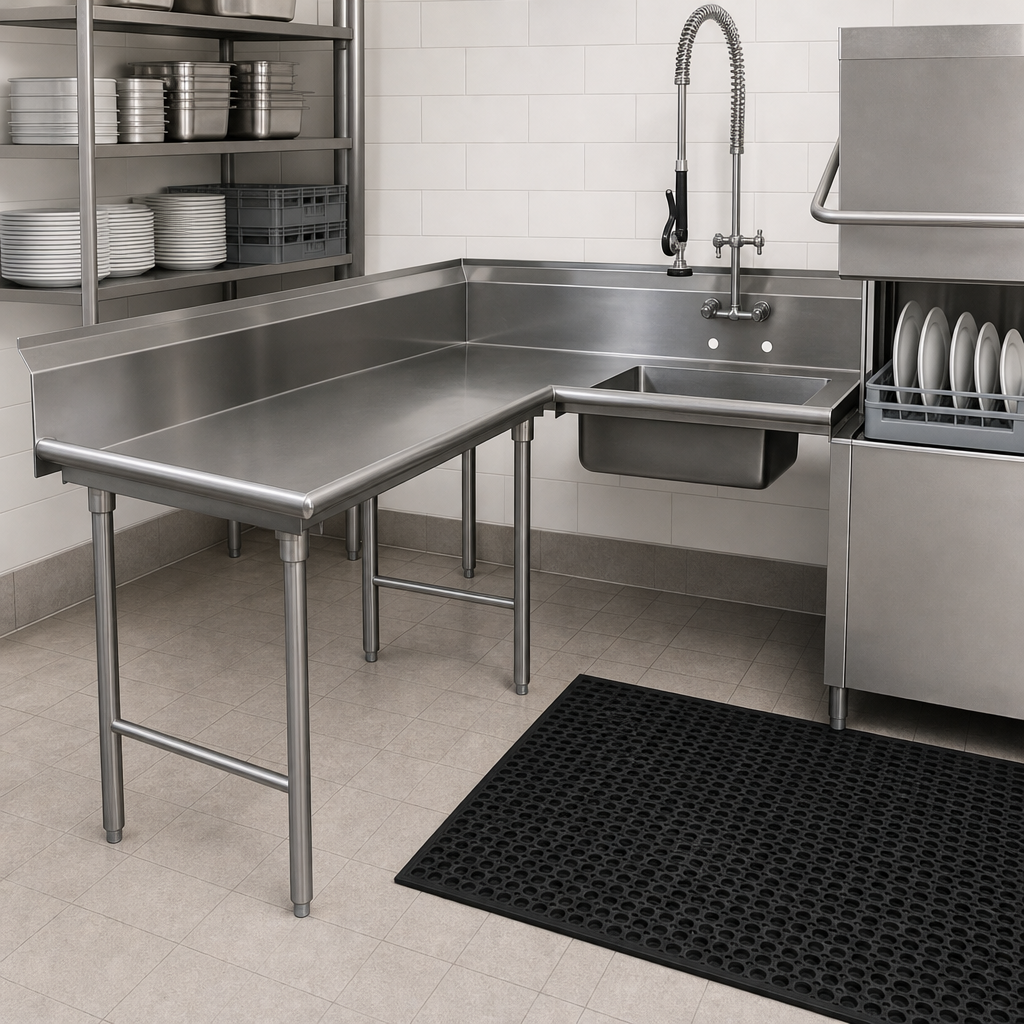

Advance Tabco “Korner” Spec-Line Soil Dishtable – Left Hand, 107″

Model No. DTS-K30-108L

Maximize dishroom workflow while protecting your walls and floors with the Advance Tabco Korner Soil Dishtable. Its space-saving L-shaped design bolts to the left side of your dish machine, delivering a rugged 14-gauge 304 stainless-steel work surface, an 8″-deep pre-rinse sink, and a towering 10 ½″ backsplash—all in one continuous, easy-to-clean unit.

Why You’ll Love It

  • 14-ga. 304 SS top with exclusive Tile Edge for a fast, watertight installation.
  • 10 ½″ backsplash with 2″ return stops splashes and cleans fast.
  • Full-size 20″ × 20″ × 8″ pre-rinse sink bowl; 1 ½″ IPS basket drain included.
  • Factory-punched 8″ O.C. faucet mounting holes (faucet sold separately).
  • 1 5/8″ Ø stainless legs with welded stainless crossrails & NSF adjustable bullet feet.
  • Stainless prerinse rack & basket included; slide bar engages when K-461/K-461A disposer adapter is ordered.
  • All TIG-welded; seams are blended to a sanitary satin finish.
  • Smart Fabrication™ ready for hassle-free dish-machine compatibility.
  • NSF listed for food-service peace of mind.

At-a-Glance Specs

Overall Length 107″ (Nominal 9 ft)
Depth – Soiled Rack Side 30″
Depth – Machine Leg 59″
Work Height 34″ – 35″ (via adjustable feet)
Backsplash Height 10 ½″ with 2″ return & tile edge
Sink Bowl Size 20″ × 20″ × 8″ deep
Drain Connection 1 ½″ IPS basket-type (included)
Faucet Holes 2 holes, 8″ centers
Top Material 14-ga 304 stainless steel
Legs / Crossrails 16-ga 304 stainless steel
Approx. Shipping Weight 355 lb

Perfect For

  • Full-service & quick-service restaurants
  • Institutional kitchens – schools, healthcare, corrections
  • Hotels, banquet halls & catering venues
  • Any dishroom needing corner entry efficiency
Dish Machine Compatibility: Some makes/models require clearance or notched splash modifications. Please review the Advance Tabco compatibility chart or contact us with your dish machine model before ordering.

Faucet, disposer adapter, and dish machine sold separately.

Features & Specs

Manufacturer

Advance Tabco

Brand_name

Korner

Height

44.0in

Shipping Weight

305.0lbs

Direction

left to right

Width (machine - corner) OA

61" - 72"

Stainless Series

300 series

Splash Height

10"H splash

Shape

corner

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Width (end - corner) OA

97" - 108"

Specifications

Korner-Soil Dishtable, L-shaped, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with stainless steel crossrails, 107" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
