Advance Tabco DTS-G70-84R Compartment Sinks

$3,965.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

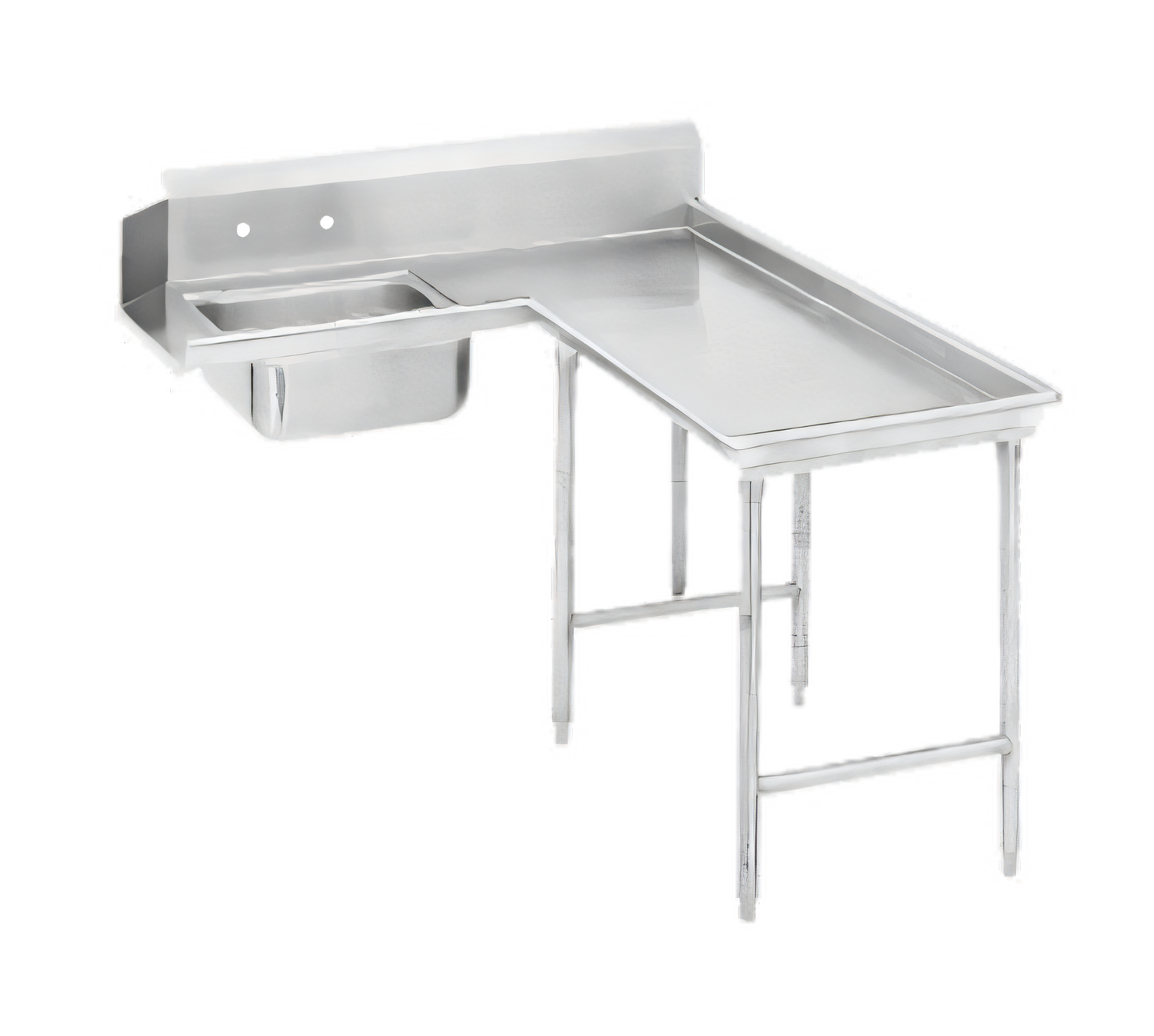

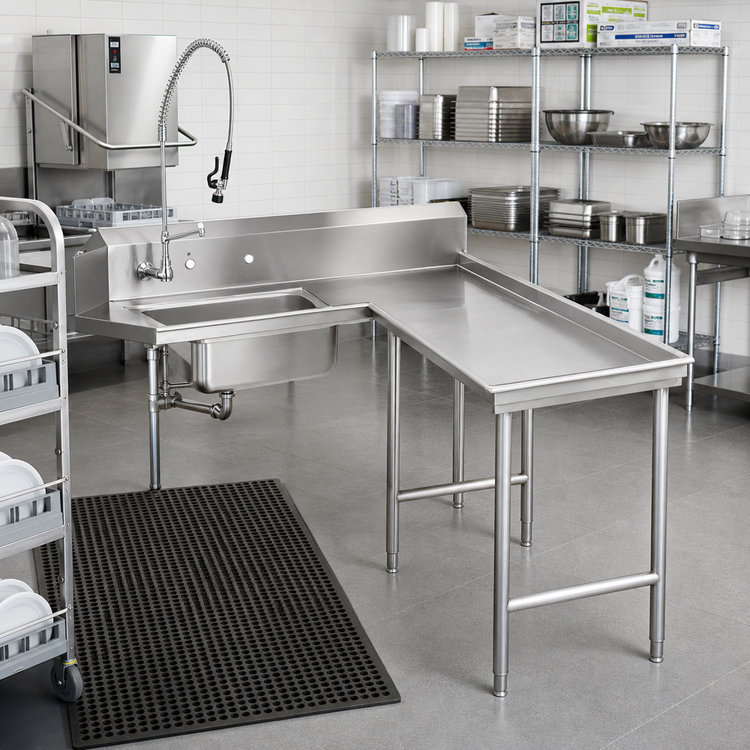

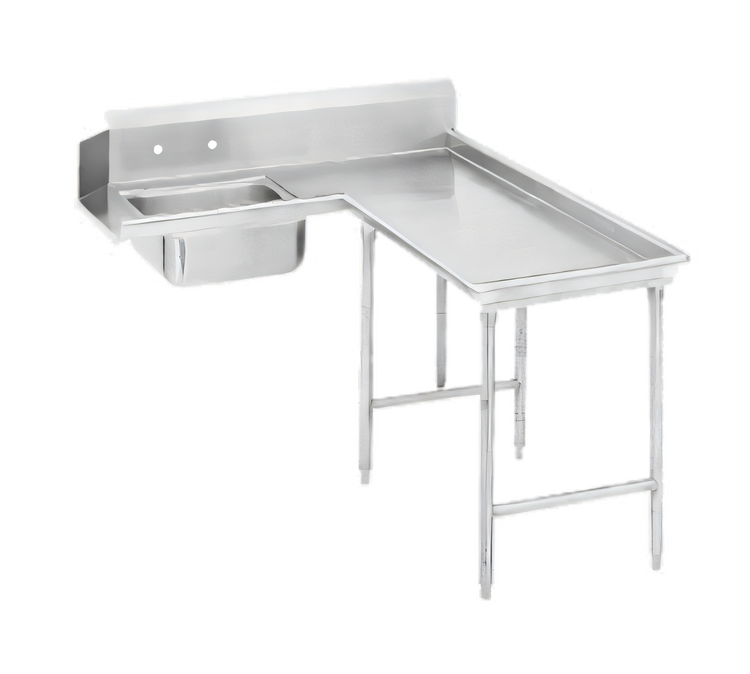

Advance Tabco DTS-G70-84R Island Soil Dishtable – 7′ (83")

Right-Hand Attachment • 16 Gauge 304 Stainless Steel Top

Built for high-volume kitchens, this L-shaped island soil dishtable attaches to the right of your dish machine, giving operators a rugged pre-rinse and scrap station that keeps racks moving and mess contained.

Key Benefits

  • 20" × 20" pre-rinse sink (5" deep) located for smooth, ergonomic rack loading.
  • 10-1/2" extra-tall backsplash with 2" return and tile edge shields surrounding walls from splatter.
  • Heavy-duty 16 ga. 304 stainless steel top delivers lasting corrosion resistance.
  • 16 ga. 304 stainless steel legs with welded crossrails & adjustable stainless bullet feet provide rock-solid support.
  • Factory-punched 8"-on-center faucet holes – just add your preferred pre-rinse faucet (sold separately).
  • 1-1/2" IPS basket-type waste drain included for quick hook-up.
  • All TIG-welded construction; welds are blended to a sanitary satin finish and NSF listed.

At-a-Glance Specs

Model DTS-G70-84R
Overall Length 83" (nominal 7 ft)

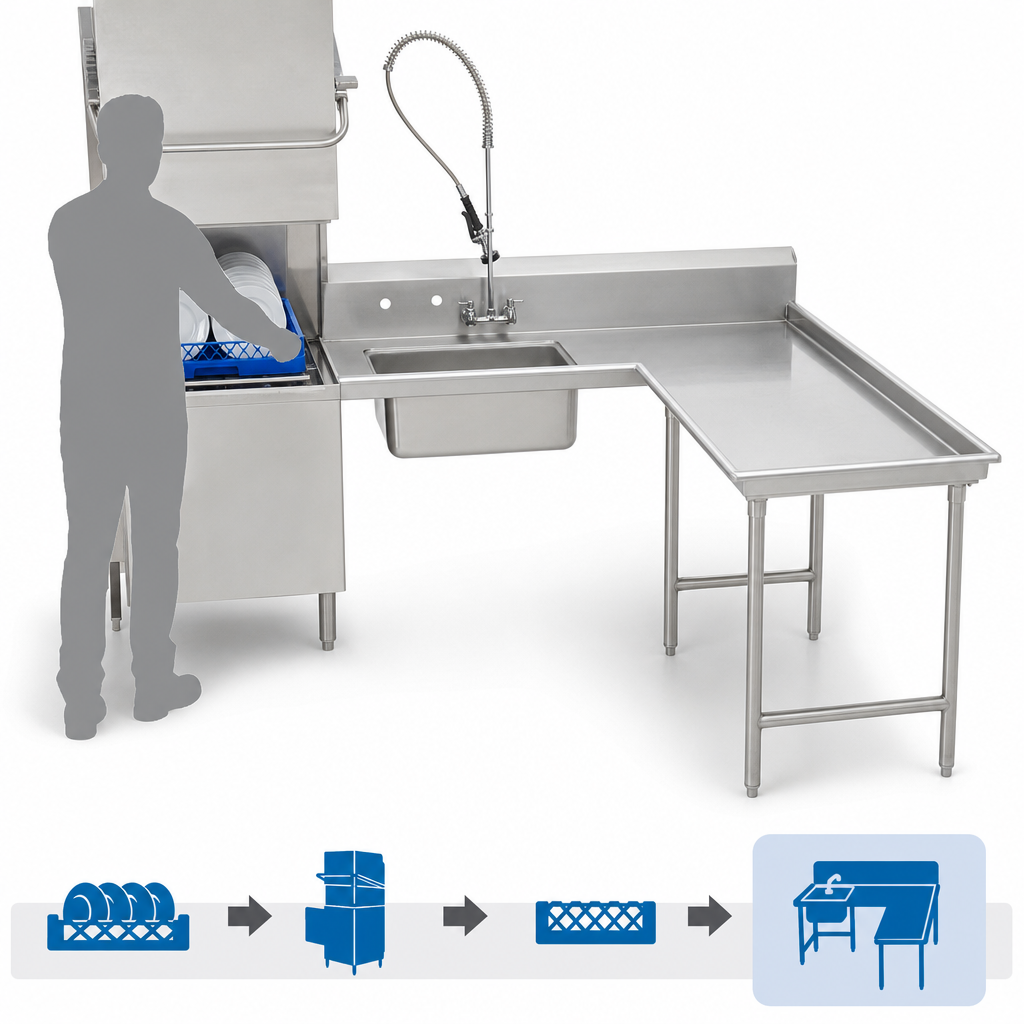

Configuration Island Soil, Right-Hand Operator Side
Top Material / Gauge 16 ga. 304 SS
Sink Bowl Size 20" × 20" × 5" deep
Backsplash Height 10-1/2" with 2" return & tile edge
Legs / Bracing 16 ga. 304 SS legs with welded crossrails & 1"-adjustable SS bullet feet
Faucet Holes 3 holes on 8" centers (faucet not included)
Drain 1-1/2" IPS basket-type
NSF Listed Yes
Approx. Ship Weight 225 lb

Ideal Applications

Perfect for cafeterias, hotels, and institutional kitchens running 44"–66" conveyor or door-type dish machines. Pair with a matching clean dishtable to complete your warewashing line.

Check machine clearance before ordering!
Confirm bowl spacing and opening width with the Advance Tabco Dish Machine Compatibility Chart or contact our specialists for a free fit check.

Accessories such as pre-rinse faucet, scrap basket, and overshelves are sold separately unless otherwise noted.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

245.0lbs

Width (end - corner) OA

73" - 84"

Stainless Gauge

16 gauge

Leg Type

stainless steel legs

Shape

island

Stainless Series

300 series

Width (machine - corner) OA

61" - 72"

Splash Height

10"H splash

Direction

right to left

Specifications

Island-Soil Dishtable, L-shaped, attaches to right of dish machine operator, 10-1/2"H backsplash one side, with pre-rinse sink, stainless steel legs, with crossrails, 83" long, 16/304 stainless steel
