Advance Tabco DTS-G70-84L Compartment Sinks
Description

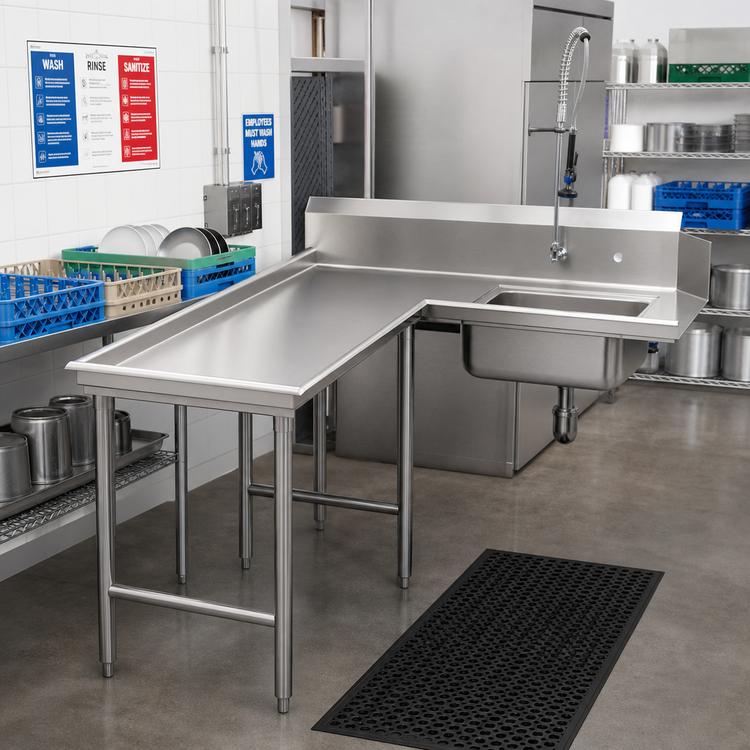

Island Soil Dishtable – 83" L-Shaped (Left-Hand)
Advance Tabco • Standard Series • Model DTS-G70-84LBuilt for high-volume warewashing suites, this Advance Tabco island soil dishtable bolts directly to the left side of the dish-machine operator, creating a smooth, NSF-listed scrapping and pre-rinse station. A rugged 16 gauge, 304 stainless steel top, welded cross-braced legs, and an extra-tall backsplash give you the strength and splash protection you need shift after shift.
Why You’ll Love It
- 83" nominal length provides generous landing area for racks & bus tubs.
- 20" × 20" × 5" pre-rinse sink speeds food soil removal; 1 ½" IPS basket drain included.

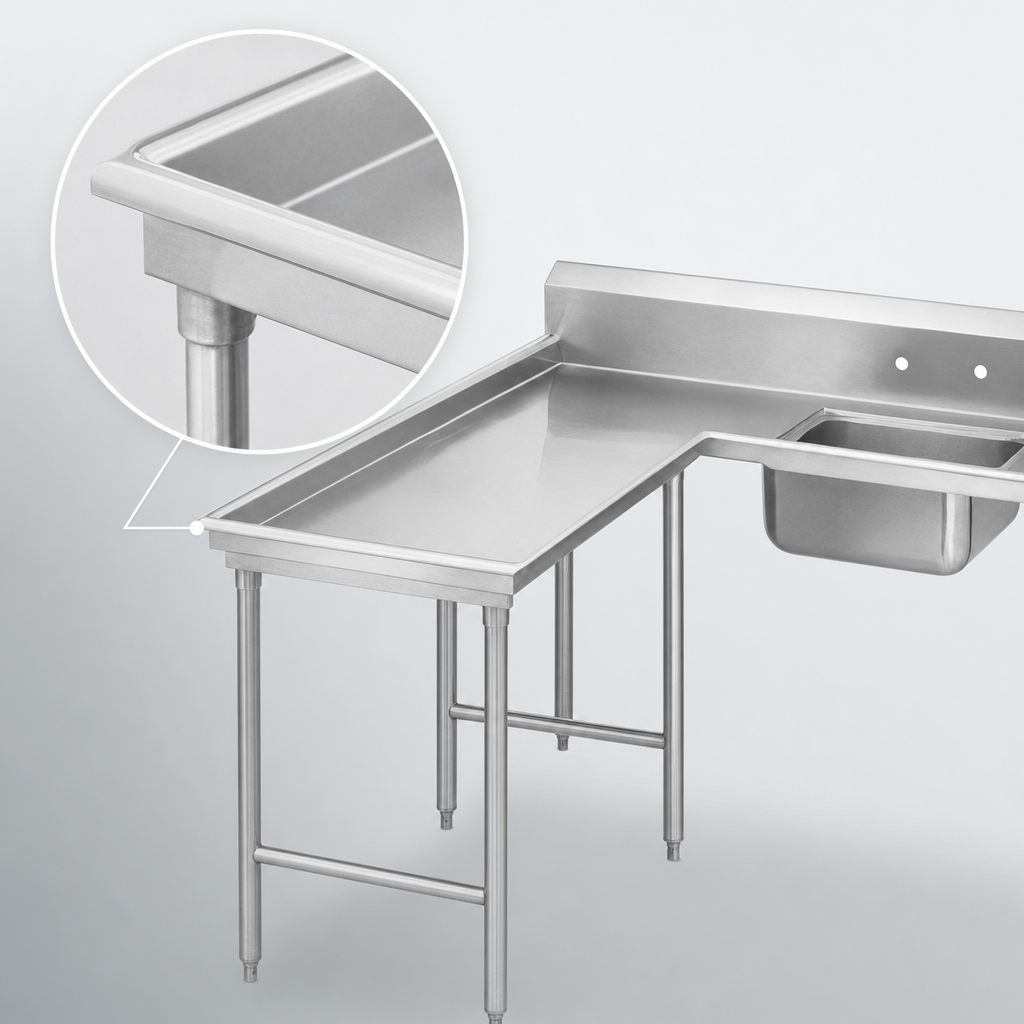

- 10 ½" high backsplash with 2" return & tile edge contains overspray and installs flush against walls.
- All TIG-welded construction with blended satin finish for easy sanitation.
- 1 5⁄8" Ø 304 stainless steel legs with welded crossrails and adjustable stainless bullet feet keep the table rock-solid under heavy loads.
- Faucet holes punched on 8" centers — ready for the deck-mount faucet of your choice (faucet sold separately).
- NSF Listed & Made in the USA.
Technical Specifications
| Orientation | L-Shaped, mounts to left of dish machine operator |
|---|---|
| Overall length | 83" (7 ft nominal) |
| Top material / gauge | 16 ga, 304 series stainless steel |
| Legs | 16 ga, 1 5⁄8" Ø 304 SS legs with welded cross-bracing & stainless bullet feet (1" adjustment) |
| Sink bowl | 20" W × 20" L × 5" D, 1 ½" IPS basket drain included |
| Backsplash | 10 ½" H with 2" return & tile edge |
| Faucet holes | 3 holes, 8" on-center (faucet not included) |
| Finish | Satin polish, welded seams blended smooth |
| Certifications | NSF |
Optional Accessories
- 8" center deck-mount faucet & pre-rinse sprayer
- Stainless steel wall shelf for chemicals or dish racks
- Stainless undershelf for additional storage
- Pre-rinse basket (scrap basket)
