Advance Tabco DTS-G70-72R Compartment Sinks
Description

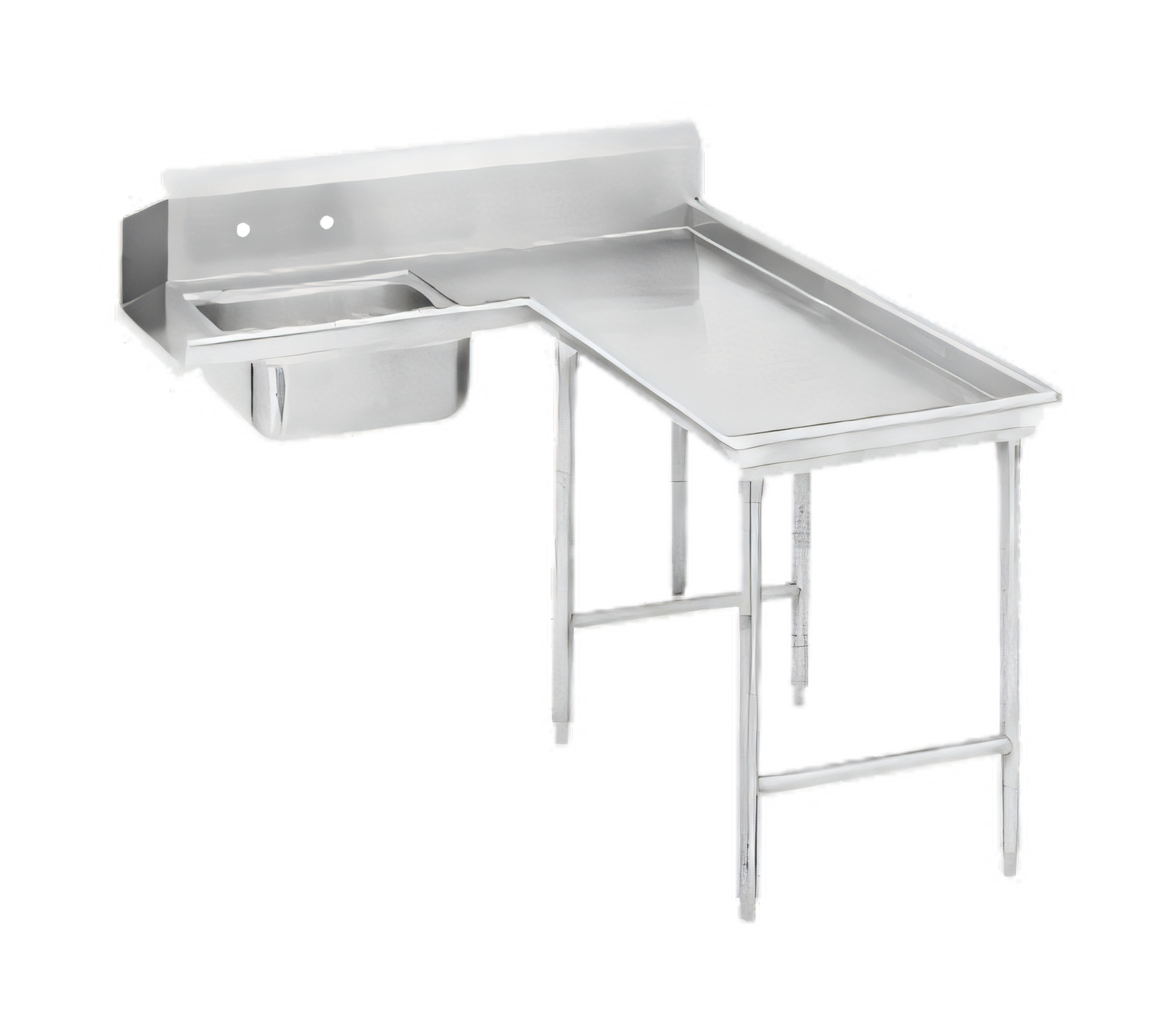

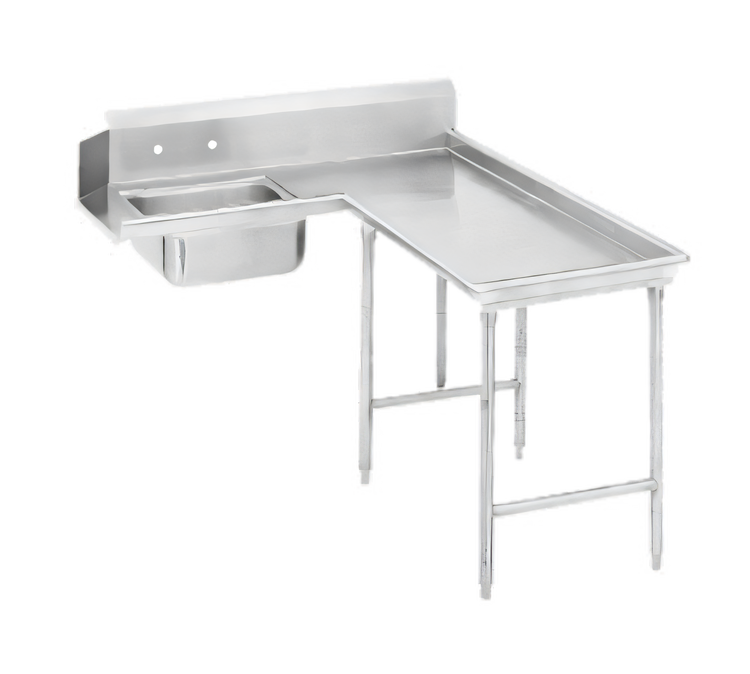

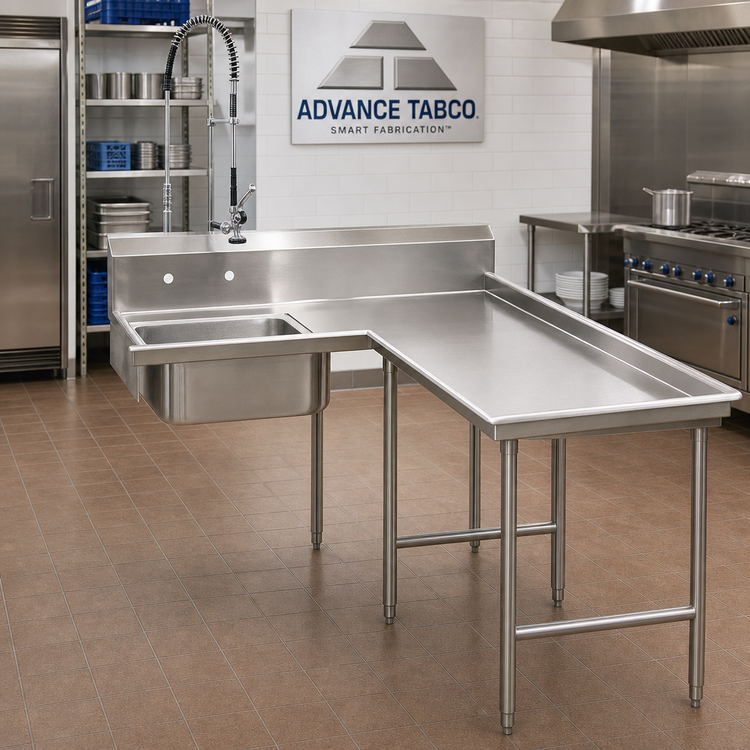

Advance Tabco 71" Island-Soil Dishtable – Right Hand
Standard Series • Model DTS-G70-72RBuilt for busy commercial dishrooms, this 6 ft L-shaped soil table positions to the operator’s right-hand side, creating an efficient, ergonomic landing zone for soiled wares before they enter the dish machine. Heavy-duty 16 gauge 304 stainless steel throughout, welded cross-rails, and an oversize 10 ½" backsplash mean years of worry-free service in the toughest environments.
Key Features
- 16 ga 304 stainless steel top with hygienic satin finish
- 20" × 20" × 5" pre-rinse sink bowl with 1 ½" IPS basket drain (included)
- 10 ½" extra-large backsplash with 2" return & tile edge for easy wall sealing
- 1 5/8" Ø 16 ga 304 stainless legs with welded cross-rails & adjustable SS bullet feet
- Factory-punched 8" O.C. faucet holes in backsplash (faucet not included)
- All TIG-welded construction; welds ground & polished to match adjoining surfaces
- NSF listed and ready for seamless integration with most door-type & conveyor dish machines
Specifications
| Series / Grade | Standard – 16 ga 304 stainless |
|---|---|
| Model No. | DTS-G70-72R (Right hand) |
| Overall Length (Nominal “L”) | 71" – 6 ft |

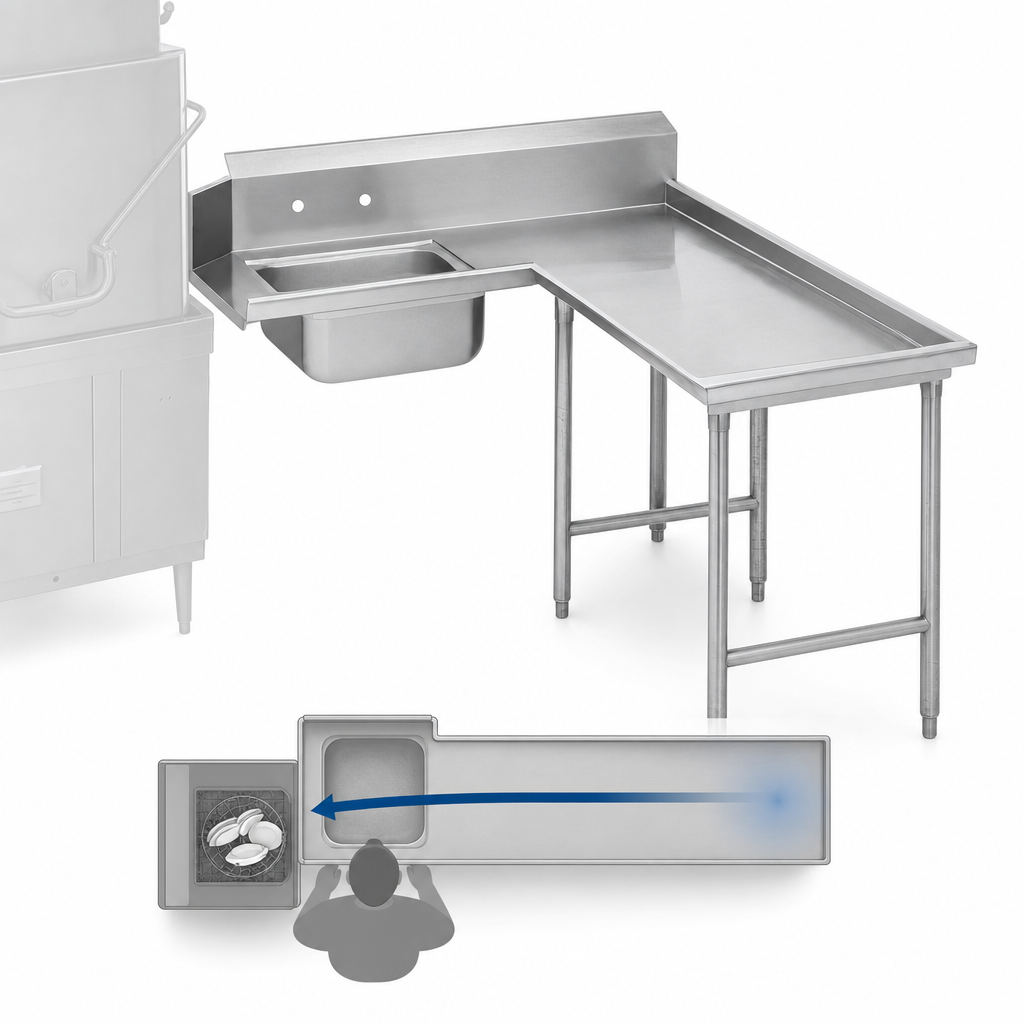

| Dish Machine Side | Right of operator (island / L-shape) |
| Backsplash Height | 10 ½" with 2" return & tile edge |
| Work Height | 34" (to work surface) • 37" (to top of rolled rim) |
| Sink Bowl | 20" × 20" × 5" deep, 1 ½" IPS basket drain |
| Legs & Bracing | 1 5/8" Ø 16 ga 304 SS legs, welded cross-bracing, SS adjustable bullet feet |
| Faucet Mount | (2) 1" dia. holes on 8" centers in backsplash |
| Shipping Weight | Approx. 215 lb |
| NSF Listed | Yes |
What’s Included
- 71" island soil dishtable (right configuration)
- 20" × 20" pre-rinse sink bowl welded in place
- 1 ½" basket-type waste drain assembly
- Leg set with welded cross-rails & stainless bullet feet
Popular Accessories (Sold Separately)
- Deck-mount pre-rinse faucet
- Stainless undershelf or wall shelf for extra storage
- Custom Smart Fabrication™ modifications for unique dish-machine models
Need a left-hand or 14 ga heavy-duty version? Contact us for quick quotes and lead-times.
