Description

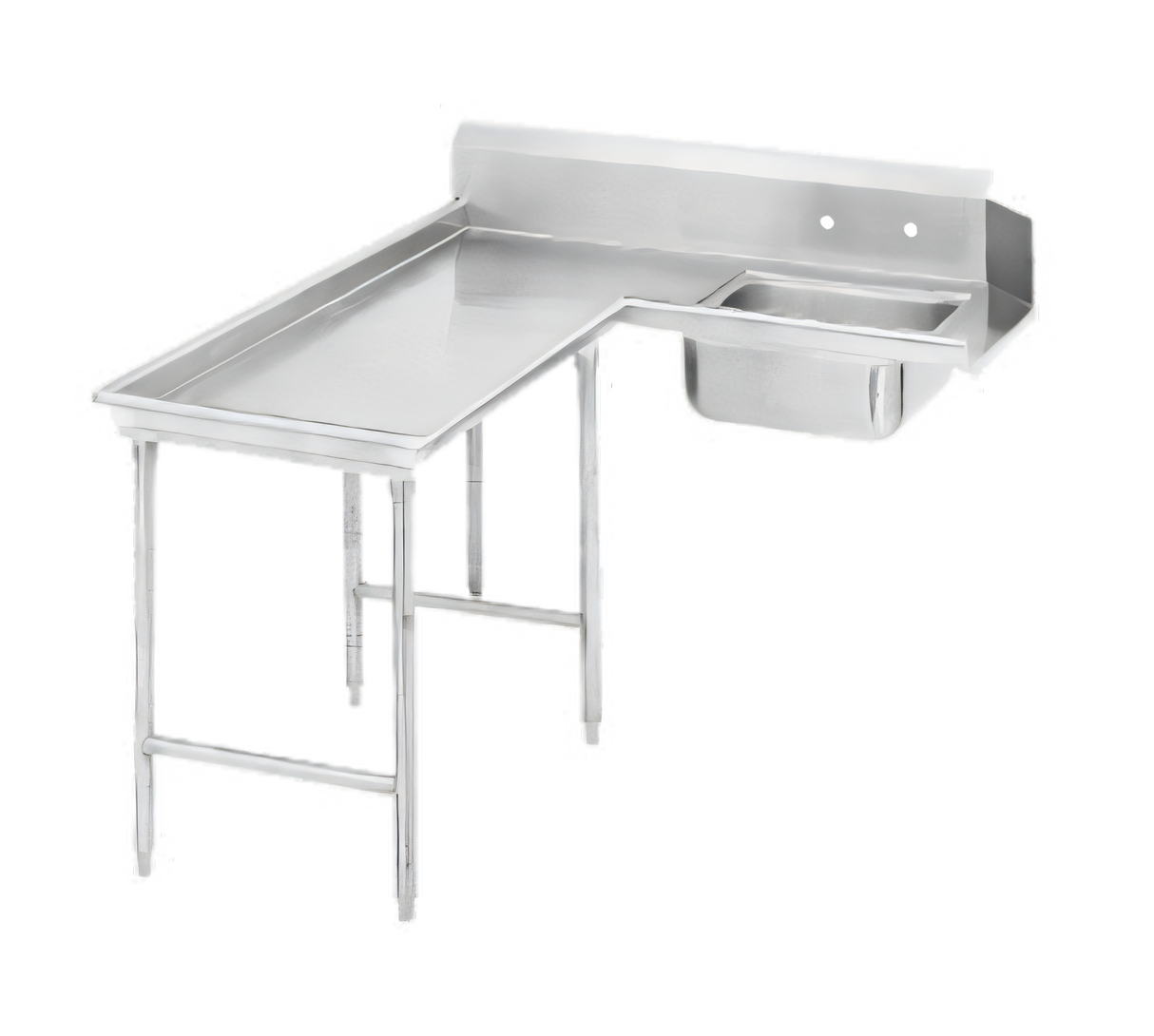

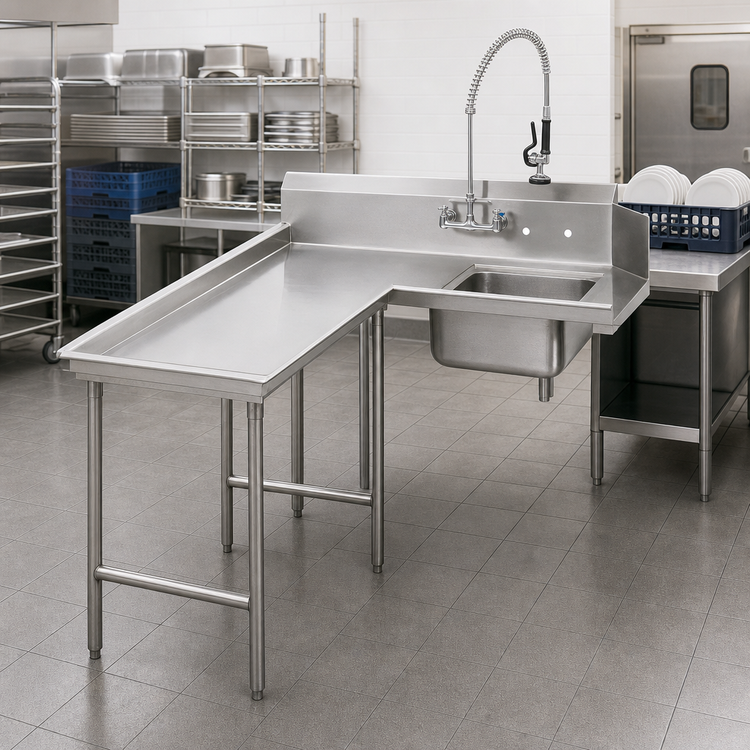

Advance Tabco Island Soil Dishtable – 59" L-Shaped, Left Side

Model DTS-G70-60L • 16 ga 304 Stainless Steel Top & Legs • Integrated Pre-Rinse Sink

Built for busy dish rooms, this heavy-duty island soil dishtable sits to the left of your dish machine operator, giving staff a spacious, sanitary staging area for soiled wares before they enter the washer. 16 gauge 304 stainless steel throughout, welded crossrails, and an extra-tall backsplash guarantee years of corrosion-free performance in even the toughest commercial kitchens.

Key Features

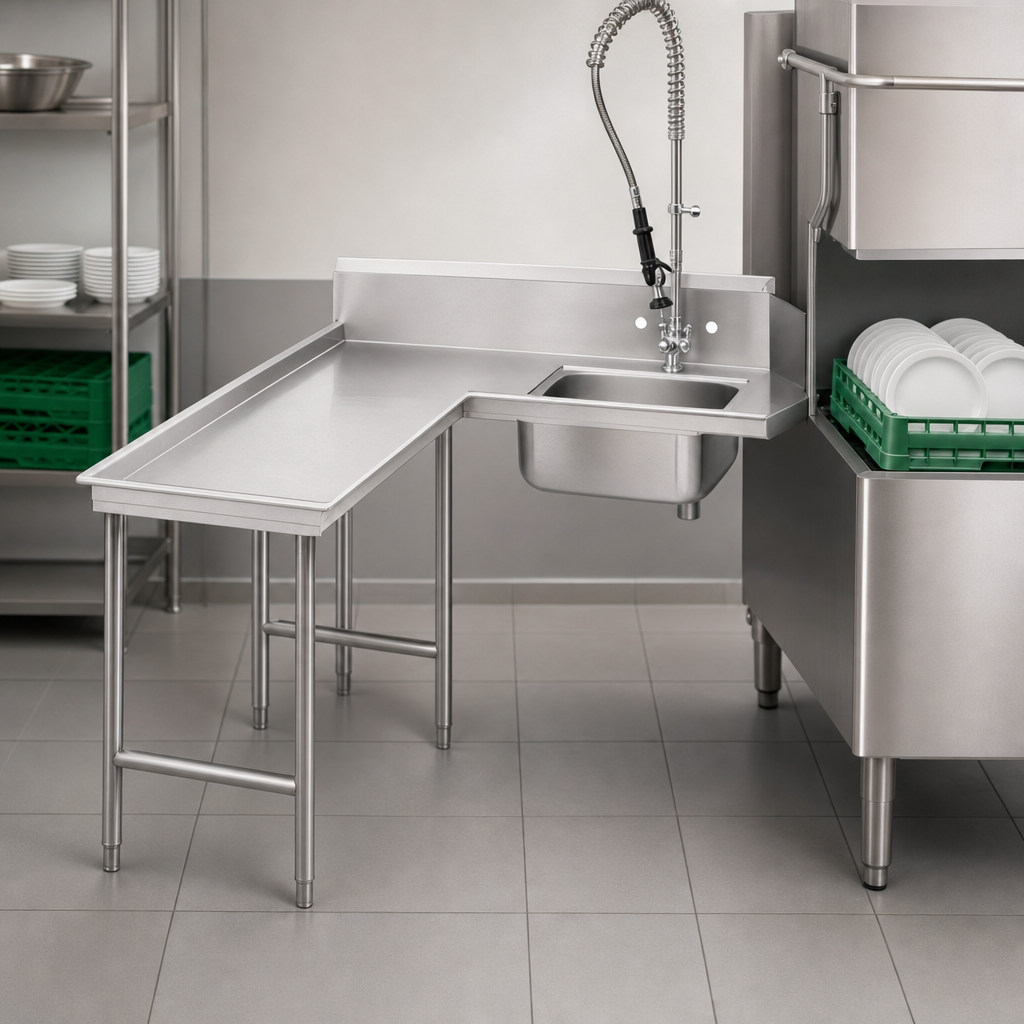

  • Island, L-shape design mounts directly to the left side of most door-type or conveyor dish machines.
  • 16 ga 304 stainless steel top resists rust, chemicals, and punishing daily use.
  • 1 5/8" Ø 304 stainless legs with fully welded crossbracing for rock-solid stability.
  • Integrated pre-rinse sink (20" × 20" × 5") speeds scraping and soaking; 1 1/2" IPS basket drain included.
  • 10 1/2" high backsplash with 2" return and tile edge contains splashes and mounts flush to wall surfaces.
  • Pre-punched 8" O.C. faucet holes—simply add the pre-rinse faucet of your choice (sold separately).
  • All TIG-welded construction; exposed welds are blended to a smooth, easy-clean satin finish.
  • Adjustable stainless bullet feet make it easy to level the table on uneven floors.
  • NSF listed for food-service sanitation.
Specifications
Orientation Left of dish machine operator (island / L-shaped)
Nominal length (each run) 59" (5 ft)
Top material & thickness 16 gauge 304 series stainless steel
Legs 1 5/8" Ø, 16 ga 304 stainless steel with welded crossrails
Backsplash 10 1/2" H with 2" return & tile edge
Sink bowl 20" × 20" × 5" deep, 1 1/2" IPS basket drain included
Faucet holes (2) holes on 8" centers (faucet not included)
Working height 34" deck height; 44 1/2" to top of backsplash
Shipping weight Approx. 190 lbs
Certifications NSF

Looking for a right-hand layout or need extra length? Ask about Advance Tabco’s Smart Fabrication™ for custom solutions.

Dish machine compatibility: Clearance requirements vary by manufacturer. Consult the Advance Tabco Dish Machine Compatibility Chart or contact our team before ordering to ensure a perfect fit.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

210.0lbs

Direction

left to right

Width (machine - corner) OA

61" - 72"

Width (end - corner) OA

49" - 60"

Splash Height

10"H splash

Leg Type

stainless steel legs

Stainless Gauge

16 gauge

Stainless Series

300 series

Shape

island

Specifications

Island-Soil Dishtable, L-shaped, attaches to left of dish machine operator, 10-1/2"H backsplash one side, with pre-rinse sink, stainless steel legs, with crossrails, 59" long, 16/304 stainless steel
