Advance Tabco DTS-G70-48R Compartment Sinks
Description

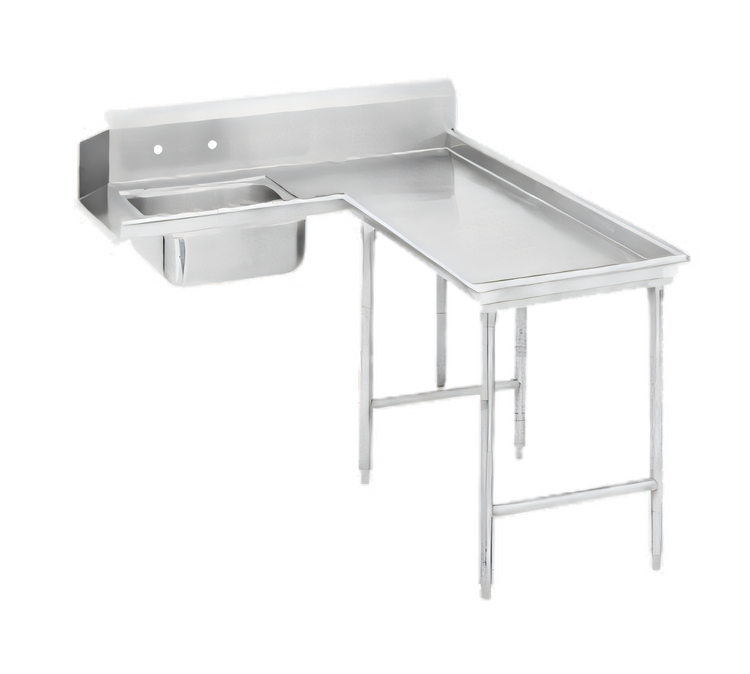

Advance Tabco Island Soil Dishtable – 47" L-Shape (Right Side)
Model DTS-G70-48R | 16 ga. 304 Stainless SteelBuilt to keep your dishroom moving, this Advance Tabco island soil dishtable delivers the rugged durability of 16-gauge 304 stainless steel in a space-saving 47" footprint. The L-shaped design mounts to the right of the dish-machine operator, providing a dedicated landing area, pre-rinse sink and an oversize backsplash that contain mess and speed clean-up.
Key Features
- 16 ga. 304 stainless steel top resists corrosion and daily wear.

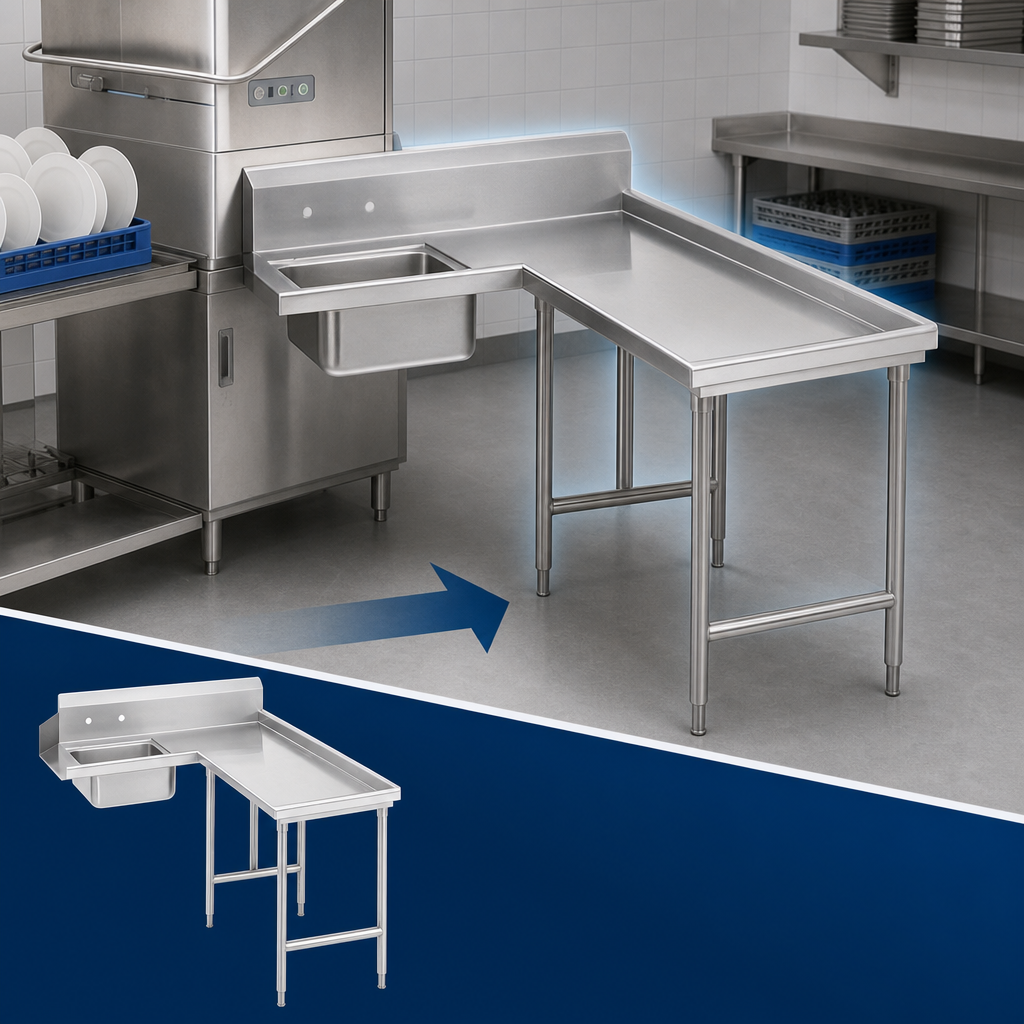

- L-shaped island configuration attaches to the right side of virtually any compatible door-type dish machine.
- Extra-large 10-1/2" backsplash with 2" return and tile edge for fast, sanitary wall installation.
- Integrated 20" × 20" × 5" pre-rinse sink bowl speeds food soil removal before ware enters the dish machine.
- 1-1/2" IPS basket-type waste drain included; keeps solids out of your plumbing.
- (2) faucet holes punched on 8" centers—ready for your favorite pre-rinse faucet (sold separately).
- 1-5/8" Ø stainless steel legs with welded cross rails and adjustable bullet feet for rock-solid stability.
- All TIG-welded construction with blended seams and a satin finish meets NSF standards.
Technical Specifications
| Overall length (nominal) | 47" (4 ft) |
|---|---|
| Configuration | Island soil, right-hand L-shape |
| Top material / gauge | 16 ga. 304 stainless steel |
| Backsplash | 10-1/2" H with 2" return & tile edge |
| Sink bowl | 20" × 20" × 5" deep, 304 SS |
| Drain | 1-1/2" IPS basket-type (included) |
| Faucet holes | (2) on 8" centers — faucet not included |
| Legs / bracing | 1-5/8" Ø 16 ga. 304 SS legs with welded cross rails |
| Feet | Stainless steel adjustable bullet feet (±1") |
| Approx. weight | 165 lb |
| Certifications | NSF |
Dish machine compatibility can vary. Please consult the Advance Tabco Dish Machine Compatibility Chart or contact us to confirm fit for your specific washer model.
