Advance Tabco DTS-G70-120R Compartment Sinks
Description

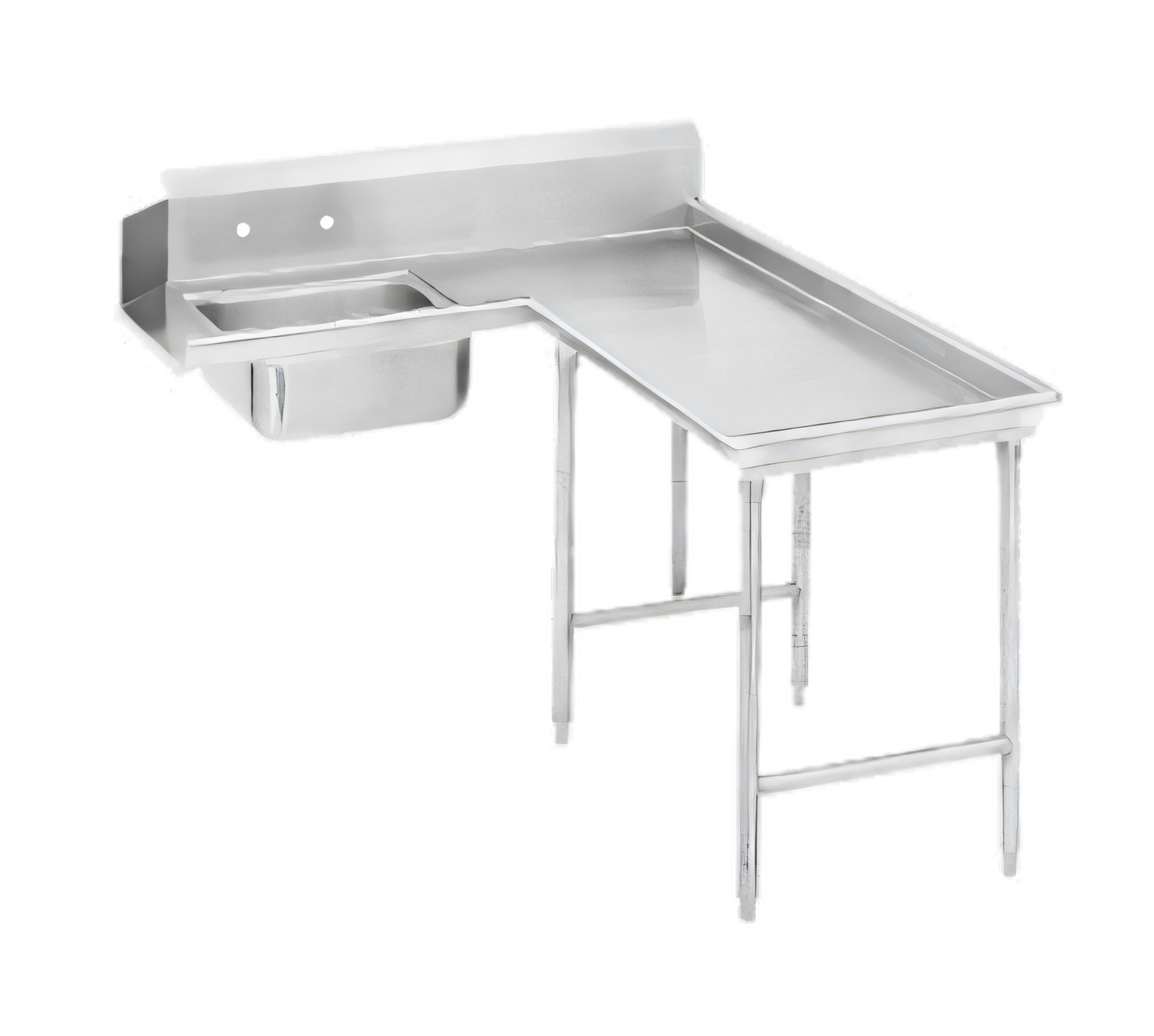

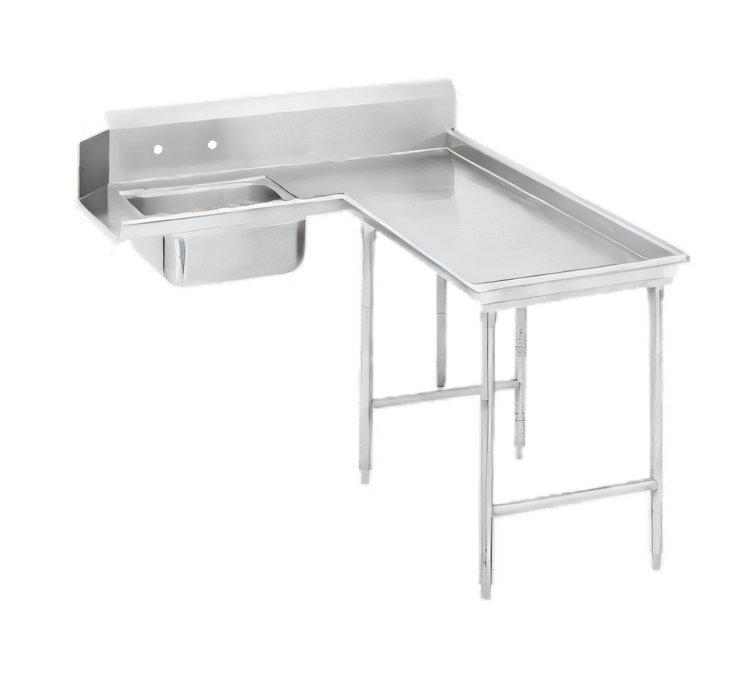

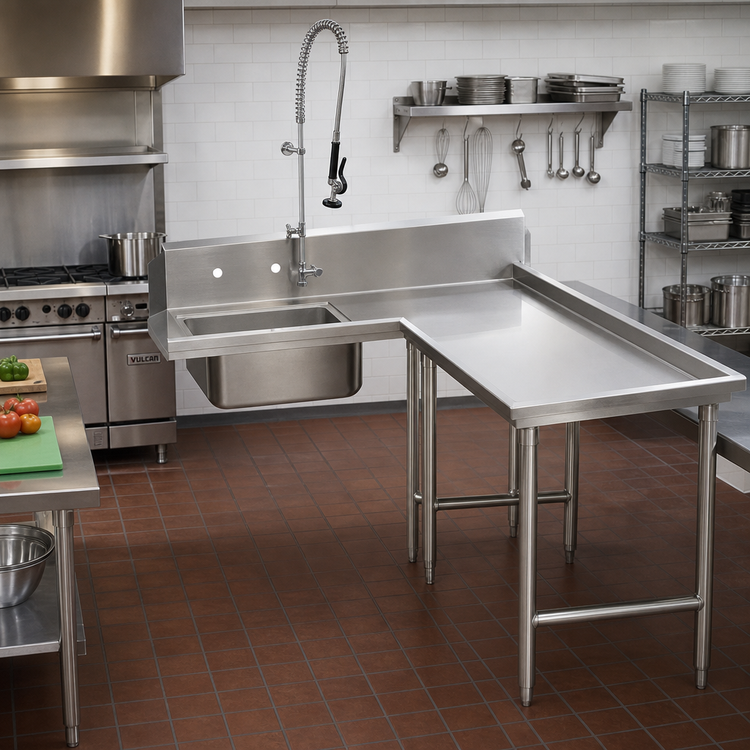

Advance Tabco Island Soil Dishtable – 10' Right (DTS-G70-120R)
119" L-shaped soil table • 16 ga / 304 SS top & legs • Pre-rinse sink includedStreamline ware-washing and keep dirty wares moving in the right direction with Advance Tabco’s premium island soil dishtable. Built from heavy-duty 16 gauge, 304 series stainless steel, this 10-foot, right-hand model delivers rock-solid durability, fast installation, and the sanitary performance today’s high-volume kitchens demand.
Highlights
- Tile-edge top drops neatly into surrounding counters for a clean, sealed fit.
- Extra-large 10-1/2" backsplash with 2" return contains splashes and protects adjacent walls.
- Welded 20" × 20" × 5" pre-rinse sink speeds soil removal before racks enter the dish machine.
- 16 ga stainless legs with welded crossrails & 1" adjustable stainless bullet feet keep the table rigid and level—even under heavy loads.
- All TIG-welded construction; welds are blended to a matching satin finish for a seamless look and easy sanitation.
- NSF listed for food-service safety and sanitation.
Rugged Construction
- Top, bowl & gussets: 16 ga / 304 SS
- Sink bowl welded to top—no crevices, no fasteners, no leaks.
- Stainless support channel reinforces the entire length of the table.
- Factory-punched 8" O.C. faucet holes in backsplash (faucet sold separately).
Technical Specifications
| Overall length | 119" (nominal 10 ft) |
|---|---|

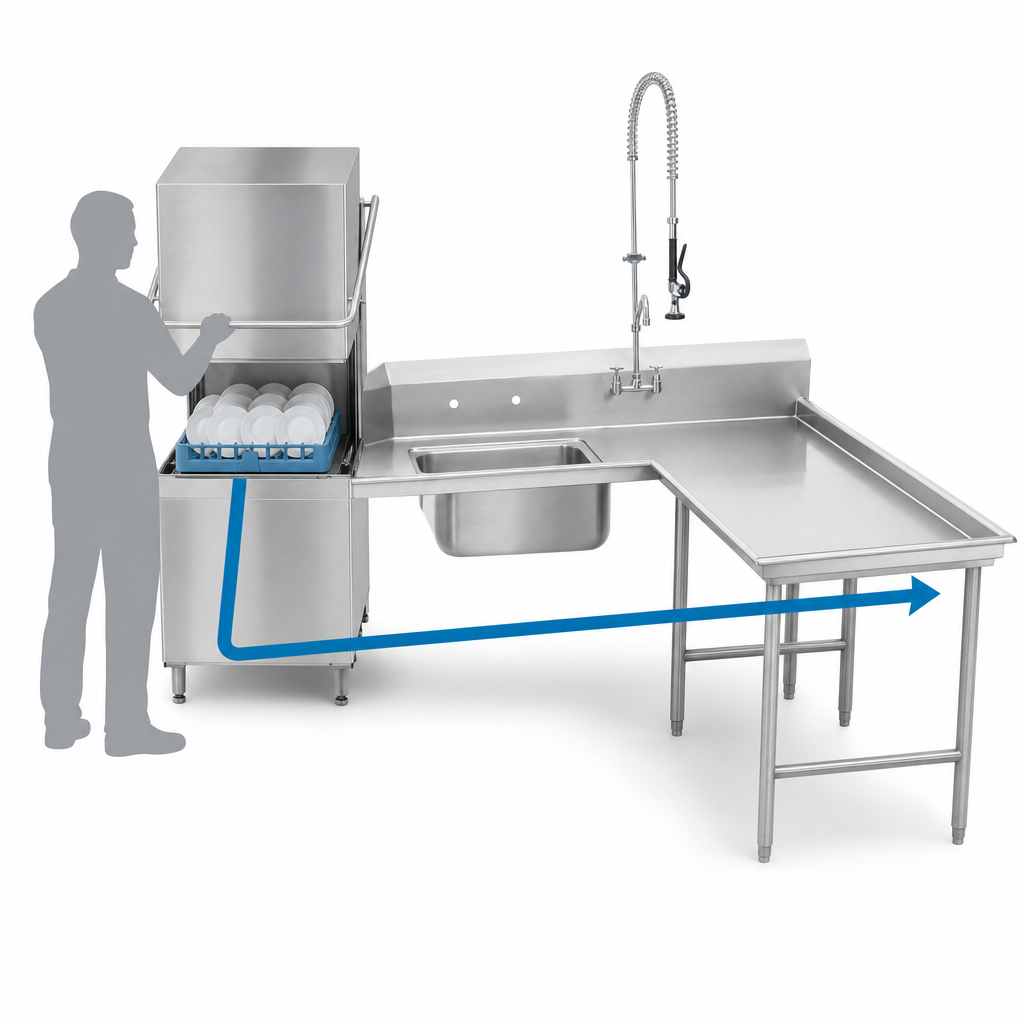

| Configuration | L-shaped island soil table – attaches to right of dish machine operator |
| Top material / gauge | 16 ga, 304 SS |
| Leg material / gauge | 16 ga, 304 SS – 1 5⁄8" Ø tubing |
| Cross-bracing | Welded stainless steel (standard) |
| Backsplash | 10-1/2" H with 2" return & tile edge |
| Sink bowl (W × L × D) | 20" × 20" × 5" |
| Drain | 1-1/2" IPS basket type (included) |
| Faucet holes | 8" centers in backsplash |
| Approx. weight | 370 lb |
| Certifications | NSF |
What’s Included
- DTS-G70-120R island soil dishtable (fully welded)
- Pre-installed 20" × 20" × 5" sink & basket drain
- 16 ga stainless legs with welded crossrails
- Adjustable stainless bullet feet
Faucet, pre-rinse assembly, and additional shelving are sold separately.
