Advance Tabco DTS-G70-120L Compartment Sinks
Description

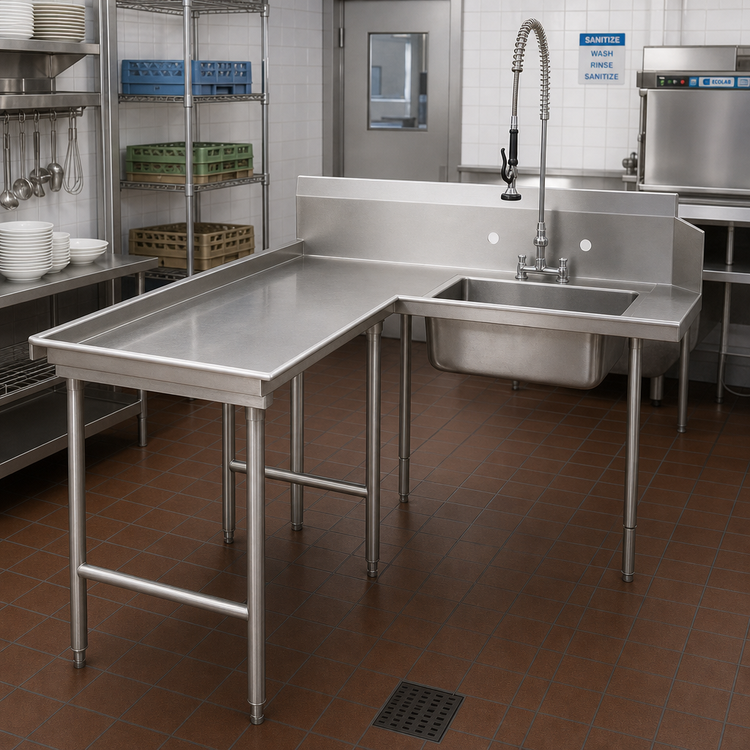

Advance Tabco 10' Island Soil Dishtable – Left
Model DTS-G70-120L | 16 ga 304 SS Top & Legs | 119" L-shape with Pre-Rinse SinkBuilt for busy ware-washing lines, this heavy-duty Advance Tabco island soil dishtable positions on the operator’s left side of the dish machine to keep soiled racks, trays, and pans moving efficiently toward the washer. A rugged 16-gauge, type-304 stainless work surface, welded cross-rails, and an oversized 10-½" backsplash make it the ideal entry table for high-volume kitchens that refuse to compromise on sanitation or strength.
Why You’ll Love It
- 119" nominal length (10 ft) with a 59" return – perfect for corner layouts.
- One-piece 16 ga 304 stainless steel top with easy-clean satin finish.
- Large 10-½" backsplash with 2" return contains splashes and meets code.
- Tile-edge design speeds installation against walls or coved bases.
- 20" × 20" × 5" pre-rinse sink bowl (1-½" IPS basket drain included).
- Faucet holes punched on 8" centers in backsplash (faucet sold separately).
- 1-⅝" Ø 16 ga 304 stainless steel legs with welded cross-bracing for rock-solid stability.
- Adjustable stainless steel bullet feet level the table on uneven floors.
- Fully TIG-welded construction; welds blended to match adjacent surfaces.
- NSF listed and made in the USA.
Technical Specs

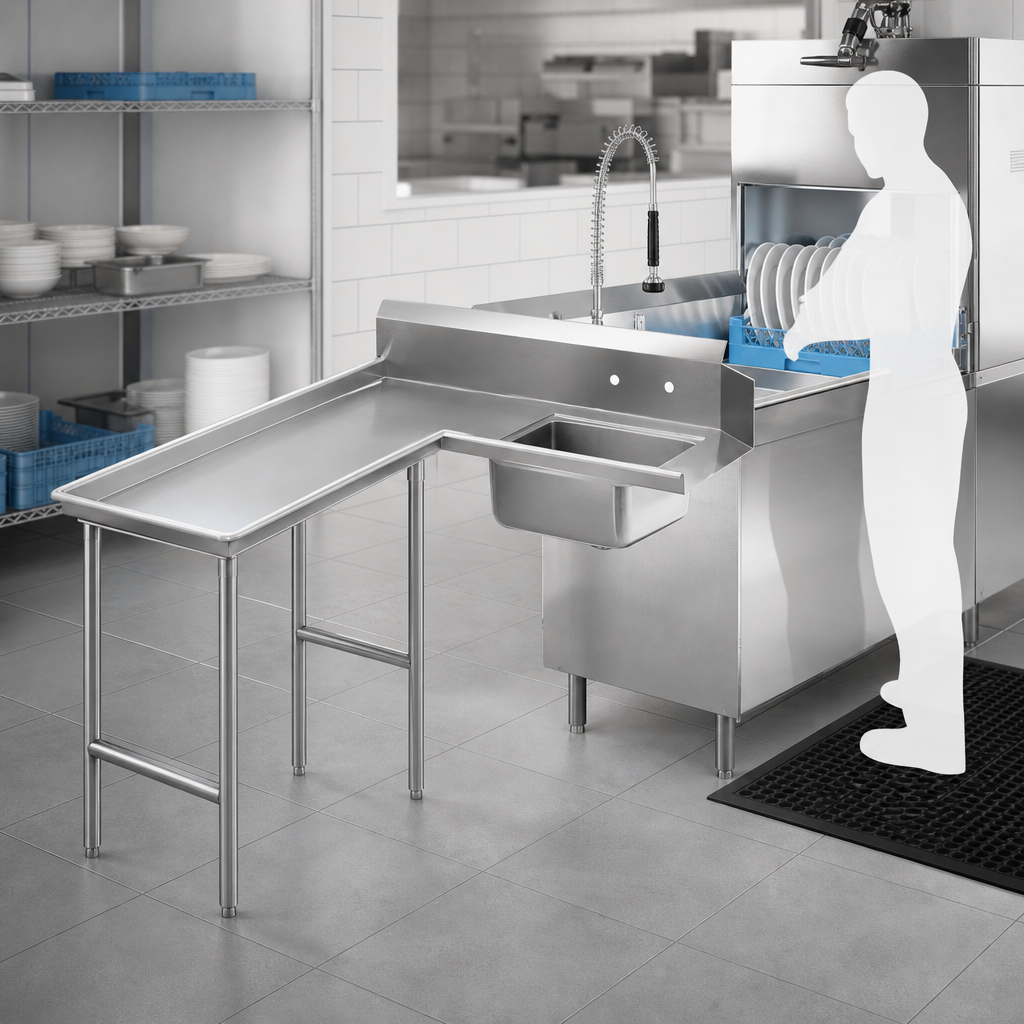

| Orientation | L-Shaped – attaches to operator’s left side of dish machine |
|---|---|
| Overall Length | 119" (10 ft nominal) |
| Return Depth | 59" |
| Front-to-Back | 29 ½" |
| Work Height | 34" (to tabletop) / 44 ½" (to top of backsplash) |
| Top Material & Gauge | 16 ga type-304 stainless steel |
| Legs | 1-⅝" Ø 16 ga type-304 stainless steel |
| Bracing | Welded stainless steel cross-rails |
| Sink Bowl | 20" × 20" × 5" deep pre-rinse sink, 1-½" IPS basket waste |
| Backsplash | 10-½" H with 2" return & tile edge |
| Faucet Holes | 2 holes on 8" centers (faucet not included) |
| Feet | Adjustable stainless steel bullet feet (±1") |
| Approx. Shipping Weight | 370 lb |
Popular Add-Ons (Sold Separately)
- 8" center wall-mount pre-rinse faucet
- Stainless steel undershelf for extra bus-rack storage
- Over-shelf for glass racks, chemicals, or trays
- Disposer, scrap basket, and other Smart Fabrication™ modifications
Need a mirror-image (right) configuration, different length, or 14 ga top? Ask our team for a custom quote—Advance Tabco builds to suit without long lead times.
