Advance Tabco DTS-G30-96R Compartment Sinks
Description

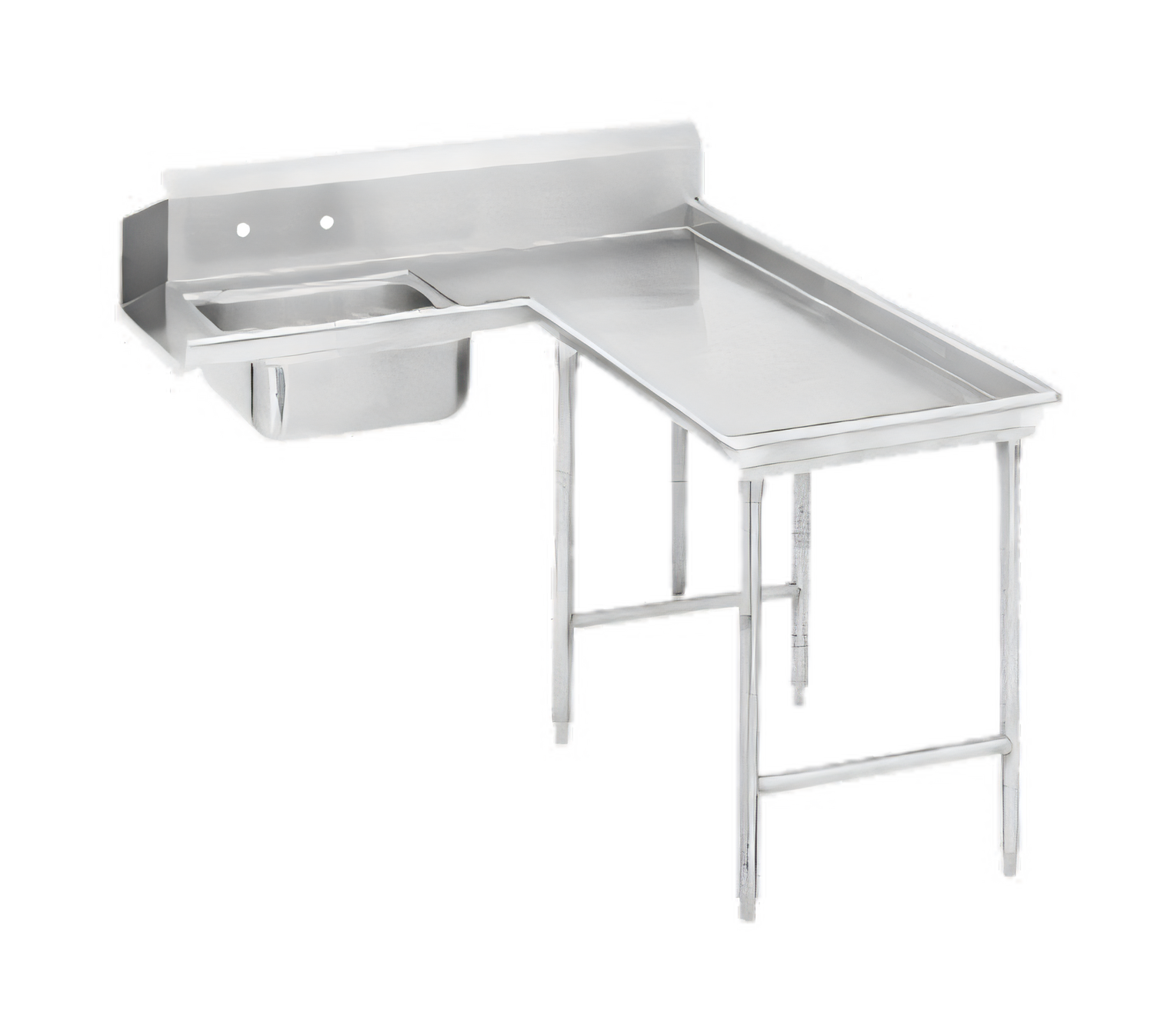

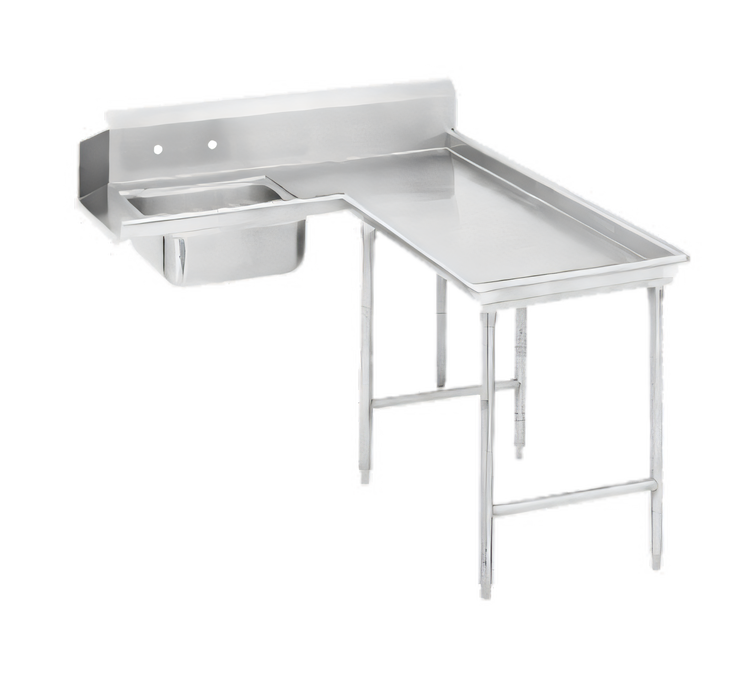

Advance Tabco Spec-Line Island Soil Dish Table – 95" Right-Hand
Model DTS-G30-96R | 14 Ga 304 Stainless Steel TopPurpose-built for high-volume warewashing environments, this L-shaped island soil dish table mounts to the right of your dish machine operator to create a seamless landing, scraping, and pre-rinse zone that maximises workflow while minimising floor space.
Why You’ll Love It
- Heavy-duty 14 ga 304 stainless steel top resists dents, chemicals, and constant abuse.
- NEW 10-1/2" tile-edge backsplash with 2" return delivers a watertight, easy-to-install seal.
- Integral 20" × 20" × 8" pre-rinse sink speeds food soil removal; 1-1/2" IPS basket drain included.
- 1-5/8" Ø 16 ga 304 stainless steel legs with welded front-to-back crossrails for rock-solid stability.
- All TIG-welded; seams are blended to a sanitary satin finish and meet NSF standards.
- Faucet holes punched on 8" centres—just add your preferred pre-rinse faucet (sold separately).

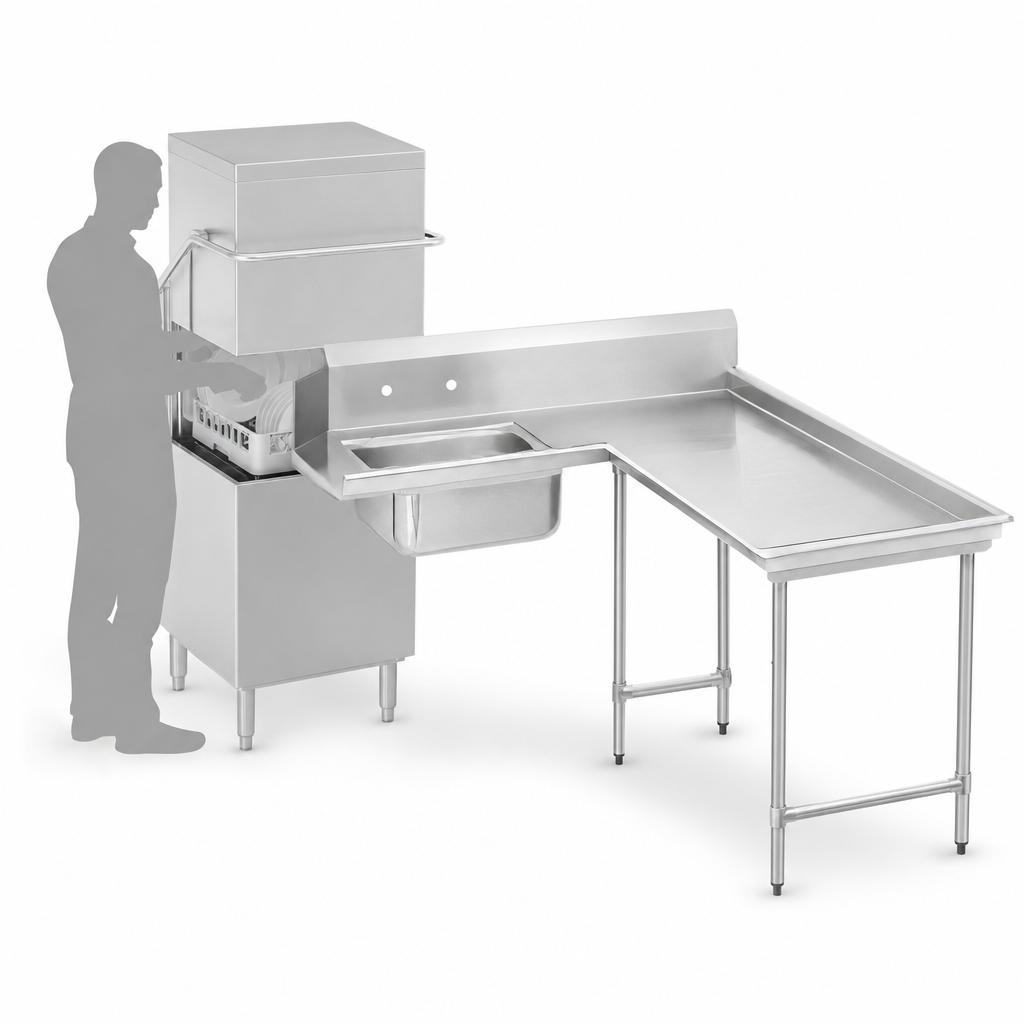

- L-shape keeps the operator stationary—no awkward corner turns—boosting throughput and safety.
Technical Specifications
| Overall length (leg “L”) | 95" (nominal 8 ft) |
|---|---|
| Orientation | Right-hand – attaches to operator’s right side of dish machine |
| Top material / gauge | 304 stainless steel, 14 ga |
| Legs & bracing | 1-5/8" Ø, 16 ga 304 stainless with welded crossrails & stainless adjustable bullet feet |
| Sink bowl size | 20" W × 20" D × 8" H |
| Backsplash height | 10-1/2" with 2" return & tile edge |
| Drain connection | 1-1/2" IPS basket drain (included) |
| Faucet hole spacing | 8" on centre |
| Included accessories | Pre-rinse basket; slide bar ships when disposer adapter K-461 or K-461A is ordered |
| NSF listed | Yes |
Perfect For
- Restaurants, cafeterias & hotels
- Hospitals & long-term care facilities
- Convention centres & banquet halls
- Any high-volume foodservice operation needing a durable, space-saving soil table
Faucet, disposer adapter, and additional accessories are sold separately. Slide bar is provided only when disposer adapter models K-461 or K-461A are specified.
