Advance Tabco DTS-G30-84R Compartment Sinks
Description

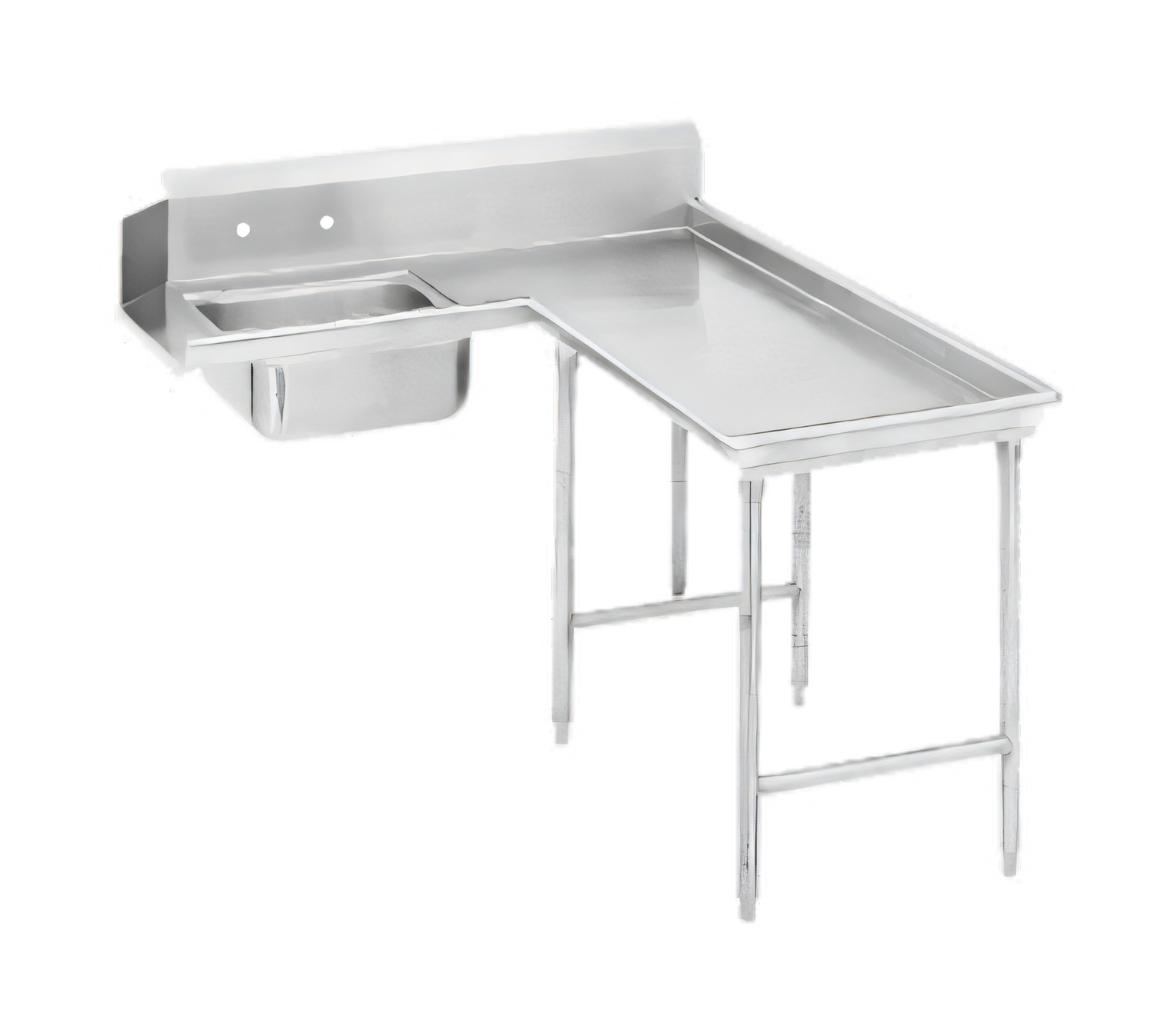

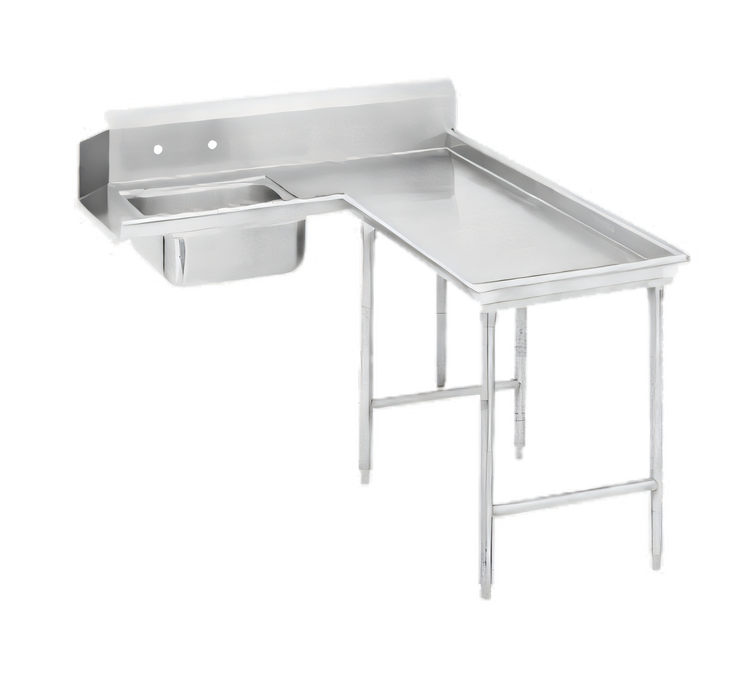

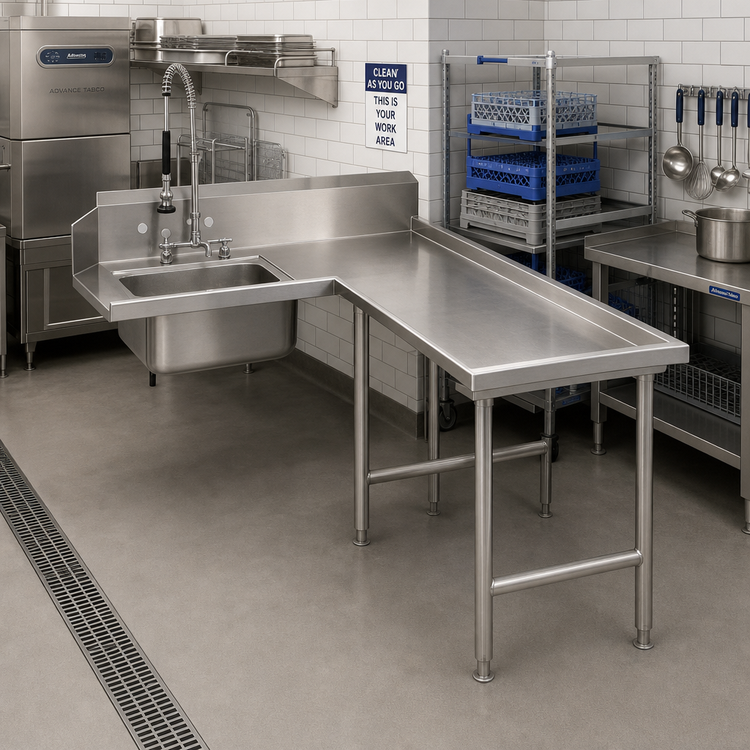

Advance Tabco 83" Island Soil Dishtable – Right Side
Spec-Line • Model DTS-G30-84R • 14 ga 304 Stainless SteelBuild a faster, cleaner dish room with the rugged Advance Tabco Spec-Line island soil dishtable. This 83 inch, L-shaped unit mounts to the operator’s right, giving staff a generous landing area plus an 8 inch-deep pre-rinse sink that speeds food soil removal before racks enter the machine.
Key Benefits
- Island configuration keeps both sides of the dish machine clear for continuous loading & unloading.
- Heavy-duty 14 ga 304 stainless steel top resists dents, chemicals & high-temperature warewashing abuse.
- 10-1/2" extra-high backsplash with 2" return and tile edge protects walls and simplifies sealing.
- 20" × 20" × 8" pre-rinse sink punched for an 8" O.C. faucet (faucet sold separately).
- Stainless steel pre-rinse basket included; slide bar ships automatically when disposer adapter K-461 or K-461A is specified.
- 1-5/8" Ø 16 ga 304 stainless steel legs with welded front-to-back crossrails & adjustable stainless bullet feet.
- All TIG-welded construction; welds blended to a satin finish for a seamless, NSF-listed appearance.
- Smart Fabrication™ ready—consult the compatibility chart for exact clearance requirements.
Typical Uses
Ideal for restaurants, hospitality, schools, healthcare and any high-volume kitchen that needs a code-compliant soil station built to last shift after shift.
Technical Specifications

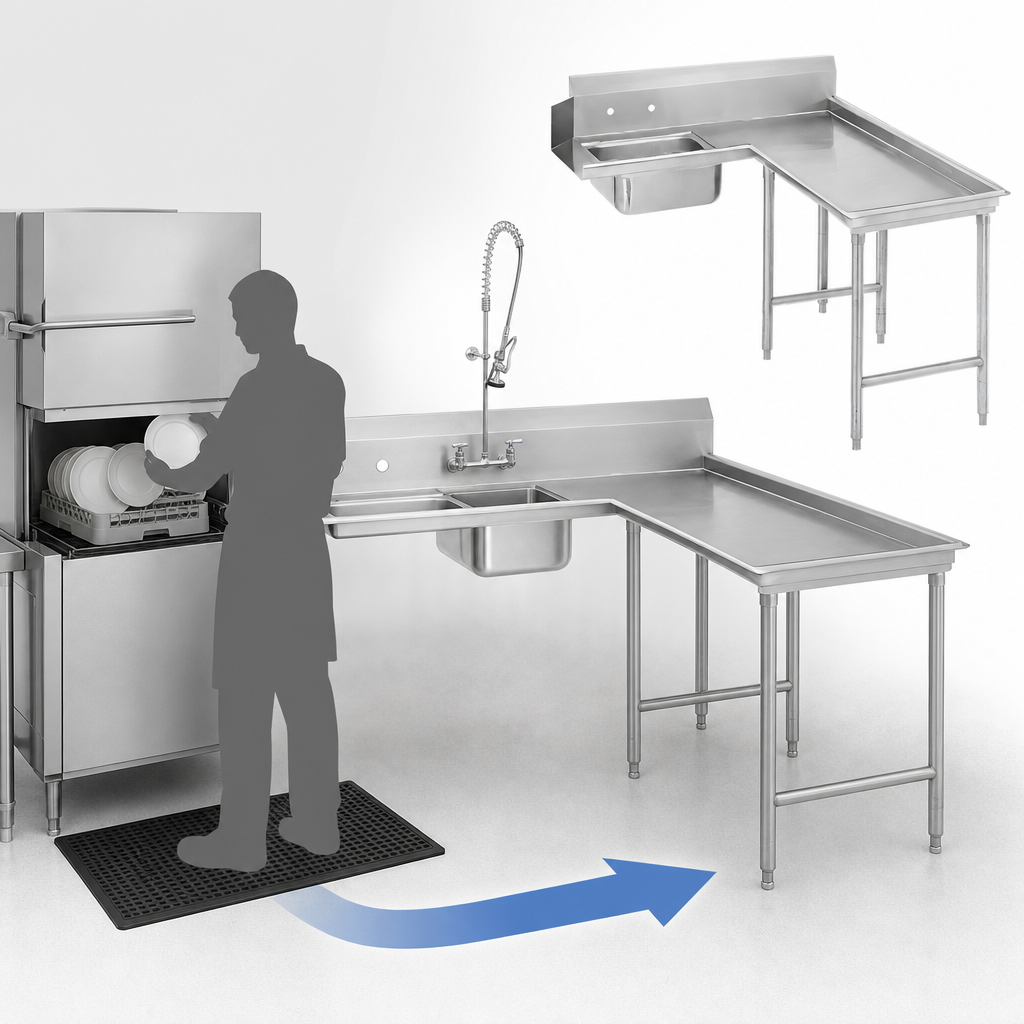

| Orientation | Right side (attaches to dish machine operator’s right) |
|---|---|
| Overall Length | 83" (7 ft nominal) |
| Configuration | L-shaped island soil dishtable |
| Top Material / Gauge | 304 stainless steel, 14 ga |
| Legs & Bracing | 1-5/8" Ø 304 stainless steel, 16 ga with welded crossrails |
| Backsplash | 10-1/2" H with 2" return & tile edge |
| Sink Bowl Size | 20" W × 20" L × 8" D |
| Drain | 1-1/2" IPS basket type (included) |
| Faucet Holes | 8" centers in backsplash (faucet not included) |
| Working Height | 34" to tabletop (excl. backsplash) |
| Approx. Shipping Weight | 225 lb |
| Certifications | NSF |
Looking for a different size, left-hand layout, or custom openings? Ask us about Advance Tabco Smart Fabrication™ options.
