Advance Tabco DTS-G30-72L Compartment Sinks
Description

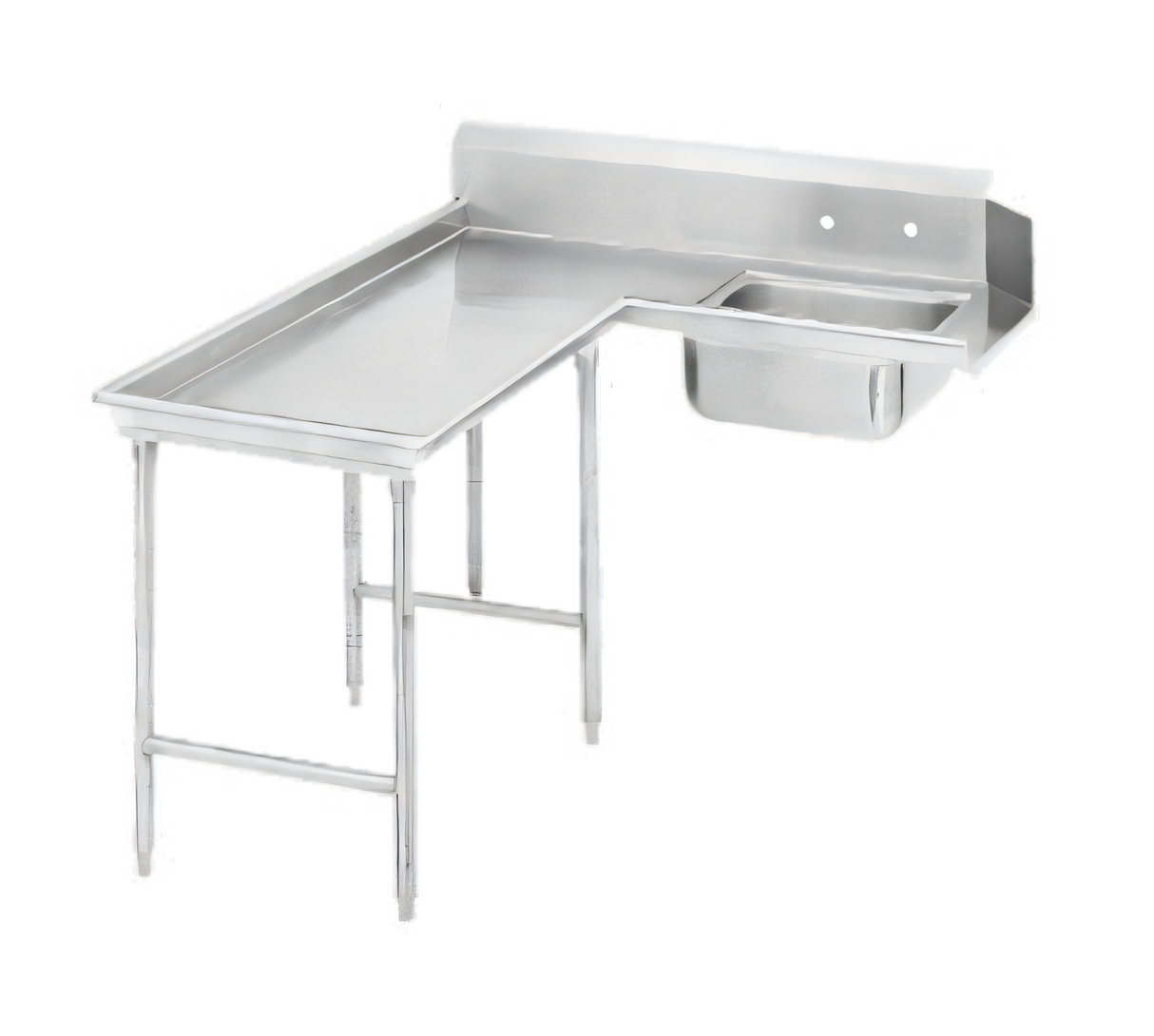

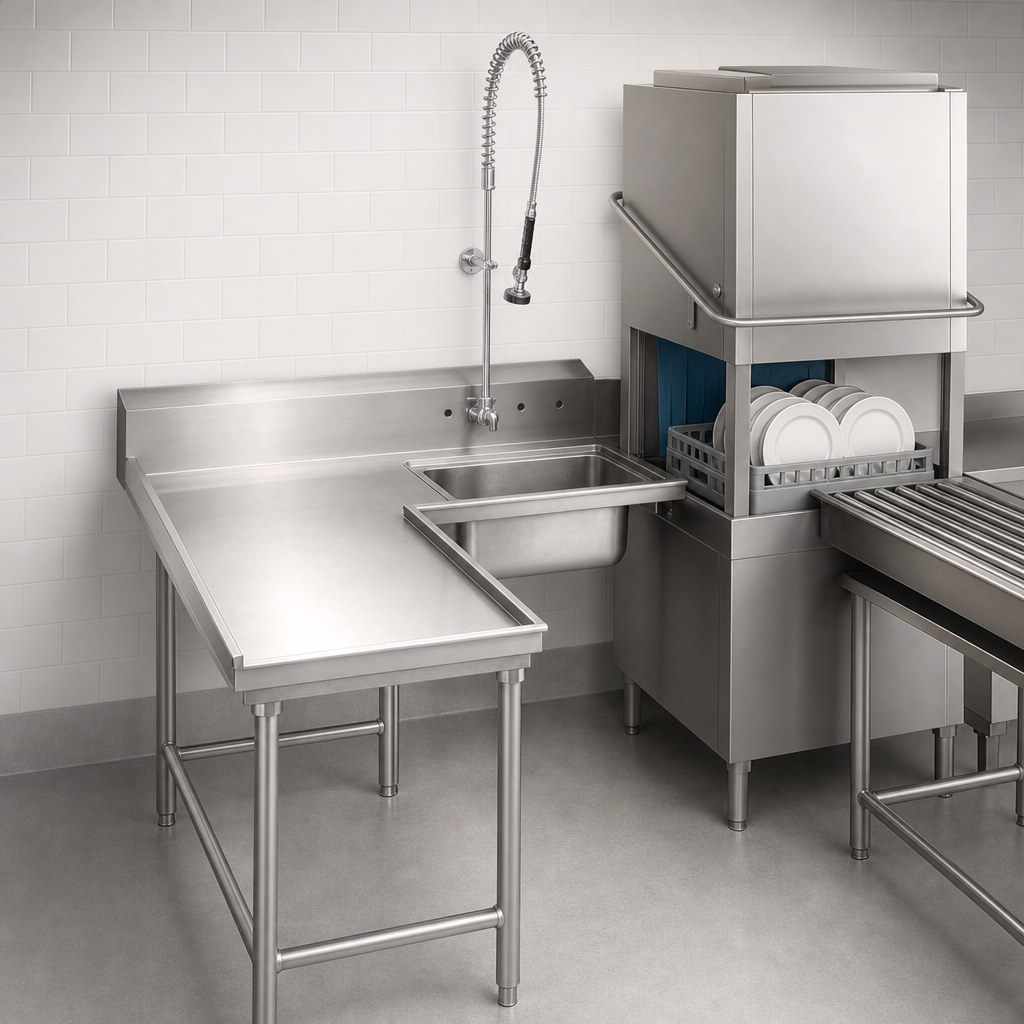

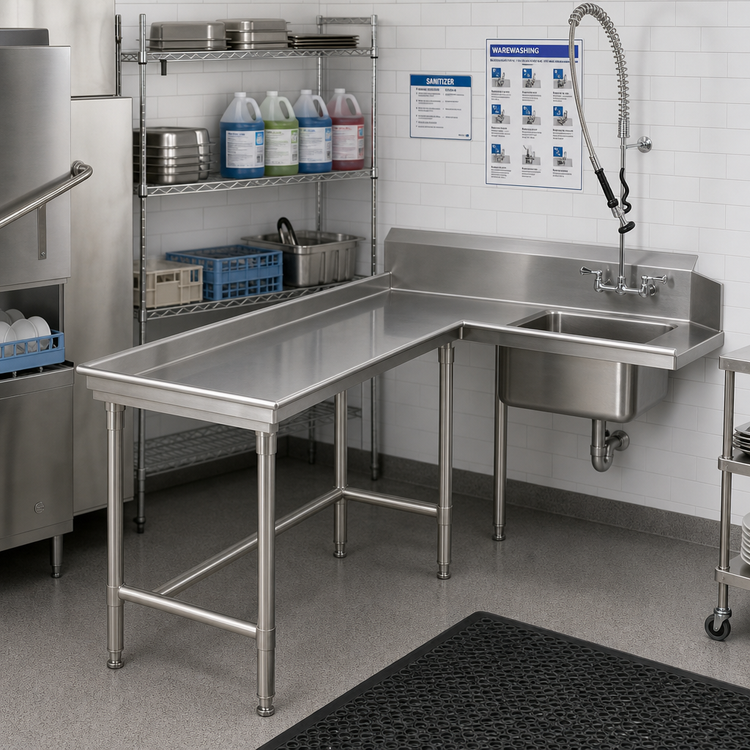

Advance Tabco DTS-G30-72L Island Soil Dishtable – 71" (Left)
Spec-Line • 14 ga 304 Stainless Steel Top • L-Shaped Soil SectionBuilt for the busiest dish rooms, this heavy-duty island soil dishtable attaches to the left side of your dish-machine operator, creating an efficient, ergonomic scrape-n-rinse zone that keeps dirty wares flowing in the right direction. From its rugged 14-gauge 304 stainless work surface to the 10-½" extra-high tile-edge backsplash, every detail is engineered for decades of reliable service.
Key features
- 71" (nominal 6 ft) left-hand L-shape – perfect for island layouts or parallel clean tables.
- 20" × 20" × 8" deep pre-rinse sink bowl welded into soil section (SPEC-LINE depth).
- 14 ga 304 stainless steel top TIG-welded and blended to a satin finish.
- 16 ga 304 stainless steel legs with welded front-to-back crossrails for unbeatable rigidity.
- 10-½" backsplash with 2" return & tile-edge design for quick, watertight wall installation.
- Faucet holes punched on 8" centers (faucet sold separately).
- 1-½" IPS basket-type waste drain and pre-rinse basket included.
- Stainless steel bullet feet provide 1" of height adjustment.
- NSF Listed & fabricated in the USA.
Built to outlast your busiest shifts
Advance Tabco’s SPEC-LINE series is the top tier of their dishtable offering. The 14-gauge work surface shrugs off dropped sheet pans and bus tubs, while sanitary TIG welds and all-stainless gussets eliminate crevices that can harbor bacteria. Every welded joint is ground and polished to match the surrounding finish, delivering a seamless, easy-to-wipe-down surface.
Technical specifications
| Model | DTS-G30-72L (Island Soil, Left) |
|---|---|
| Overall length | 71" (nominal 6 ft) |
| Work height | 34" to work surface |
| Backsplash height | 10-½" (44-½" overall height) |
| Sink bowl size | 20" × 20" × 8" D |
| Top material / gauge | 304 stainless steel, 14 ga |
| Legs / bracing | 304 stainless steel, 16 ga | welded crossrails front-to-back |
| Leg diameter | 1-5/8" O.D. with stainless bullet feet (1" adjustment) |
| Drain connection | 1-½" IPS basket drain (included) |
| Approx. weight | 215 lb |
| Included accessories | Pre-rinse basket, 1-½" basket drain Slide bar ships only when disposer adapter K-461/K-461A is ordered |
Faucet, disposer adapter, and additional accessories sold separately. Custom lengths and right-hand configurations are available through Smart Fabrication™.
