Advance Tabco  |  SKU: DTS-G30-144R  |  UPC: 747545121103

Advance Tabco DTS-G30-144R Compartment Sinks

$4,958.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

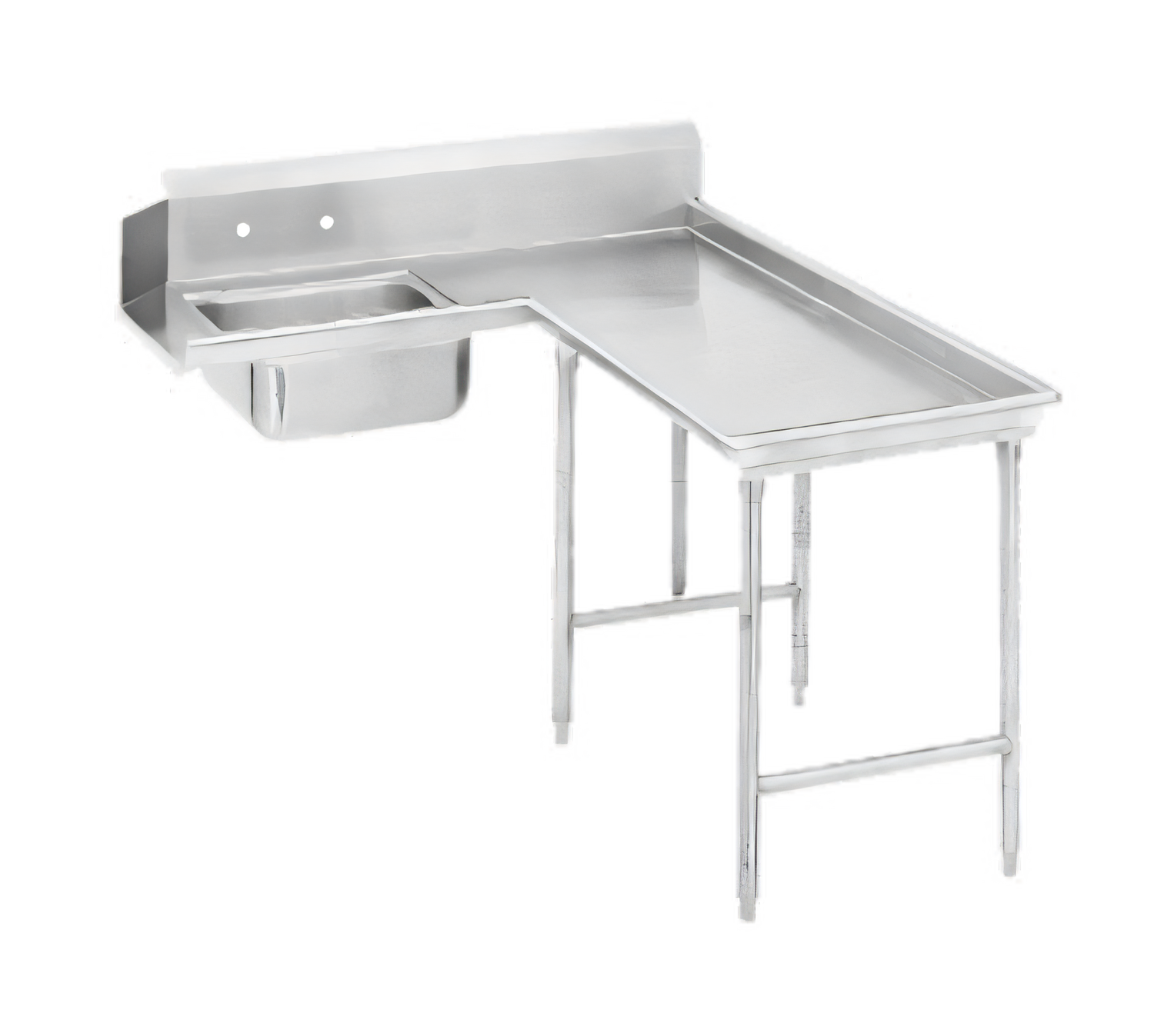

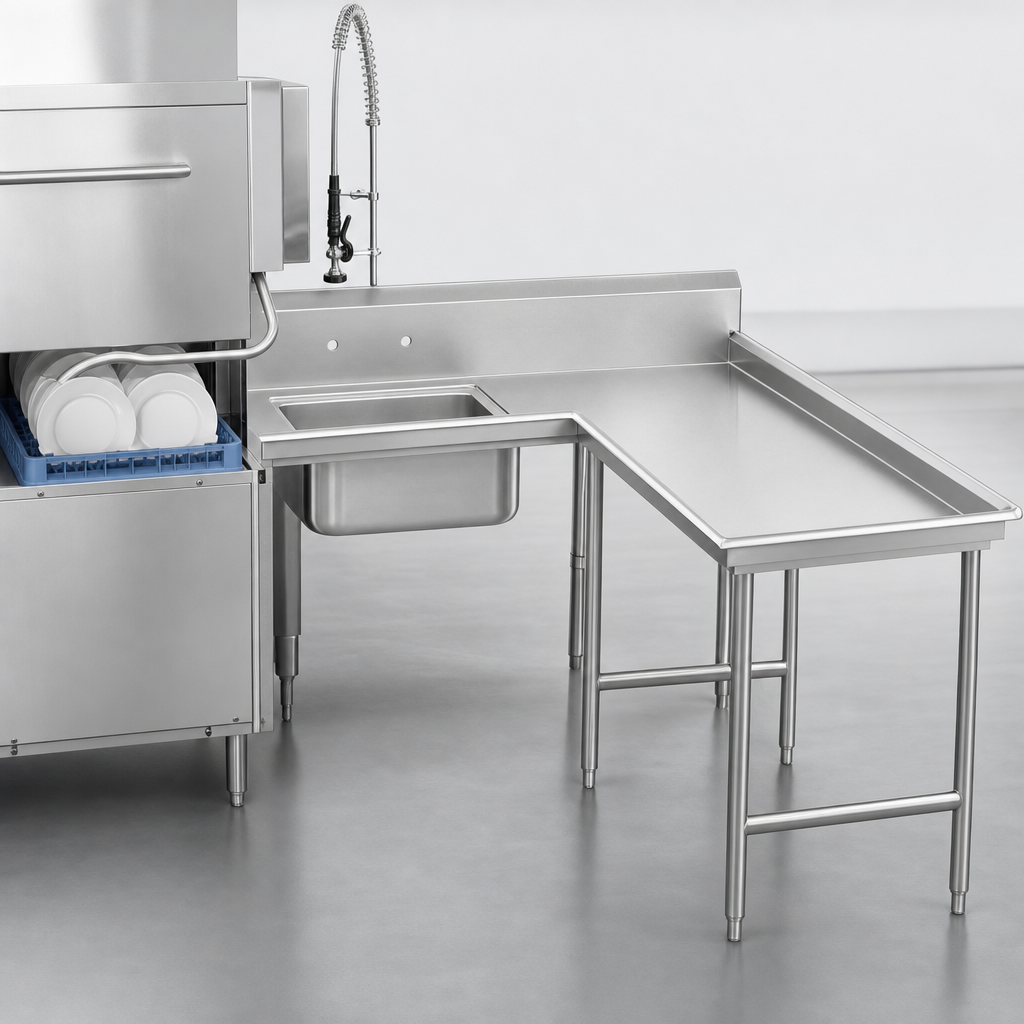

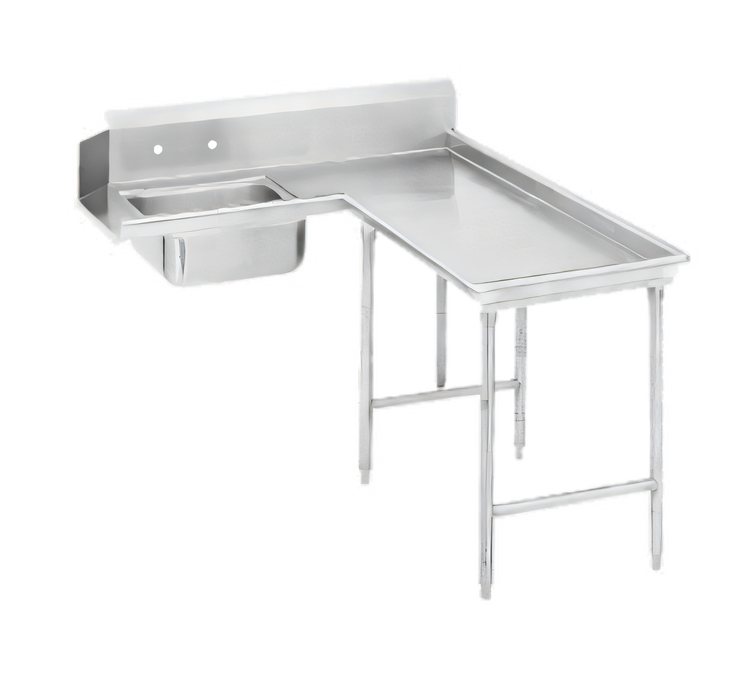

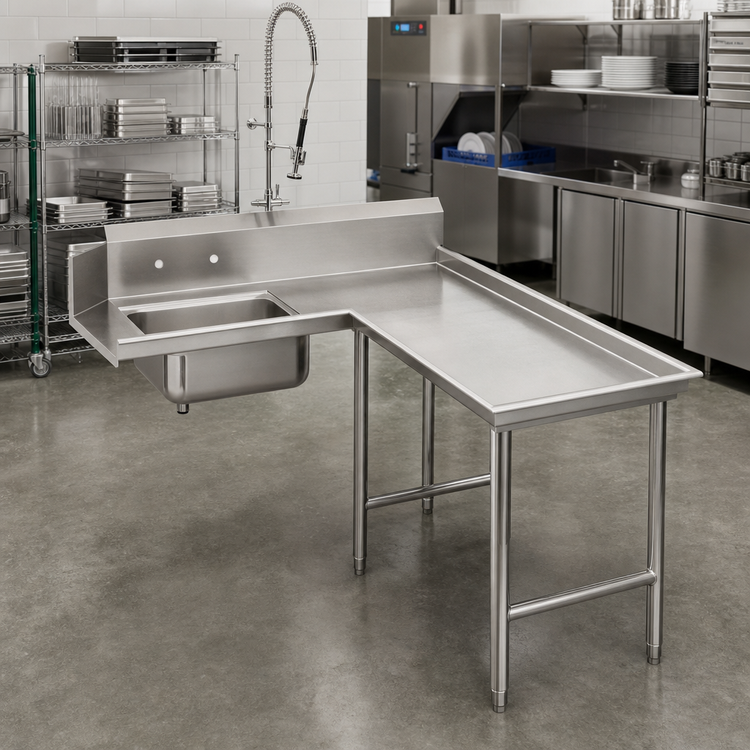

Advance Tabco Island Soil Dishtable – 143" Right

Model DTS-G30-144R | 14-Gauge 304 Stainless Steel with 20" × 20" × 8" Pre-Rinse Sink

Streamline soil-side workflow and withstand the punishment of high-volume kitchens with the heavy-duty DTS-G30-144R Island Soil Dishtable from Advance Tabco. Crafted from extra-thick 14 ga 304 stainless steel and sized at a full 12 ft (143"), this L-shaped unit mounts to the right of the dish machine operator, delivering a seamless landing zone for dirty wares while keeping splashes and debris contained.

Key Features

  • 14 ga 304 stainless steel top with satin finish resists corrosion, dents, and warping.
  • L-shaped island configuration attaches to the right side of most conveyor or door-type dish machines.
  • Extra-large 10 ½" backsplash with 2" return and tile edge for quick, sanitary installation.
  • Integral 20" × 20" × 8" pre-rinse sink bowl; faucet holes punched on 8" centers (faucet sold separately).
  • Stainless steel pre-rinse basket included; slide bar ships automatically when disposer adapter K-461 or K-461A is specified.
  • 1 ½" IPS basket-type waste drain furnished.
  • 16 ga 304 stainless steel legs with welded front-to-back crossrails and 1"-adjustable stainless bullet feet for rock-solid stability.
  • All TIG-welded construction with blended seams for an easy-to-clean, professional appearance.
  • NSF certified and built in the USA.

At-a-Glance Specifications

Model DTS-G30-144R (Spec-Line)
Overall Length 143" (12 ft nominal)
Orientation Right of dish machine operator
Top Material / Gauge 14 ga 304 stainless steel
Legs & Bracing 16 ga 304 S/S legs with welded crossrails; adjustable S/S bullet feet
Backsplash 10 ½" H with 2" return, tile edge
Sink Bowl Size 20" W × 20" L × 8" D
Drain 1 ½" IPS basket type (included)
Faucet Centers 8" (faucet not included)
Included Accessories Pre-rinse basket; slide bar (with K-461/K-461A)
Certifications NSF
Dish Machine Compatibility: Advance Tabco Smart Fabrication™ allows this table to mate with virtually every major commercial dish machine. Always confirm required clearances or special modifications before ordering.

Popular Accessories (sold separately)

  • Wall-mount pre-rinse faucet
  • Stainless steel wall shelf for chemicals or racks
  • Stainless steel undershelf for extra storage
  • K-461 or K-461A disposer adapter (automatically adds slide bar)

Need help configuring your warewashing line? Call Advance Tabco support at 1-800-645-3166.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

350.0lbs

Width (end - corner) OA

133" - 144"

Width (machine - corner) OA

61" - 72"

Leg Type

stainless steel legs

Splash Height

10"H splash

Stainless Series

300 series

Stainless Gauge

14 gauge

Direction

right to left

Shape

island

Specifications

Island-Soil Dishtable, L-shaped, attaches to right of dish machine operator, 10-1/2"H backsplash one side, with pre-rinse sink, stainless steel legs with crossrails front to back, 143" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
