Advance Tabco  |  SKU: DTS-G30-120L  |  UPC: 747545121073

Advance Tabco DTS-G30-120L Compartment Sinks

$4,702.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

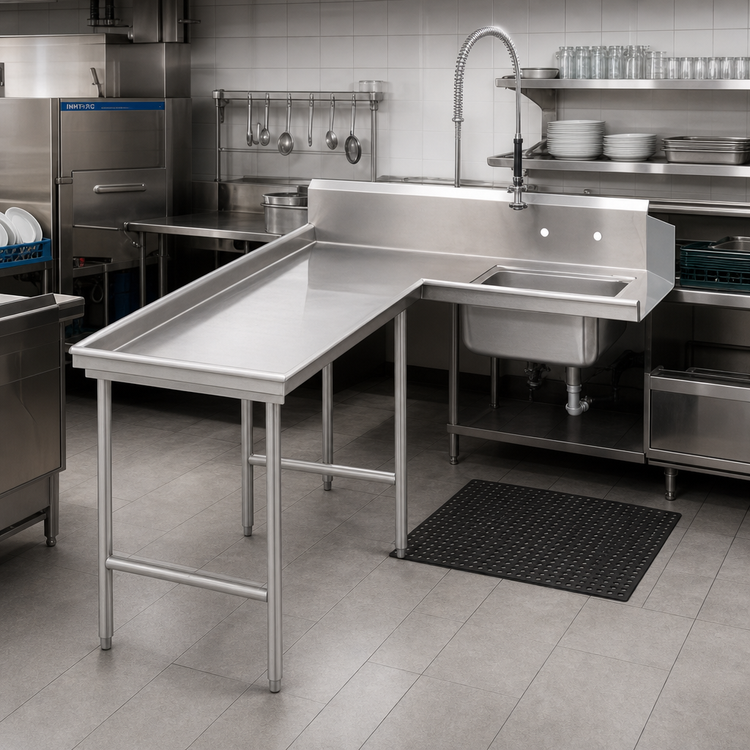

Spec-Line Island Soil Dishtable – 119" Left Configuration

14 ga 304 Stainless Steel Top • Integrated 20" × 20" × 8" Pre-Rinse Sink

Engineered for the busiest commercial kitchens, this Advance Tabco Spec-Line L-shaped island soil dishtable delivers rugged 14-gauge stainless steel strength, an extra-large 10-1/2" backsplash, and seamless integration with left-hand dishmachine setups.

Why You’ll Love It

  • Heavy-duty 14 ga 304 stainless steel top stands up to daily abuse and harsh chemicals.
  • 8"-deep, 20" × 20" pre-rinse sink speeds scraping and rinsing; basket strainer & 1-1/2" IPS waste included.
  • 10-1/2" high backsplash with 2" return and tile edge keeps water contained and simplifies installation.
  • 1-5/8" Ø stainless steel legs with welded front-to-back crossrails & adjustable bullet feet for rock-solid stability.
  • TIG-welded construction with blended, satin-finished seams for a clean, professional look.
  • Faucet holes punched on 8" centers accept most deck-mount pre-rinse faucets (sold separately).
  • Pre-rinse basket included; slide bar ships when K-461 or K-461A disposer adapter is ordered.
  • NSF listed and proudly made in the USA.

Technical Specs

Overall Length 119" (nominal)

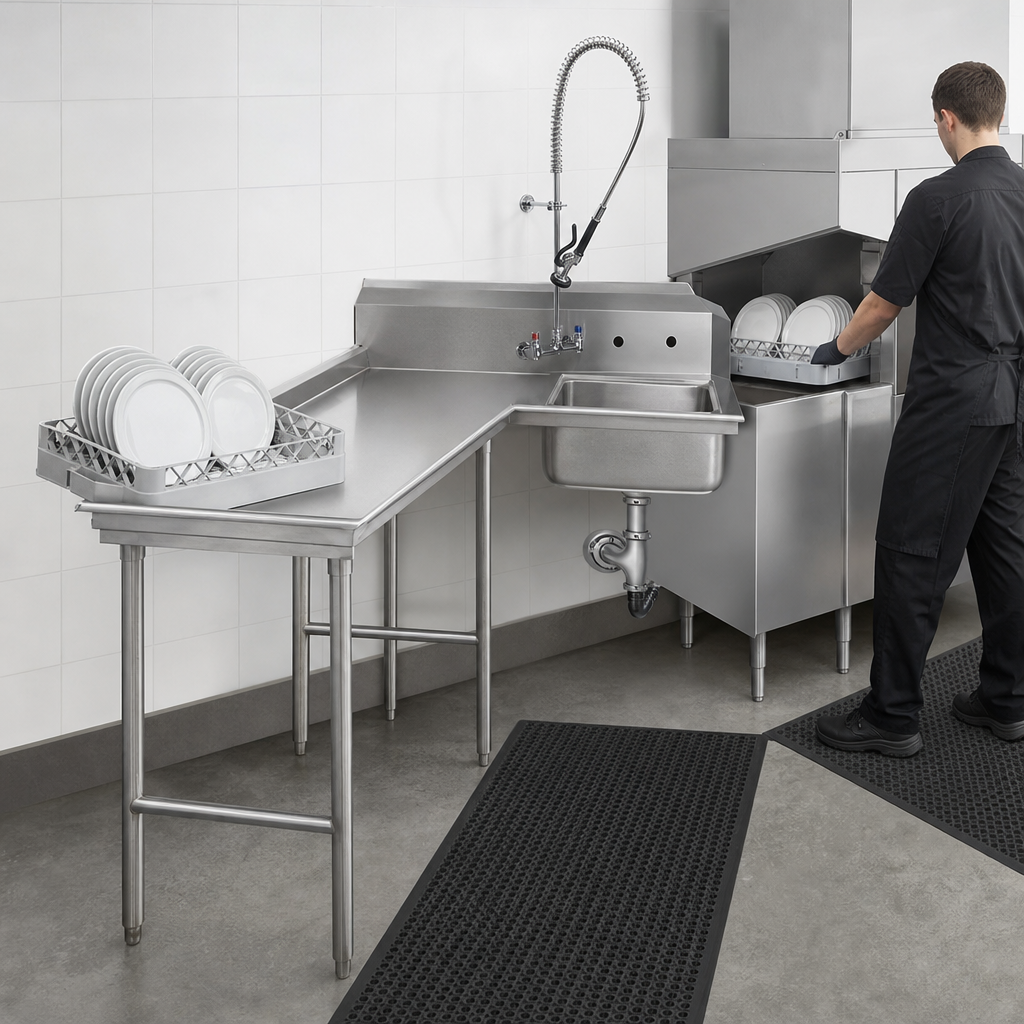

Configuration Island Soil, L-shape – attaches to LEFT side of dish machine (operator facing machine)
Top Material & Gauge 14 ga 304 stainless steel
Legs 16 ga 304 stainless steel, 1-5/8" Ø, welded crossrails, adjustable stainless bullet feet
Sink Bowl 20" W × 20" D × 8" H  (with 1-1/2" IPS basket drain)
Backsplash 10-1/2" H with 2" return & tile edge
Faucet Holes 8" centers (faucet not included)
Included Accessories Pre-rinse basket; slide bar when disposer adapter K-461 / K-461A is specified
Certifications NSF
Important: Advance Tabco’s Smart Fabrication™ program ensures proper fit with virtually every brand of dish machine. Always verify clearances with the current Dish Machine Compatibility Chart before ordering modifiers or disposer adapters.

Faucet, disposer adapter, and other accessories sold separately. Slide bar ships only when K-461 or K-461A disposer adapter is included on the order.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

310.0lbs

Direction

left to right

Splash Height

10"H splash

Leg Type

stainless steel legs

Width (machine - corner) OA

61" - 72"

Stainless Series

300 series

Shape

island

Width (end - corner) OA

109" - 120"

Stainless Gauge

14 gauge

Specifications

Island-Soil Dishtable, L-shaped, attaches to left of dish machine operator, 10-1/2"H backsplash one side, with pre-rinse sink, stainless steel legs with crossrails front to back, 119" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
