Description

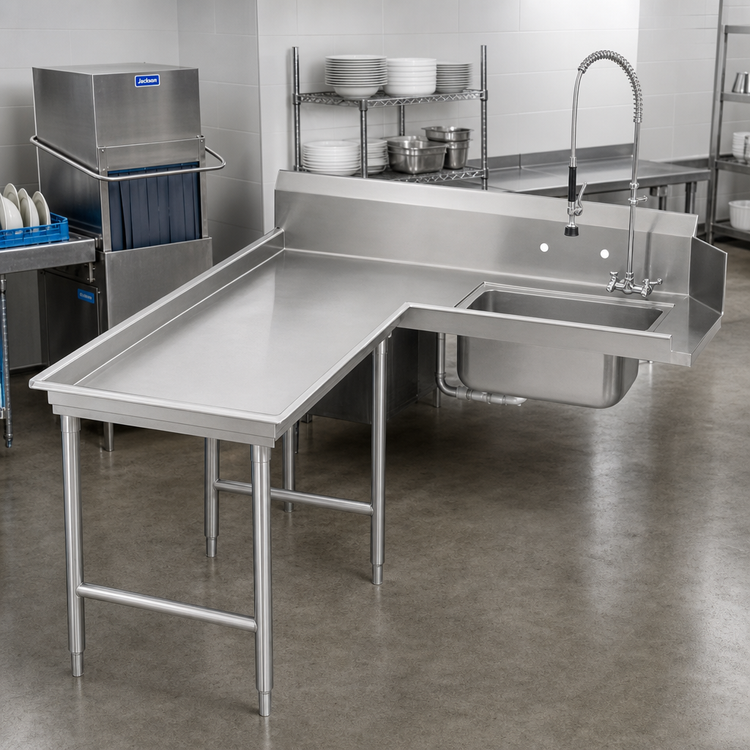

Advance Tabco Spec-Line Island Soil Dishtable – 107" L-Shaped, Left Feed

Model DTS-G30-108L | 14 GA / 304 Stainless Steel Top

Built for the busiest dish rooms, this heavy-duty island soil dishtable mounts to the operator’s left side of any compatible dish machine, creating a streamlined scrape-rinse station that keeps warewashing fast and efficient.

Key Benefits

  • 14 GA 304 stainless steel top – Spec-Line thickness handles the heaviest ware loads.
  • Integrated 20" × 20" × 8" deep pre-rinse sink for soaking and scrap removal.
  • 10-1/2" high bold backsplash with 2" return & tile edge prevents overspray and speeds installation.
  • 1-5/8" Ø stainless legs with welded crossrails (front-to-back) & adjustable bullet feet for rock-solid stability.
  • Includes 1-1/2" IPS basket drain, pre-rinse basket, and slide bar (slide bar provided when K-461 or K-461A disposer adapter is specified).
  • TIG-welded construction; seams are ground and polished to a satin finish.
  • Faucet holes pre-punched on 8" centers – simply add your preferred pre-rinse faucet (sold separately).
  • NSF listed and Smart Fabrication™-ready for quick field modifications when required.

Dimensions & Capacities

Overall Length 107" (nominal 9 ft)
Island Width (each arm) 59"
Configured Side Left – attaches to left of dish machine operator
Work Height 34" deck / 37" to top of backsplash
Backsplash Height 10-1/2" with 2" return & tile edge
Sink Bowl Size 20" × 20" × 8" deep
Drain Opening 1-1/2" IPS basket type
Approx. Weight 335 lb

Materials & Construction

  • Top: 14 GA 304 series stainless steel
  • Legs & Crossrails: 16 GA 304 series stainless steel, fully welded
  • Gussets & Bullet Feet: Stainless steel (1" adjustable)
  • Finish: All exposed surfaces polished to uniform satin blend

Need a different length, right-hand orientation, or custom machine opening? Ask about Advance Tabco Smart Fabrication™ for fast, factory-engineered modifications.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

295.0lbs

Direction

left to right

Width (machine - corner) OA

61" - 72"

Stainless Series

300 series

Splash Height

10"H splash

Leg Type

stainless steel legs

Stainless Gauge

14 gauge

Shape

island

Width (end - corner) OA

97" - 108"

Specifications

Island-Soil Dishtable, L-shaped, attaches to left of dish machine operator, 10-1/2"H backsplash one side, with pre-rinse sink, stainless steel legs with crossrails front to back, 107" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
