Advance Tabco  |  SKU: DTS-D70-96R  |  UPC: 747545121042

Advance Tabco DTS-D70-96R Compartment Sinks

$4,799.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

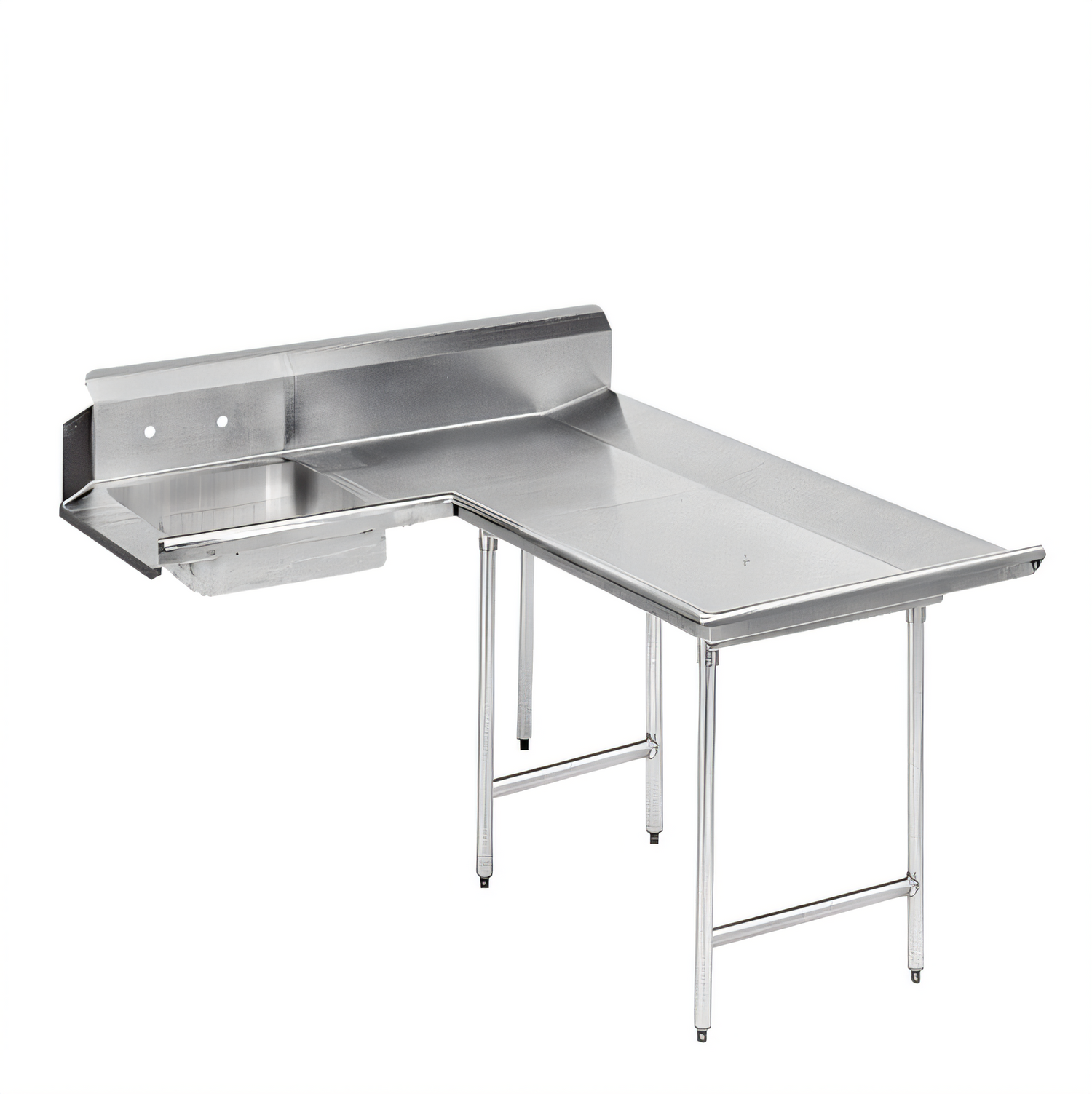

Advance Tabco Dishlanding Soil Dishtable – 95" Right-Side, L-Shaped

16-Gauge 304 Stainless Steel • 10-1/2" Backsplash • Pre-Rinse Sink Included

Engineered for busy ware-washing lines, this Advance Tabco dishlanding soil dishtable attaches to the operator’s right side of most door-type or conveyor dish machines. The heavy-duty, L-shaped landing keeps racks moving smoothly while the built-in pre-rinse sink streamlines scrap-removal, boosting throughput and keeping your dish room organized.

Key Features

  • Rugged 16-gauge, 304 series stainless steel top – corrosion resistant & easy to sanitize.
  • Large 10-1/2" backsplash with 2" return and tile-edge design for a tight, hygienic wall seal.
  • Integrated 20" × 20" × 5" pre-rinse sink bowl; 1-1/2" IPS basket drain supplied.
  • Faucet holes punched on 8" centers (faucet sold separately).
  • 1 5/8" Ø stainless steel legs with welded crossrails and adjustable stainless bullet feet.
  • All TIG-welded construction; welds are blended to a smooth satin finish.
  • NSF listed for food-service sanitation compliance.

At-a-Glance Specifications

Overall length 95" (Nominal 8 ft)
Configuration L-shaped landing – mounts to dish machine operator’s right side
Top material / gauge 16-ga 304 stainless steel
Legs & bracing (4) 1 5/8" Ø 16-ga 304 SS legs with welded crossrails & 1" adjustable bullet feet
Backsplash 10-1/2" high with 2" return, tile-edge
Sink bowl (W × D × H) 20" × 20" × 5" (pre-rinse)
Drain 1-1/2" IPS basket type (included)
Faucet holes 8" centers (faucet not included)
Approx. weight 255 lb
Certifications NSF

Need to confirm fit? Review the Advance Tabco Dish Machine Compatibility Chart or contact our team before ordering.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

270.0lbs

Splash Height

10"H splash

Leg Type

stainless steel legs

Width (machine - corner) OA

61" - 72"

Shape

corner

Direction

right to left

Stainless Series

300 series

Stainless Gauge

16 gauge

Width (end - corner) OA

85" - 96"

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 95" long, 16/304 stainless steel
