Advance Tabco DTS-D70-84R Compartment Sinks
Description

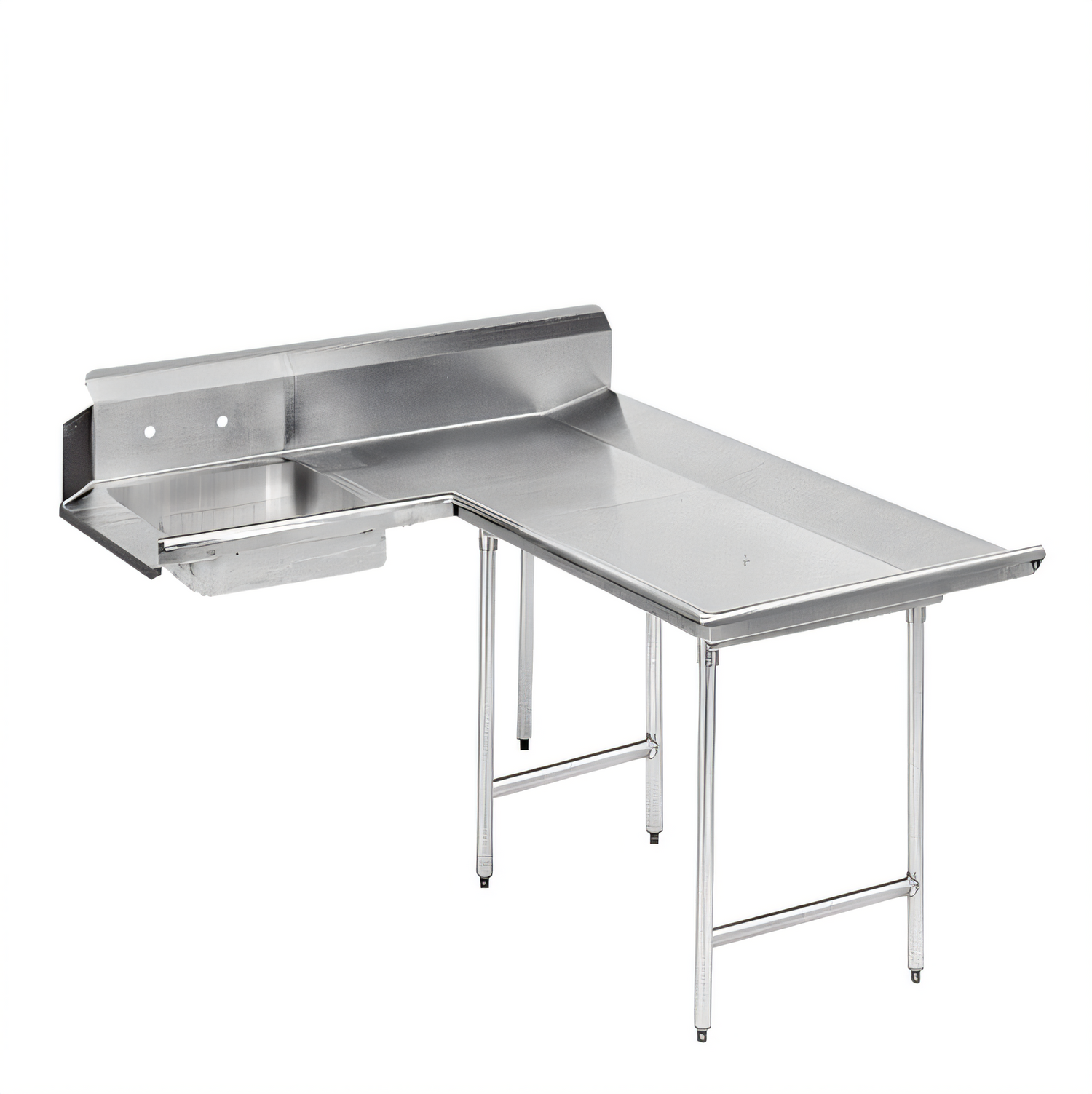

Advance Tabco 83" Dishlanding Soil Dishtable – Right Hand
L-Shaped, 16 ga 304 Stainless Steel Top with Pre-Rinse SinkEngineered for high–volume ware-washing lines, this NSF-listed dishlanding soil dishtable attaches to the operator’s right side to create a smooth, ergonomic drop-off zone before your dish machine. A heavy-duty 16-gauge 304 stainless steel top, extra-tall backsplash and fully welded cross-rail leg frame deliver years of corrosion-proof performance in even the busiest kitchens.
Key Benefits

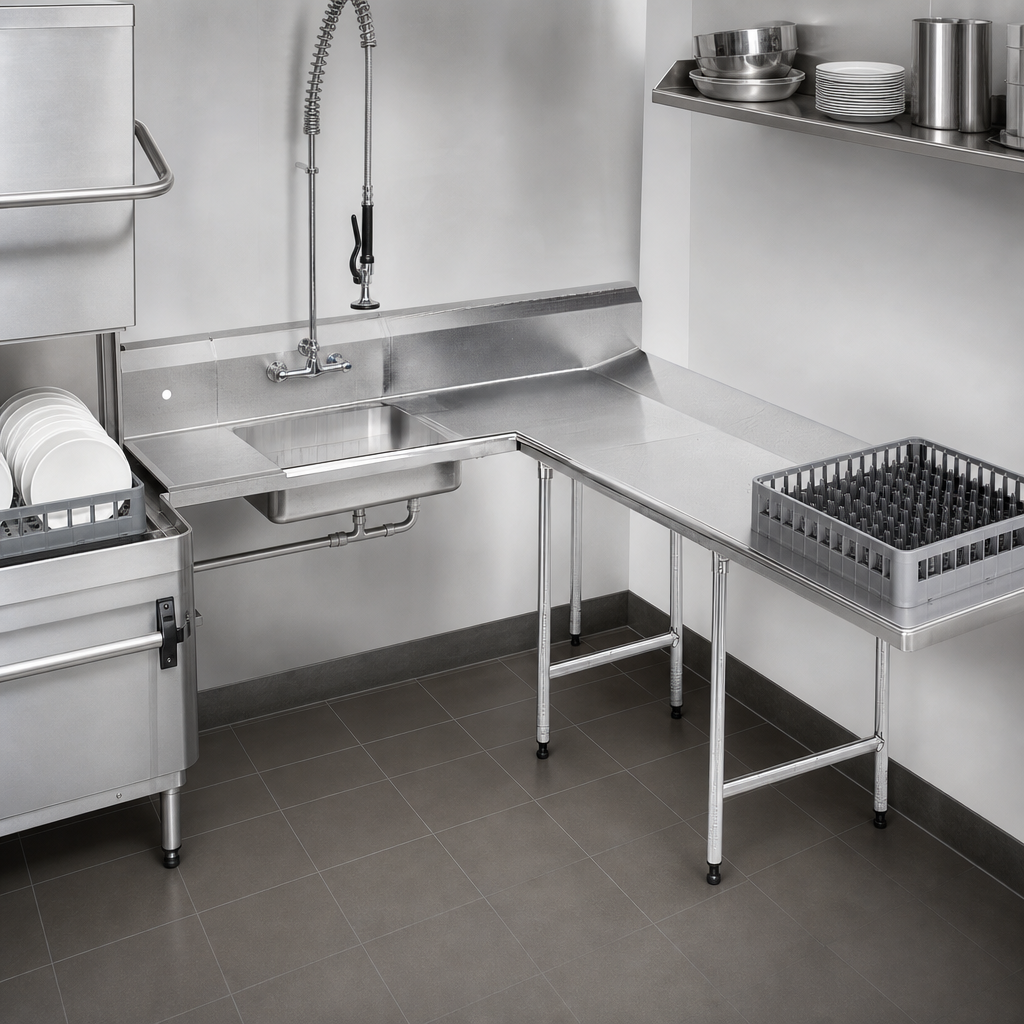

- 83 in. (nominal 7 ft) L-shaped “landing” layout maximises pre-wash capacity without enlarging your footprint.
- 10 1⁄2 in. extra-high backsplash with 2 in. tile-edge return stops messy overspray and installs flush against existing walls or tile.
- Integrated 20 in. × 20 in. × 5 in. pre-rinse sink bowl speeds scrap removal; 1 ½ in. IPS basket drain included.
- Faucet holes pre-punched on 8 in. centres—just add the pre-rinse faucet of your choice (sold separately).
- 1 ⅝ in. dia. 16 ga 304 stainless steel legs with welded crossrails & adjustable stainless bullet feet for rock-solid stability.
- All TIG-welded seams are blended to a satin finish for a hygienic, easy-to-clean surface.
- NSF compliant construction meets the toughest health-code requirements.
Product Specifications
| Overall length | 83 in. (2,108 mm) |
|---|---|
| Configuration | L-shaped Dishlanding Soil – Right-hand attachment |
| Top material / gauge | 16 ga 304 Stainless Steel |
| Legs & bracing | 1 ⅝ in. Ø 304 SS legs, welded crossrails, stainless bullet feet (1 in. adjustment) |
| Backsplash height | 10 1⁄2 in. with 2 in. return, tile-edge design |
| Sink bowl size | 20 in. × 20 in. × 5 in. deep (304 SS) |
| Drain | 1 ½ in. IPS basket-type (included) |
| Faucet holes | (2) holes on 8 in. centres in backsplash |
| Approx. weight | 240 lb / 109 kg |

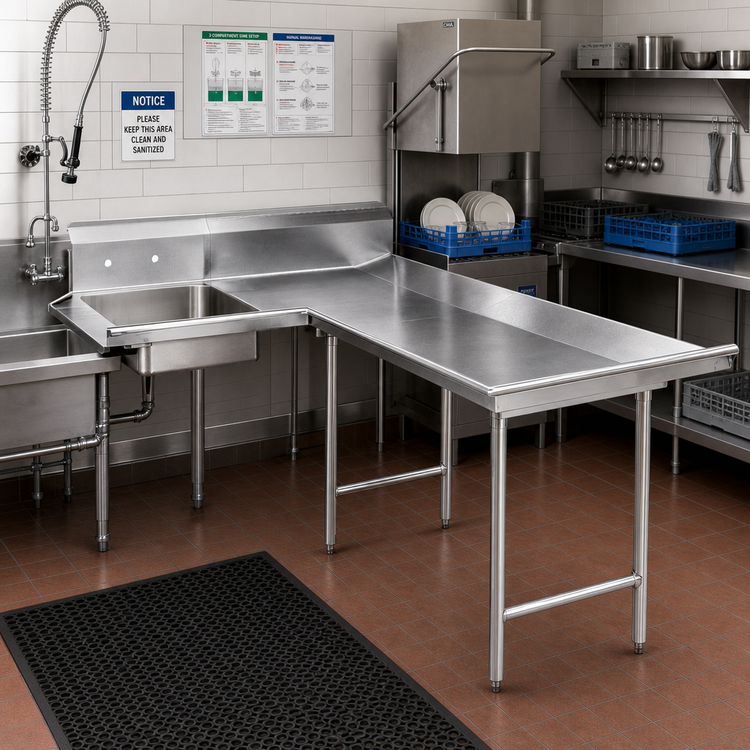

Faucet, pre-rinse sprayer and dish machine shown in reference images are not included. Confirm dish-machine compatibility with Advance Tabco’s latest chart or contact us for assistance.
