Advance Tabco  |  SKU: DTS-D70-84L  |  UPC: 747545121011

Advance Tabco DTS-D70-84L Compartment Sinks

$4,693.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Advance Tabco Commercial Work Tables Compartment Sinks Dish Tables Restaurant Equipment Sinks & Handwashing Stations Specialty Work Tables

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

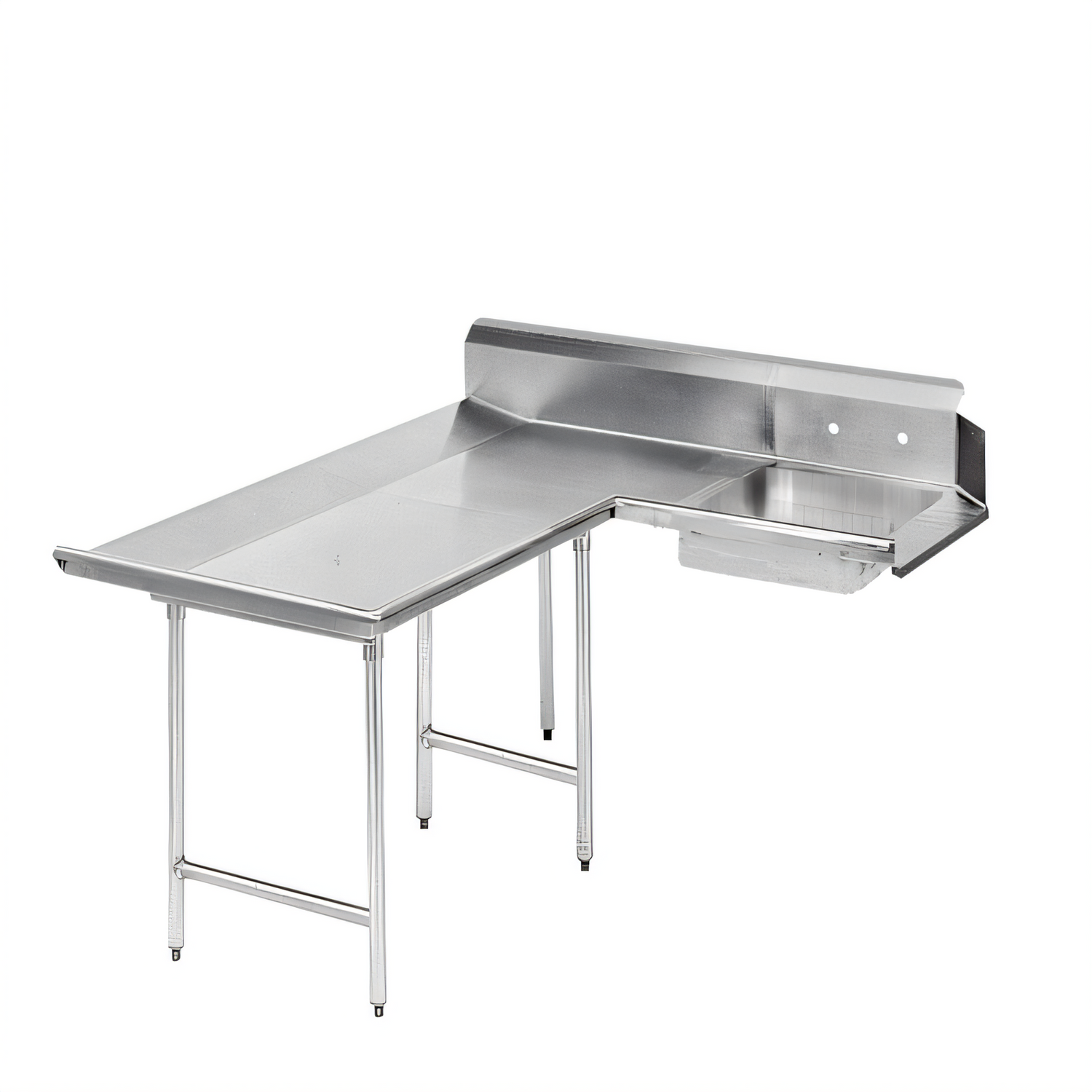

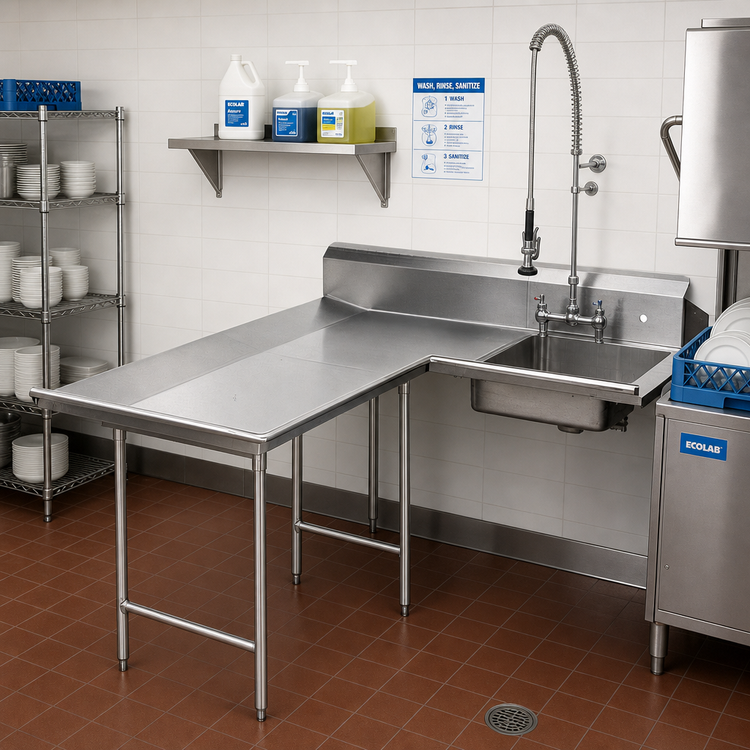

Advance Tabco L-Shaped Dishlanding Soil Dishtable – 83" Left Side

Model DTS-D70-84L | 16 ga 304 Stainless Steel

Streamline your ware-washing operation with a heavy-duty soil dishtable that delivers smooth rack flow, safe splash control, and rock-solid durability—all in one NSF-listed package.

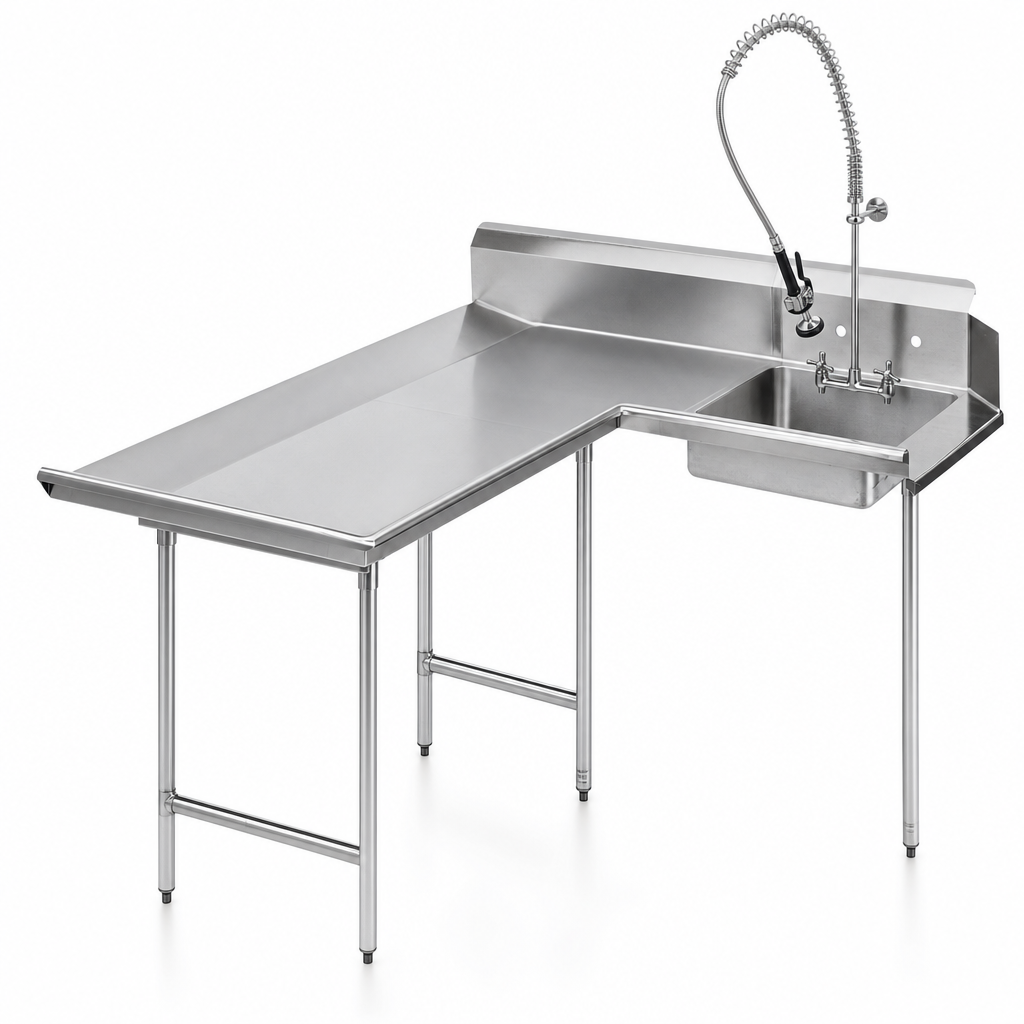

  • L-shaped layout mounts to the operator’s left side of the dish machine
  • 20" landing ledge keeps incoming racks clear of the pre-rinse zone
  • 10-1/2" high backsplash with 2" tile-edge return contains splatter and installs flush to walls
  • 16 ga, 304 series stainless steel top resists corrosion, dents & chemicals
  • Integrated 20" × 20" × 5" pre-rinse sink with 1-1/2" IPS basket drain (included)
  • 8"-on-center faucet holes pre-punched in backsplash (faucet sold separately)
  • 1-5/8" O.D. stainless steel legs with welded crossrails and adjustable bullet feet for unmatched stability
  • All TIG-welded; seams blended to a sanitary satin finish
  • NSF listed for food-service sanitation

Key Specifications

Overall Length 83" (Nominal 7 ft)
Configuration Soil/Entry – Left Hand, L-Shaped with 20" landing
Top Thickness 16 ga 304 Stainless Steel
Backsplash 10-1/2" H × 2" return, tile-edge
Sink Bowl 20" × 20" × 5" deep, 14 ga 304 Stainless
Drain 1-1/2" IPS basket-type (included)
Faucet Holes 8" centers in backsplash
Legs & Bracing (5) 1-5/8" Ø 16 ga 304 SS legs with welded crossrails & bullet feet
Approx. Ship Weight 240 lb
Certifications NSF

Looking for a different length, right-hand layout, or extra accessories? Ask about Advance Tabco’s Smart Fabrication™ options.

Compatibility Tip: Always verify required clearances and sink-to-machine spacing for your specific dish machine model. Refer to Advance Tabco’s Dish Machine Compatibility Chart or contact us before ordering.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

250.0lbs

Width (end - corner) OA

73" - 84"

Width (machine - corner) OA

61" - 72"

Stainless Series

300 series

Splash Height

10"H splash

Shape

corner

Stainless Gauge

16 gauge

Leg Type

stainless steel legs

Direction

left to right

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 83" long, 16/304 stainless steel
