Advance Tabco DTS-D70-72R Compartment Sinks
Description

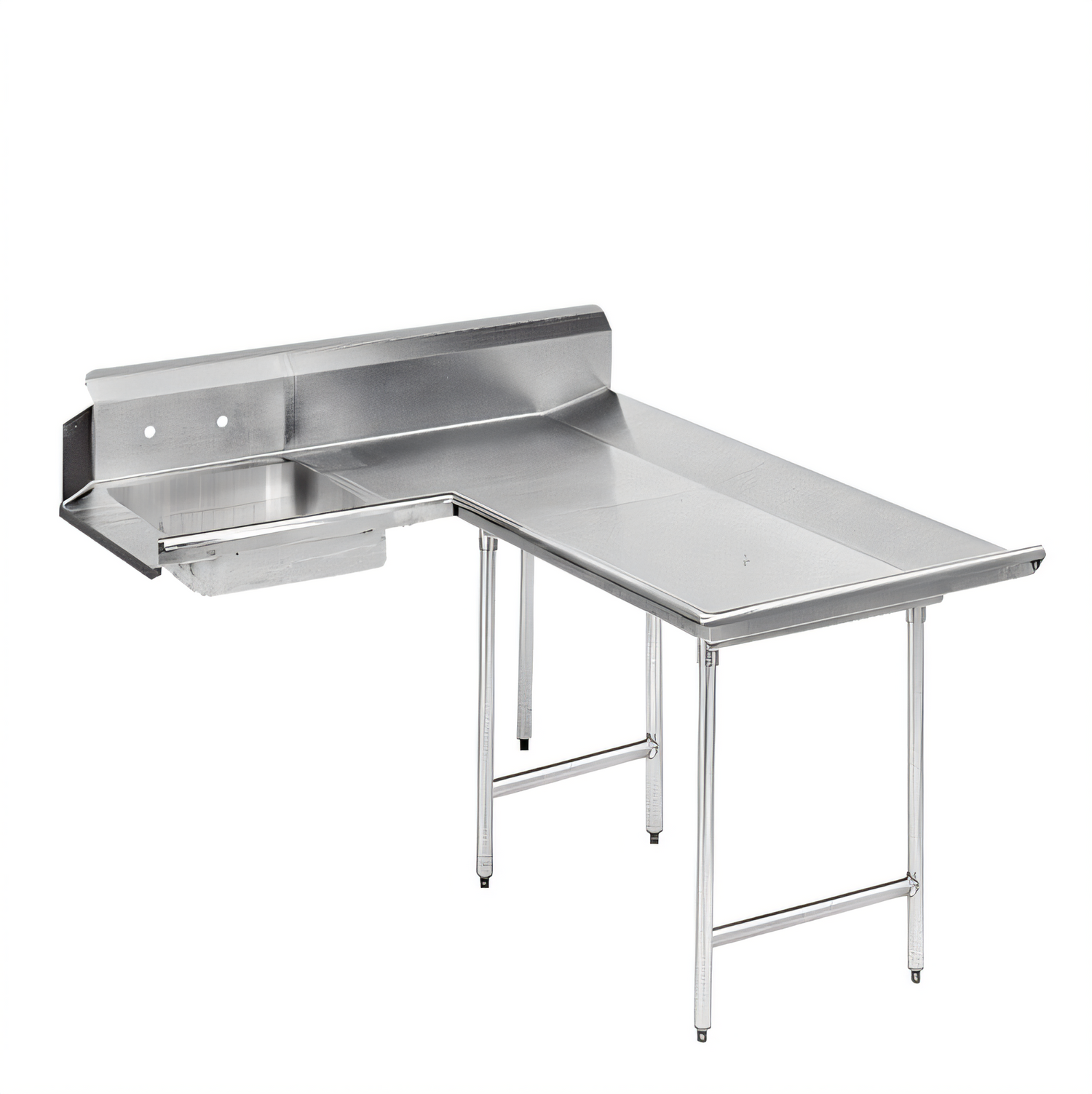

Advance Tabco Dishlanding Soil Dishtable – Right Hand, 71 in.
Standard Series · Model DTS-D70-72R · 16 ga 304 Stainless SteelPurpose-built for the soiled side of your warewashing line, this L-shaped Dishlanding Soil Dishtable delivers rugged Advance Tabco quality, a generous landing area for racks, and an integrated pre-rinse sink—everything you need to keep dishes moving efficiently toward the dish machine.
Key benefits
- 16 ga, 304 series stainless steel top resists corrosion and stands up to heavy commercial use.
- 10-1/2 in. high backsplash with 2 in. tile edge return contains splashes and drops seamlessly into tiled walls.
- 20 in. × 20 in. × 5 in. deep pre-rinse sink speeds scrap, rinse and rack operations.
- Factory-punched 8 in. on-center faucet holes—just add your preferred pre-rinse faucet (sold separately).
- All TIG-welded construction; welds are blended to a satin finish for a hygienic, easy-to-clean surface.
- 1-5/8 in. Ø 304 stainless legs with welded cross-rails and 1 in. adjustable stainless bullet feet keep the table solidly in place.

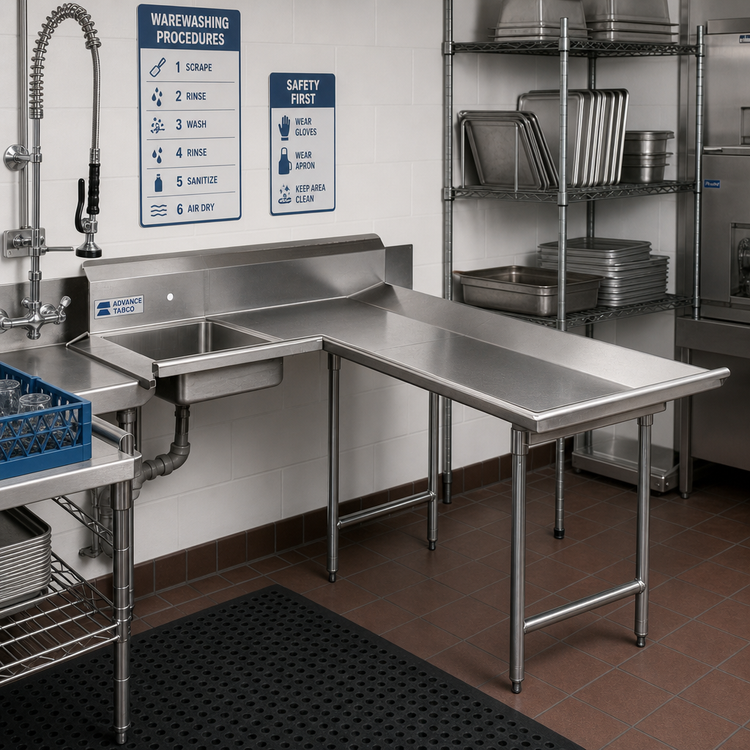

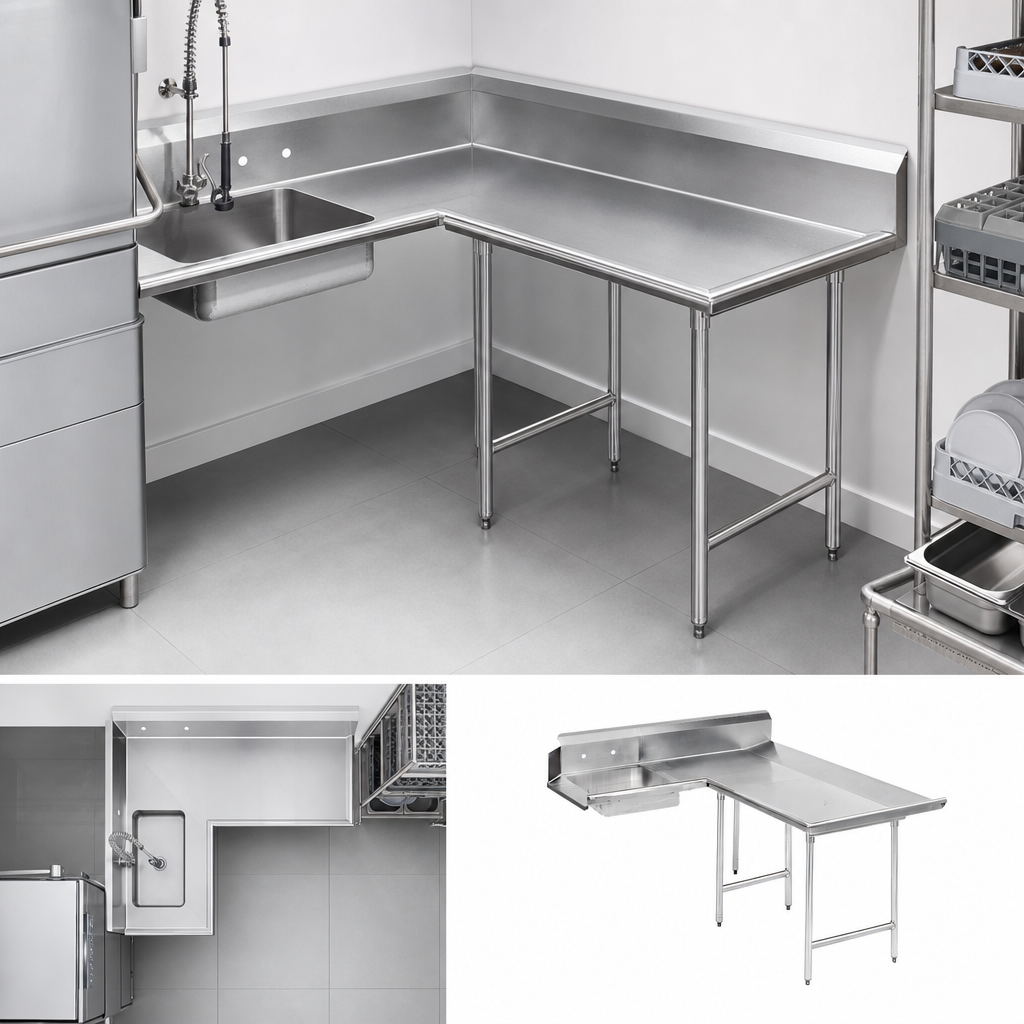

- L-shaped “Dishlanding” design mounts to the operator’s right side of the dish machine and provides a roomy landing shelf for racks.
- 1-1/2 in. I.P.S. basket-style waste drain supplied—no extra kit required.
Dimensions & technical details
| Overall length (L) | 71 in. nominal (6 ft) |
|---|---|
| Landing shelf depth | 30 in. |
| Dish machine side depth | 20 in. |
| Work height | 34 in. |
| Backsplash height | 10-1/2 in. with 2 in. return |
| Sink bowl size | 20 in. × 20 in. × 5 in. deep (Standard Series) |
| Faucet holes | Punched 8 in. O.C. in backsplash |
| Material / gauge | Top – 16 ga 304 SS · legs & bracing – 304 SS |
| Construction | TIG welded, satin finish |
| Drain | 1-1/2 in. I.P.S. basket-type (included) |
| Approx. weight | 230 lb |
| NSF certification | Yes |
Orientation & installation
- “Right Hand” configuration—mounts to the operator’s right side of straight-through or corner dish machines.
- Nominal size simplifies alignment with most warewashers; minor field adjustments may be needed.
- For guaranteed fit, consult the Advance Tabco Dish Machine Compatibility Chart or call 800-645-3166.
Faucet, scrap basket covers, overshelves and other accessories are sold separately and can be added to build a fully customized warewashing station.
