Advance Tabco  |  SKU: DTS-D70-48R  |  UPC: 747545120960

Advance Tabco DTS-D70-48R Compartment Sinks

$4,401.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

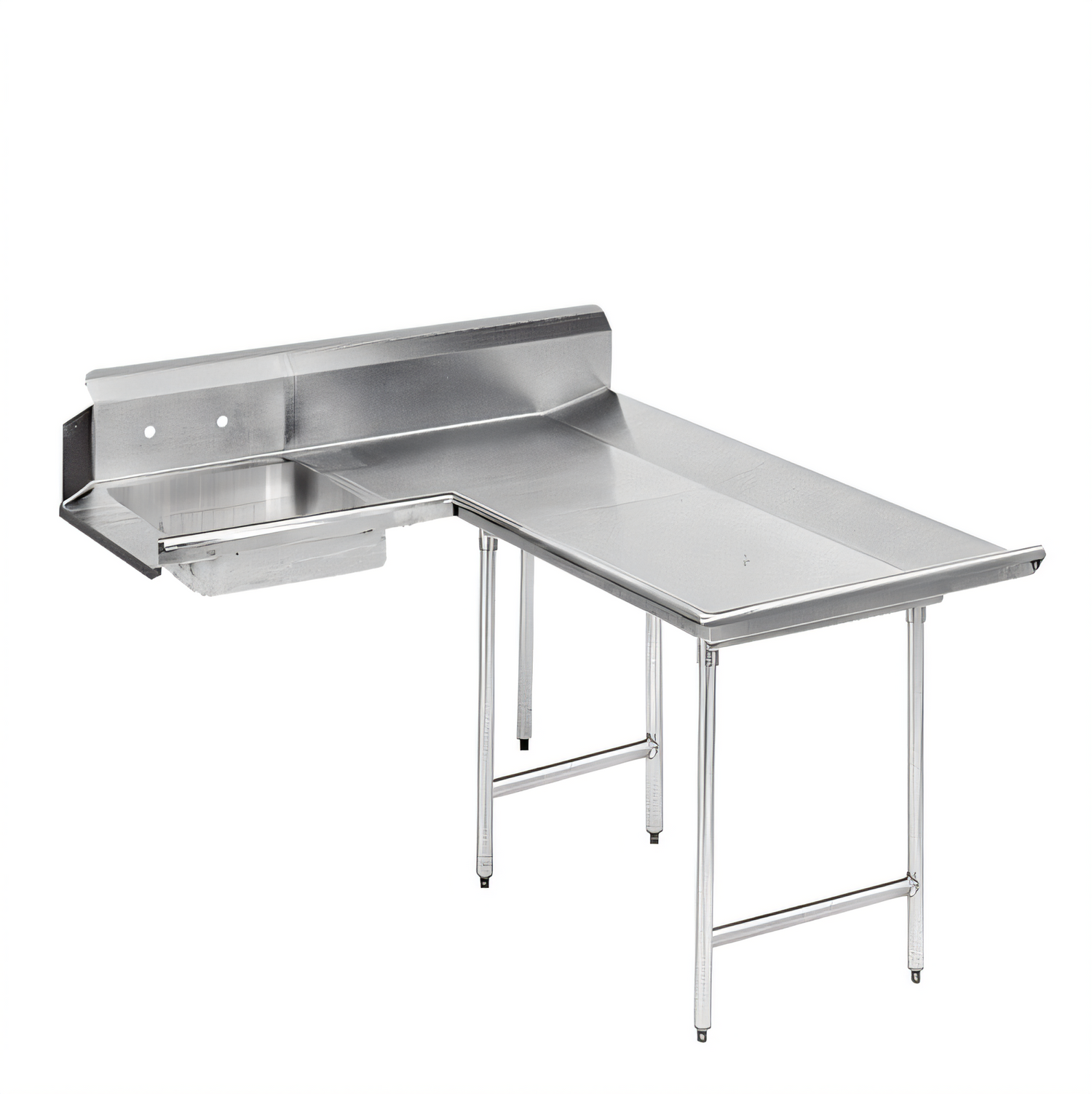

Advance Tabco DTS-D70-48R Dishlanding Soil Dishtable

Right-Feed • 47" L-Shaped • 16 ga. 304 Stainless Steel

Streamline your dishroom workflow with Advance Tabco’s rugged, space-saving Dishlanding Soil Dishtable. Designed to mount on the operator’s right side of a door-type dishwasher, this L-shaped station offers a generous landing area, an integrated pre-rinse sink, and the rock-solid durability of all-stainless construction.

Key Features

  • Space-efficient L-shape with 20" rack landing shelf keeps soiled wares organized before washing.
  • 10-1/2" tall backsplash with 2" tile-edge return protects walls and mounts flush to tiled surfaces for fast installation.
  • 20" × 20" × 5" pre-rinse sink speeds scraping and rinsing; 1-1/2" IPS basket drain included.
  • Heavy-duty 16 ga. 304 stainless steel top resists corrosion, dents, and daily abrasion.
  • 1-5/8" Ø 16 ga. stainless steel legs with welded crossrails and adjustable bullet feet deliver unmatched stability.
  • TIG-welded seams are blended to a sanitary satin finish—no crevices to trap food debris.
  • Faucet holes pre-punched on 8" centers (faucet & pre-rinse assembly sold separately).
  • NSF listed and engineered for compatibility with most 44" door-type dishmachines.

Technical Specifications

Model DTS-D70-48R
Overall Length 47" (nominal 4 ft)
Orientation Right – mounts to operator’s right side of dishmachine
Configuration L-shaped soil table with rack landing & sink
Sink Bowl Size (H × W × D) 5" × 20" × 20"
Backsplash Height 10-1/2" with 2" return
Top Material 16 ga. 304 stainless steel
Legs / Bracing 1-5/8" Ø 16 ga. 304 SS legs with welded crossrails
Feet Adjustable stainless steel bullet feet (1" range)
Drain 1-1/2" IPS basket drain (included)
Faucet Holes 8" centers
Approx. Weight 180 lb
Certifications NSF

Ideal For

  • Restaurants, cafés & caterers
  • Schools & universities
  • Healthcare & institutional kitchens
  • Any high-volume dishroom needing a rugged soil station

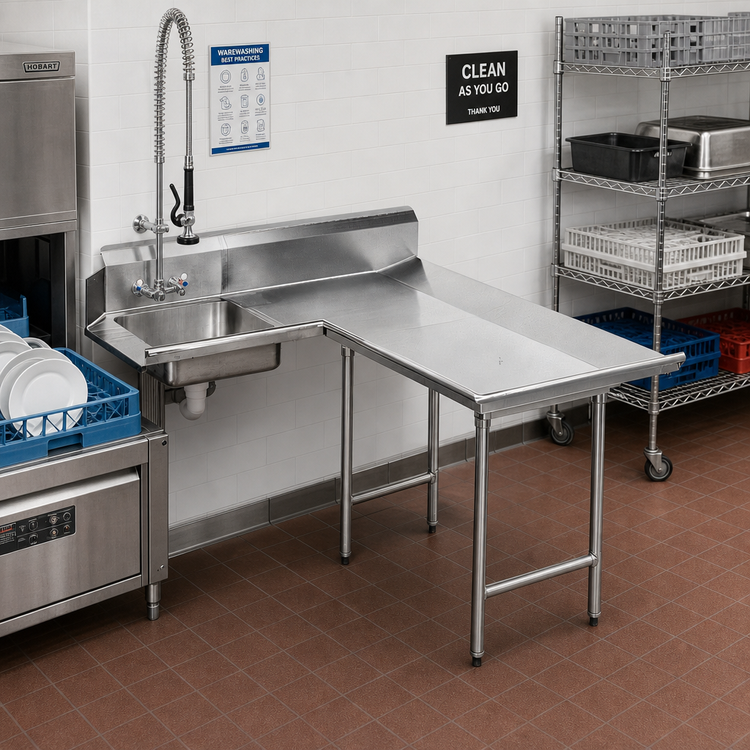

Dishmachine, faucet and pre-rinse assembly are shown for reference and are not included.

Important: Verify dishmachine compatibility and right/left orientation before ordering. For assistance, contact Advance Tabco Smart Fabrication™ at 1-800-645-3166.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

195.0lbs

Splash Height

10"H splash

Leg Type

stainless steel legs

Width (machine - corner) OA

61" - 72"

Width (end - corner) OA

37" - 48"

Direction

right to left

Stainless Series

300 series

Stainless Gauge

16 gauge

Shape

corner

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 47" long, 16/304 stainless steel
