Advance Tabco DTS-D70-48L Compartment Sinks
Advance Tabco DTS-D70-48L Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

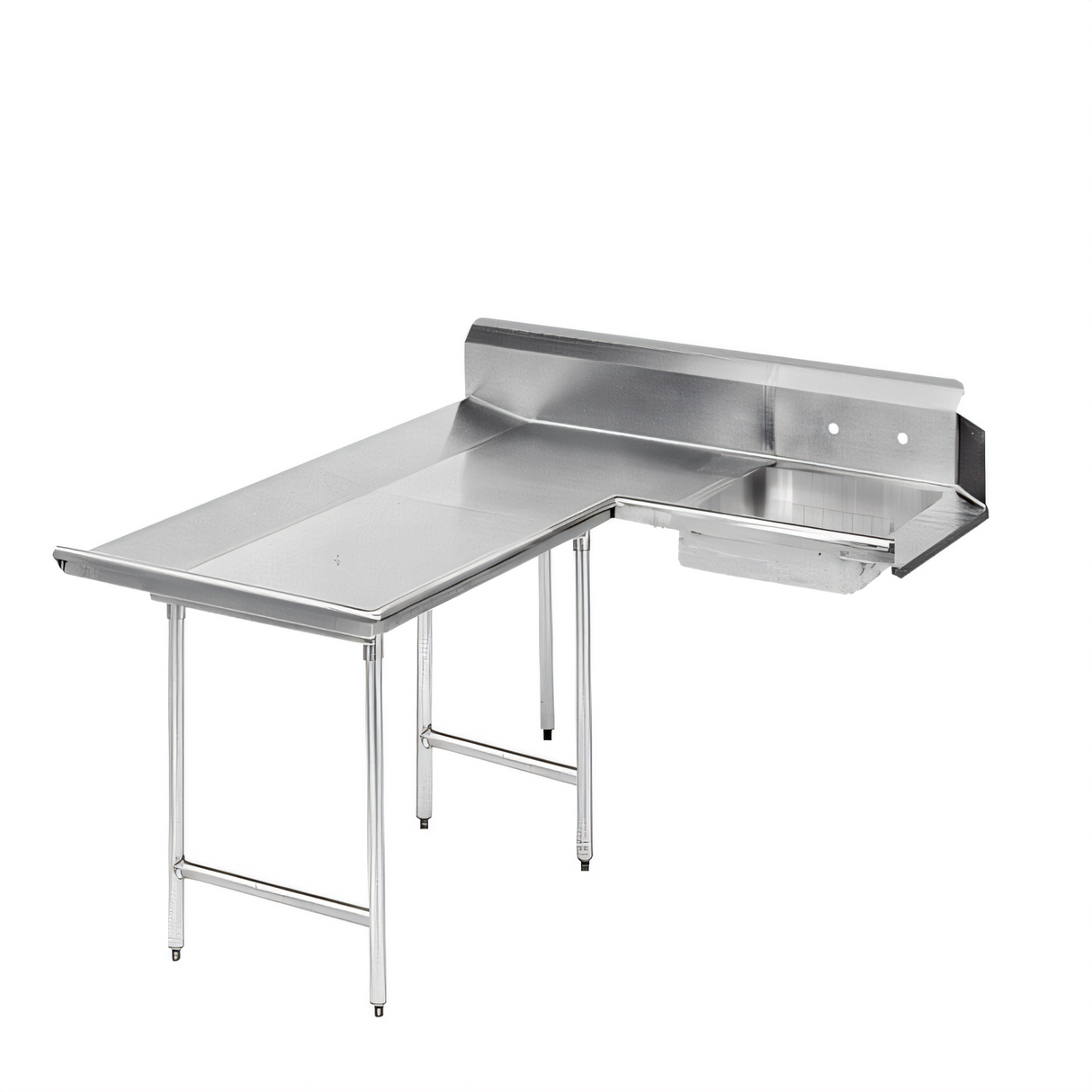

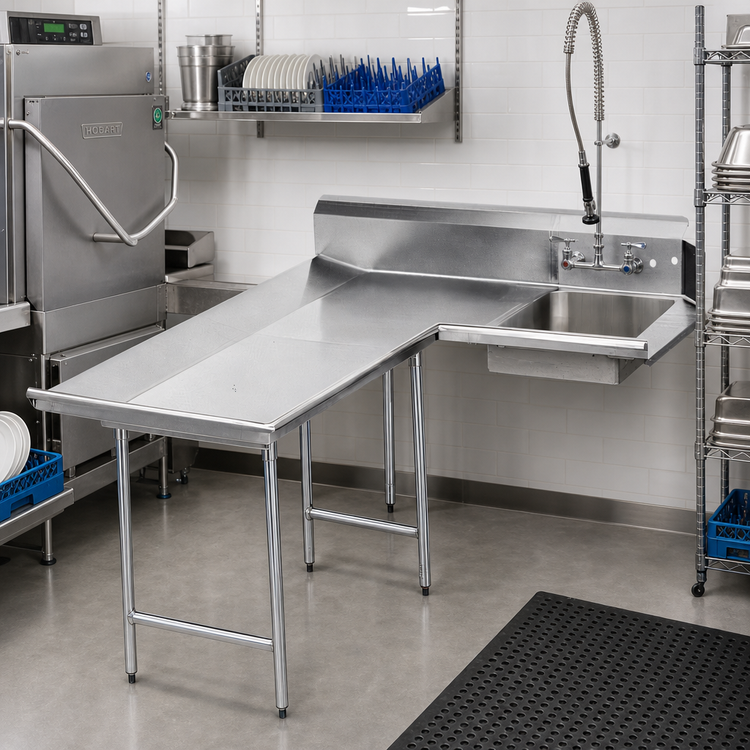

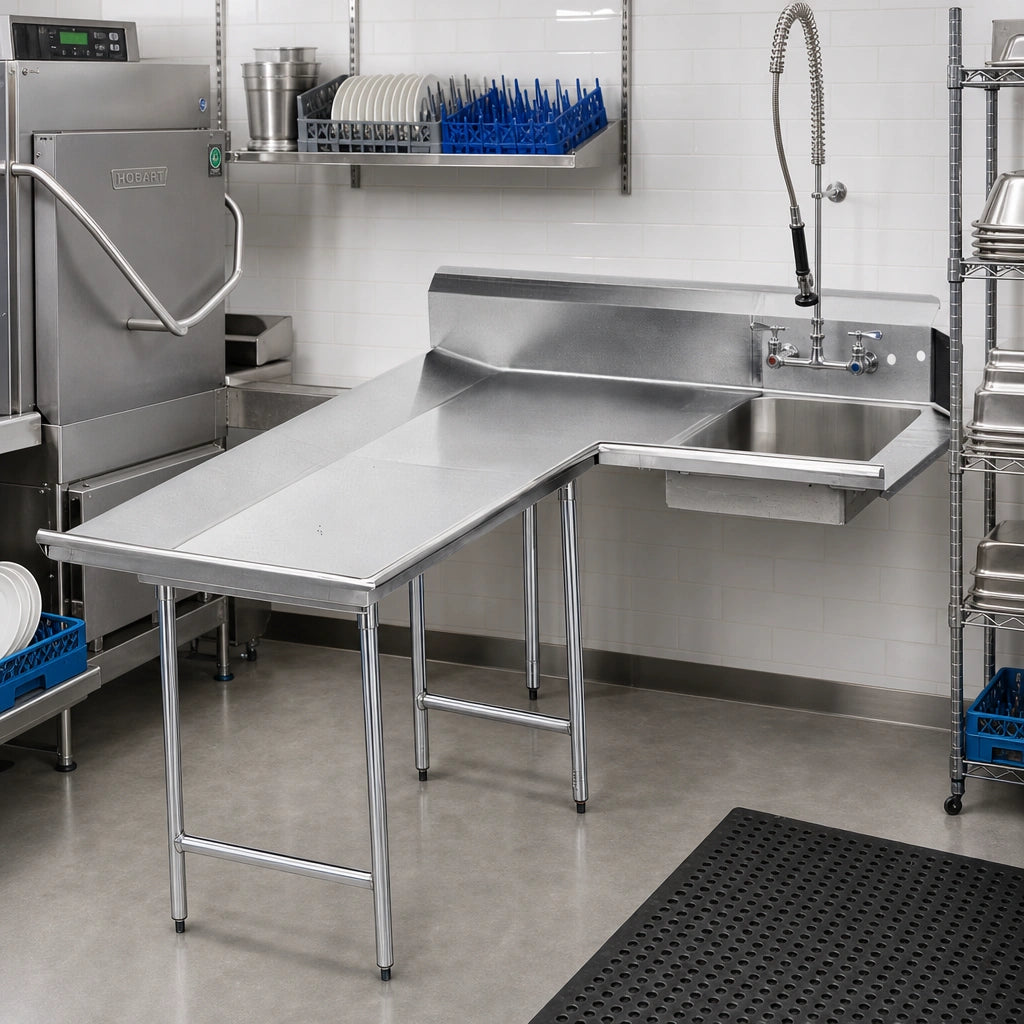

Advance Tabco Dishlanding Soil Dishtable – 47" Left Feed, Standard Series
16 GA 304 Stainless Steel Top with Integrated Landing & Pre-Rinse SinkStreamline your dishroom with this compact L-shaped soil dishtable from Advance Tabco. Designed to mount on the left side of your dish machine operator, it provides a generous landing area for racks, a built-in pre-rinse sink, and the rugged durability only fully TIG-welded 304 stainless steel can deliver.
Key features
- L-shaped layout with landing shelf for fast, ergonomic soil loading.
- 10-1/2" high backsplash with 2" tile-edge return keeps walls dry and simplifies installation.
- Welded 20" × 20" × 5" pre-rinse sink bowl with 1-1/2" IPS basket drain (included).
- Factory-punched 8" on-center faucet holes (faucet sold separately).
- Heavy-duty 16 GA 304 stainless steel top with satin finish.
- 1-5/8" Ø 16 GA 304 stainless legs, welded cross rails, and adjustable stainless bullet feet for rock-solid support.
- NSF listed and fully TIG welded for maximum sanitation and strength.
At-a-glance specifications
Overall length | 47" nominal |
---|---|

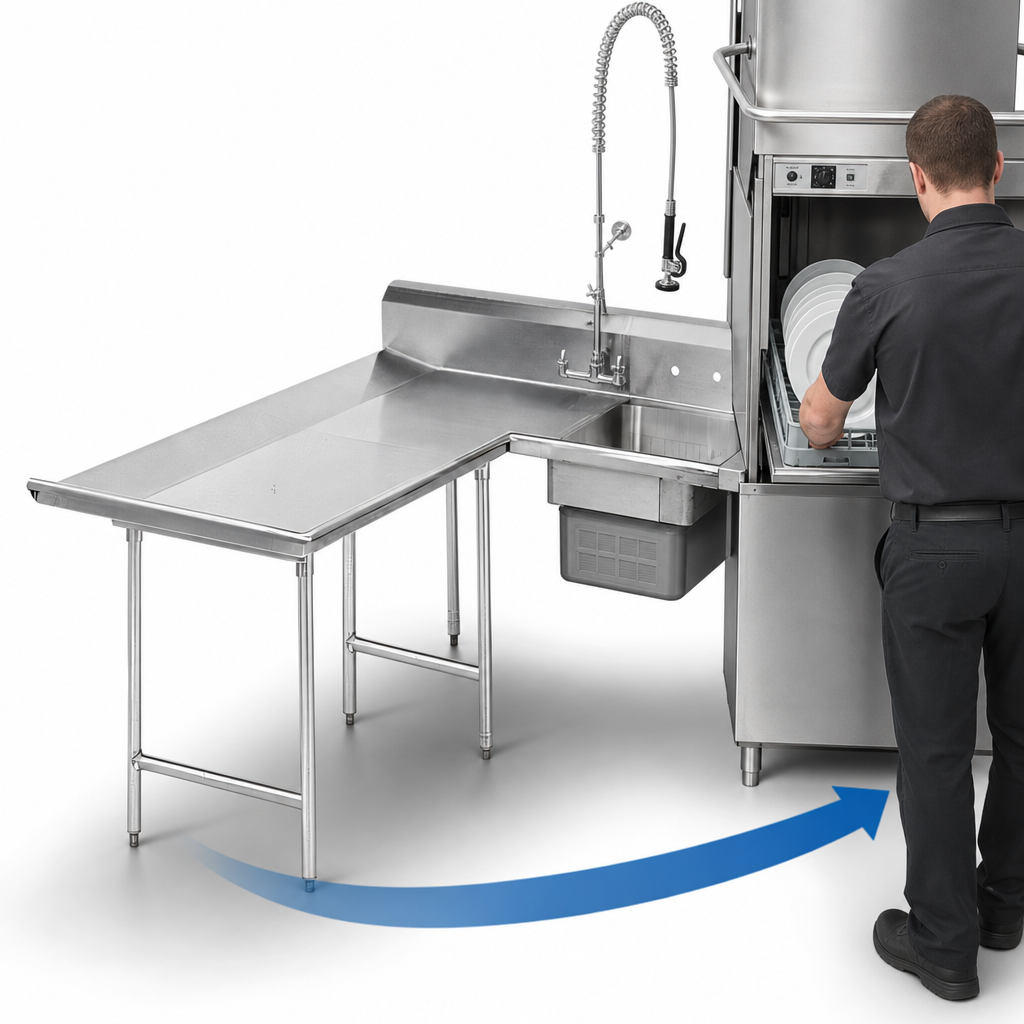

Orientation | Left feed (mounts to left of dish machine operator) |
Top material / gauge | 16 GA 304 stainless steel |
Backsplash height | 10-1/2" with 2" tile-edge return |
Sink bowl size | 20" × 20" × 5" deep |
Drain connection | 1-1/2" IPS basket drain (included) |
Faucet holes | 8" centers |
Legs & bracing | 1-5/8" Ø 16 GA 304 SS legs with welded cross rails |
Feet | Adjustable stainless bullet feet |
Approx. shipping weight | 180 lb |
Certifications | NSF |
Need a different length, right-hand layout, or heavier Spec-Line 14 GA top? Our team can configure the perfect table for your dishroom.
Popular accessories (sold separately)
- Deck-mount pre-rinse faucet assembly
- Stainless steel wall shelves for racks & chemicals
- Solid undershelf for extra storage
Built to endure the busiest commercial kitchens, this Advance Tabco dishlanding soil dishtable delivers efficient workflow, effortless sanitation, and lasting beauty—backed by one of the most trusted names in stainless fabrication.
