Advance Tabco DTS-D70-144R Compartment Sinks
Description

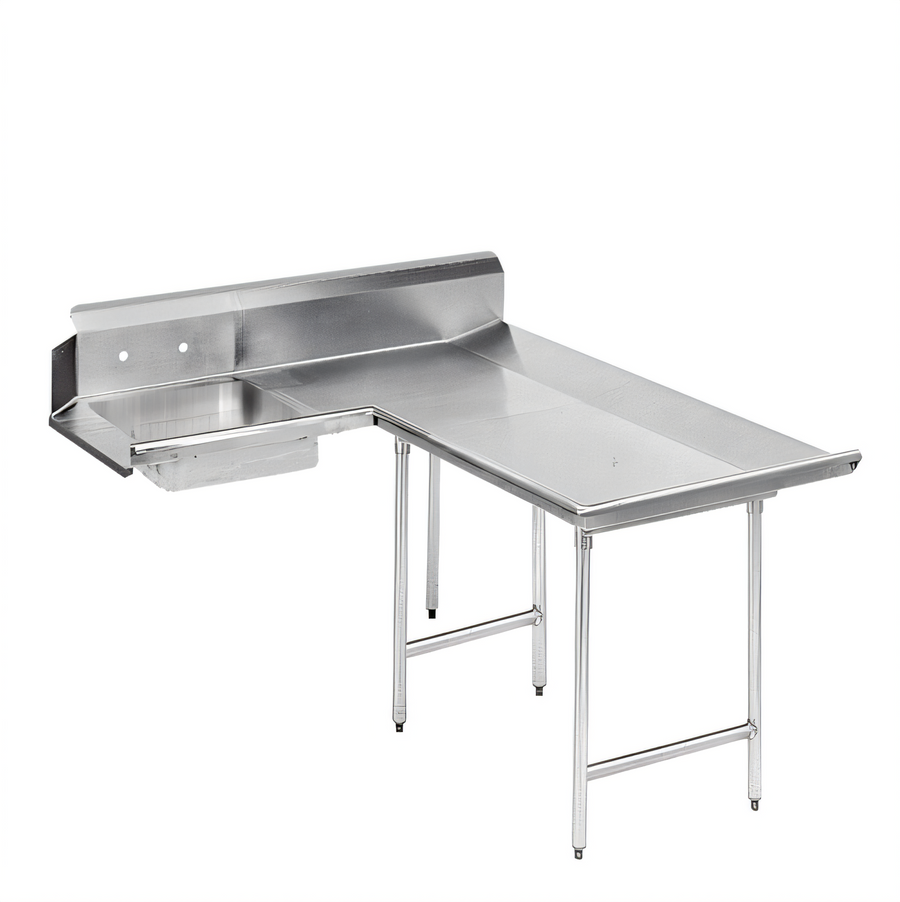

Advance Tabco 12 ft “Dishlanding” Soil Dishtable – Right Hand, L-Shape, 16 Ga 304 SS
Model: DTS-D70-144R (Dishlanding Soil, attaches to right of dish machine operator)Designed for high-volume ware-washing lines, this L-shaped “Dishlanding” soil dishtable combines a generous rack-landing platform with an integrated pre-rinse sink, letting your crew scrape, stage, and load soiled wares faster and more ergonomically. Built entirely from food-grade 16 gauge 304 stainless steel and reinforced with welded crossrails, it stands up to daily punishment while meeting NSF sanitation standards.
Why It Belongs In Your Dish Room
- 143 in. overall length maximizes scraping & landing space without custom fabrication.

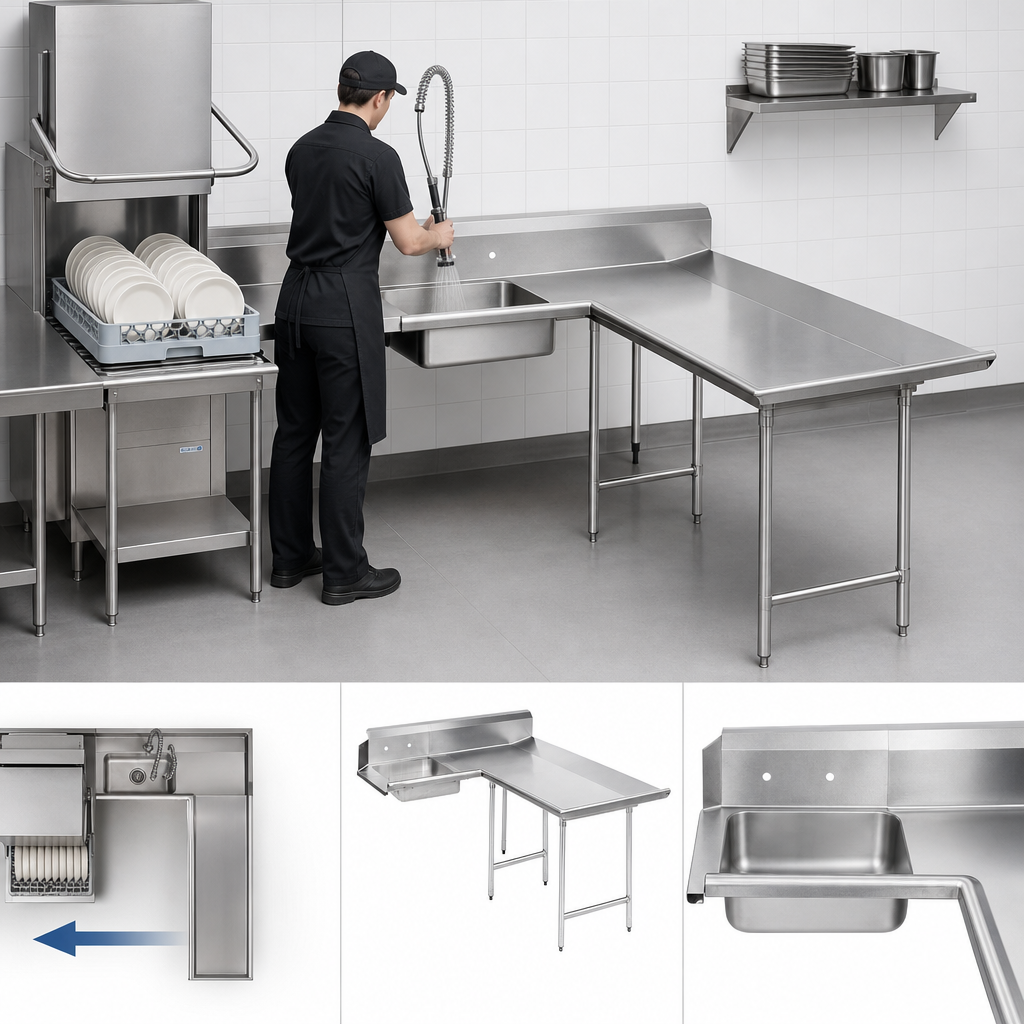

- Right-hand configuration bolts directly to the entry side of your dish machine (operator faces machine; table on the right).
- 10 ½ in. extra-high backsplash with 2 in. tile-edge return keeps water & debris off surrounding walls.
- 20 in. × 20 in. × 5 in. pre-rinse sink speeds up rack preparation; 1 ½ in. IPS basket drain included.
- Factory-punched 8 in.-on-center faucet holes—just add your preferred pre-rinse spray (sold separately).
- All-TIG-welded construction; welds are blended to a uniform satin finish for easy cleaning.
- 1 ⅝ in.-dia. 16 ga 304 stainless legs with welded cross bracing and adjustable bullet feet for rock-solid support.
- NSF Listed & manufactured in the USA by Advance Tabco.
Technical Specifications
| Overall length | 143 in. (12 ft nominal) |
|---|---|
| Table type / flow | L-shaped Soil (Right-hand – entry side of machine) |
| Top material | 16 ga 304 stainless steel |
| Legs / bracing | 16 ga 304 SS, 1 ⅝ in. Ø | Welded crossrails, stainless bullet feet (1 in. adj.) |
| Backsplash | 10 ½ in. H with 2 in. tile-edge return |
| Sink bowl | 20 in. × 20 in. × 5 in. deep (soil section) |
| Drain | 1 ½ in. IPS basket-type (included) |
| Faucet holes | (2) holes on 8 in. centers, punched in backsplash |
| Shipping weight | ≈ 390 lb |
| Compliance | NSF, ANSI/ASTM A240 (304SS) |
What’s Included
- Right-hand Dishlanding soil dishtable (as detailed above)
- Integrated 20 ×20 ×5 in. sink bowl with basket drain
- Welded stainless legs, crossrails & bullet feet
What You’ll Need (Sold Separately)
- Pre-rinse faucet or spray assembly (8 in. centers)
- Wall mounting hardware & silicone for tile edge (as required)
- Compatible dish machine (verify orientation & clearances)
Advance Tabco continuously improves products; specifications are subject to change without notice.
