Advance Tabco  |  SKU: DTS-D70-144L

Advance Tabco DTS-D70-144L Compartment Sinks

$5,414.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

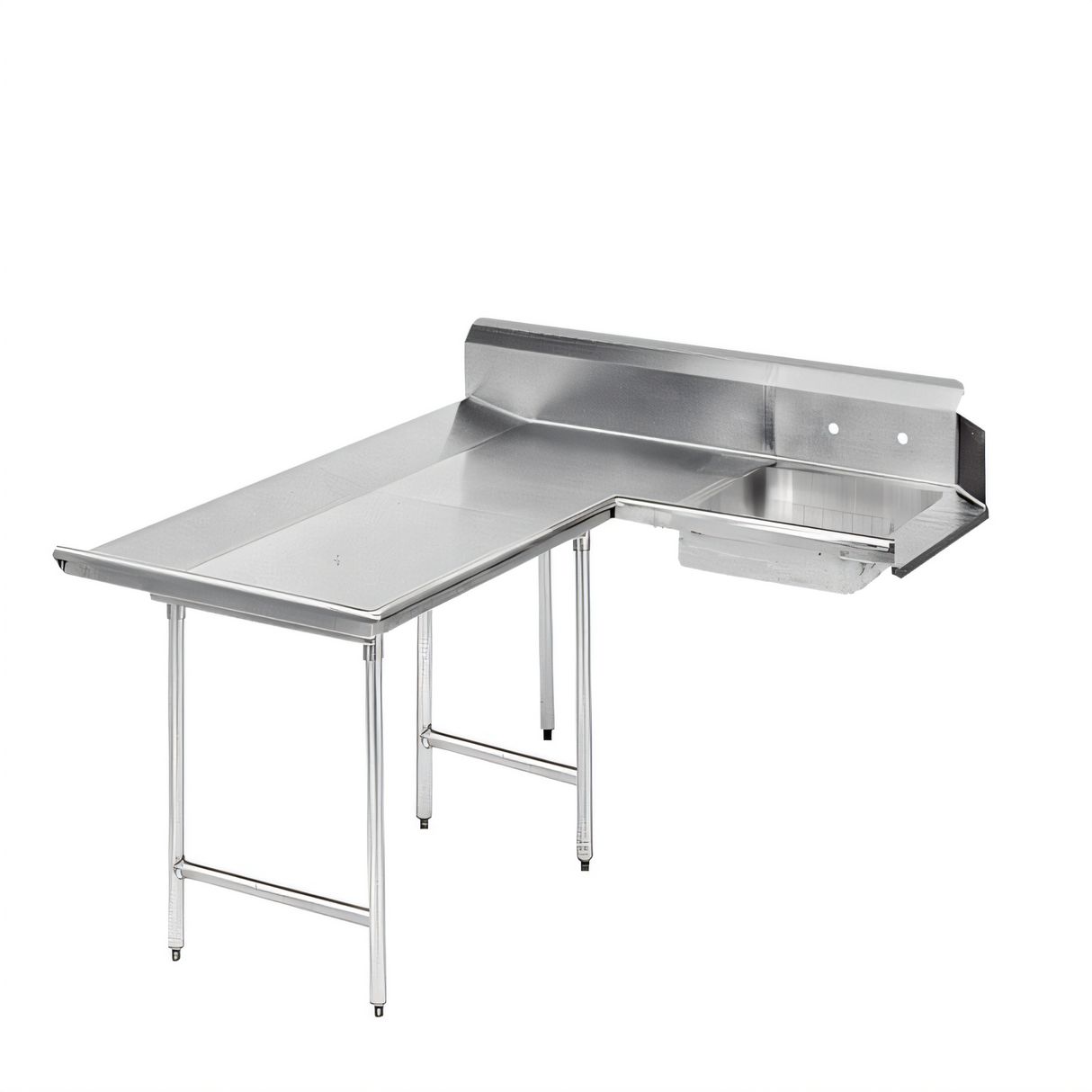

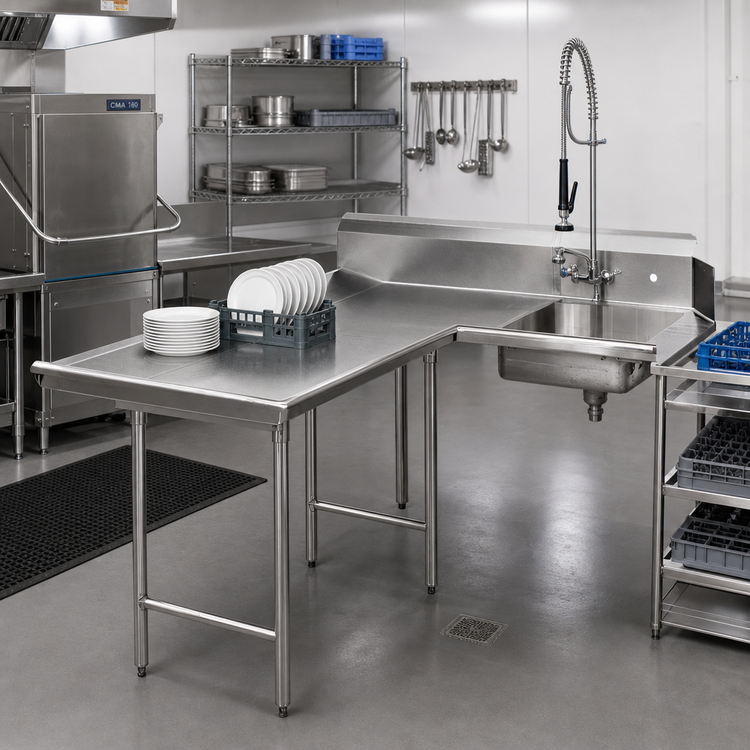

Advance Tabco Dishlanding Soil Dishtable – 143" Left Landing

Standard Series • Model reference: DTS-D70-144L

Streamline your dishroom with an NSF-listed, L-shaped soil dishtable that delivers rugged construction, smart ergonomics and seamless integration with your left-hand dish machine set-up. Built from heavy-duty 16 ga. type 304 stainless steel and reinforced with welded cross bracing, this 143" workstation is designed to shrug off daily punishment while keeping workflow smooth and sanitary.

Key Features

  • 143" overall length with 67" dishlanding section – ideal for high-volume racks

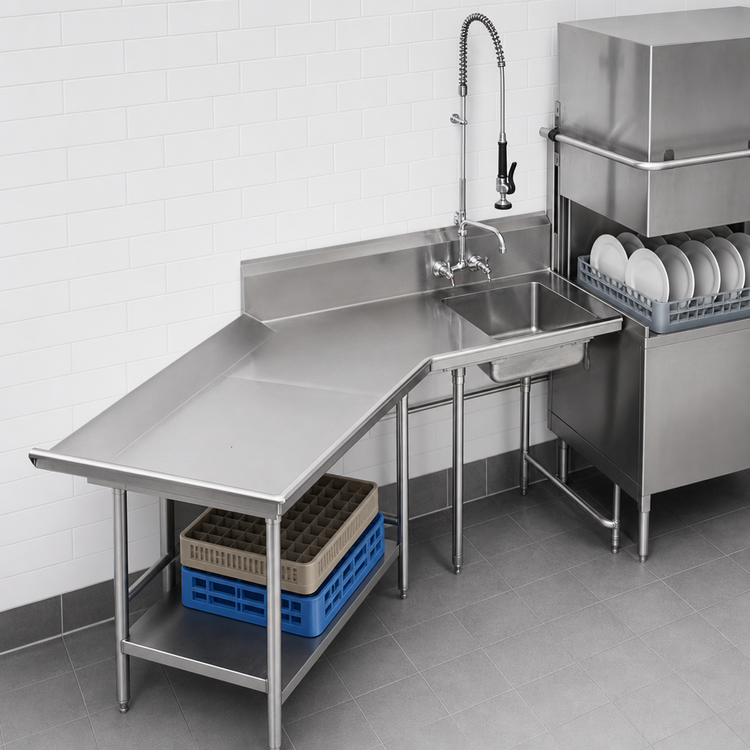

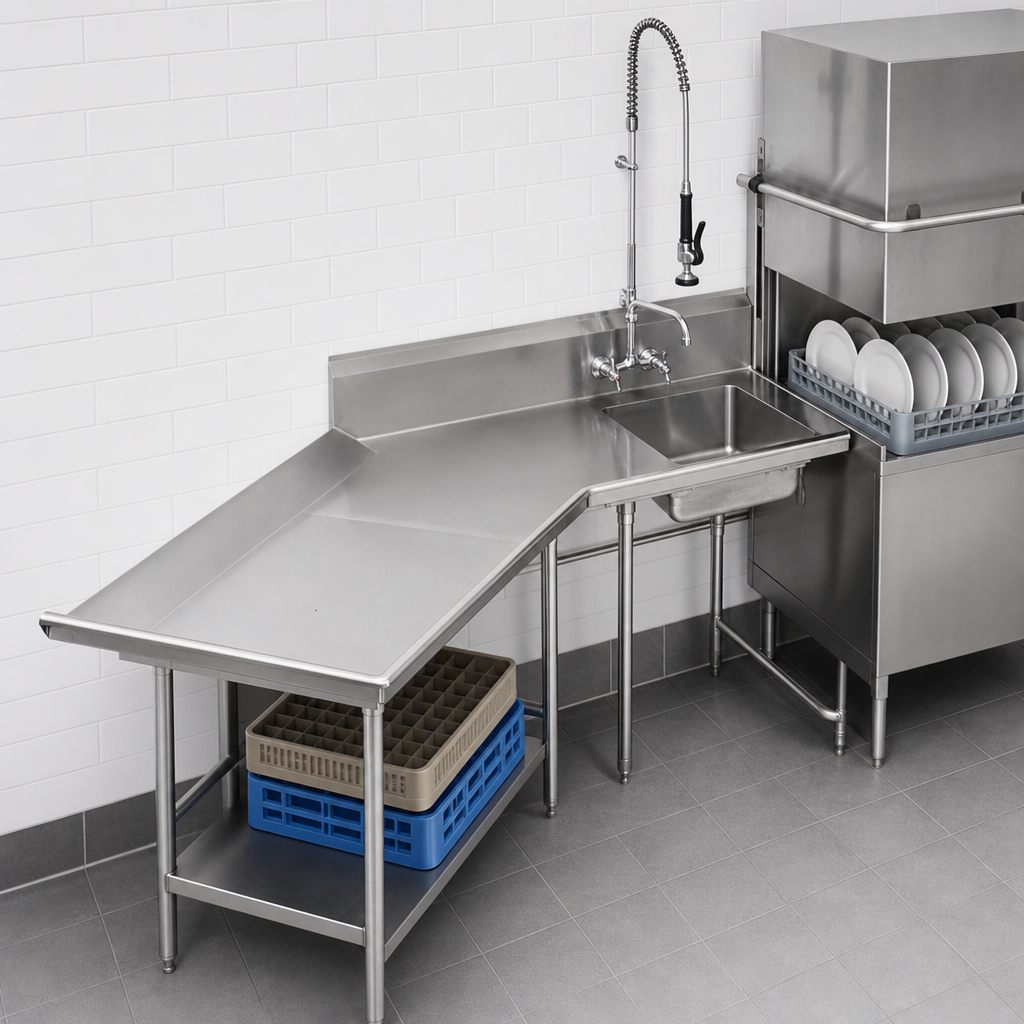

  • L-shaped layout mounts to the left of the dish machine operator
  • 10-1/2" high backsplash with 2" tile-edge return for fast, watertight wall installation
  • Integrated pre-rinse sink (20" × 20") supplied with 1-1/2" IPS basket drain
  • Faucet holes pre-punched on 8" centers (faucet not included)
  • 1-5/8" Ø stainless steel legs with welded crossrails and adjustable bullet feet
  • All TIG-welded seams blended to a satin finish for easy wipe-down
  • Type 304 stainless throughout – corrosion-resistant & food-safe
  • NSF listed & ready for Smart Fabrication™ custom modifications

At-a-Glance Specs

Overall length 143" (12 ft)
Orientation Left-hand soil landing
Top material / gauge 16 ga. 304 stainless steel
Backsplash 10-1/2" H with 2" return & tile edge
Sink bowl size 20" × 20" × 5" D (basket drain included)
Legs / bracing 1-5/8" Ø 304 SS legs with welded crossrails & adjustable bullet feet
Approx. weight 390 lb
NSF certification Yes
Important: Always verify clearances with the Advance Tabco Dish Machine Compatibility Chart before ordering. Additional Smart Fabrication™ modifications may be required for certain dish machines.

Need a different length, bowl depth or faucet? Contact us for Smart Fabrication™ options and quick lead times.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

345.0lbs

Splash Height

10"H splash

Shape

corner

Width (machine - corner) OA

61" - 72"

Leg Type

stainless steel legs

Stainless Gauge

16 gauge

Width (end - corner) OA

133" - 144"

Stainless Series

300 series

Direction

left to right

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 143" long, 16/304 stainless steel
