Description

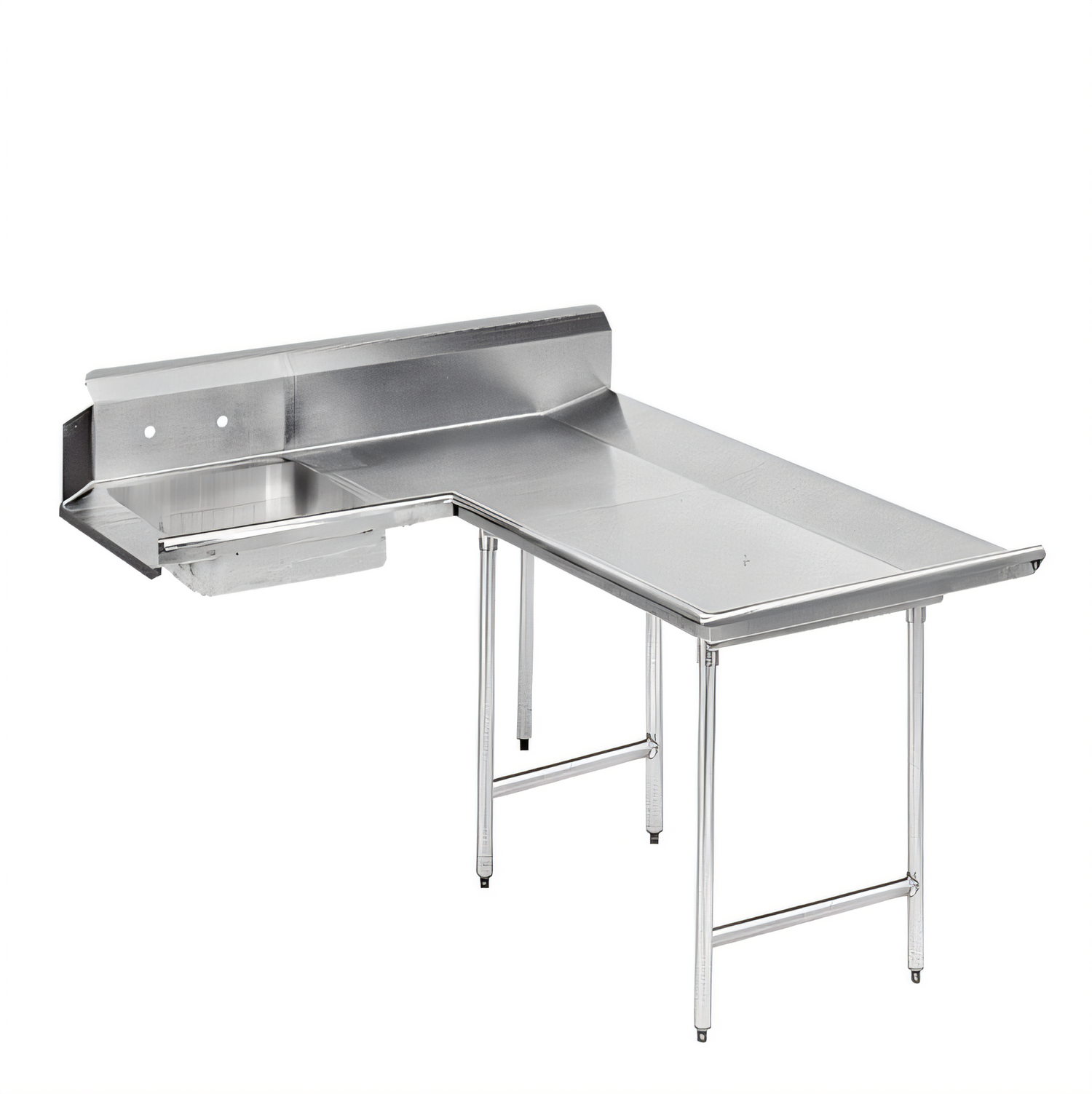

Advance Tabco Dishlanding Soil Dishtable – 119" Right-Hand Landing

Model DTS-D70-120R | 16-Gauge 304 Stainless Steel

Streamline pre-rinse work and keep incoming ware organized with this L-shaped, right-hand Dishlanding Soil Dishtable from Advance Tabco. Built from rugged 16 ga 304 stainless steel, the 119" table delivers ample landing space, an integrated sink bowl, and an extra-tall tile-edge backsplash that installs quickly and protects surrounding walls.

Key Features
  • Right-side configuration attaches directly to the operator’s right of a door-type or conveyor dish machine.
  • 16 ga 304 stainless steel top resists corrosion and heavy daily use.
  • 10 1⁄2" high backsplash with 2" tile-edge return for a clean, watertight seal.
  • L-shaped “dishlanding” design maximizes landing & scraping area without enlarging your footprint.
  • 20" × 20" × 5" pre-rinse sink bowl with 1 1⁄2" IPS basket drain (included).
  • Pre-punched 8"-on-center faucet holes—just add the prerinse faucet you prefer (sold separately).
  • 1 5⁄8" Ø 16 ga stainless legs with welded crossrails & adjustable stainless bullet feet for rock-solid stability.
  • All TIG-welded construction; welds are blended to a satin finish to match adjacent surfaces.
  • NSF listed & proudly fabricated in the USA.
Dimensions & Specifications
Overall length 119" (nominal 10 ft)
Front-to-back (landing) 30"
Bowl size 20" W × 20" L × 5" D
Backsplash height 10 1⁄2" with 2" return
Top material 16 ga 304 series stainless steel, satin finish
Legs / bracing 16 ga 304 stainless, welded crossrails, 1" adjustable bullet feet
Drain 1 1⁄2" IPS basket-type (included)
Faucet holes 8" centers (faucet not included)
Orientation Right-hand soil table (mounts on operator’s right)
Approx. shipping weight 380 lb
Optional Accessories (sold separately)
  • Pre-rinse faucet assemblies
  • Stainless wall shelves
  • Stainless undershelves
Important: Confirm dish-machine compatibility before ordering. Consult the Advance Tabco Dish Machine Compatibility Chart or contact our support team for assistance.

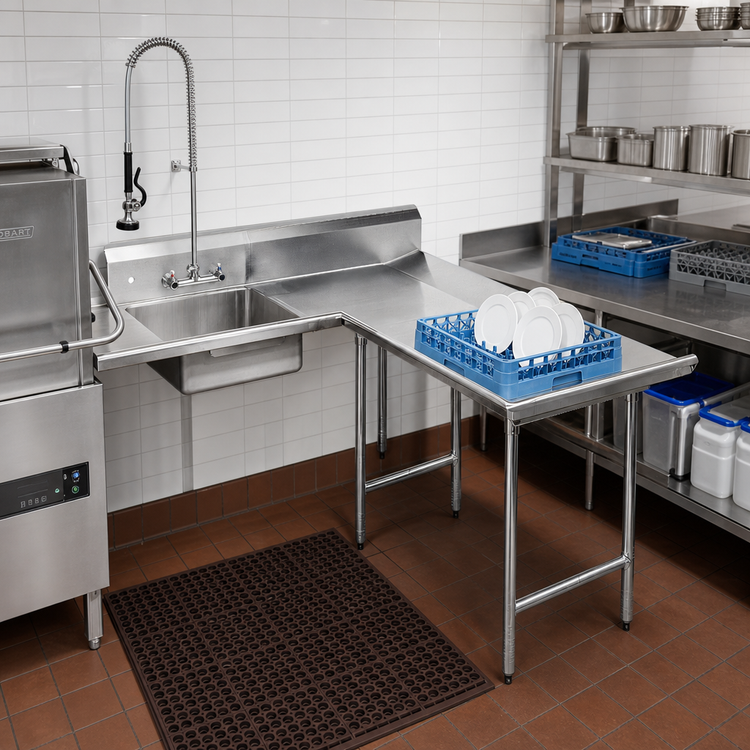

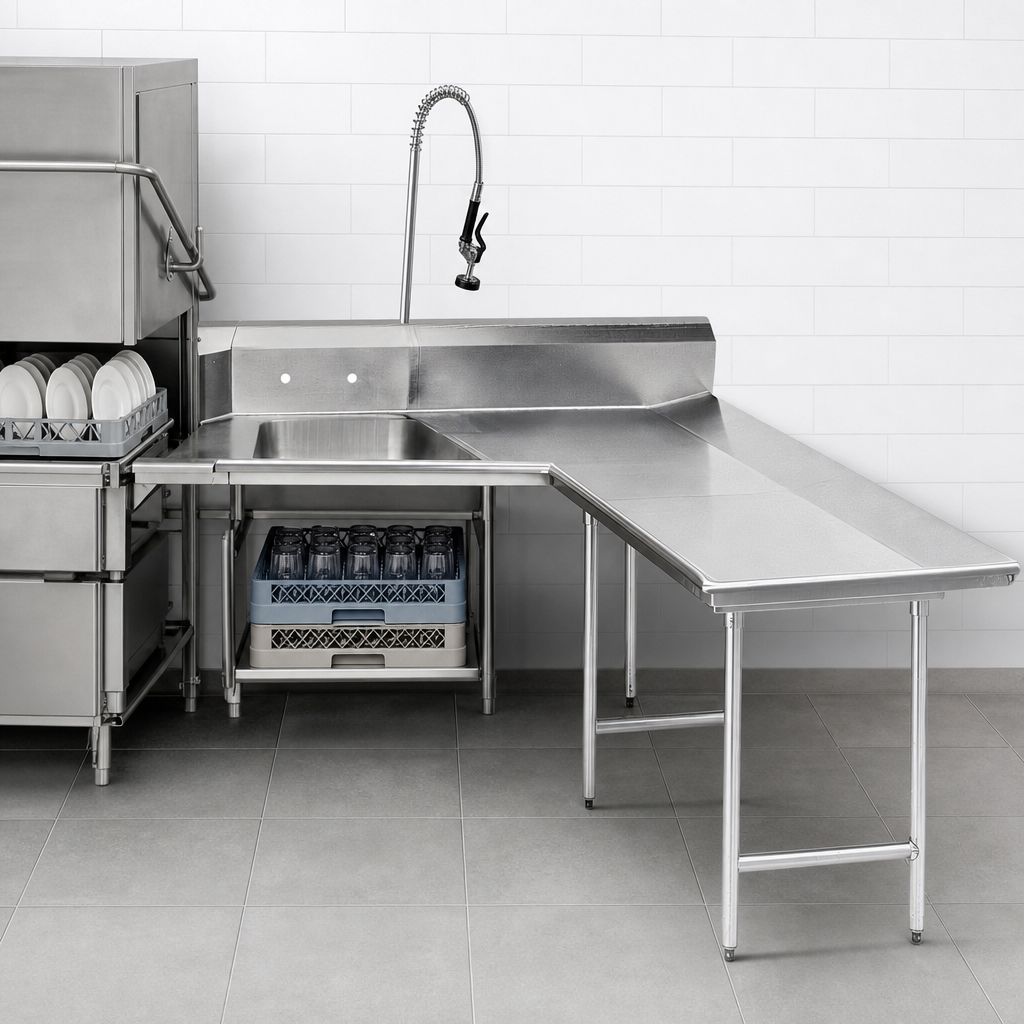

Photos may show faucets, scrap baskets, and dish machines for illustration only; these items are not included.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

305.0lbs

Splash Height

10"H splash

Shape

corner

Width (machine - corner) OA

61" - 72"

Leg Type

stainless steel legs

Direction

right to left

Stainless Series

300 series

Stainless Gauge

16 gauge

Width (end - corner) OA

109" - 120"

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs, with crossrails, 119" long, 16/304 stainless steel
