Advance Tabco DTS-D70-108L Compartment Sinks
Description

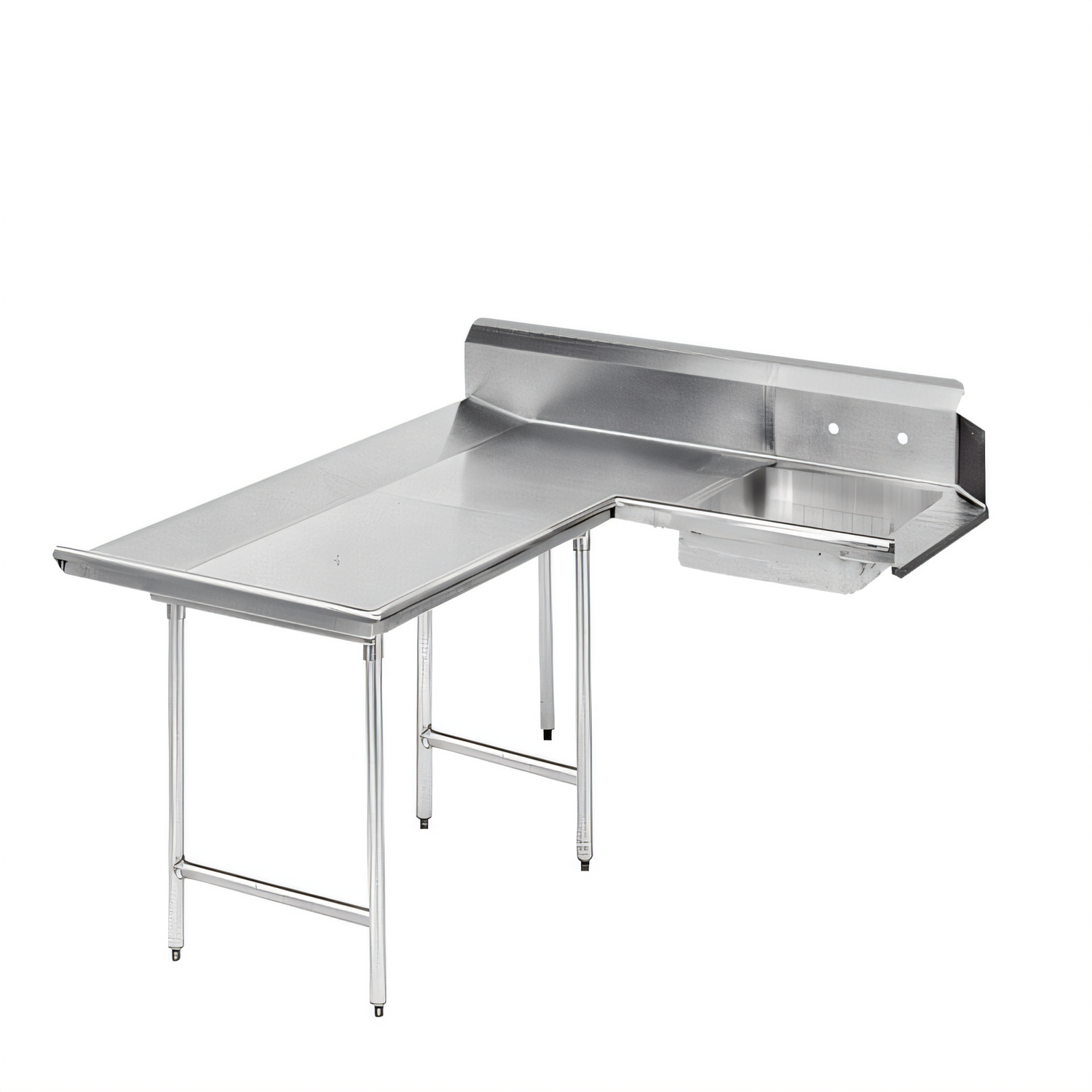

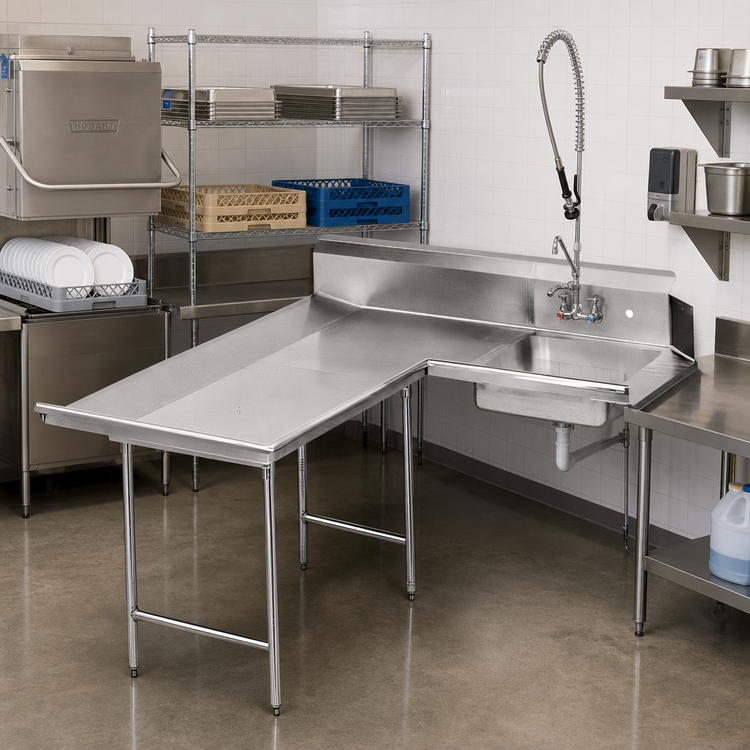

Advance Tabco 107" L-Shaped Dishlanding Soil Dishtable – Left Side
Model DTS-D70-108L | Standard Series | NSF ListedDesigned for high-volume warewashing rooms, the Advance Tabco DTS-D70-108L provides a generous landing area for soiled racks, a built-in pre-rinse sink, and the rugged durability that only an all-welded 16 ga 304 stainless steel table can deliver. Its left-hand “L” configuration mates directly to the entry side of your dishmachine, speeding workflow while containing mess and splatter behind a towering 10-½" backsplash.
Why You’ll Love It
- L-shape with landing shelf keeps soiled racks off the floor and within easy reach of the pre-rinse station.
- 10-½" high backsplash with 2" tile-edge return contains water and simplifies wall installation.
- 20" × 20" × 5" deep pre-rinse sink speeds scrap-off; 1-½" IPS basket drain is factory-installed.
- Faucet holes pre-punched on 8" centers—simply add your favorite pre-rinse faucet (sold separately).
- All TIG-welded 16 ga 304 stainless top with fully blended seams for a sanitary, satin finish.
- 1-5/8" Ø 16 ga 304 stainless legs with welded crossrails and adjustable stainless bullet feet for rock-solid stability.
- Nominal 9-ft length (107") provides ample landing space without overwhelming your dishroom.
- NSF certified and built in the USA for years of worry-free service.
Built to Work as Hard as You Do
- Top, legs, gussets, crossrails & feet are all 304 stainless steel—ideal for harsh, wet environments.
- TIG welds are blended to match surrounding surfaces, eliminating crevices that can harbor bacteria.
- Tile-edge backsplash seats flush against wall tile for a neat, caulk-free installation.
- Adjustable bullet feet level the table on uneven floors (1" adjustment range).
Technical Specifications
| Manufacturer / Model | Advance Tabco DTS-D70-108L |
|---|---|
| Series | Standard Dishlanding Soil |
| Overall Length | 107" (Nominal 9 ft) |

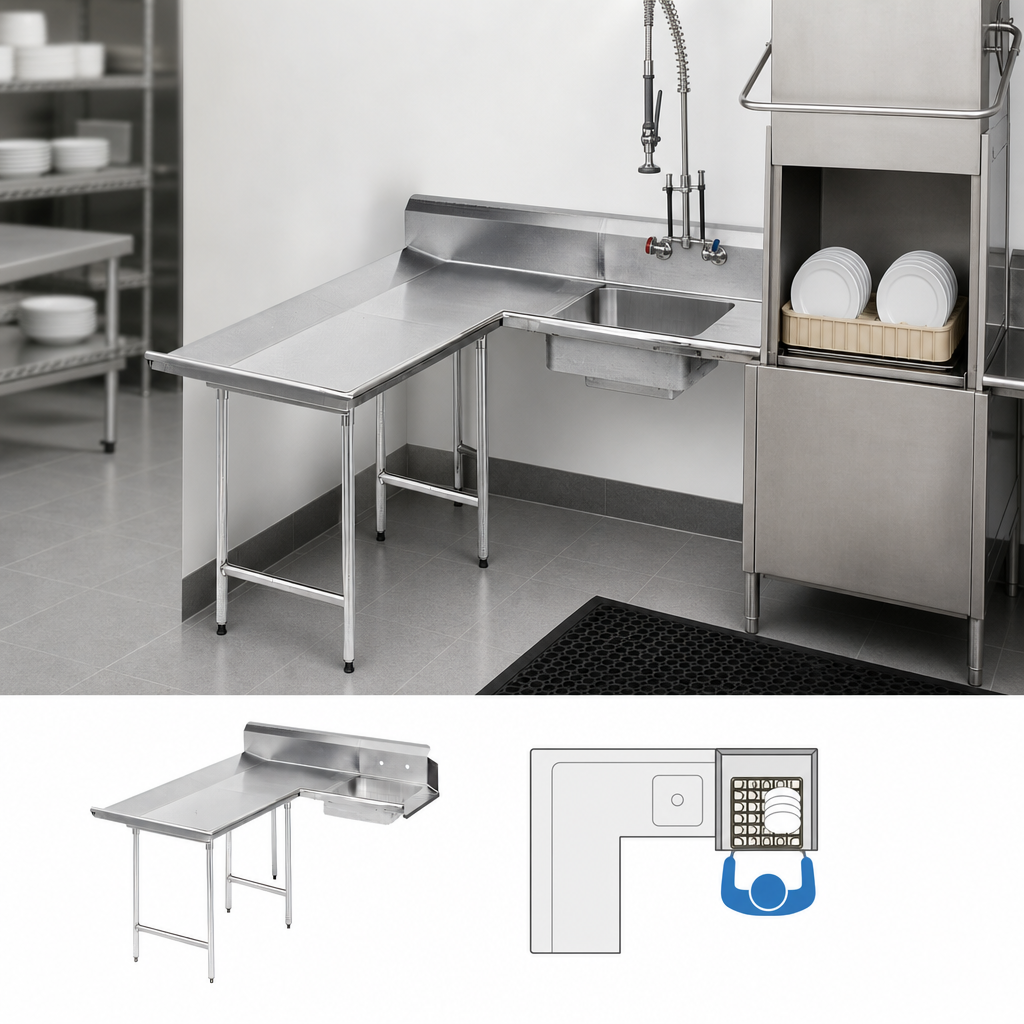

| Orientation | Left side of dishmachine (operator faces machine) |
| Top Material | 16 ga 304 Stainless Steel |
| Legs & Bracing | 1-5/8" Ø 16 ga 304 SS legs with welded crossrails & stainless bullet feet |
| Backsplash | 10-½" H with 2" tile-edge return |
| Sink Bowl | 20" × 20" × 5" deep pre-rinse bowl, 1-½" IPS basket drain included |
| Faucet Holes | Punched on 8" centers (faucet not included) |
| Approx. Shipping Weight | 320 lb |
| Certifications | NSF |
What’s Included
- Dishlanding soil dishtable (left-hand L-shape), fully assembled
- Pre-rinse sink with basket drain
- Stainless steel legs with welded crossrails & adjustable feet
Need Help Sizing Your Dishroom?
Our food-service specialists are ready to create a complete dishroom layout—just click “Ask a Question” or call the number below and we’ll make sure the DTS-D70-108L is the perfect fit.
