Advance Tabco  |  SKU: DTS-D30-96R  |  UPC: 747545120724

Advance Tabco DTS-D30-96R Compartment Sinks

$5,253.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

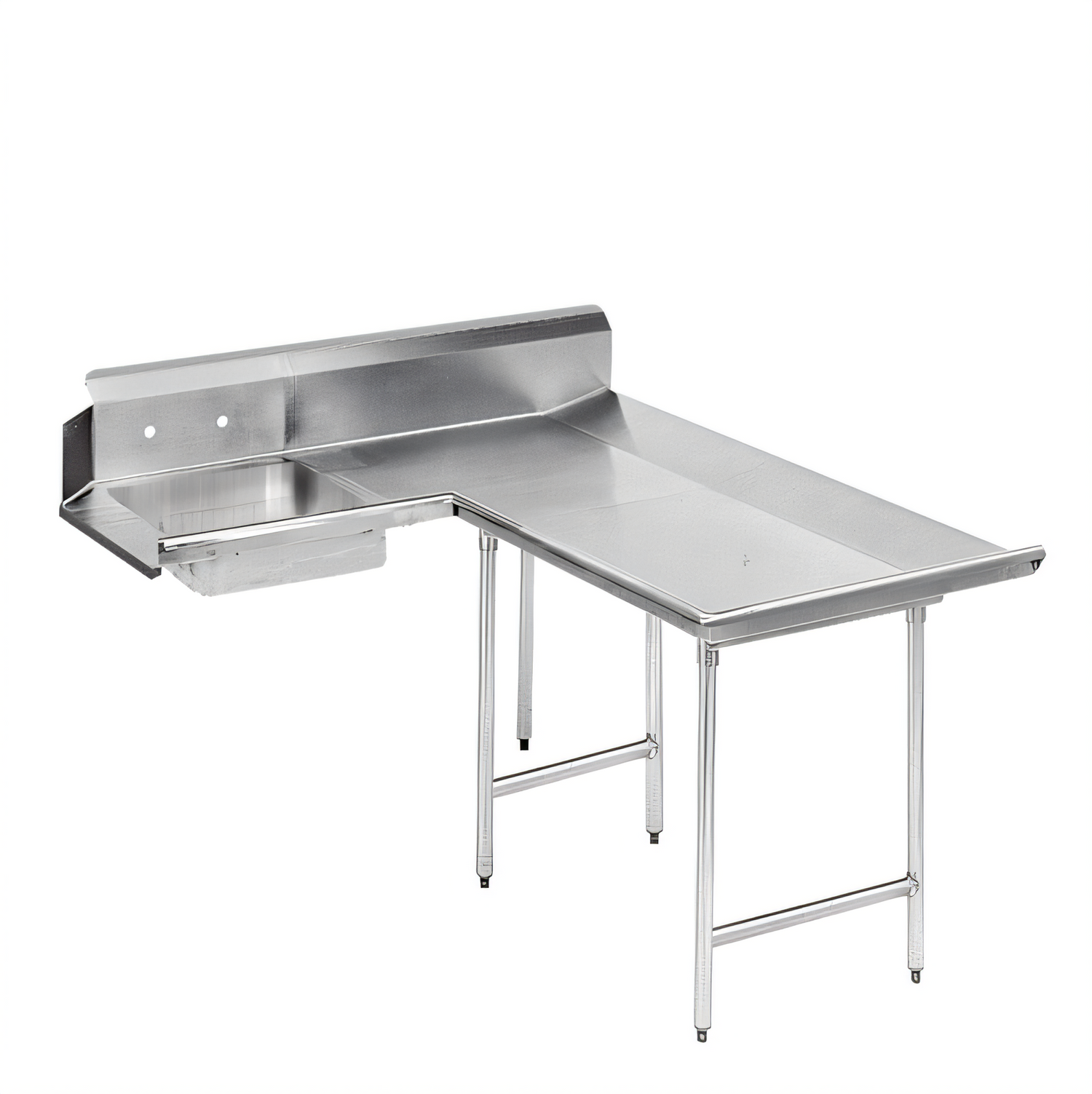

Advance Tabco Spec-Line Dishlanding Soil Dishtable – Right Side, 95"

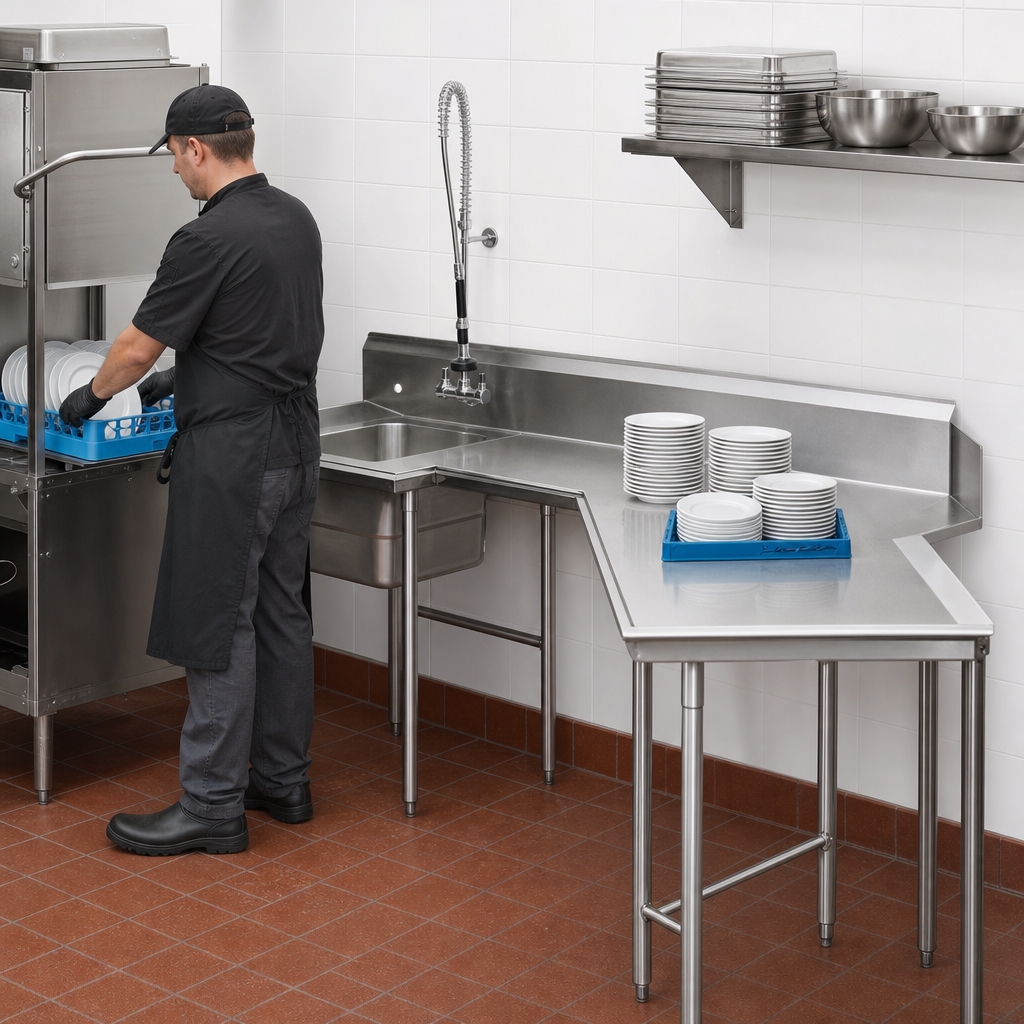

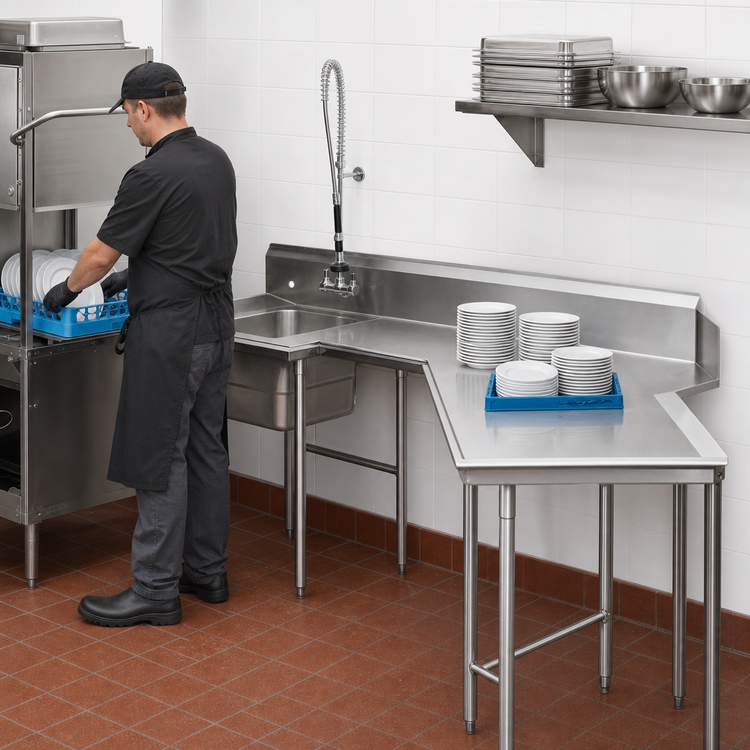

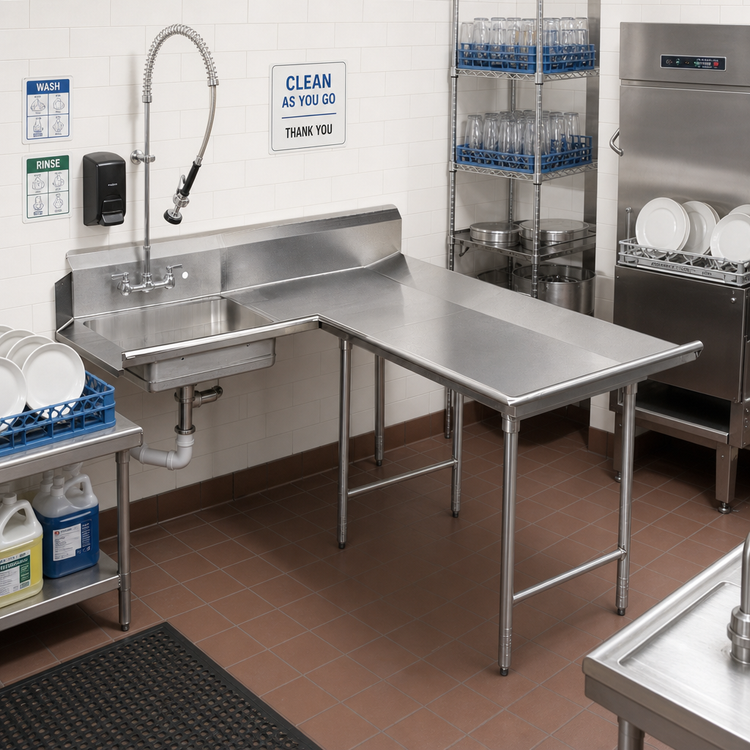

Model: DTS-D30-96R • L-Shaped with Landing • NSF Listed

Engineered for high-volume warewashing, this 95" Spec-Line dishlanding soil dishtable mounts to the right of the dish-machine operator, giving staff a generous landing area, integrated pre-rinse sink and the rugged durability of 14 ga 304 stainless steel. The smart L-shape keeps racks within arm’s reach while freeing up valuable aisle space.

Key Features
  • 14 ga / 304 stainless steel top with satin finish resists corrosion, dents and harsh chemicals.
  • Extra-large 10 ½" backsplash with 2" return and tile-edge design for quick, sanitary wall installation.
  • 20" × 20" × 8" deep pre-rinse sink—perfect for scraping and soaking ware before the wash cycle.
  • 1 ½" IPS basket drain and prerinse scrap basket included for immediate, code-compliant use.
  • Factory-punched 8" O.C. faucet holes (pre-rinse faucet/sprayer sold separately).
  • 16 ga / 304 stainless legs with welded front-to-back crossrails and adjustable bullet feet provide rock-solid support.
  • All TIG-welded construction; seams are blended smooth for easy cleaning and a seamless appearance.
  • Part of Advance Tabco’s Smart Fabrication™ line—ready for add-on shelves, disposer adapters and more.
Technical Specifications
Overall length 95" (Nominal 8 ft)
Orientation Right side – soil/entry side to dish machine
Configuration L-shape with 30" landing wing & 20" dish drop
Top material 14 ga 304 stainless steel
Backsplash height 10 ½" with 2" return, tile edge
Sink bowl size & depth 20" W × 20" F-B × 8" D
Drain 1 ½" IPS basket type (included)
Legs & bracing 1 5⁄8" Ø 16 ga 304 SS legs with welded crossrails; stainless bullet feet
Faucet openings (2) holes on 8" centers
NSF certification Yes
Important: A slide bar for the prerinse scrap basket is supplied only when a K-461 or K-461A disposer adapter is ordered with the table. Pre-rinse faucet/sprayer sold separately.

Unsure about dish-machine compatibility? Consult the Advance Tabco Compatibility Chart or contact our team before ordering.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

285.0lbs

Splash Height

10"H splash

Leg Type

stainless steel legs

Width (machine - corner) OA

61" - 72"

Shape

corner

Direction

right to left

Stainless Series

300 series

Stainless Gauge

14 gauge

Width (end - corner) OA

85" - 96"

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 95" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
