Advance Tabco  |  SKU: DTS-D30-84L  |  UPC: 747545120694

Advance Tabco DTS-D30-84L Compartment Sinks

$5,216.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

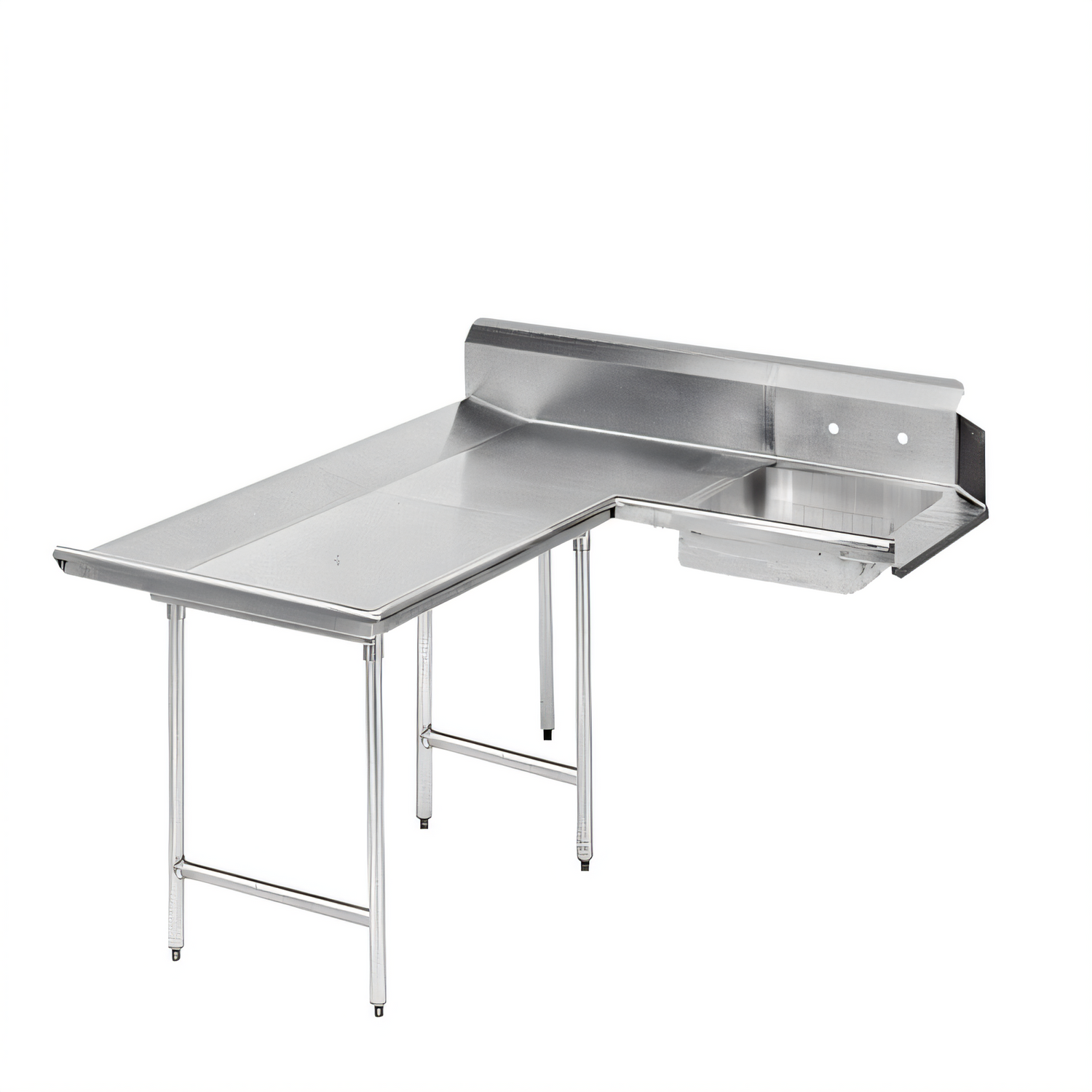

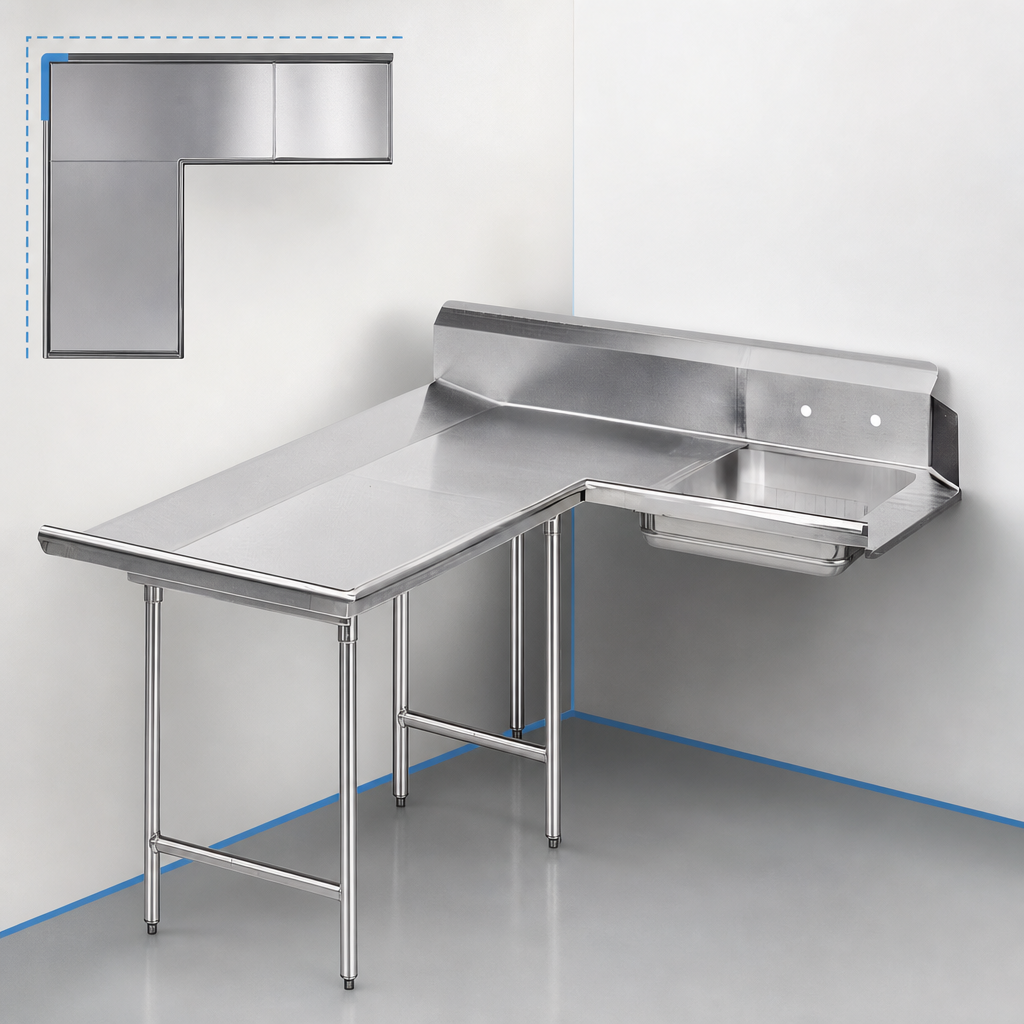

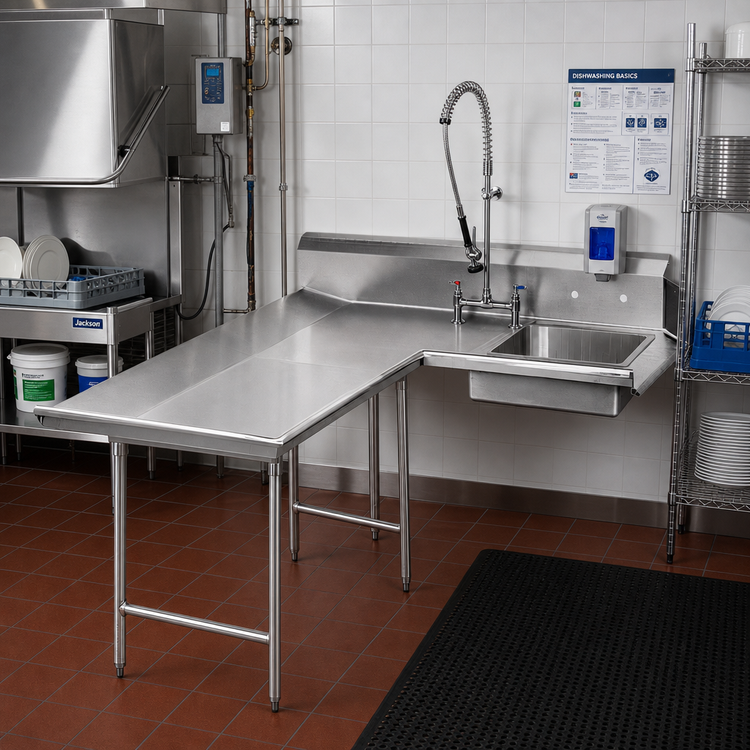

Advance Tabco Dishlanding Soil Dishtable – 83" L-Shape (Left Side)

Spec-Line • 14-Gauge 304 Stainless Steel Top • Integral Prerinse Sink & Basket

Optimize the flow of soiled ware into your dish machine with this heavy-duty, NSF-listed Dishlanding Soil Dishtable. Built for years of rugged service, the 83" L-shaped table provides a generous landing area, an 8" deep prerinse sink, and a towering 10-1/2" backsplash that keeps water and debris where they belong—off your walls and floor.

Key Features

  • Left-hand configuration: mounts to the left of the dish-machine operator for a right-to-left workflow.
  • Extra-large 10-1/2" backsplash with 2" tile edge simplifies installation and protects surrounding surfaces.
  • Spec-Line construction: rugged 14-gauge, type 304 stainless steel top resists corrosion and dents.
  • 16-gauge, 1-5/8" Ø stainless steel legs with welded front-to-back crossrails and adjustable stainless bullet feet.
  • 8" deep prerinse sink bowl (20" × 20") with 1-1/2" IPS basket drain included.
  • Faucet holes pre-punched on 8" centers for fast field installation (faucet sold separately).
  • Prerinse basket supplied; slide bar ships when disposer adapter K-461 or K-461A is specified.
  • All TIG-welded construction; welds are blended to a smooth, sanitary satin finish.
  • NSF certified for open-kitchen peace of mind.

Specifications

Overall length 83" (nominal 7 ft)
Orientation L-shaped dishlanding soil table – left of dish machine
Top material & thickness 14-ga 304 SS with tile-edge rim
Backsplash 10-1/2" H with 2" return
Sink bowl size 20" W × 20" L × 8" D
Drain outlet 1-1/2" IPS basket drain (included)
Legs & bracing 16-ga 304 SS legs, welded crossrails (front-to-back)
Adjustability Stainless bullet feet, 1" height adjustment
Faucet holes 8" on-center (faucet not included)
NSF listed Yes

Unsure if this table will fit your dish machine? Check Advance Tabco’s Dish Machine Compatibility Chart or contact us for assistance before ordering.

Important: The prerinse slide bar is provided only when disposer adapter model K-461 or K-461A is ordered with the table.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

265.0lbs

Width (end - corner) OA

73" - 84"

Width (machine - corner) OA

61" - 72"

Leg Type

stainless steel legs

Splash Height

10"H splash

Shape

corner

Stainless Gauge

14 gauge

Stainless Series

300 series

Direction

left to right

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to left of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 83" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
