Advance Tabco DTS-D30-60R Compartment Sinks
Description

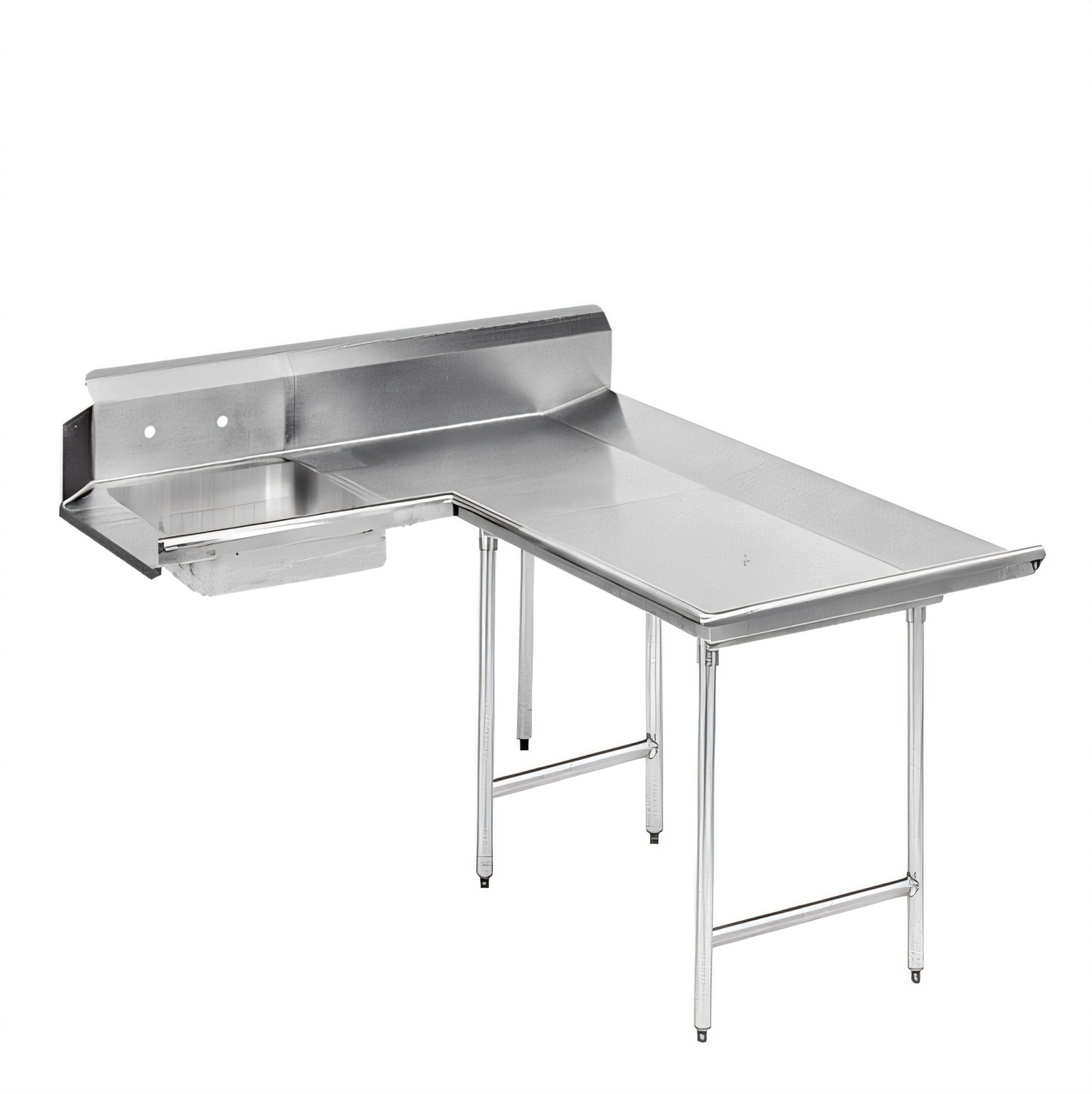

Advance Tabco Spec-Line Dishlanding Soil Dishtable – 59" Right-Hand

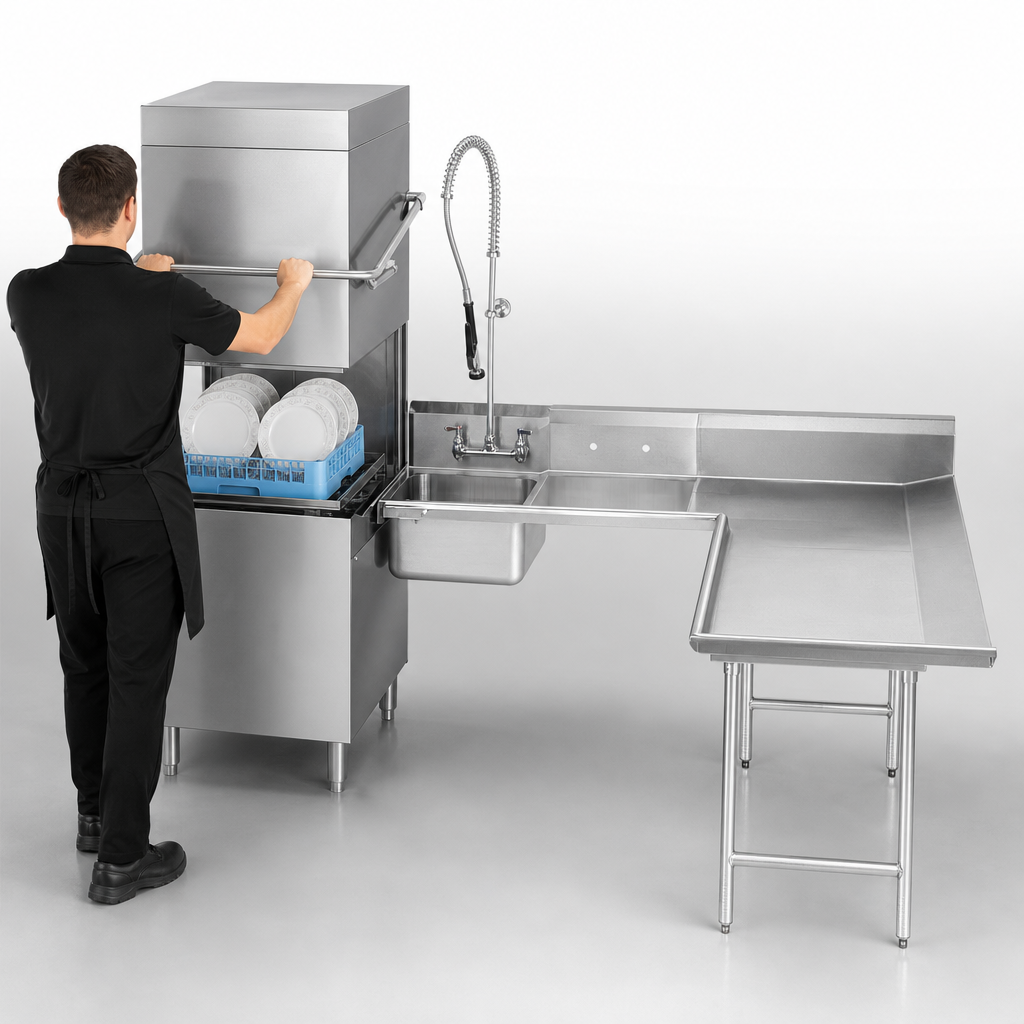

14-Gauge 304 Stainless Steel • L-Shaped with Pre-Rinse Sink & BasketEngineered for demanding commercial kitchens, this heavy-duty dishlanding soil dishtable delivers a smooth, hygienic work flow from scrap to rack. Its space-saving L-shape lands incoming dish racks, contains debris in an extra-deep sink, and feeds your dish machine from the operator’s right-hand side.
Key Features
- 59" overall length – perfect for compact dish rooms without sacrificing landing space.
- 14 ga 304 stainless steel top with smooth tile-edge for a flush, sanitary wall installation.
- 10 ½" tall backsplash (2" return) prevents overspray and keeps walls clean.
- 20" × 20" × 8" pre-rinse sink bowl TIG-welded into the top for maximum strength.
- 1 ½" IPS basket-type waste drain supplied and installed.
- Prerinse basket included; slide bar ships when disposer adapters K-461 / K-461A are specified.
- Leg assembly: 1 5/8"-Ø 16 ga 304 stainless legs with welded front-to-back crossrails & adjustable bullet feet.
- Faucet holes pre-punched on 8" centers (faucet sold separately).
- NSF listed – built to withstand the harshest prep & warewashing environments.
Ideal Applications
- Restaurants & cafeterias
- Hotels & resorts
- Catering & banquet facilities
- Healthcare & institutional kitchens
Technical Specifications
| Configuration | L-shaped soil/landing table, mounts to operator’s right |
|---|---|
| Overall length | 59" (nominal 5 ft) |
| Top material / gauge | 304 stainless steel, 14 ga |
| Legs | 1 5/8"-Ø 304 stainless, 16 ga with welded crossrails & bullet feet (1" adjustment) |
| Backsplash height | 10 ½" with 2" return & tile edge |
| Sink bowl size / depth | 20" × 20" × 8" (Spec-Line) |
| Drain assembly | 1 ½" IPS basket-type (included) |
| Faucet holes | 8" on-center (faucet not included) |
| Included accessories | Prerinse basket, slide bar when paired with disposer adapter K-461 / K-461A |
| Approx. weight | 205 lb |
| Compliance | NSF |
Faucet, disposer adapter, and dish machine shown in photos are sold separately. Dimensions are typical ± 0.5". Continuous product improvement may cause specifications to change without notice.
