Advance Tabco DTS-D30-48R Compartment Sinks
Description

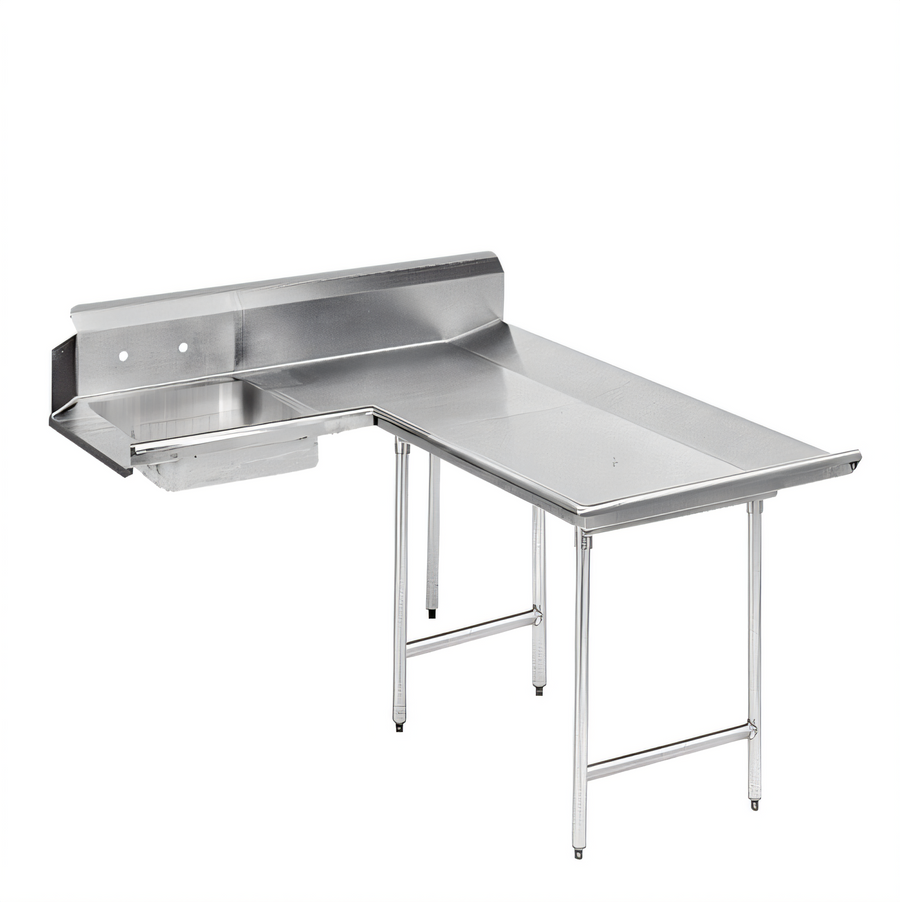

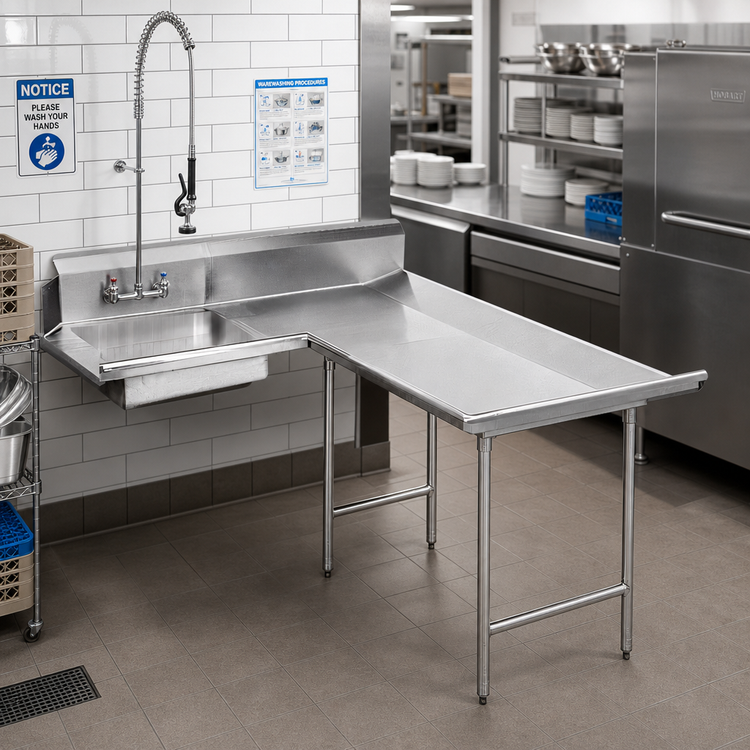

Advance Tabco SPEC-LINE Dishlanding Soil Dishtable – 47" Right-Side, L-Shaped
Model DTS-D30-48R (47 in. overall length)Built for compact dish rooms that demand heavy-duty performance, this 47 inch SPEC-LINE dishlanding soil dishtable lands soiled ware to the right of your dish machine operator, providing an integrated pre-rinse station, generous landing area and the rugged durability of all-304 stainless construction.
Key Features
- 14 ga 304 stainless steel top – extra-thick for maximum strength and long service life.

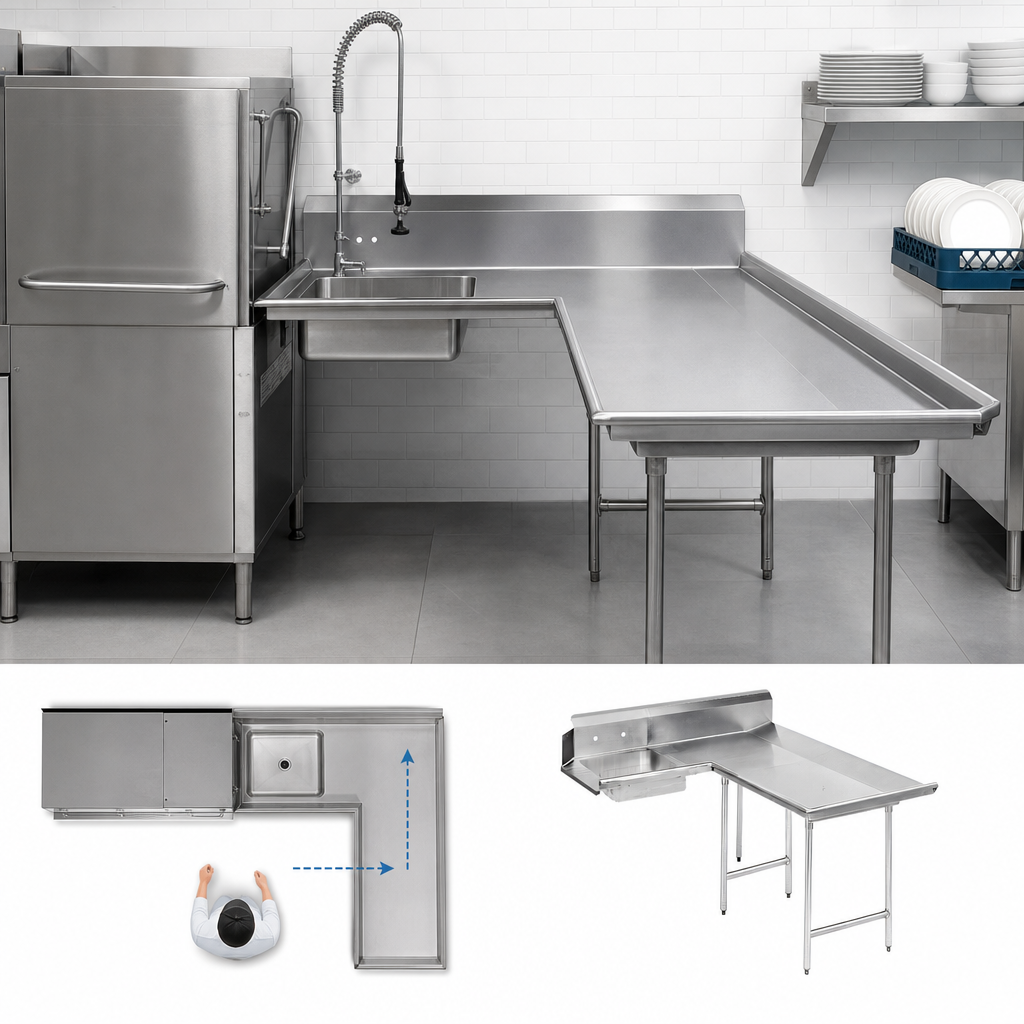

- L-shaped “dishlanding” design adds a 20 in. landing wing for easy rack transfer.
- 10 ½ in. high continuous backsplash with 2 in. tile-edge return for fast, watertight wall installation.
- Integrated 20 in. × 20 in. × 8 in. pre-rinse sink bowl (TIG-welded & satin-blended).
- 1 ½ in. IPS basket drain and included stainless steel pre-rinse basket.
- Faucet holes punched on 8 in. centers (faucet sold separately).
- 16 ga 304 stainless steel legs with welded front-to-back crossrails & 1 in. adjustable bullet feet.
- All TIG-welded construction; welds blended to match adjacent surfaces.
- NSF listed and fabricated in the USA.
At-a-Glance Specifications
| Overall length | 47 in. (nominal 4 ft) |
|---|---|
| Orientation | Right-hand (soil table mounts to operator’s right side) |
| Top material & gauge | 14 ga 304 series stainless steel |
| Legs / bracing | 16 ga 304 stainless steel legs with welded crossrails, 1 in. adjustable bullet feet |
| Sink bowl size (W × L × D) | 20 in. × 20 in. × 8 in. |
| Backsplash height | 10 ½ in. with 2 in. return & tile edge |
| Drain | 1 ½ in. IPS basket-type (included) |
| Landing wing depth | 20 in. |
| Approx. shipping weight | 180 lb |
| NSF/ANSI certification | NSF |
Ideal Applications
- Door-type dish machines in tight back-of-house layouts
- Restaurants, cafeterias and school kitchens needing a dedicated soil landing zone
- Facilities upgrading from 16 ga tops to a heavier 14 ga work surface
Always verify dish machine clearance using the Advance Tabco Dish Machine Compatibility Chart before ordering. Faucets, disposer adapters and additional accessories sold separately.
