Advance Tabco DTS-D30-144R Compartment Sinks
Description

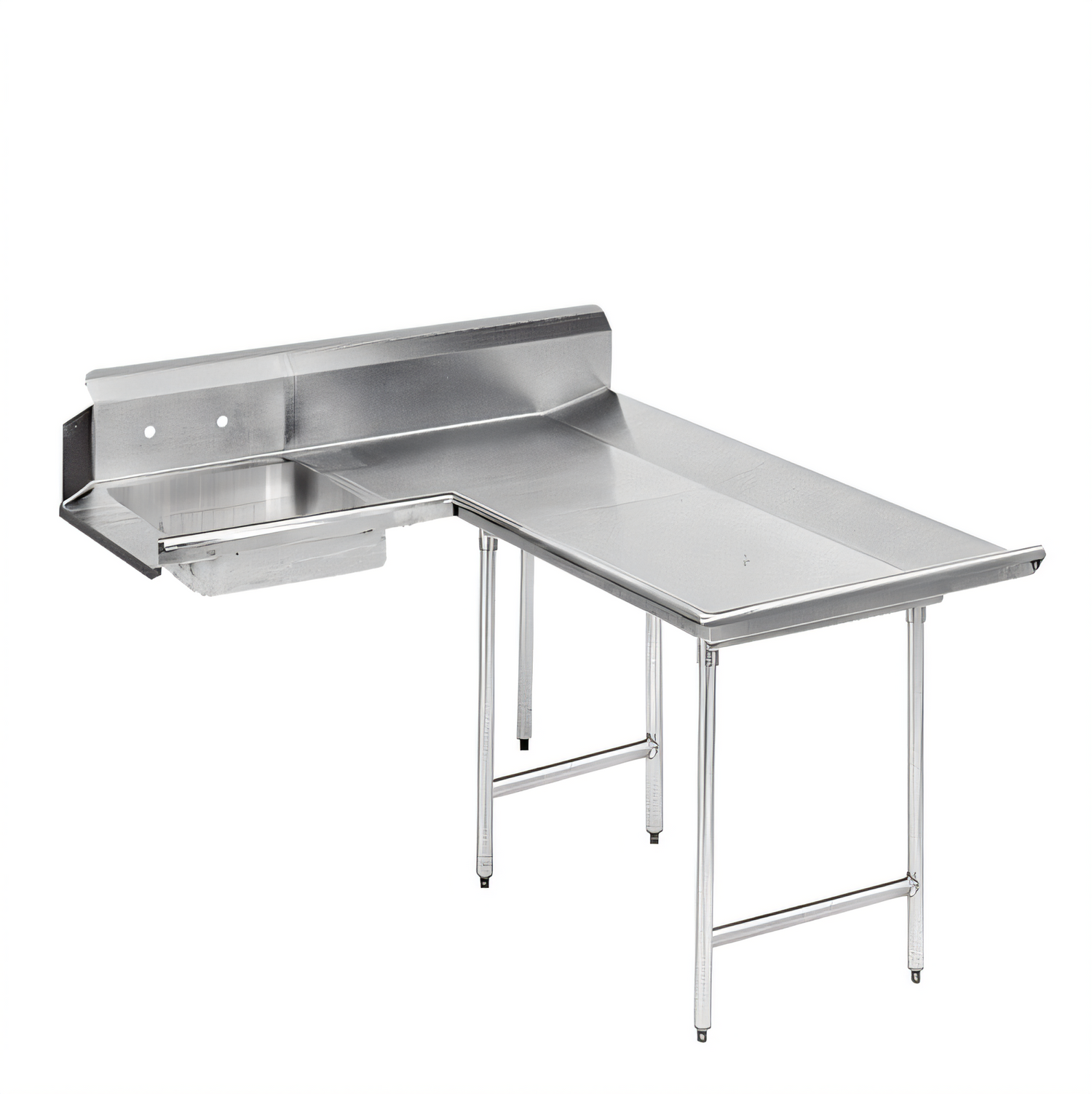

Advance Tabco Dishlanding Soil Dishtable – 143" L-Shaped (Right Side)
Spec-Line • 14 Ga. 304 Stainless Steel Top • Model family: DTS-D30-144RBuilt for high–volume ware-washing lines, this 12 ft. L-shaped soil dishtable mounts to the right of your dish-machine operator, providing a generous landing area, an 8 in. deep pre-rinse sink and the rugged construction you expect from Advance Tabco’s Spec-Line series.
Key Features & Benefits
- Heavy-duty 14 ga. 304 series stainless steel top stands up to constant abuse.
- Extra-large 10 ½ in. high backsplash with 2 in. tile-edge return contains splashes and speeds installation.
- Full 143 in. (nominal 12 ft.) overall length provides ample rack & bus-tub landing space.
- Integrated 20 in. × 20 in. × 8 in. pre-rinse sink streamlines scrap-off; 1 ½ in. IPS basket drain included.
- Pre-rinse basket included; slide bar ships automatically when a K-461 or K-461A disposer adapter is specified.
- Faucet holes pre-punched on 8 in. centers (faucet sold separately).
- All TIG-welded seams are blended to a smooth satin finish for superior sanitation.
- 1 5⁄8 in. Ø 16 ga. 304 stainless legs with welded front-to-back crossrails & adjustable bullet feet for rock-solid support.
- NSF listed & proudly manufactured in the USA.
Technical Specifications
| Overall Length | 143 in. (Nominal 12 ft.) |
|---|---|
| Configuration | L-shaped soil/landing, mounts to right of dish machine operator |
| Top Material / Gauge | 304 SS, 14 ga. |
| Legs & Gussets | 304 SS, 16 ga.; 1 5⁄8 in. Ø with welded crossrails & bullet feet (1 in. adjustment) |
| Backsplash | 10 ½ in. H with 2 in. return, tile-edge design |
| Sink Bowl Size | 20 in. × 20 in. × 8 in. deep (Spec-Line) |
| Sink Drain | 1 ½ in. IPS basket type (included) |
| Faucet Punching | 8 in. on-center (faucet not included) |
| Shipping Weight | Approx. 390 lb. |
Always verify dish-machine compatibility using Advance Tabco’s chart before ordering. Custom SMART Fabrication™ modifications are available for non-standard machines.
