Advance Tabco  |  SKU: DTS-D30-120R  |  UPC: 747545120601

Advance Tabco DTS-D30-120R Compartment Sinks

$5,723.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

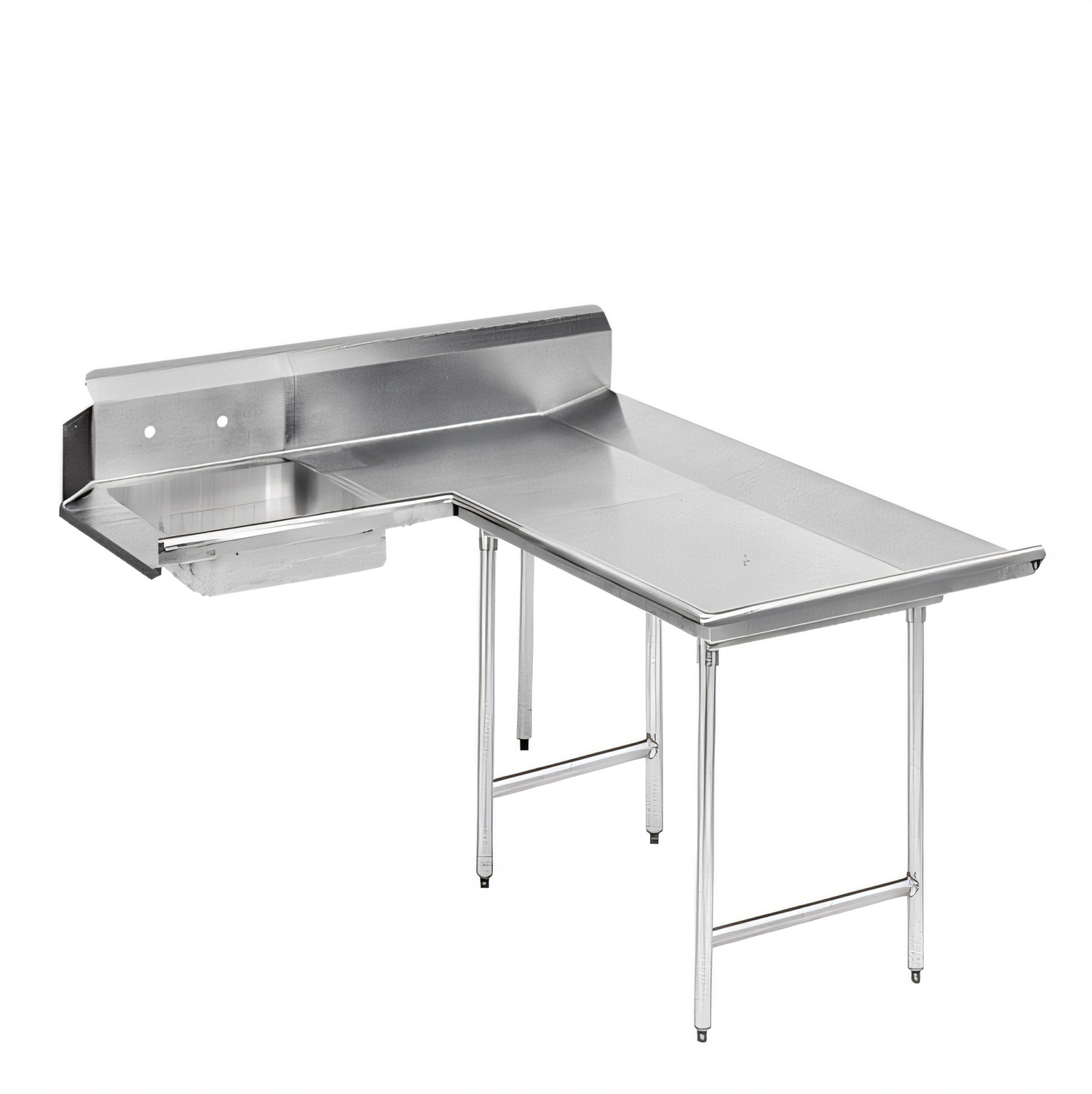

Advance Tabco Spec-Line Dishlanding Soil Dishtable – 119" Right-Side “L”

Model DTS-D30-120R | 14 ga. 304 Stainless Steel Top

Turn chaotic dish drops into a smooth, one-step workflow. This heavy-duty L-shaped soil dishtable lands racks, collects scraps, and feeds your dish machine from the operator’s right side—all while protecting walls and keeping floors dry.

Why You’ll Love It

  • 14 ga. 304 stainless steel top with sanitary tile edge for fast, flush installation.
  • Oversized 10 ½" backsplash with 2" return stops overspray and debris.
  • Integrated 20" × 20" × 8" pre-rinse sink bowl in the soil section.
  • Prerinse basket included for efficient scrap capture (slide bar ships when disposer adapter K-461 or K-461A is ordered).
  • 1 ⅝" O.D. 16 ga. stainless steel legs with welded crossrails (front-to-back) and stainless steel bullet feet.
  • All TIG-welded construction; seams are blended to a smooth, easy-clean satin finish.
  • Faucet holes pre-punched on 8" centers (faucet sold separately).
  • 1-½" IPS basket-type waste drain included.
  • NSF listed & proudly made in the USA.

Dimensions & Specs

Overall Length 119" (10 ft)

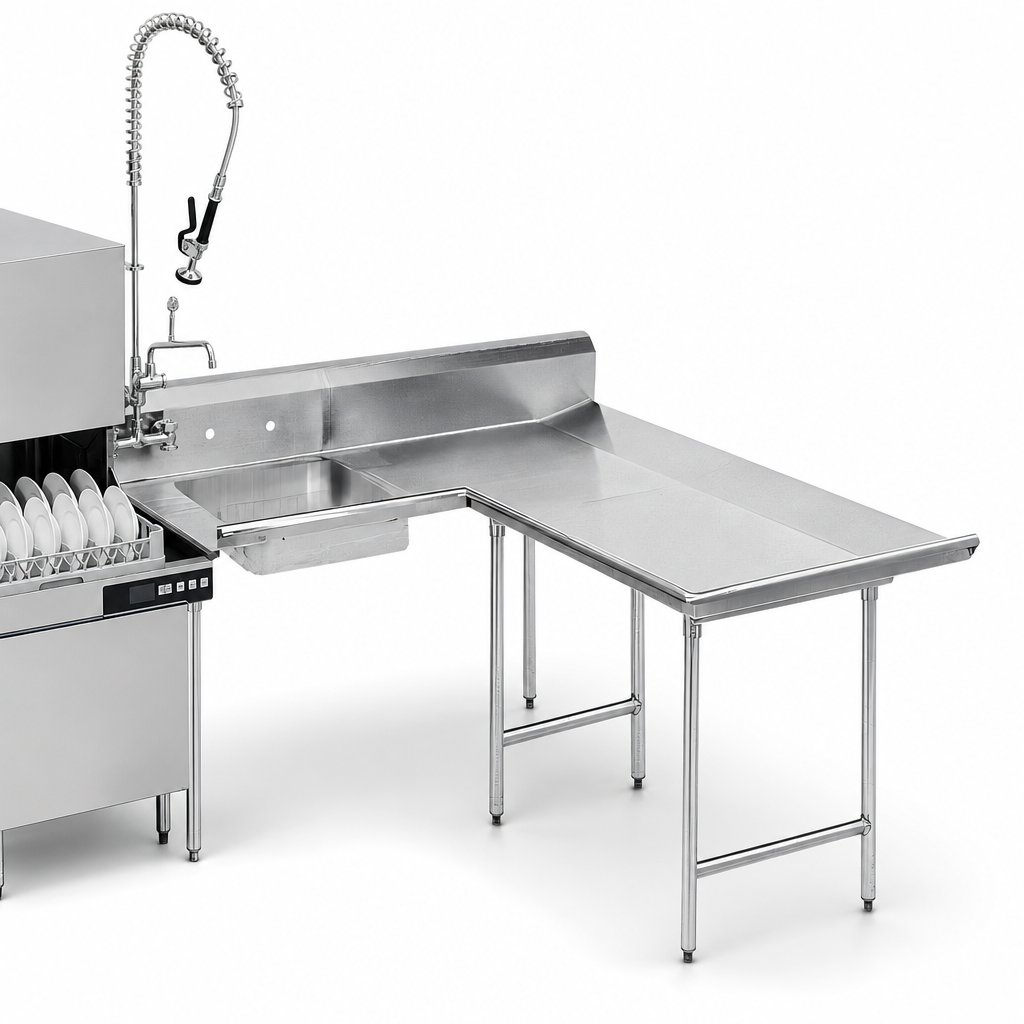

Configuration Right-side “L” – attaches to operator’s right
Work Height 34" to tabletop / 37" to rolled rim
Backsplash Height 10 ½" with 2" return
Sink Bowl Size 20" × 20" × 8" deep
Top Material & Gauge 14 ga. 304 stainless steel
Legs 1 ⅝" O.D. 16 ga. 304 stainless steel
Cross Bracing Welded stainless steel (front-to-back)
Drain 1-½" IPS basket type (included)
Approx. Shipping Weight 380 lb

Perfect For

  • High-volume restaurants, cafeterias & hotels
  • Institutional kitchens—schools, hospitals, corrections
  • Catering & banquet operations
Important: Always verify dish machine compatibility before ordering. Certain machines require additional clearances or Smart Fabrication™ modifications. The slide bar ships only when disposer adapter K-461 or K-461A is selected.

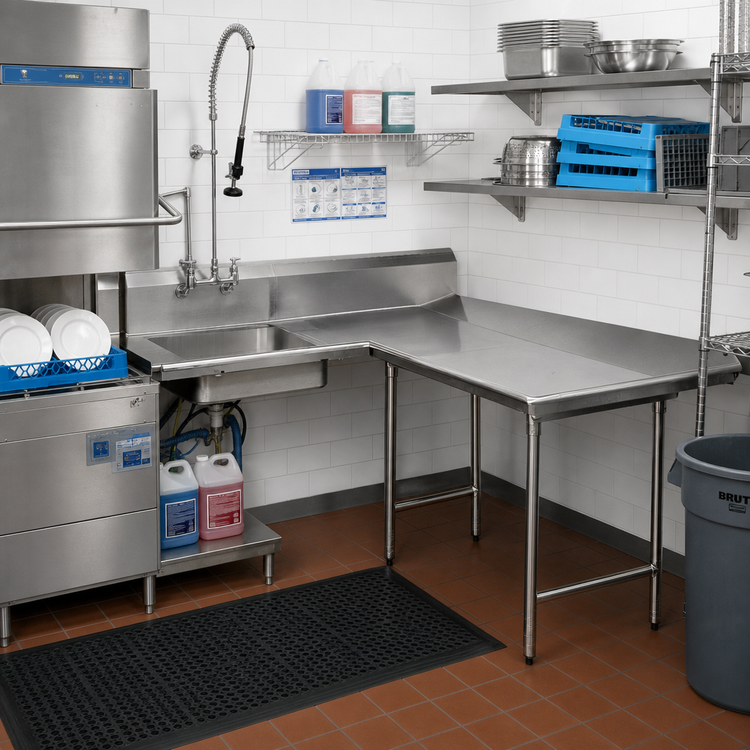

Prerinse faucet, disposer and dish machine shown in photos are sold separately.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

325.0lbs

Splash Height

10"H splash

Shape

corner

Stainless Gauge

14 gauge

Leg Type

stainless steel legs

Direction

right to left

Width (end - corner) OA

109" - 120"

Width (machine - corner) OA

61" - 72"

Stainless Series

300 series

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 119" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
