Advance Tabco  |  SKU: DTS-D30-108R

Advance Tabco DTS-D30-108R Compartment Sinks

$5,501.00
Delivered by , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Compatibility chart
Related Searches
Compartment Sinks Sinks & Handwashing Stations

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

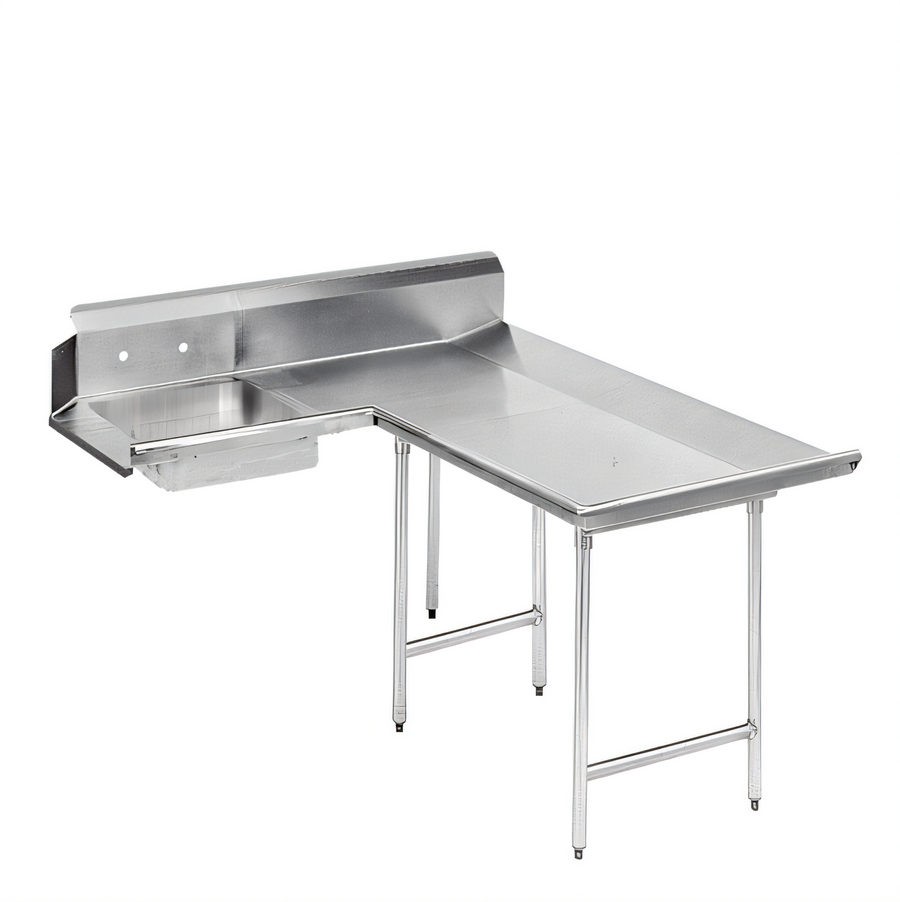

Advance Tabco Spec-Line L-Shaped Dishlanding Soil Dishtable – 107" Right-Hand

Model reference: 9 ft Spec-Line (Approx. 107" overall length)

Streamline the dirty-to-clean flow in your ware-washing area with Advance Tabco’s heavy-duty soil dishtable. Designed to mount on the operator’s right side, this 107" L-shaped unit delivers rugged construction, generous landing space, and an 8"-deep pre-rinse sink to keep racks moving and staff working safely.

Key Features

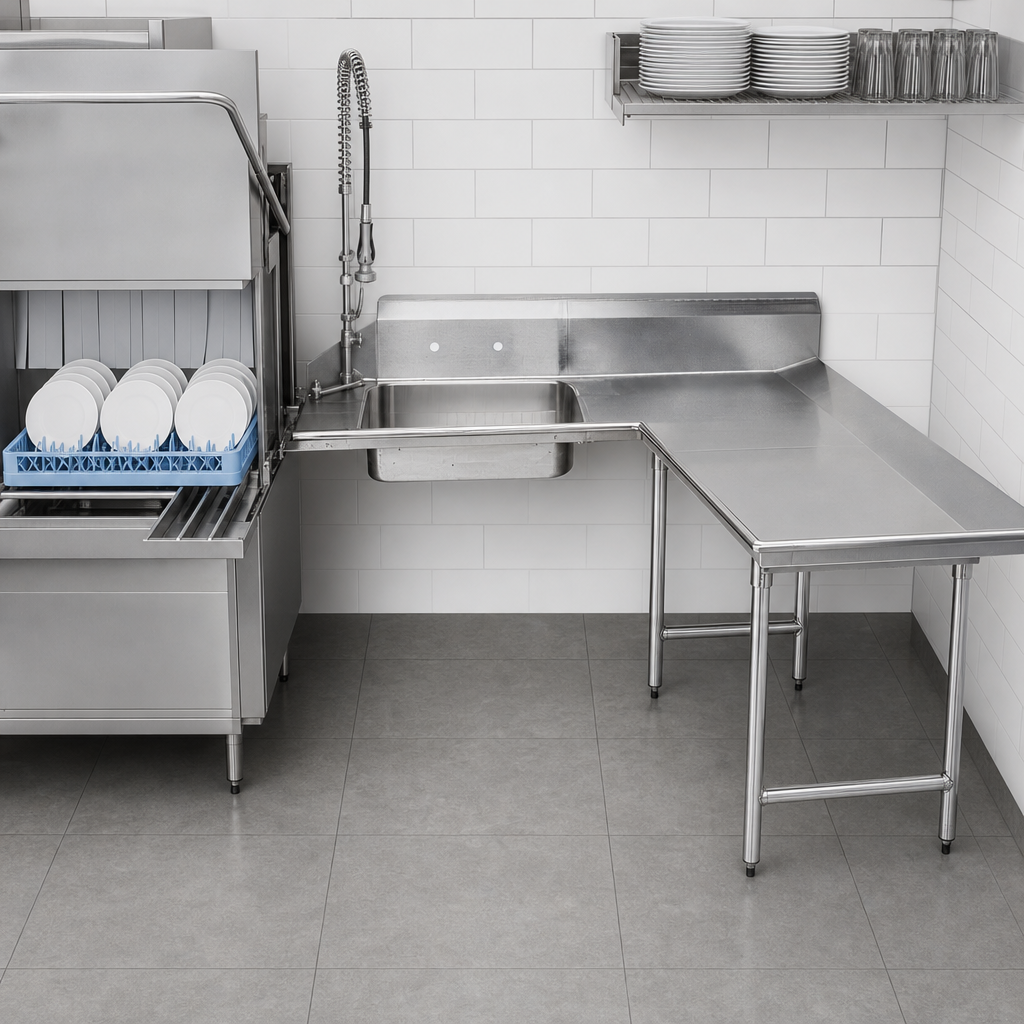

  • Right-hand configuration attaches directly to the dish machine for smooth, ergonomic workflow.
  • 14-gauge 304 stainless steel top with NEW tile-edge design for a flush, sanitary wall installation.
  • 10-1/2" extra-high backsplash with 2" return protects surrounding areas from splashes.
  • Integrated 20" × 20" × 8" pre-rinse sink bowl speeds removal of food soil.
  • Pre-rinse scrap basket included; slide bar ships when optional K-461 or K-461A disposer adapter is ordered.
  • 1-1/2" IPS basket-type waste drain supplied (no add-ons required).
  • TIG-welded seams ground and polished to a uniform satin finish.
  • 1 5/8" Ø, 16-gauge 304 stainless steel legs with welded front-to-back crossrails for extra rigidity.
  • Adjustable stainless steel bullet feet level the table on uneven floors.
  • NSF listed for open food-service use.

Technical Specifications

Overall length 107" (9 ft)
Layout L-shaped soil dishtable with landing shelf, right-hand
Top material 14-ga 304 stainless steel
Legs & bracing 16-ga 304 stainless steel legs, welded crossrails (front-to-back)
Backsplash 10-1/2" H with 2" tile-edge return
Sink bowl 20" W × 20" L × 8" D
Faucet holes Punched on 8" centers (faucet not included)
Drain connection 1-1/2" IPS basket-type
Approx. ship weight 320 lb

Perfect For

  • High-volume restaurants & cafeterias
  • Hotels, resorts & event venues
  • University & corporate dining facilities
  • Hospitals & long-term care kitchens

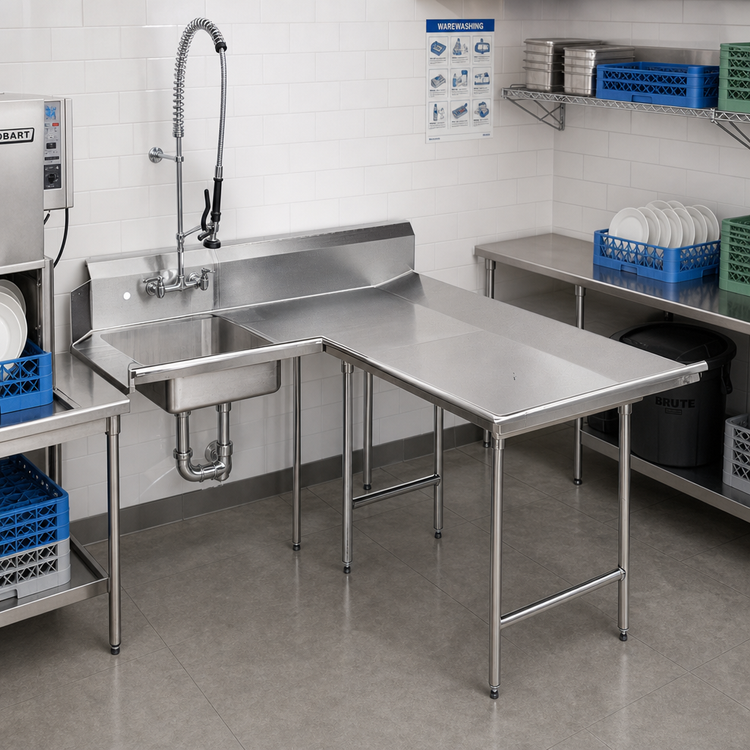

Important: Dish machine, faucet and disposer are shown for reference only and are sold separately.

Unsure about compatibility? Consult the Advance Tabco Dish Machine Compatibility Chart or speak with our specialists before ordering.

Features & Specs

Manufacturer

Advance Tabco

Height

44.0in

Shipping Weight

305.0lbs

Leg Type

stainless steel legs

Splash Height

10"H splash

Shape

corner

Width (machine - corner) OA

61" - 72"

Stainless Series

300 series

Direction

right to left

Width (end - corner) OA

97" - 108"

Stainless Gauge

14 gauge

Specifications

Dishlanding-Soil Dishtable, L-shaped with landing, attaches to right of dish machine operator, 10-1/2"H backsplash, with pre-rinse sink, stainless steel legs with crossrails front to back, 107" long, 14/304 stainless steel, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified)
